Toyota Lexus Lfa
2010-12 → 2012-12 · chassis LFA10 · catalogue 481210 · General
Supported model
Data version 2013-01
Front Seat & Seat Track
48 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 71011S | Frame Sub-assy, Front Seat Cushion, RH |
| 71012S | Frame Sub-assy, Front Seat Cushion, LH |
| 71013S | Frame Sub-assy, Front Seatback, RH |
| 71014S | Frame Sub-assy, Front Seatback, LH |

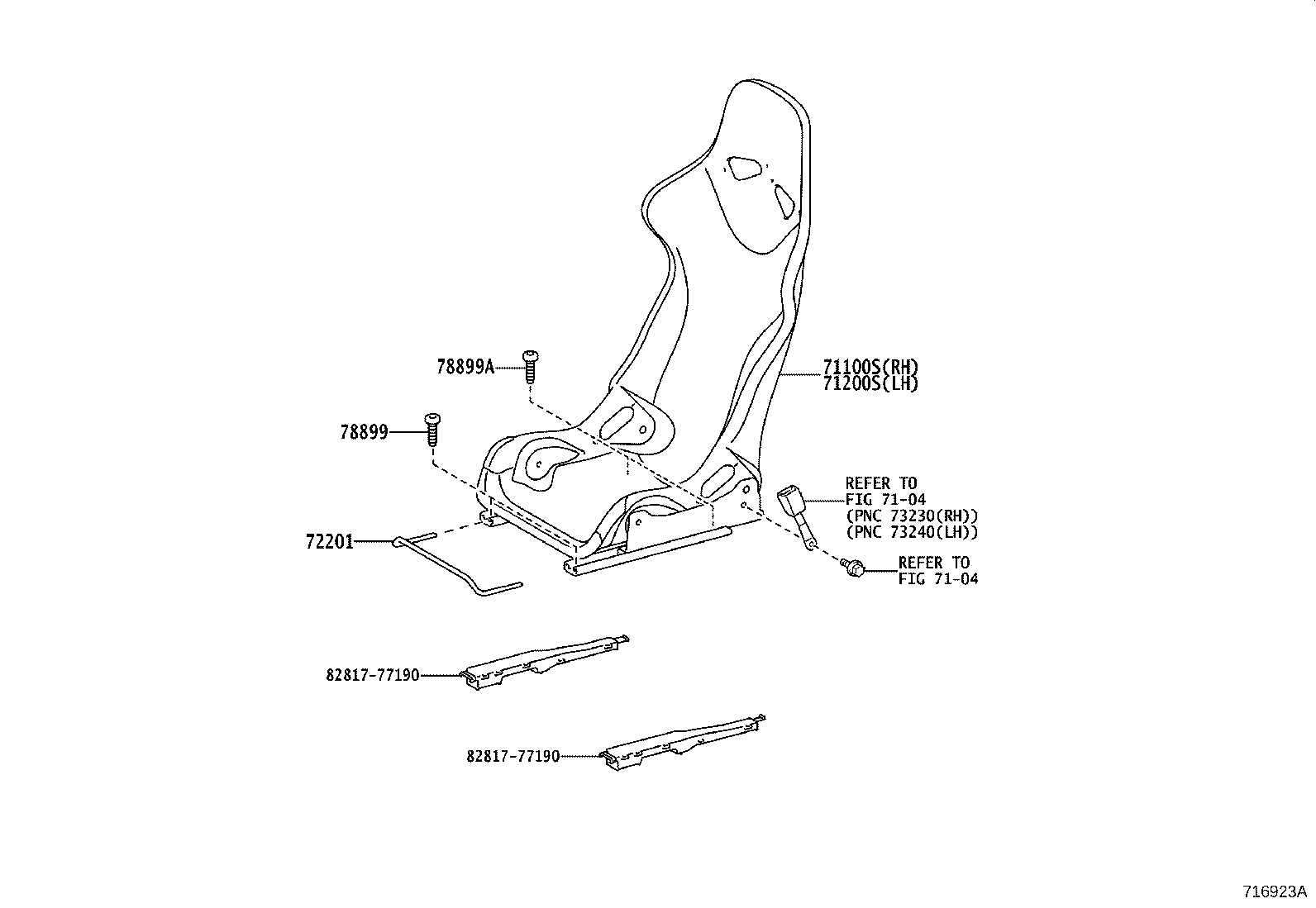

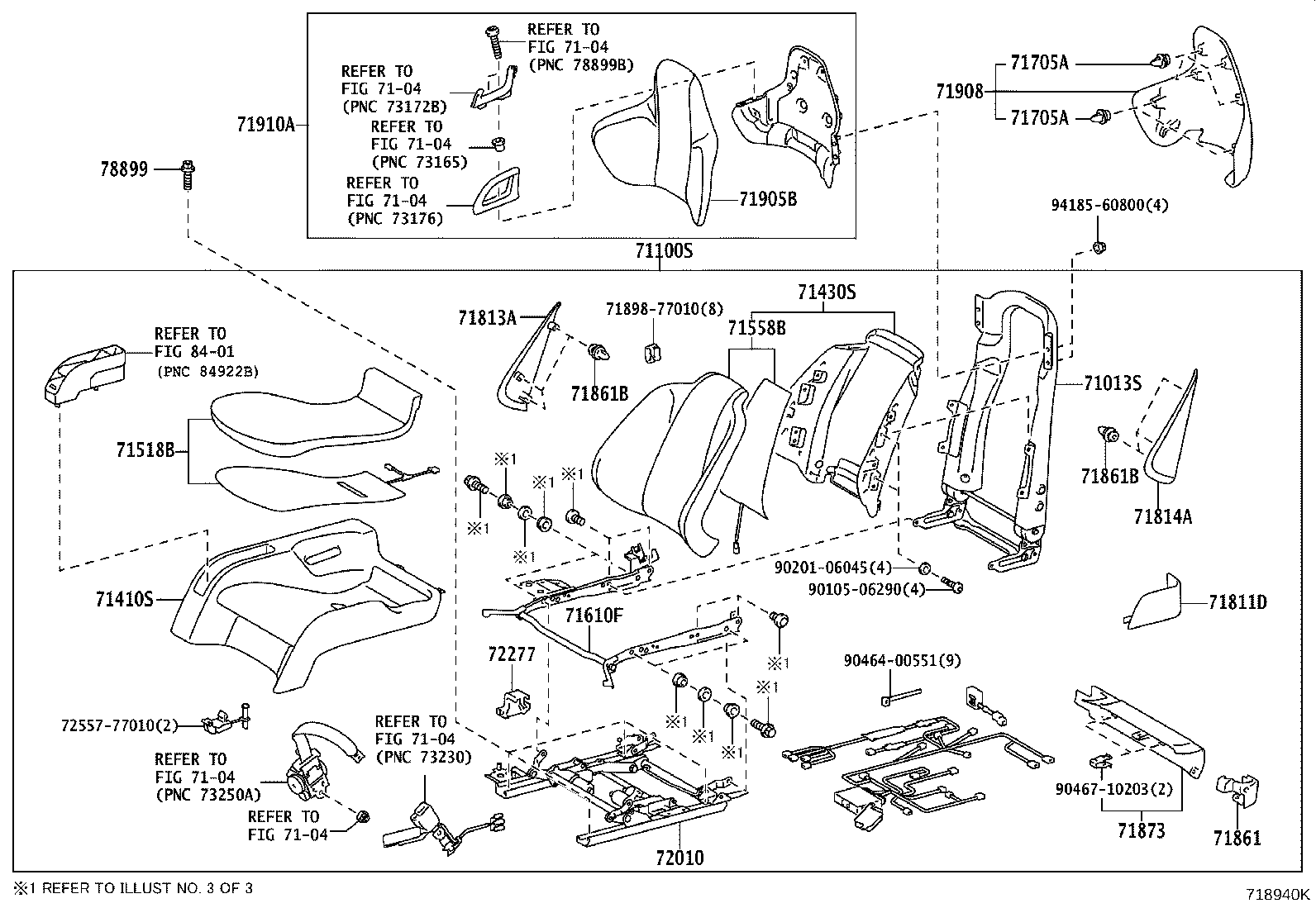

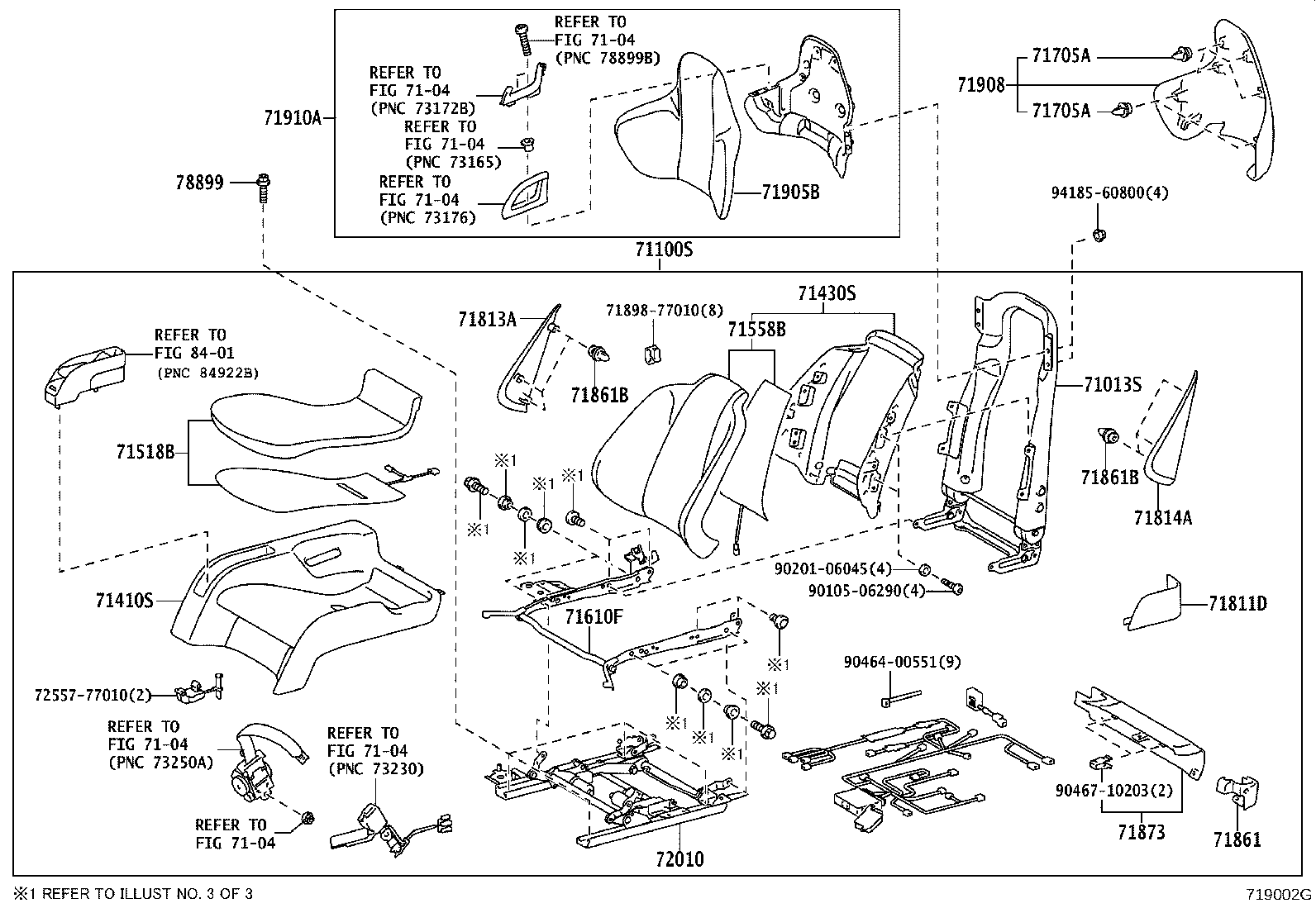

| 71100S | Seat Assy, Front RH |
| 71150A | Frame Assy, Front Seatback, Lower RH |
| 71160A | Frame Assy, Front Seatback, Lower LH |

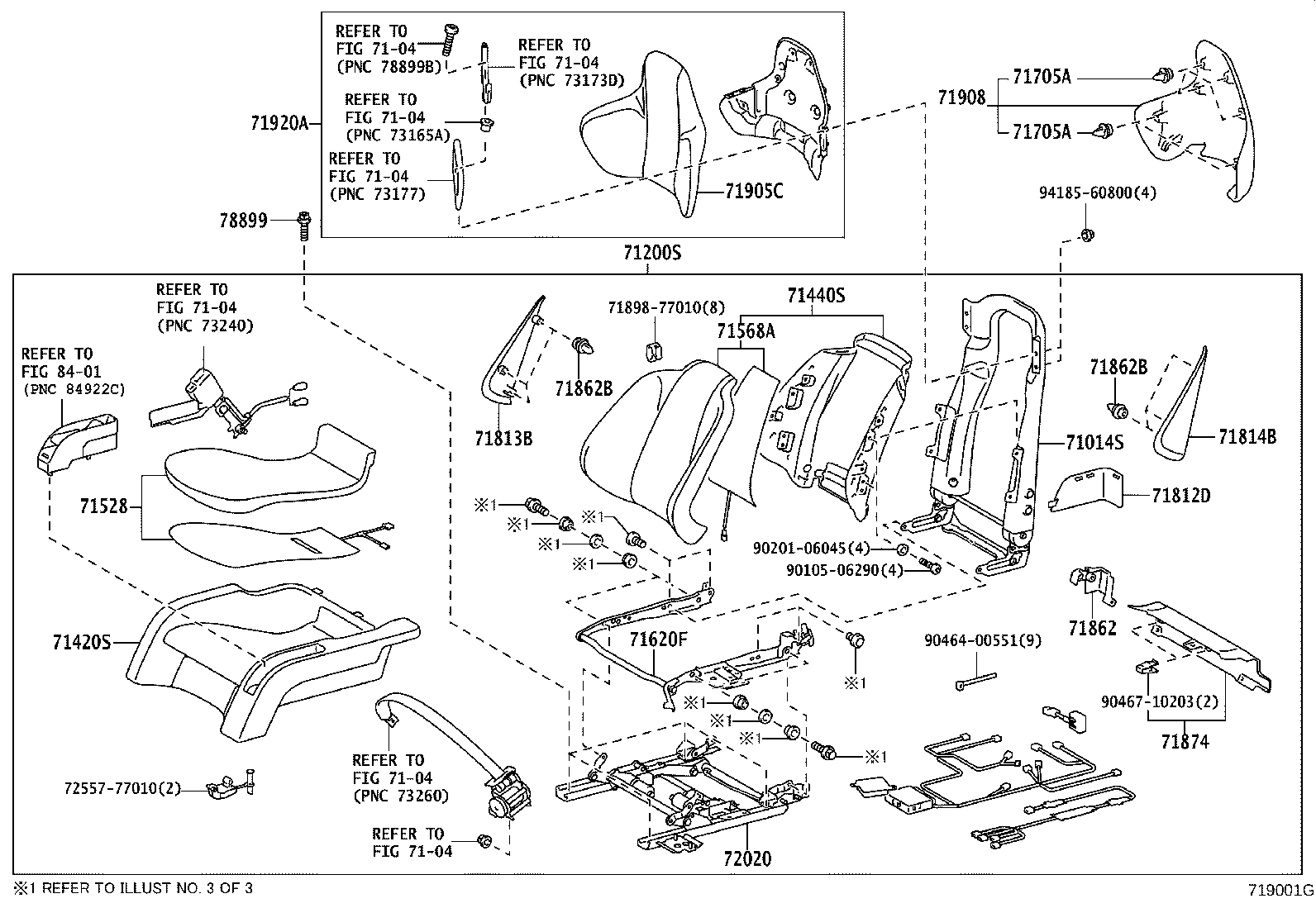

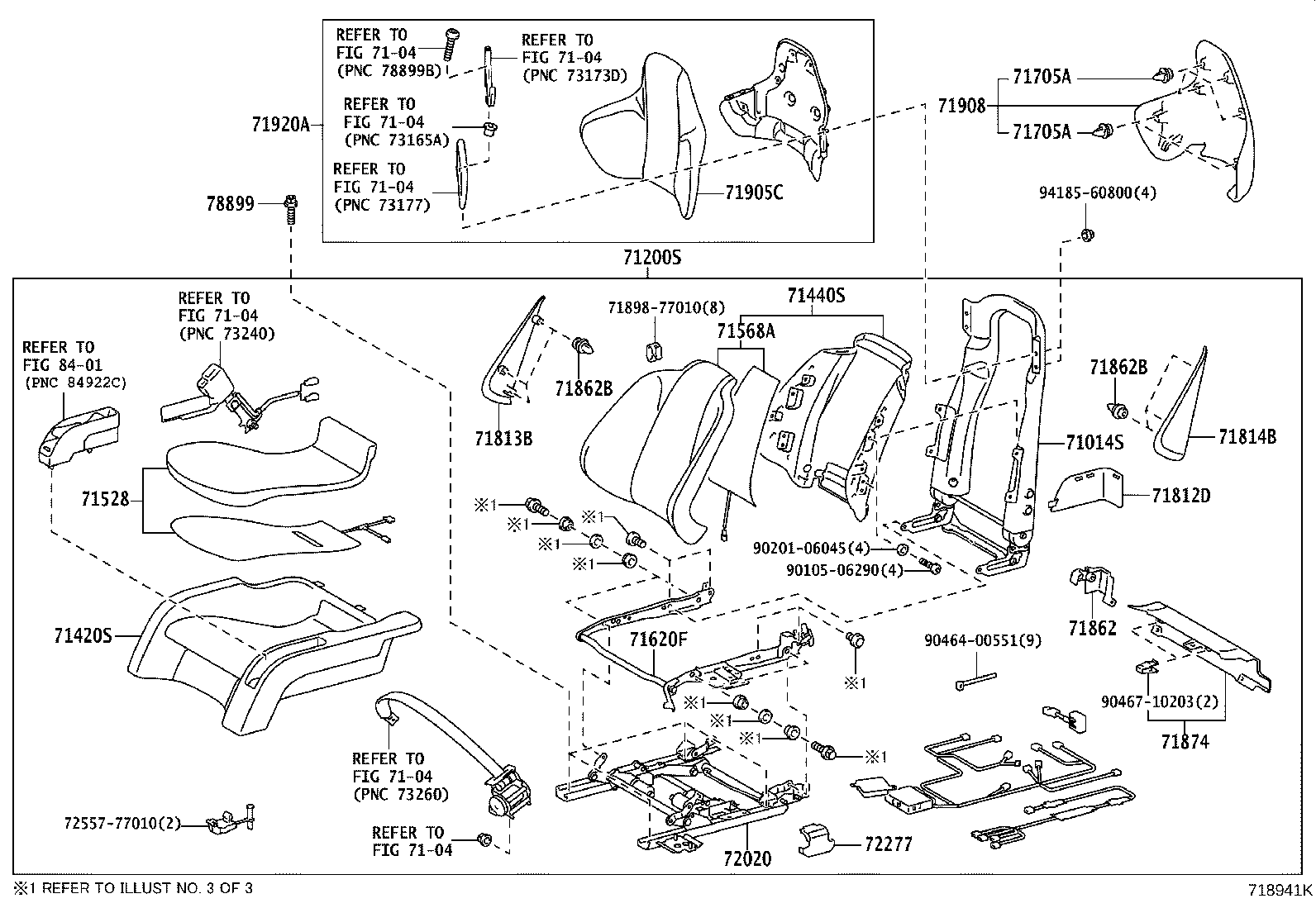

| 71200S | Seat Assy, Front LH |
| 71410S | Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71420S | Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE) |
| 71430S | Back Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71440S | Back Assy, Front Seat, LH(FOR SEPARATE TYPE) |
| 71518B | Pad, Front Seat Cushion W/Cover, RH |
| 71528 | Pad, Front Seat Cushion W/Cover, LH |
| 71558B | Pad, Front Seatback W/Cover, RH |
| 71568A | Pad, Front Seatback W/Cover, LH |
| 71610F | Frame Sub-assy, Front Seat Cushion, RH |
| 71620F | Frame Sub-assy, Front Seat Cushion, LH |
| 71705A | Clip(FOR FRONT SEATBACK BOARD) |
| 71811D | Shield, Front Seat Cushion, RH |
| 71812D | Shield, Front Seat Cushion, LH |
| 71813A | Shield, Front Seatback, RH |
| 71813B | Shield, Front Seatback, RH |
| 71814A | Shield, Front Seatback, LH |
| 71814B | Shield, Front Seatback, LH |
| 71861 | Shield, Front Seat Cushion, Inner RH |
| 71861B | Clip(FOR FRONT SEAT SHIELD, RH) |
| 71862 | Shield, Front Seat Cushion, Inner LH |
| 71862B | Clip(FOR FRONT SEAT SHIELD, LH) |
| 71873 | Shield, Front Seat Cushion, Lower RH |
| 71874 | Shield, Front Seat Cushion, Lower LH |
| 71905B | Pad, Front Seat Headrest W/Cover, RH |
| 71905C | Pad, Front Seat Headrest W/Cover, LH |
| 71908 | Cover Sub-assy, Front Seat Headrest |
| 71910A | Headrest Assy, Front Seat |
| 71920A | Headrest Assy, Front Seat, LH |
| 72010 | Adjuster Assy, Front Seat, RH |
| 72020 | Adjuster Assy, Front Seat, LH |
| 72201 | Handle Sub-assy, Seat Track |
| 72277 | Protector, Seat Slide Position Sensor, |

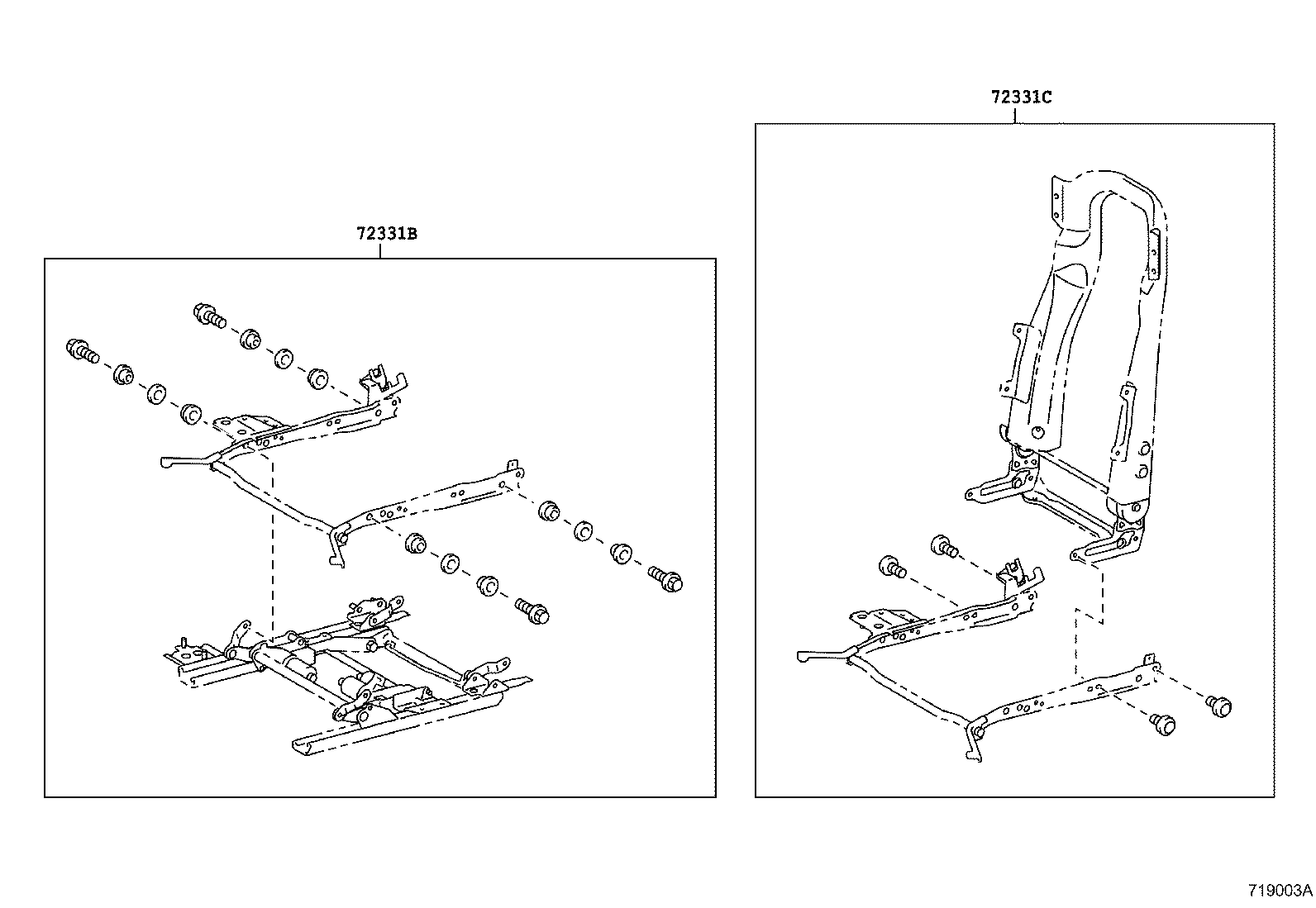

| 72331B | Fitting Parts Kit, Front Seat Adjuster |
| 72331C | Fitting Parts Kit, Front Seatback Frame |
| 72991 | Cover, Front Seat Cushion, RH |
| 72992 | Cover, Front Seat Cushion, LH |
| 72993 | Cover, Front Seatback |
| 72994 | Cover, Front Seatback |
| 78899 | Bolt, Front Seat |
| 78899A | Bolt, Front Seat |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
