Toyota Picnic/Avensis Verso

2001-05 → 2009-12 · chassis ACM20,CLM20 · catalogue 511220 · General

Discontinued model Data version 2010-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 8 illustrations

Illustrations

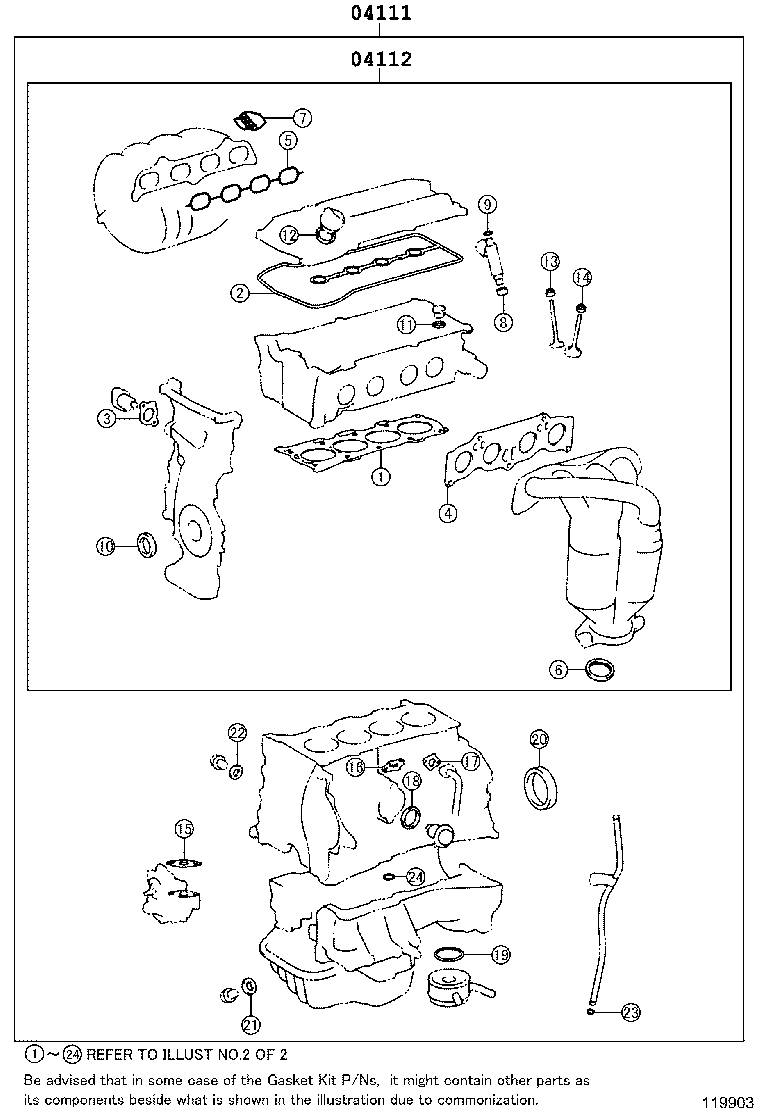

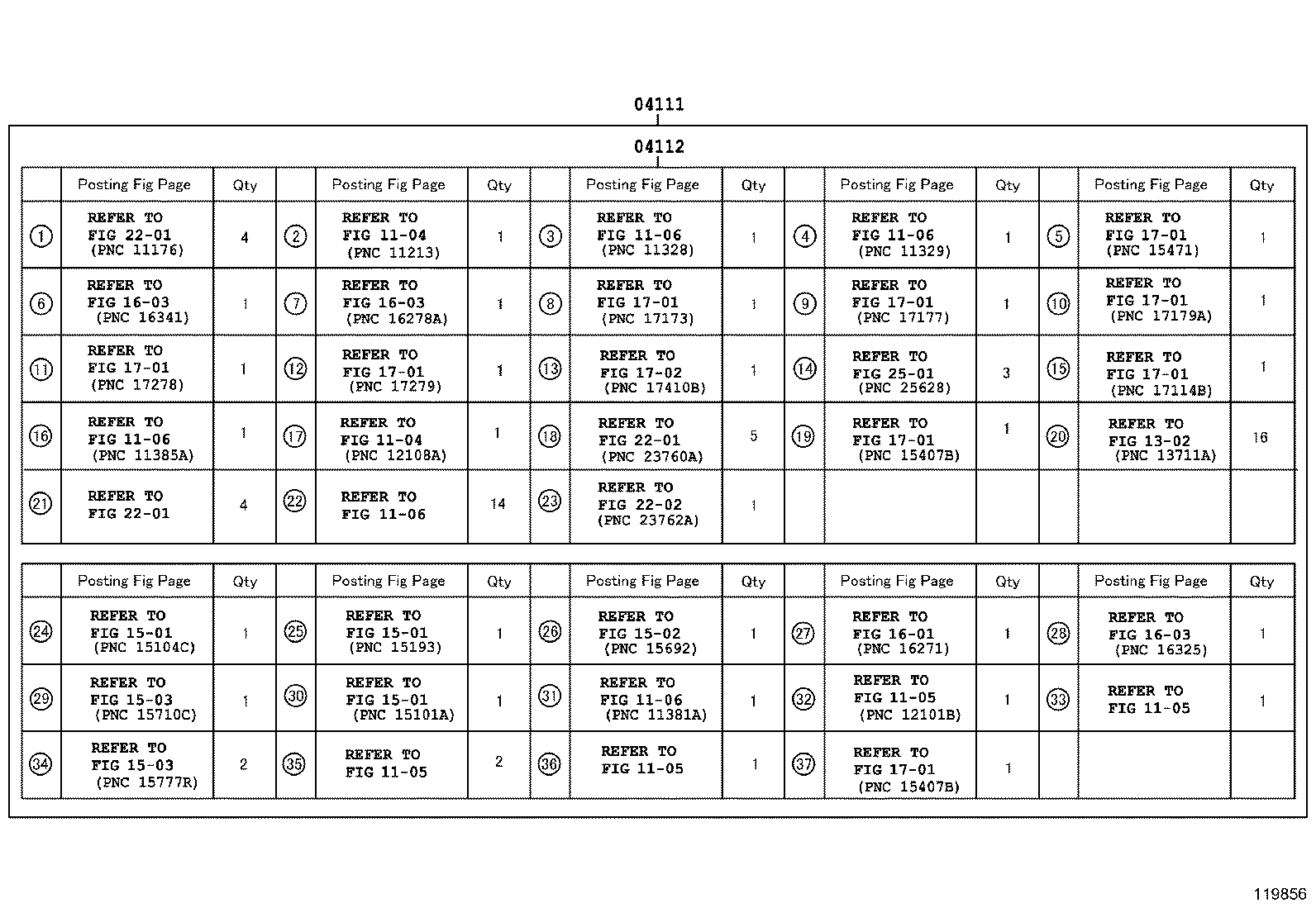

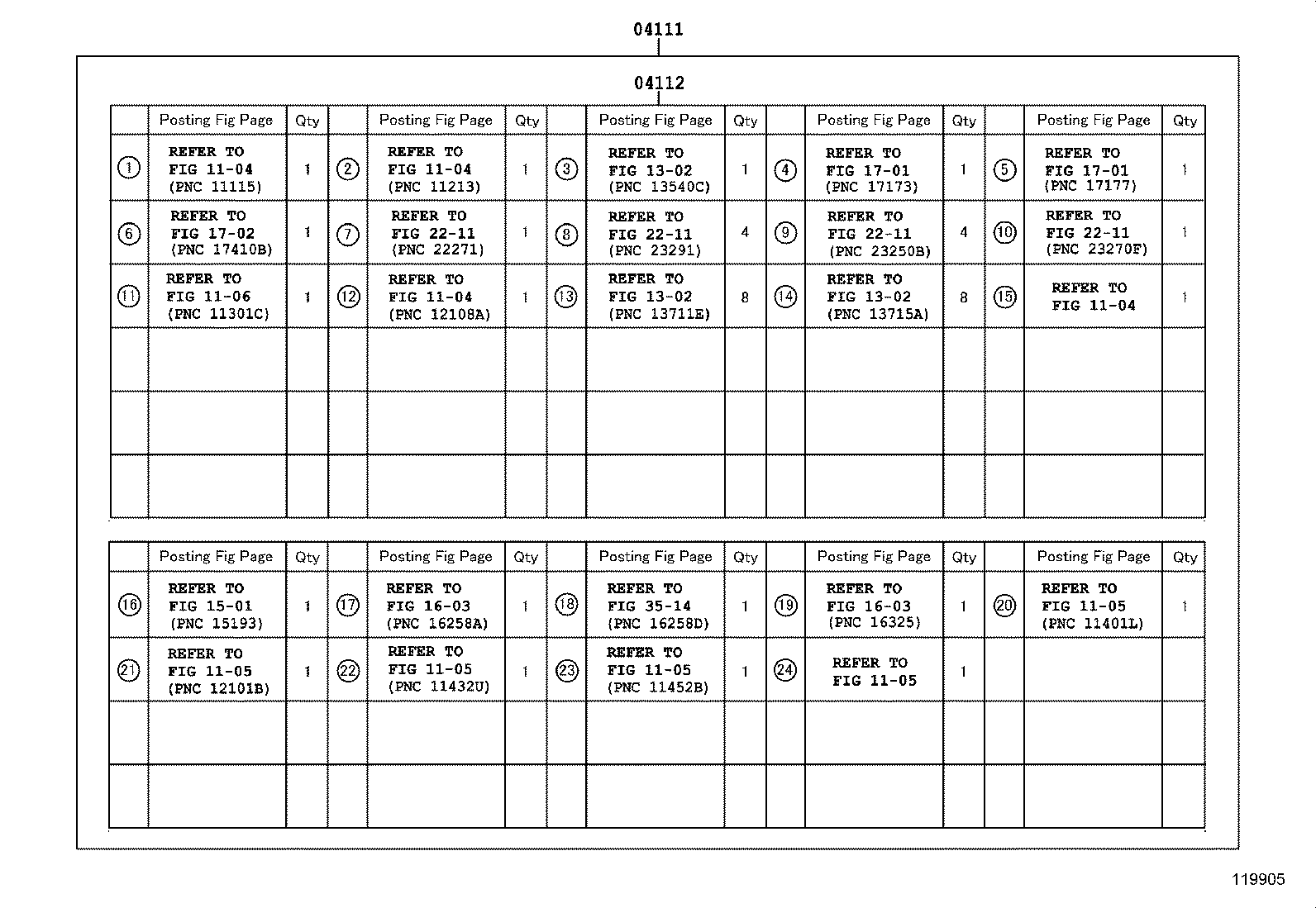

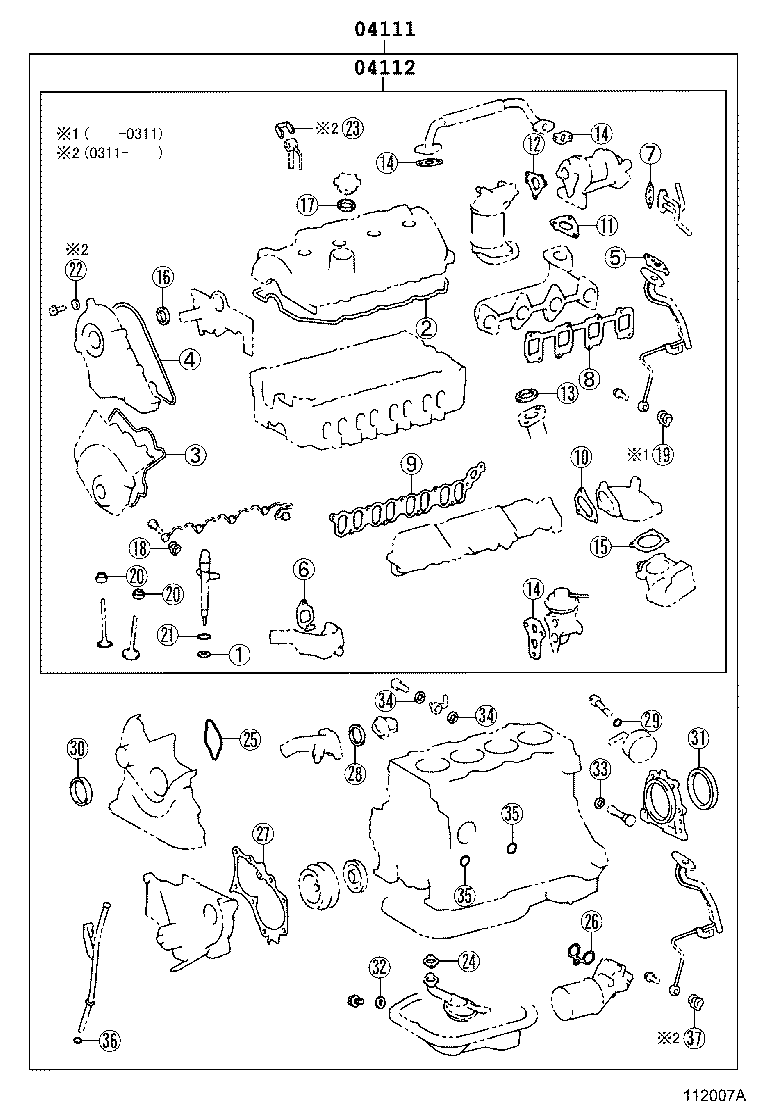

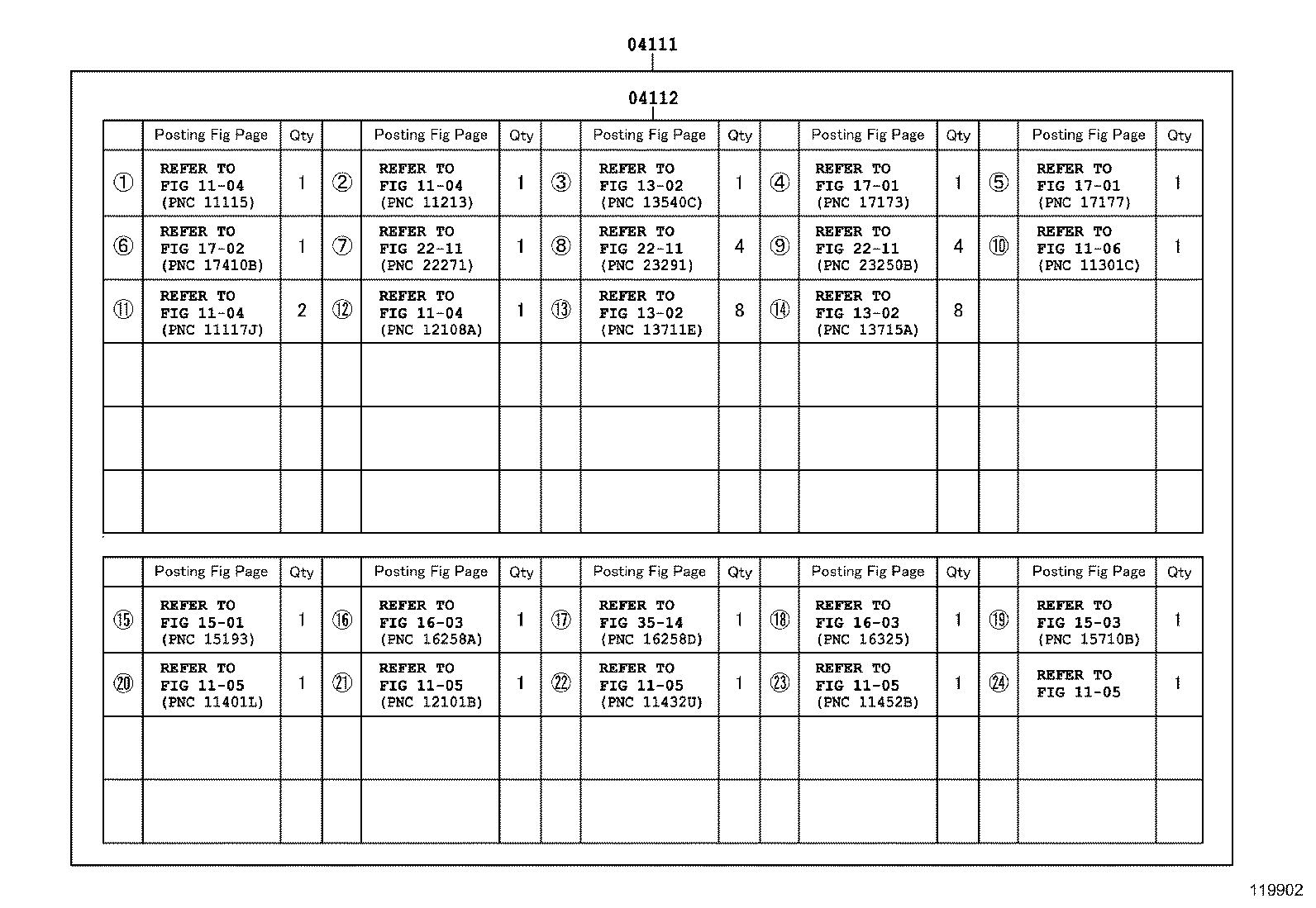

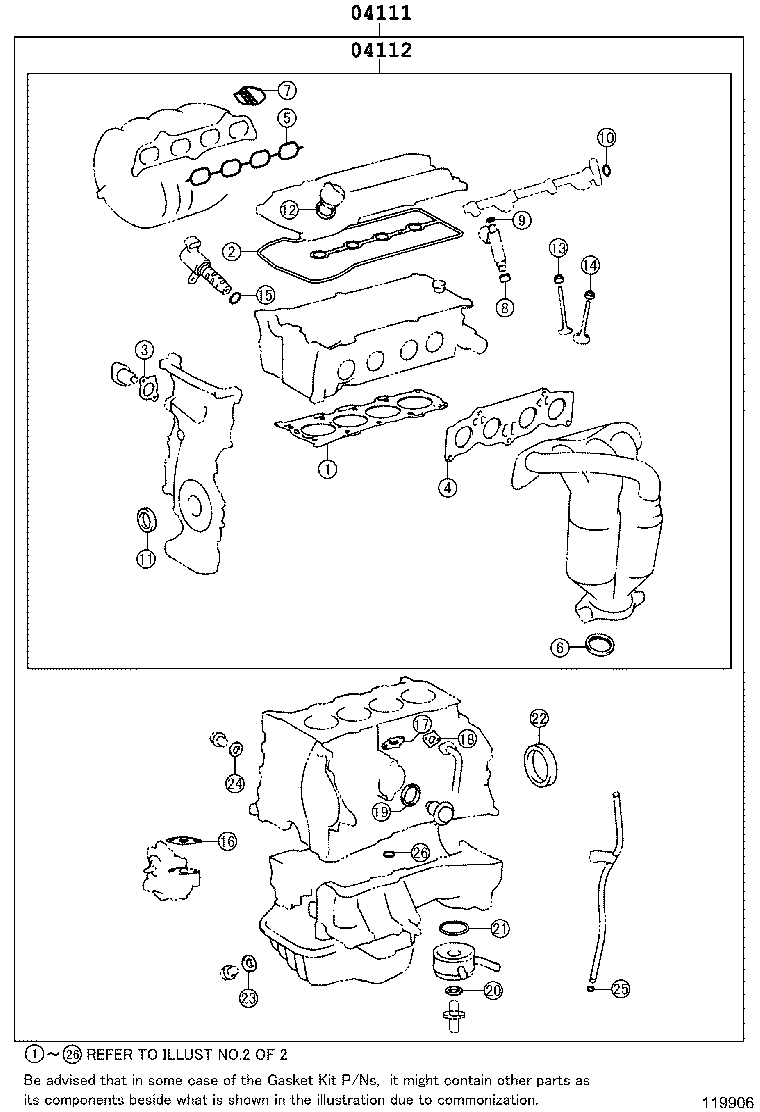

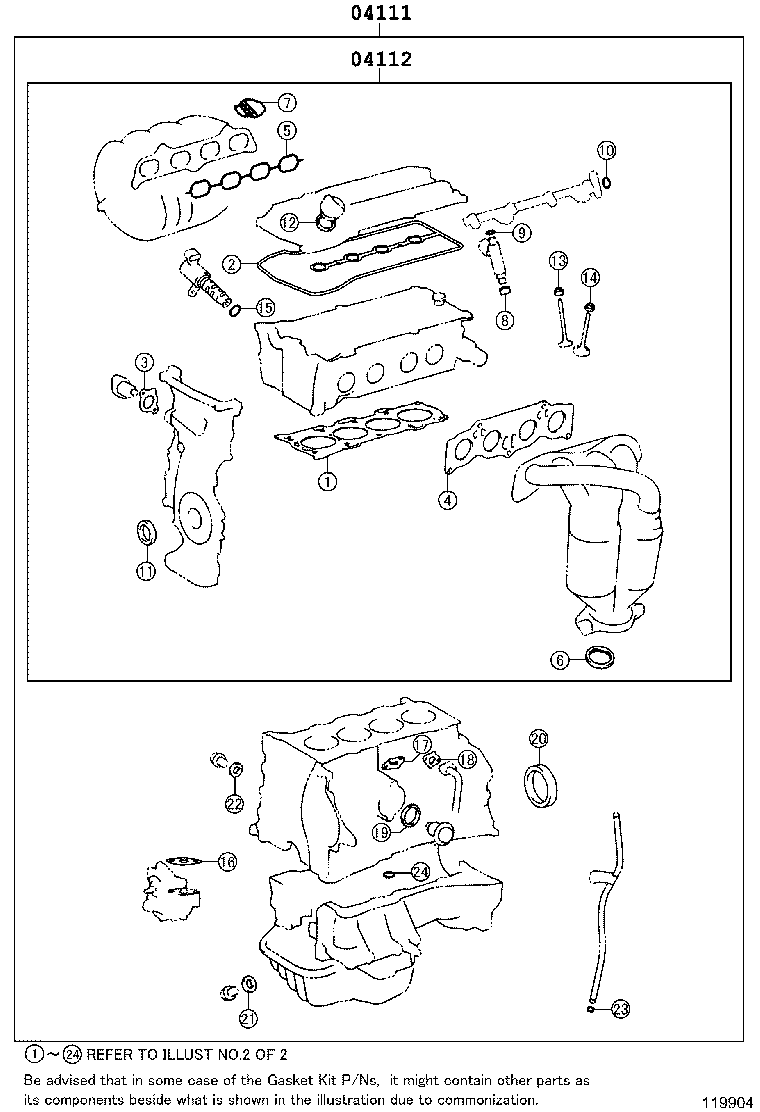

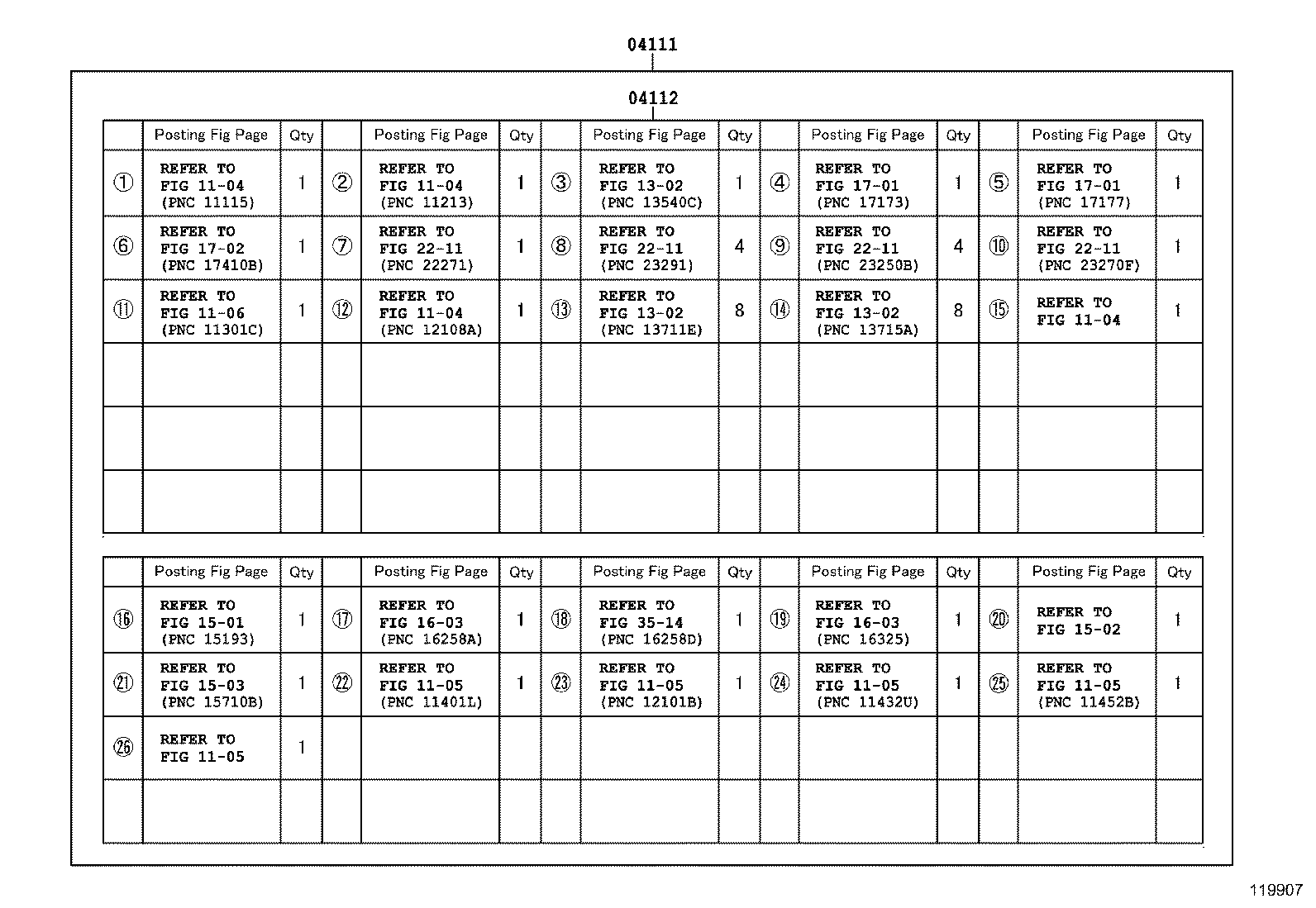

Figure 119903 119903 2001-05 → 2003-11 Figure 119902 119902 2001-05 → 2003-11 Figure 119904 119904 2003-11 → — Figure 119905 119905 2003-11 → — Figure 119906 119906 2003-10 → — Figure 119907 119907 2003-10 → — Figure 112007A 112007A 2001-05 → — Figure 119856 119856 2001-05 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
