Toyota Picnic/Avensis Verso
2001-05 → 2009-12 · chassis ACM20,CLM20 · catalogue 511220 · General
Discontinued model
Data version 2010-04

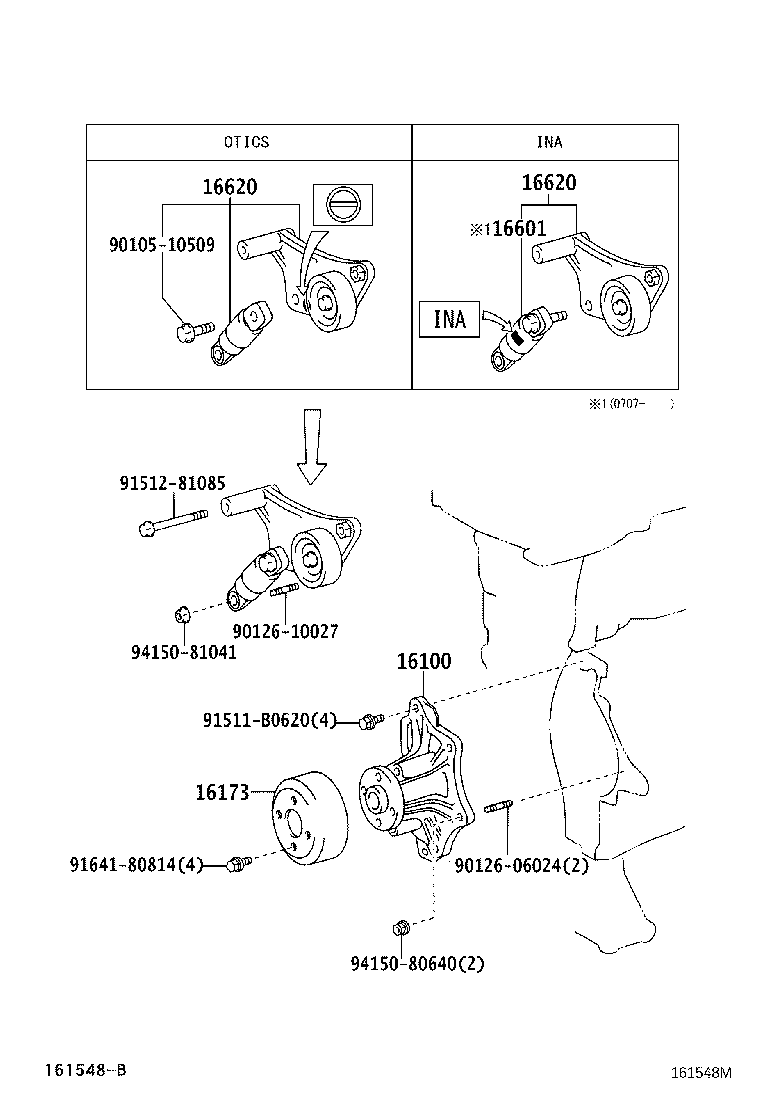

Water Pump
7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 16100 | Pump Assy, Engine Water |
| 16100A | Plug, Water Pump |
| 16100B | Pin, Ring(FOR WATER PUMP SET) |
| 16173 | Pulley, Water Pump |
| 16271 | Gasket, Water Pump |
| 16601 | Tensioner Sub-assy, V-ribbed Belt |
| 16620 | Tensioner Assy, V-ribbed Belt |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
