Toyota Picnic/Avensis Verso

2001-05 → 2009-12 · chassis ACM20,CLM20 · catalogue 511220 · General

Discontinued model Data version 2010-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

25 part groups · 2 illustrations

Illustrations

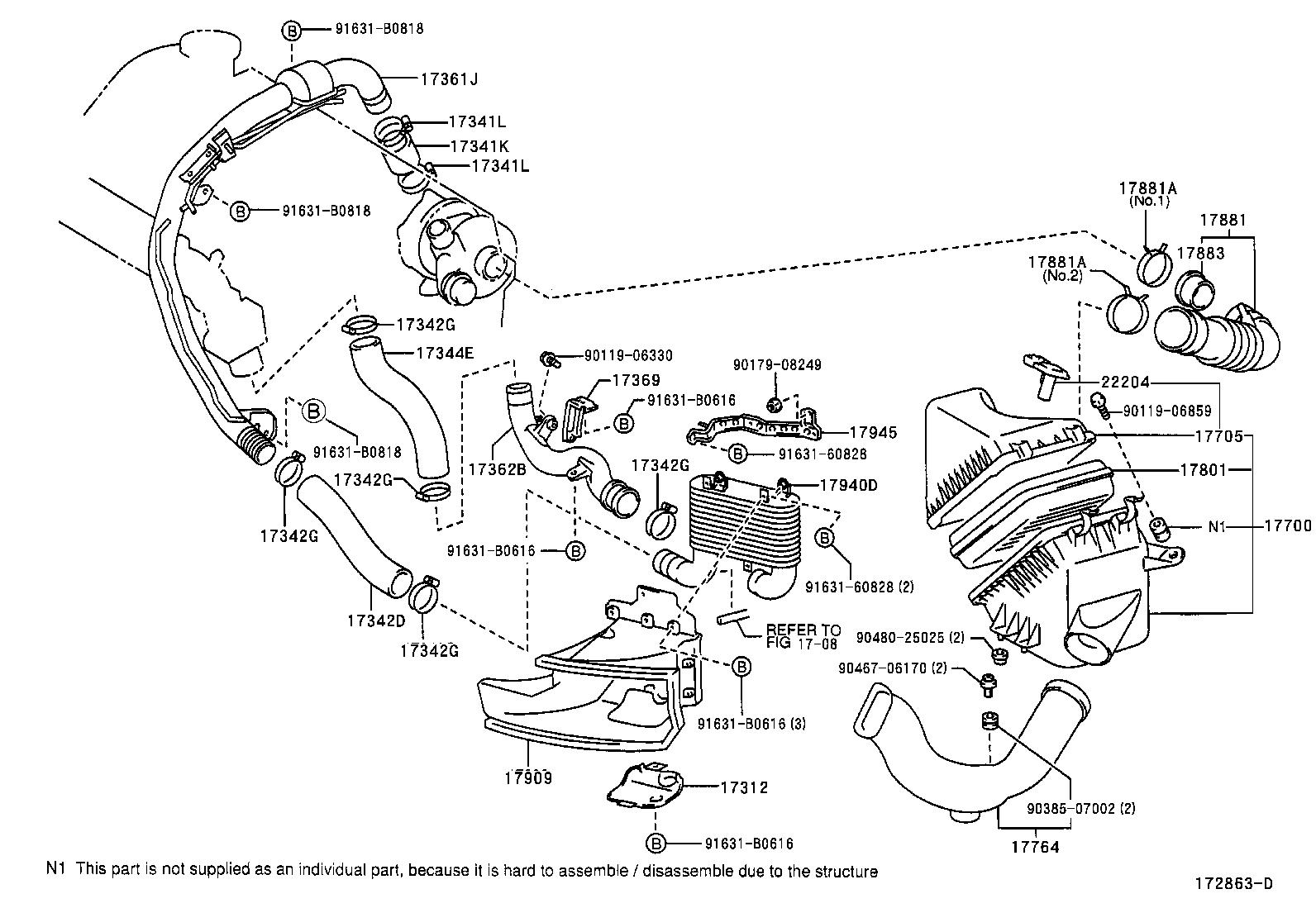

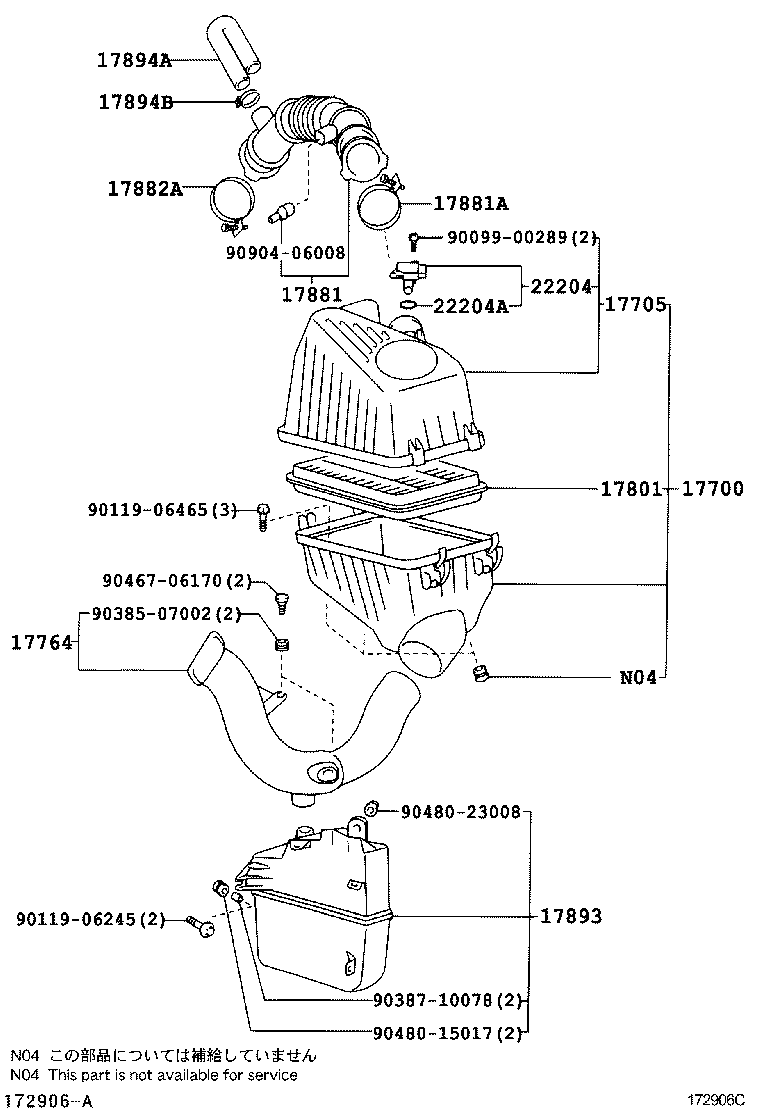

Figure 172906C 172906C 2001-05 → — Figure 172863D 172863D 2001-05 → —

Part groups

PNCDescription
17312 Duct, Air Inlet, NO.2
17341K Hose, Air, NO.1(FOR INTERCOOLER)
17341L Clamp, Hose
17342D Hose, Air, NO.2
17342G Clamp, Hose, NO.2(FOR INTERCOOLER)
17344E Hose, Air, NO.4
17361J Tube, Air, NO.1
17362B Tube, Air, NO.2
17369 Bracket, Air Tube Support
17700 Cleaner Assy, Air
17705 Cap Sub-assy, Air Cleaner
17764 Duct, Air Cleaner
17801 Element Sub-assy, Air Cleaner Filter
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17883 Hose, Air Cleaner, NO.3
17893 Resonator, Intake Air
17894A Resonator, Intake Air, NO.2
17894B Clamp, Hose(FOR INTAKE AIR RESONATOR, NO.2)
17909 Duct Sub-assy, Intercooler Cooling Air
17940D Intercooler Assy
17945 Bracket, Intercooler Support
22204 Meter Sub-assy, Intake Air Flow
22204A Ring, O(FOR INTAKE AIR FLOW METER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
