Toyota Picnic/Avensis Verso
2001-05 → 2009-12 · chassis ACM20,CLM20 · catalogue 511220 · General
Discontinued model
Data version 2010-04

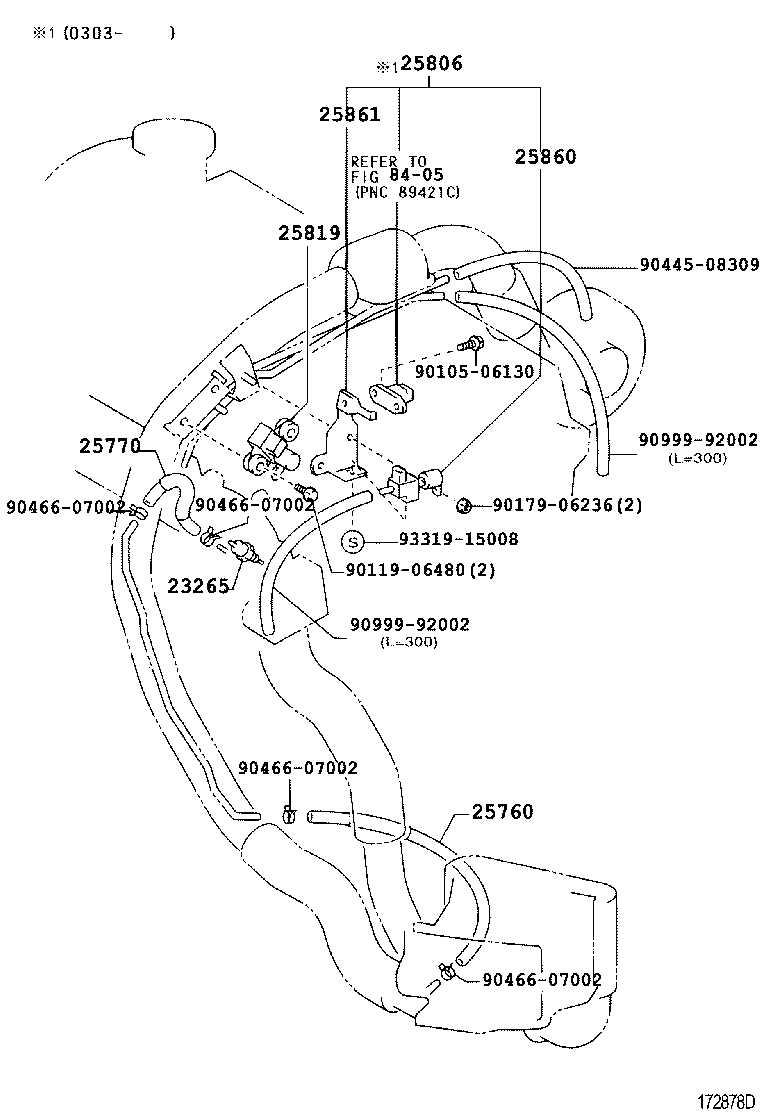

Vacuum Piping
11 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 23265 | Filter, Gas, NO.1 |
| 23826 | Hose, Fuel Vapor Feed, NO.1 |
| 23827A | Hose, Fuel Vapor Feed, NO.2 |
| 23830 | Hose Assy, Fuel Vapor Feed, NO.2 |
| 25719 | Tank, Vacuum Surge |
| 25760 | Hose Assy, Vacuum Transmitting |
| 25770 | Hose Assy, Vacuum Transmitting, NO.2 |
| 25806 | Valve Set, Pressure Control |
| 25819 | Valve Assy, Vacuum Regulating |
| 25860 | Valve Assy, Vacuum Switching, NO.1 |
| 25861 | Bracket, Vacuum Switching Valve |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
