Toyota Picnic/Avensis Verso

2001-05 → 2009-12 · chassis ACM20,CLM20 · catalogue 511220 · General

Discontinued model Data version 2010-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Shift Lever & Retainer

16 part groups · 2 illustrations

Illustrations

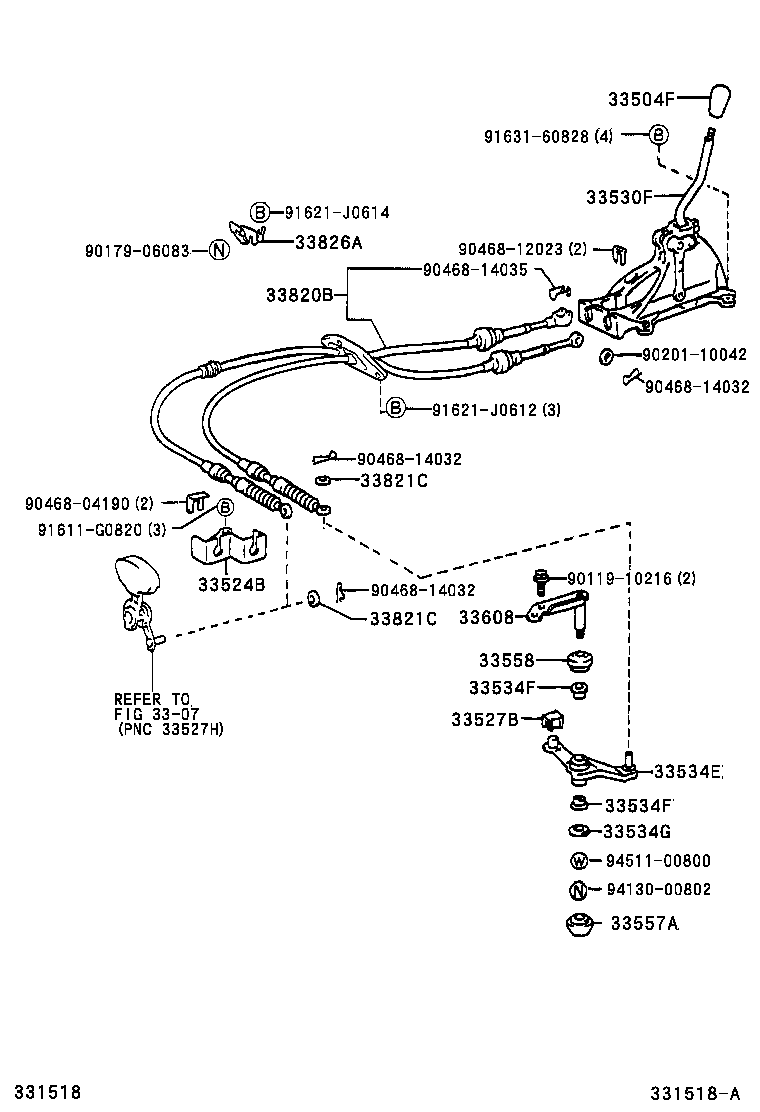

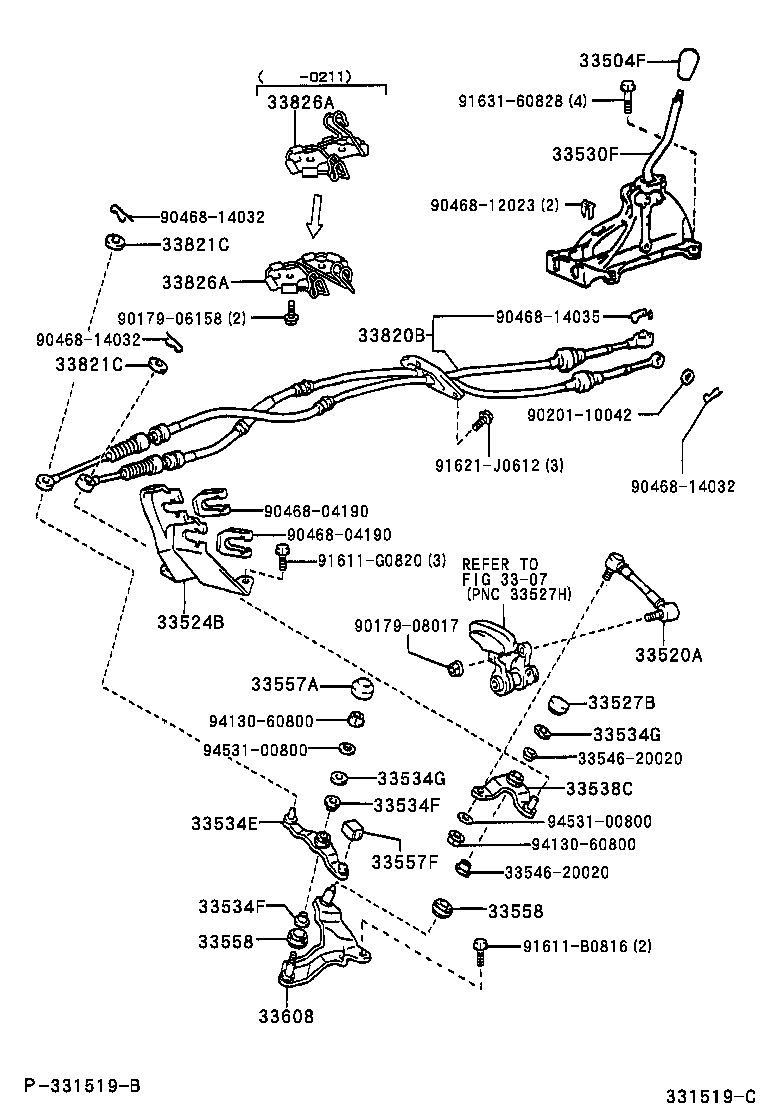

Figure 331518A 331518A 2001-05 → — Figure 331519C 331519C 2001-05 → —

Part groups

PNCDescription
33504F Knob Sub-assy, Shift Lever
33520A Shaft Assy, Floor Shift Control
33524B Bracket, Control Cable
33527B Bush (FOR CONTROL SHIFT LEVER)
33530F Lever Assy, Shift (FOR FLOOR SHIFT)
33534E Crank, Selecting Bell, NO.2
33534F Bush (FOR SELECTING BELLCRANK NO.2)
33534G Washer, Plate (FOR SELECTING BELLCRANK NO.2)
33538C Crank, Shifting Bell
33557A Cover, Selecting Bellcrank Dust, NO.1
33557F Cover, Control Bellcrank Dust (FOR FLOOR SHIFT)
33558 Cover, Selecting Bellcrank Dust, NO.2
33608 Support Sub-assy, Selecting Bellcrank
33820B Cable Assy, Transmission Control
33821C Washer, Plate (FOR TRANSMISSION CONTROL CABLE)
33826A Bracket, Transmission Control Cable, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
