Toyota Picnic/Avensis Verso
2001-05 → 2009-12 · chassis ACM20,CLM20 · catalogue 511220 · General
Discontinued model
Data version 2010-04

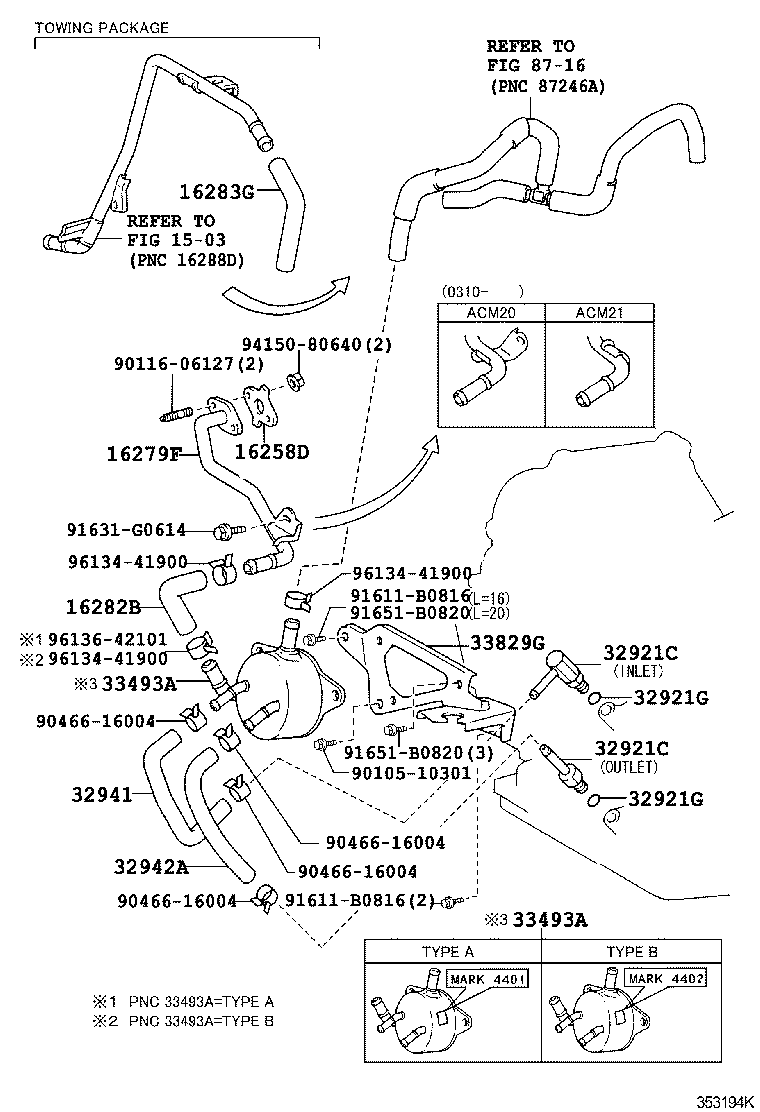

Oil Cooler & Tube (ATM)
10 part groups · 1 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 16258D | Gasket(FOR WATER BY-PASS PIPE) |
| 16279F | Pipe, Water By-pass, NO.3 |
| 16282B | Hose, Water By-pass, NO.5 |
| 16283G | Hose, Water By-pass, NO.6 |
| 32921C | Union(FOR OIL COOLER TUBE) |
| 32921G | Ring, O(FOR OIL COOLER TUBE UNION) |
| 32941 | Hose, Oil Cooler Inlet, NO.1 |
| 32942A | Hose, Oil Cooler Outlet, NO.2 |
| 33493A | Cooler, Transmission Oil(ATF WARMER) |
| 33829G | Support, Transmission Control Cable |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
