Toyota Picnic/Avensis Verso
2001-05 → 2009-12 · chassis ACM20,CLM20 · catalogue 511220 · General
Discontinued model
Data version 2010-04

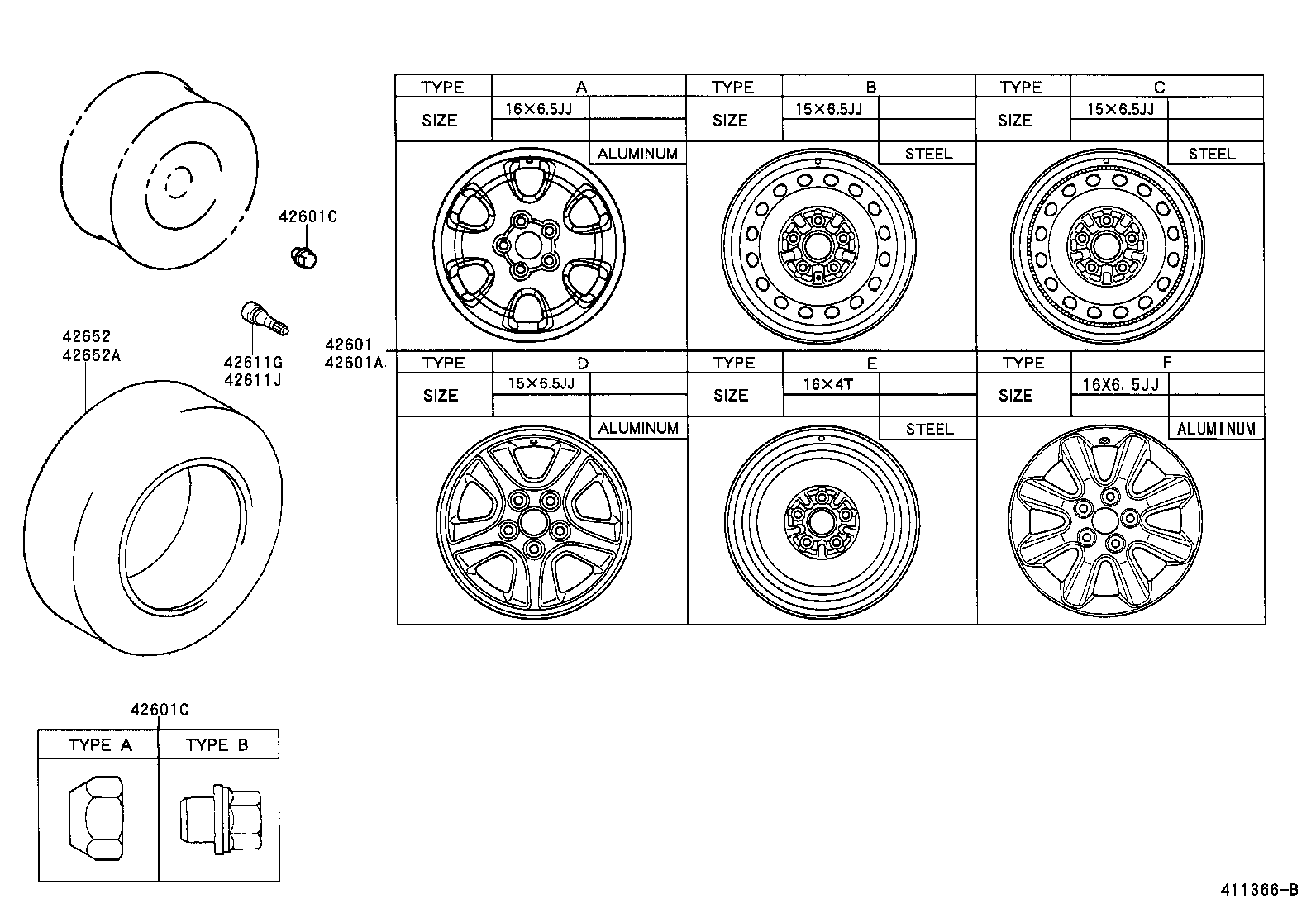

Disc Wheel & Wheel Cap
9 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 42601 | Wheel, Disc |
| 42601A | Wheel, Disc (FOR SPARE) |
| 42601C | Nut, Hub (FOR AXLE) |
| 42603 | Ornament Sub-assy, Wheel Hub |
| 42611G | Valve (FOR TUBELESS TIRE) |
| 42611J | Valve (FOR TUBELESS TIRE SPARE) |
| 42621 | Cap, Wheel |
| 42652 | Tire |
| 42652A | Tire (FOR SPARE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
