Toyota Picnic/Avensis Verso

2001-05 → 2009-12 · chassis ACM20,CLM20 · catalogue 511220 · General

Discontinued model Data version 2010-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vane Pump & Reservoir (POWER STEERING)

14 part groups · 2 illustrations

Illustrations

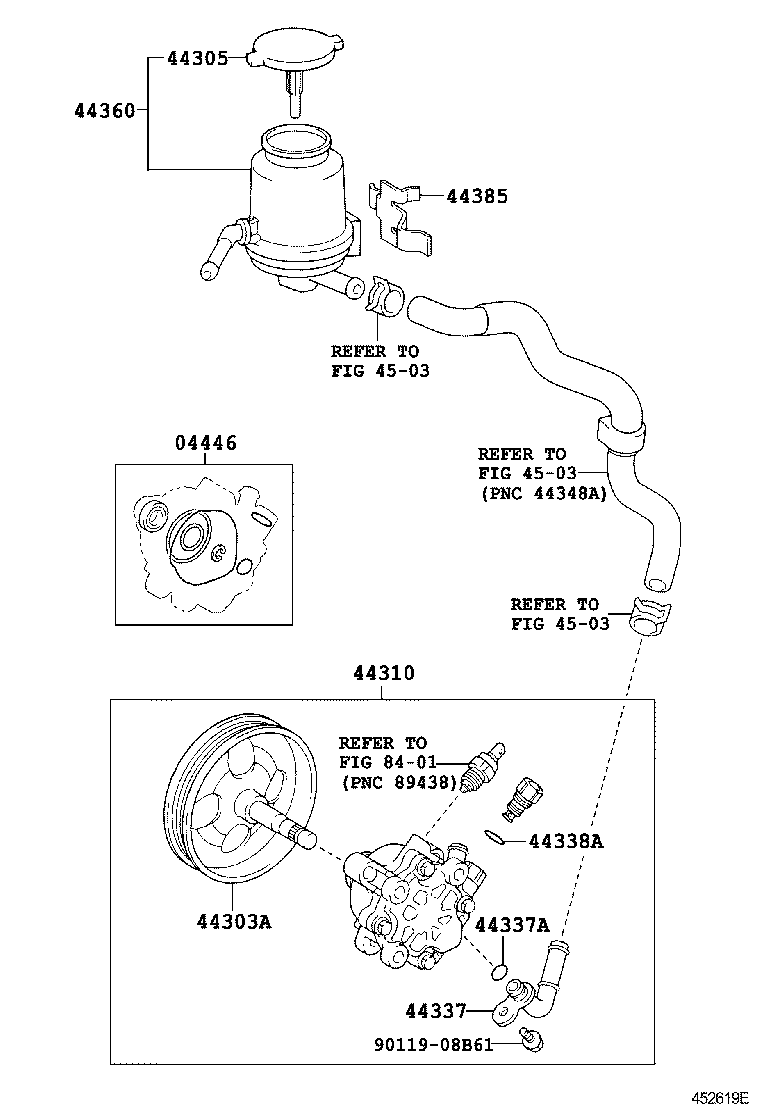

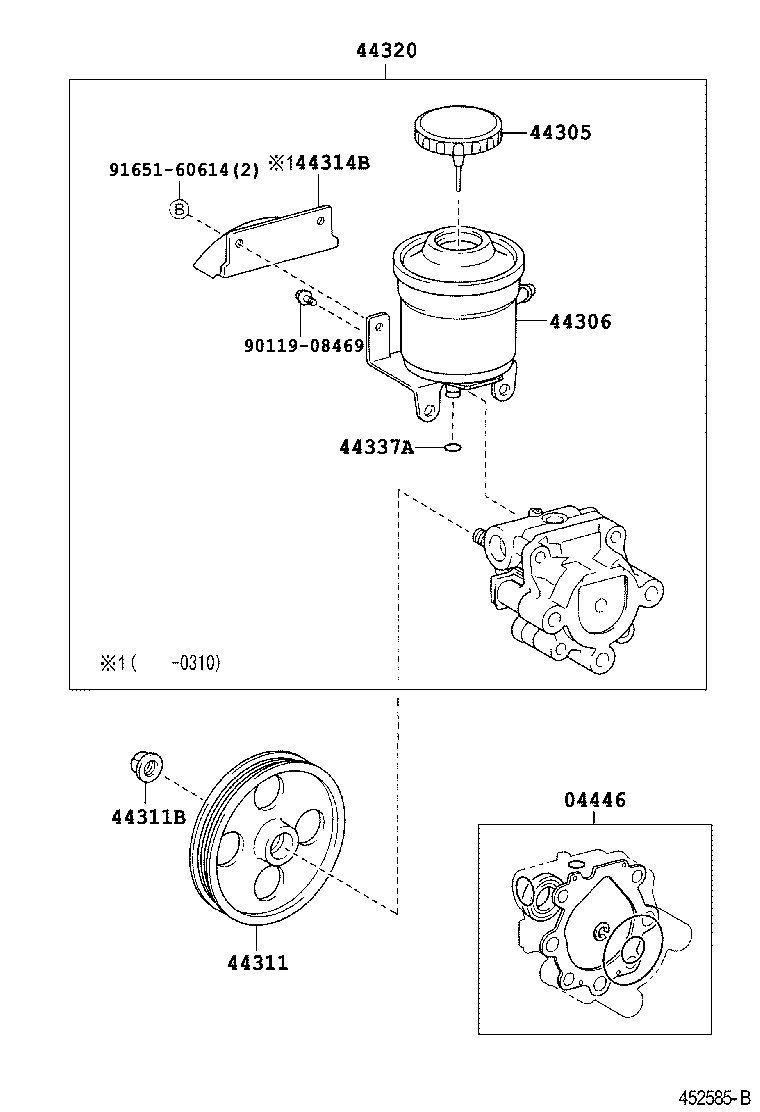

Figure 452619E 452619E 2001-05 → — Figure 452585B 452585B 2001-05 → —

Part groups

PNCDescription
04446 Gasket Kit, Power Steering Pump
44303A Shaft Sub-assy, W/Pulley
44305 Cap Sub-assy, Vane Pump Oil Reservoir
44306 Reservoir Sub-assy, Vane Pump Oil
44310 Pump Assy, Vane
44311 Pulley, Vane Pump
44311B Nut(FOR VANE PUMP PULLEY)
44314B Cover, Pulley
44320 Pump Assy, Vane
44337 Union, Power Steering Suction Port
44337A Ring, O(FOR POWER STEERING SUCTION PORT)
44338A Ring, O(FOR PRESSURE PORT UNION)
44360 Reservoir Assy, Vane Pump Oil
44385 Support, Spring, Upper(FOR VANE PUMP OIL RESERVOIR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
