Toyota Picnic/Avensis Verso

2001-05 → 2009-12 · chassis ACM20,CLM20 · catalogue 511220 · General

Discontinued model Data version 2010-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

13 part groups · 5 illustrations

Illustrations

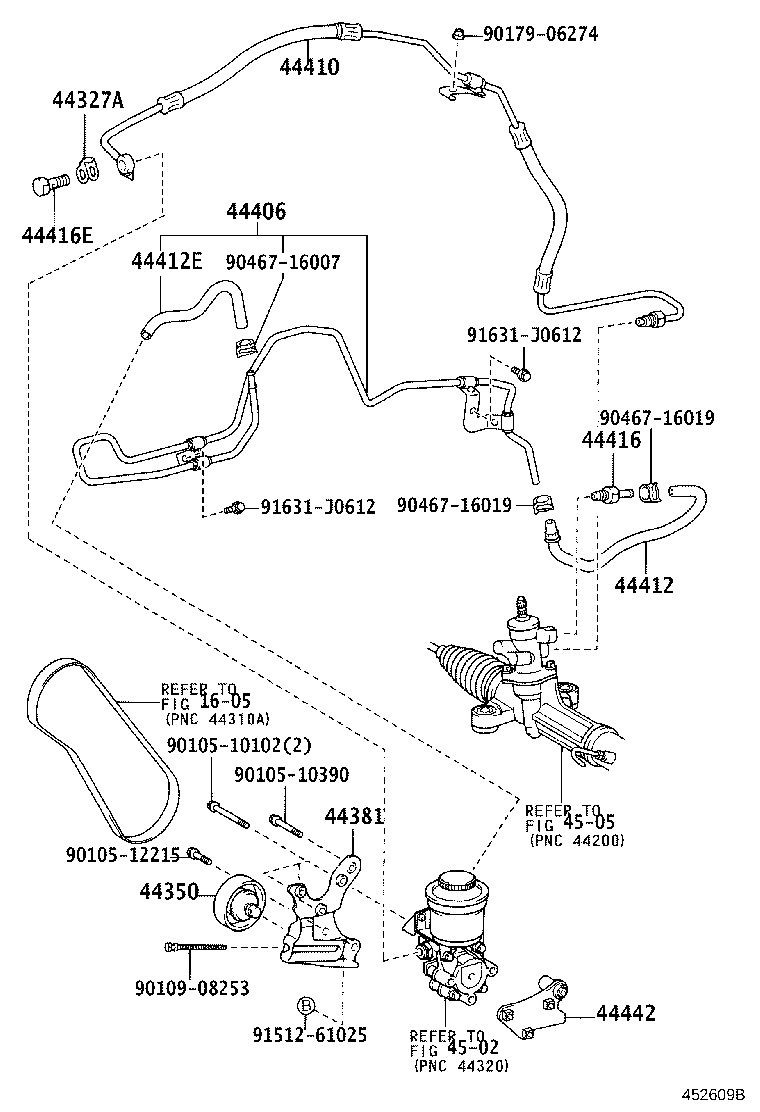

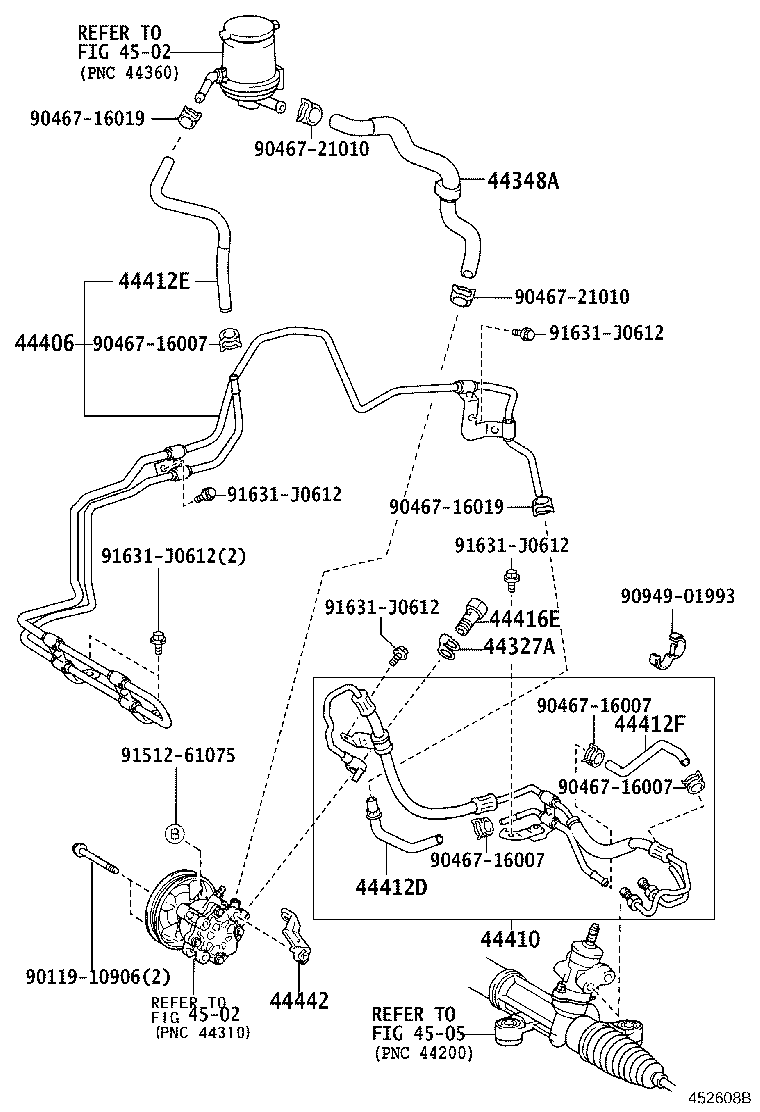

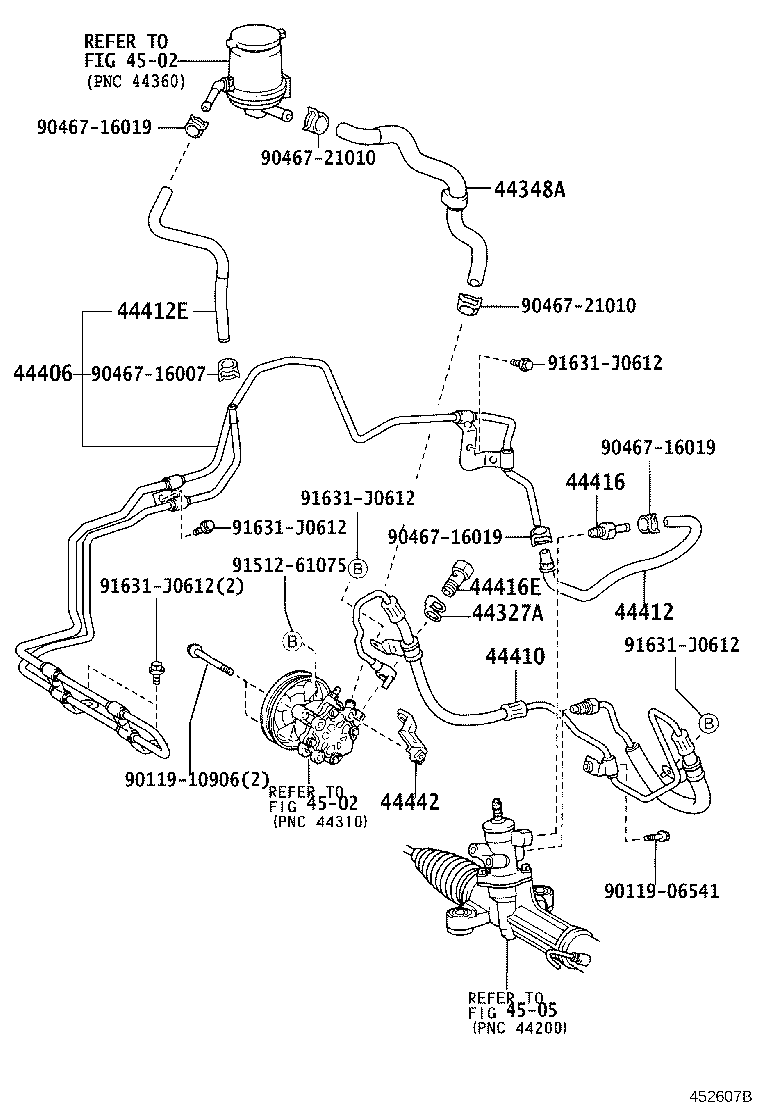

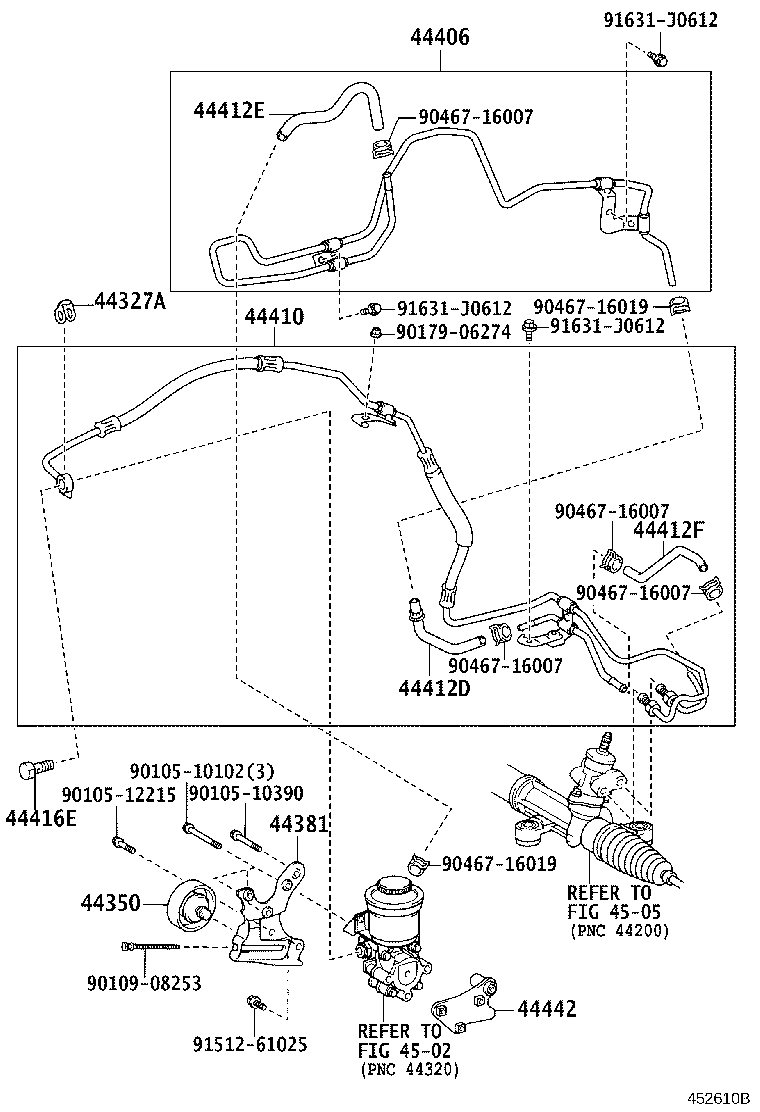

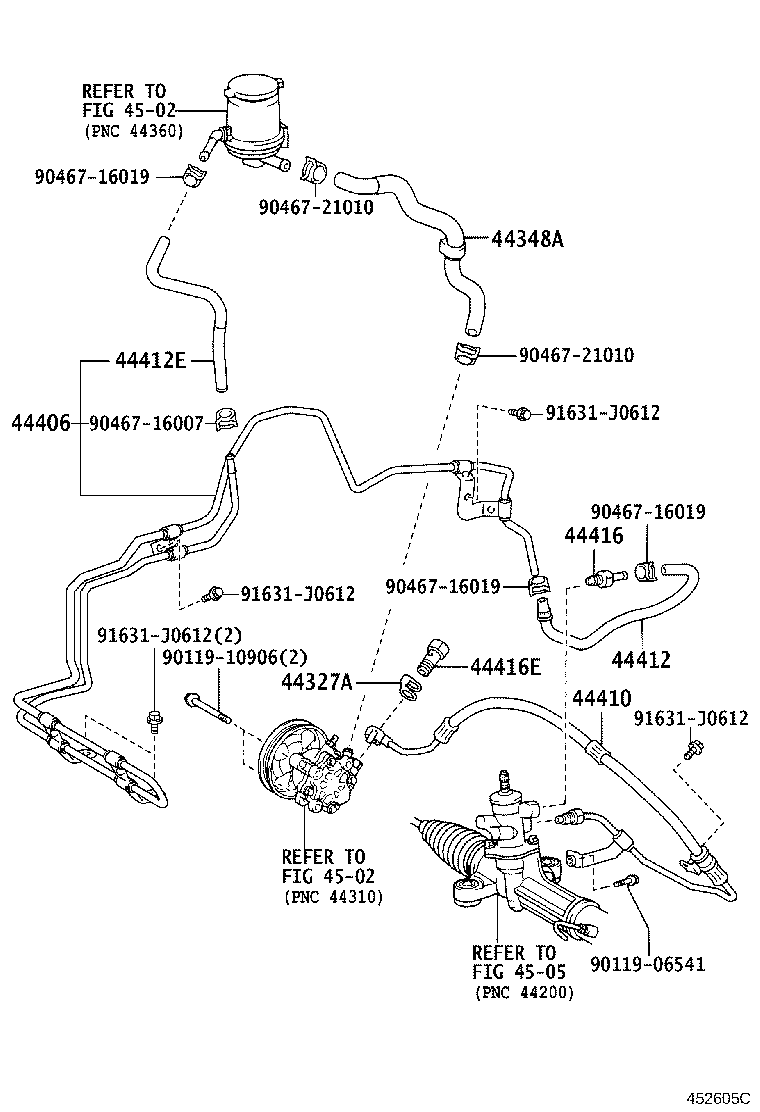

Figure 452605C 452605C 2001-05 → — Figure 452607B 452607B 2001-05 → — Figure 452608B 452608B 2001-05 → — Figure 452609B 452609B 2001-05 → — Figure 452610B 452610B 2001-05 → —

Part groups

PNCDescription
44327A Gasket, Pressure Port, NO.1
44348A Hose, Oil Reservoir TO Pump, NO.1
44350 Pulley Assy, Power Steering Idle
44381 Bracket, Power Steering Idle Pulley
44406 Tube Sub-assy, Return
44410 Tube Assy, Pressure Feed
44412 Hose, Return
44412D Hose, Return, NO.1
44412E Hose, Return, NO.2
44412F Hose, Return, NO.3
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44416E Bolt, Union(FOR RETURN TUBE)
44442 Bracket, Pump, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
