Toyota Picnic/Avensis Verso

2001-05 → 2009-12 · chassis ACM20,CLM20 · catalogue 511220 · General

Discontinued model Data version 2010-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Axle Arm & Steering Knuckle

12 part groups · 1 illustrations

Illustrations

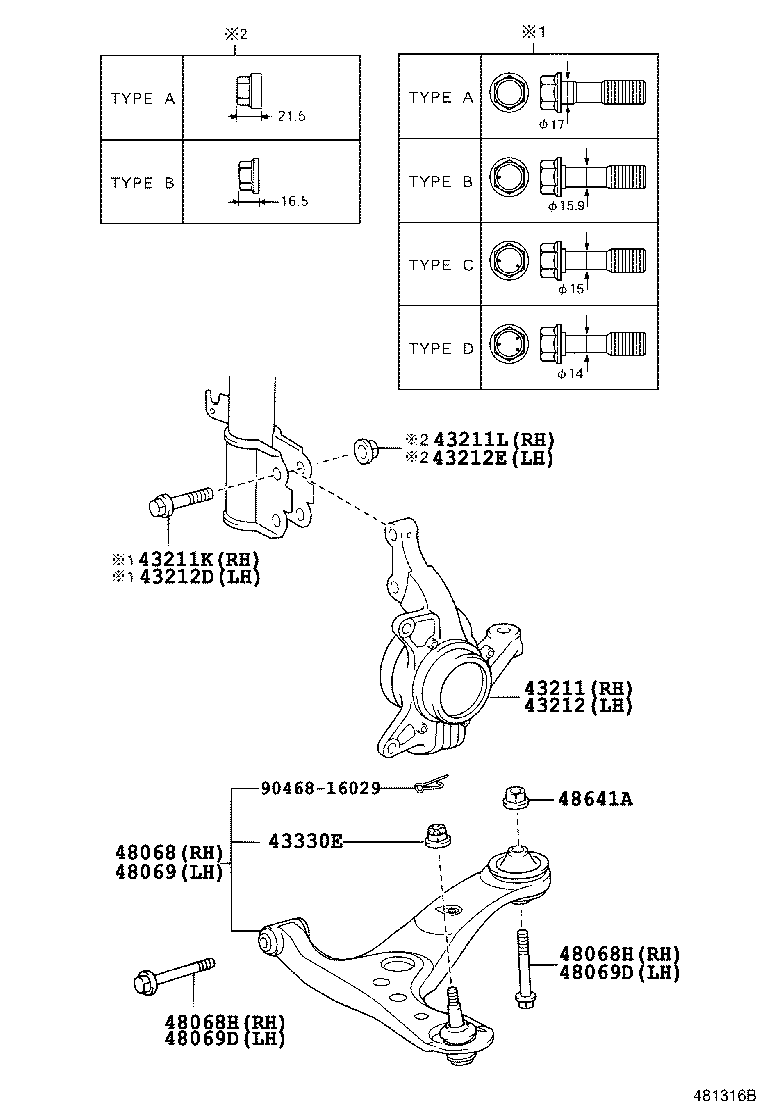

Figure 481316B 481316B 2001-05 → —

Part groups

PNCDescription
43211 Knuckle, Steering, RH
43211K Bolt (FOR STEERING KNUCKLE RH)
43211L Nut (FOR STEERING KNUCKLE RH)
43212 Knuckle, Steering, LH
43212D Bolt (FOR STEERING KNUCKLE LH)
43212E Nut (FOR STEERING KNUCKLE LH)
43330E Nut, Castle (FOR FRONT LOWER BALL JOINT SETTING)
48068 Arm Sub-assy, Front Suspension, Lower NO.1 RH
48068H Bolt(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
48069 Arm Sub-assy, Front Suspension, Lower NO.1 LH
48069D Bolt(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
48641A Nut(FOR SUSPENSION LOWER ARM SHAFT)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
