Toyota Picnic/Avensis Verso

2001-05 → 2009-12 · chassis ACM20,CLM20 · catalogue 511220 · General

Discontinued model Data version 2010-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

15 part groups · 2 illustrations

Illustrations

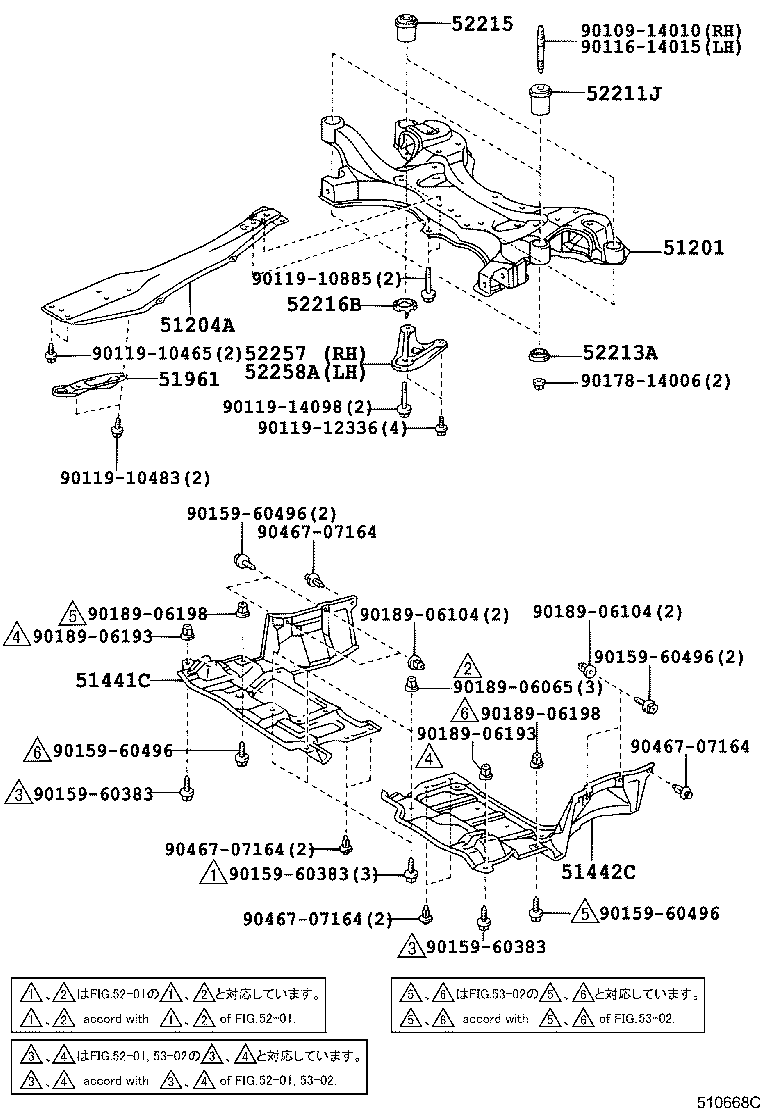

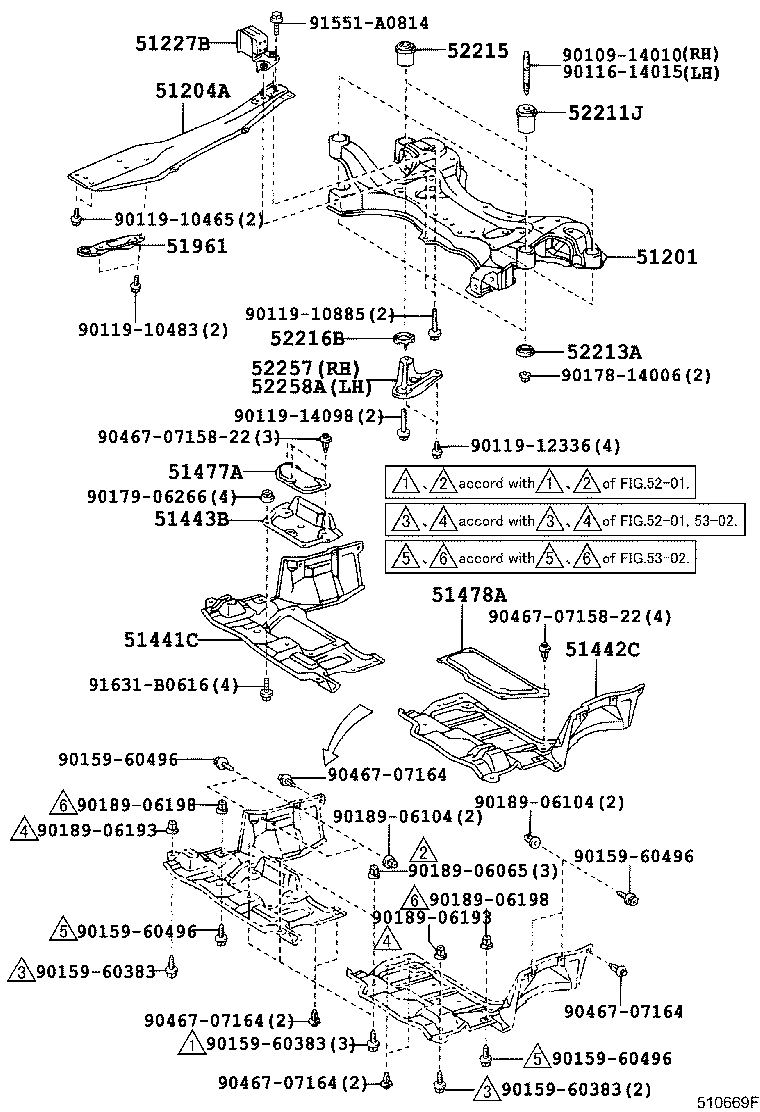

Figure 510668C 510668C 2001-05 → — Figure 510669F 510669F 2001-05 → —

Part groups

PNCDescription
51201 Crossmember Sub-assy, Front Suspension
51204A Member Sub-assy, Engine Mounting, Center
51227B Damper, Front Suspension Member Dynamic
51441C Cover, Engine Under, RH
51442C Cover, Engine Under, LH
51443B Cover, Engine Under, NO.3
51477A Silencer, Engine Under Cover, RH
51478A Silencer, Engine Under Cover, LH
51961 Hook, NO.1
52211J Cushion, Front Suspension Member Body Mounting, Front
52213A Stopper, Front Suspension Member Body Mounting, Front
52215 Cushion, Front Suspension Member Body Mounting, Rear
52216B Stopper, Front Suspension Member Body Mounting, Rear
52257 Brace, Front Suspension Member, Rear RH
52258A Brace, Front Suspension Member, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
