Toyota Picnic/Avensis Verso
2001-05 → 2009-12 · chassis ACM20,CLM20 · catalogue 511220 · General
Discontinued model
Data version 2010-04

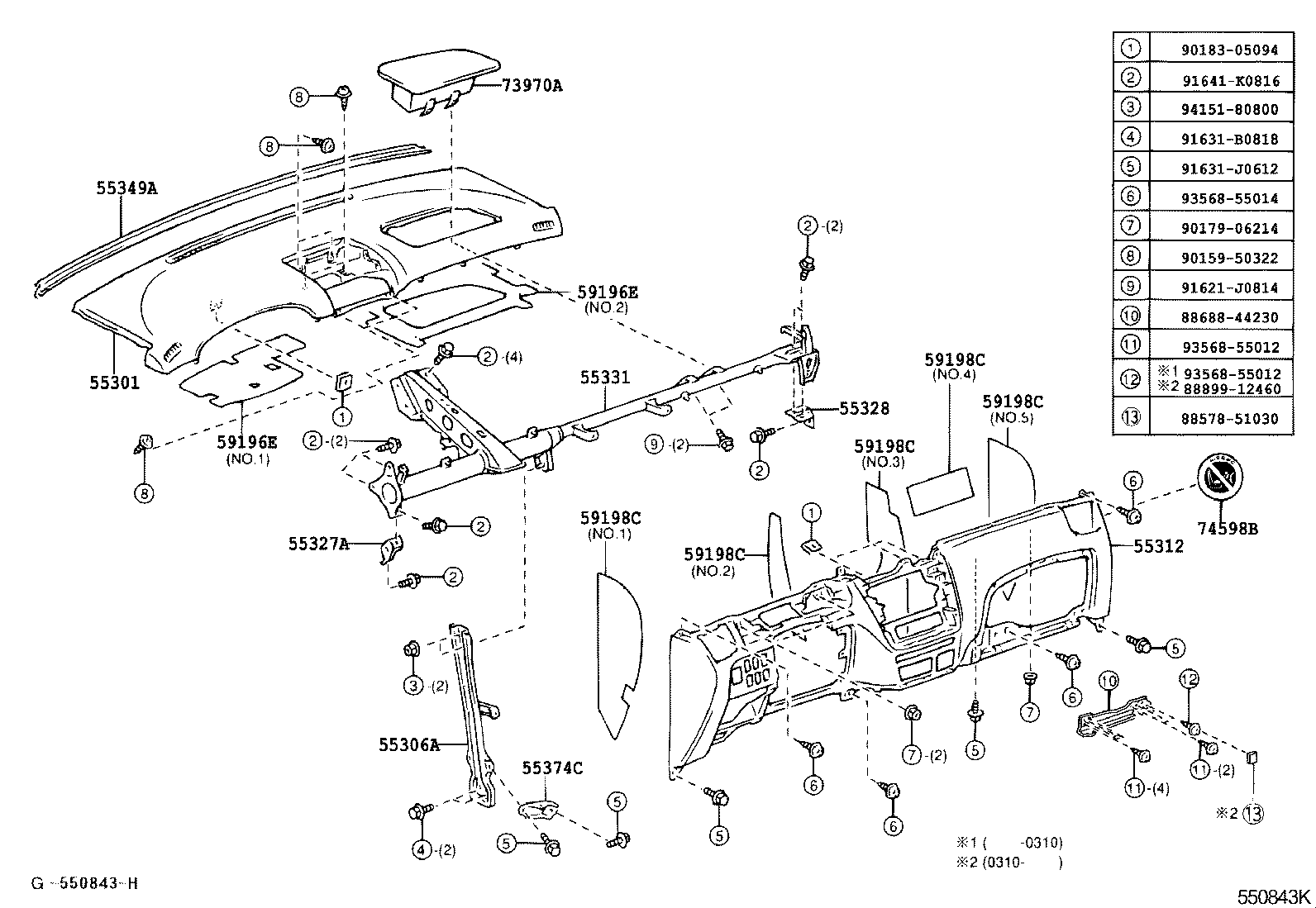

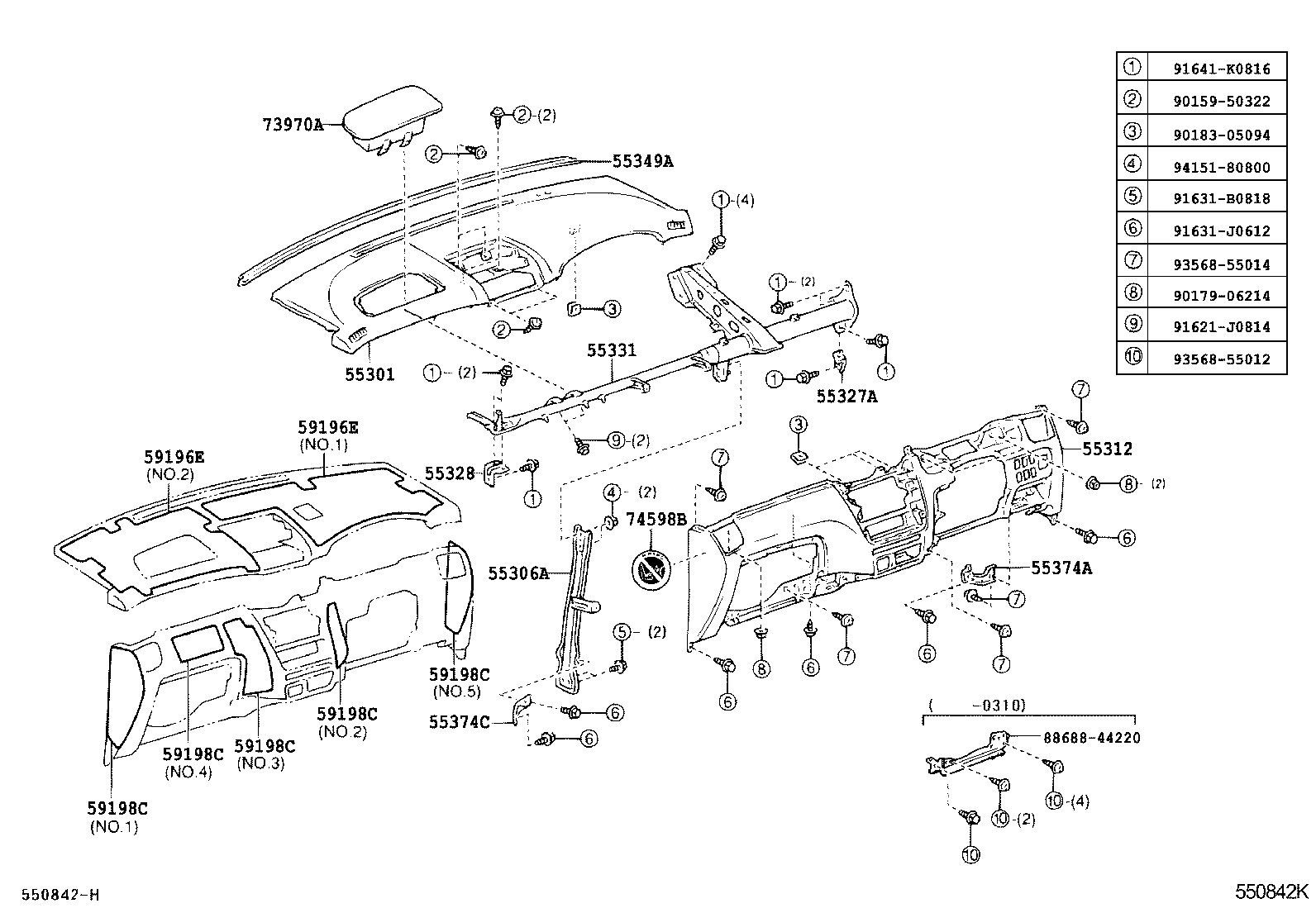

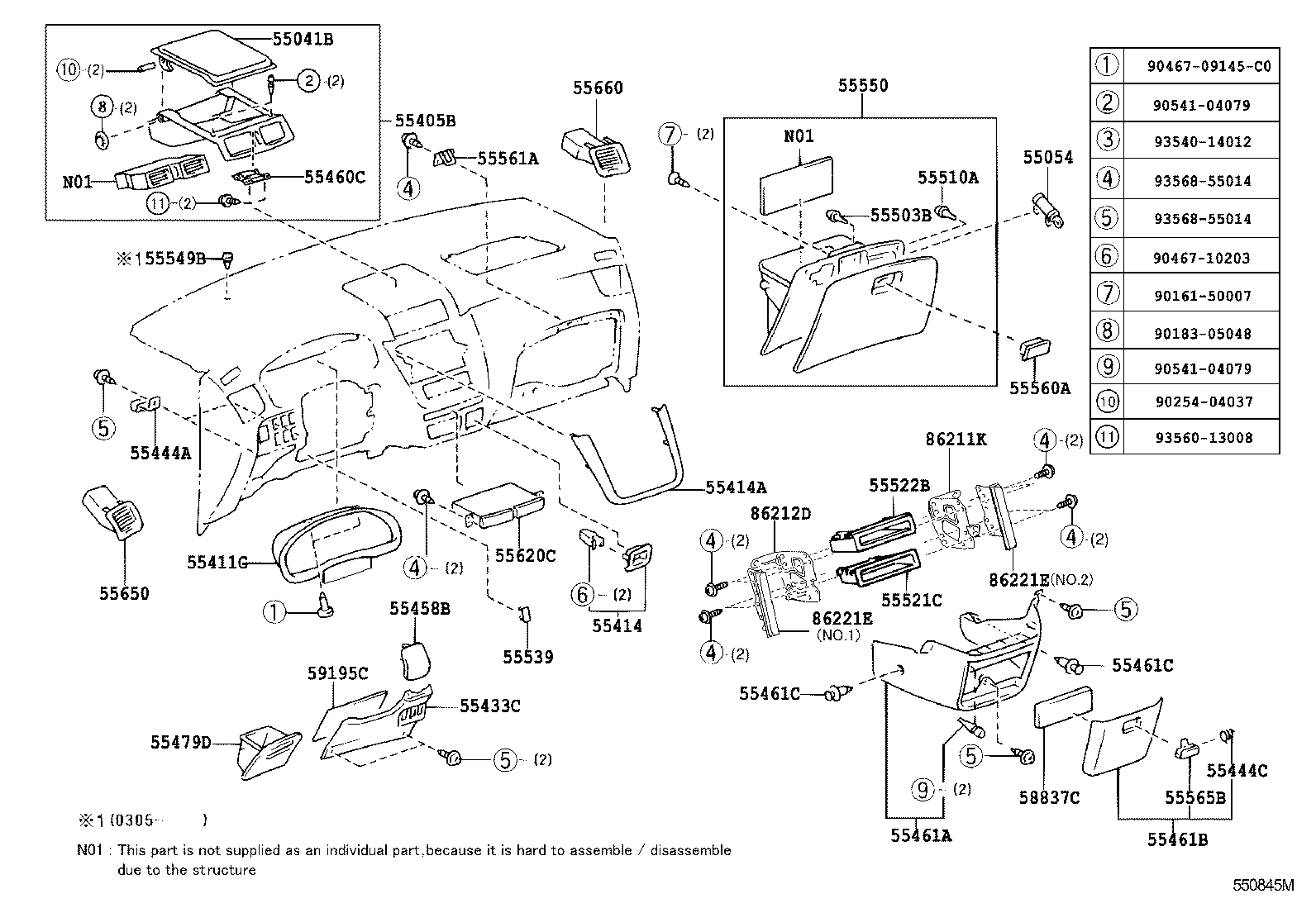

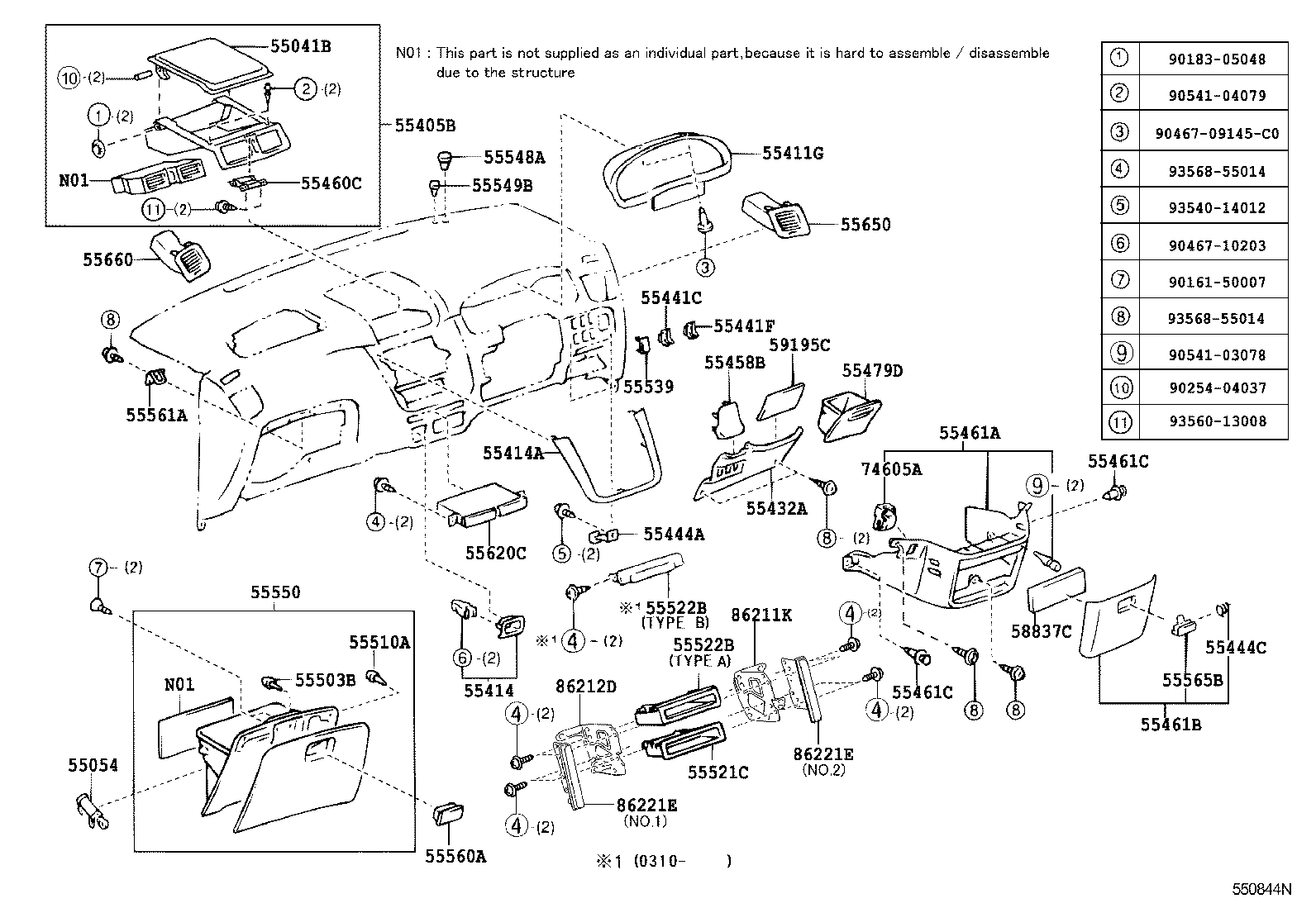

Instrument Panel & Glove Compartment
51 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 55041B | Door Sub-assy, Instrument Panel Box, NO.1 |
| 55054 | Stopper Sub-assy, Glove Compartment Door |
| 55301 | Panel Sub-assy, Instrument |
| 55306A | Brace Sub-assy, Instrument Panel, NO.1 |
| 55312 | Panel, Instrument, Lower |
| 55327A | Stay, Instrument Panel, NO.2 |
| 55328 | Pin, Instrument Panel, NO.1 |
| 55331 | Reinforcement, Instrument Panel |
| 55349A | Cushion, Instrument Panel |
| 55374A | Bracket, Instrument Panel Lower Mounting, RH |
| 55374C | Bracket, Instrument Panel Lower Mounting, NO.1 |
| 55405B | Panel Sub-assy, Instrument Cluster Finish, Center |
| 55411G | Panel, Instrument Cluster Finish, NO.1 |
| 55414 | Bezel, Cigar Lighter Hole |
| 55414A | Panel, Instrument Cluster Finish, End |
| 55432A | Panel, Instrument Panel Finish, Lower RH |
| 55433C | Panel, Instrument Panel Finish, Lower LH |
| 55441C | Box, Instrument Panel Coin |
| 55441F | Box, Instrument Panel Coin |
| 55444A | Spring, Instrument Panel Box |
| 55444C | Spring, Instrument Panel Box |
| 55458B | Cover, Instrument, Lwr |
| 55460C | Lock Assy, Instrument Panel Box |
| 55461A | Ornament, Instrument Panel |
| 55461B | Box, Instrument Panel, Center |
| 55461C | Clip(FOR INSTRUMENT PANEL ORNAMENT) |
| 55479D | Garnish, Instrument Cluster Finish Panel, Lower |
| 55503B | Cushion(FOR GLOVE COMPARTMENT) |
| 55510A | Cushion(FOR GLOVE COMPARTMENT DOOR) |
| 55521C | Cover, Stereo Opening |
| 55522B | Cover, Radio Tuner Opening |
| 55539 | Cover, Spare Switch Hole |
| 55548A | Cover, Instrument Panel Hole |
| 55549B | Cover, Instrument Panel Hole, NO.2 |
| 55550 | Door Assy, Glove Compartment |
| 55560A | Lock Assy, Glove Compartment Door |
| 55561A | Striker, Glove Compartment Door Lock |
| 55565B | Knob, Glove Compartment Door Lock |
| 55620C | Holder, Instrument Panel Cup |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 58837C | Pad, Instrument Panel Box |
| 59195C | Insulator, Noise Shutter |
| 59196E | Seal, Noise Shutter, Upper NO.1 |
| 59198C | Seal, Noise Shutter |
| 73970A | Airbag Assy, Instrument Panel Passenger |
| 74598B | Label, Passenger Airbag Caution |
| 74605A | Hook Sub-assy, Coat |
| 86211K | Bracket, Stereo Opening Cover, RH |
| 86212D | Bracket, Stereo Opening Cover, LH |
| 86221E | Panel, Radio Receiver |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
