Toyota Picnic/Avensis Verso
2001-05 → 2009-12 · chassis ACM20,CLM20 · catalogue 511220 · General
Discontinued model
Data version 2010-04

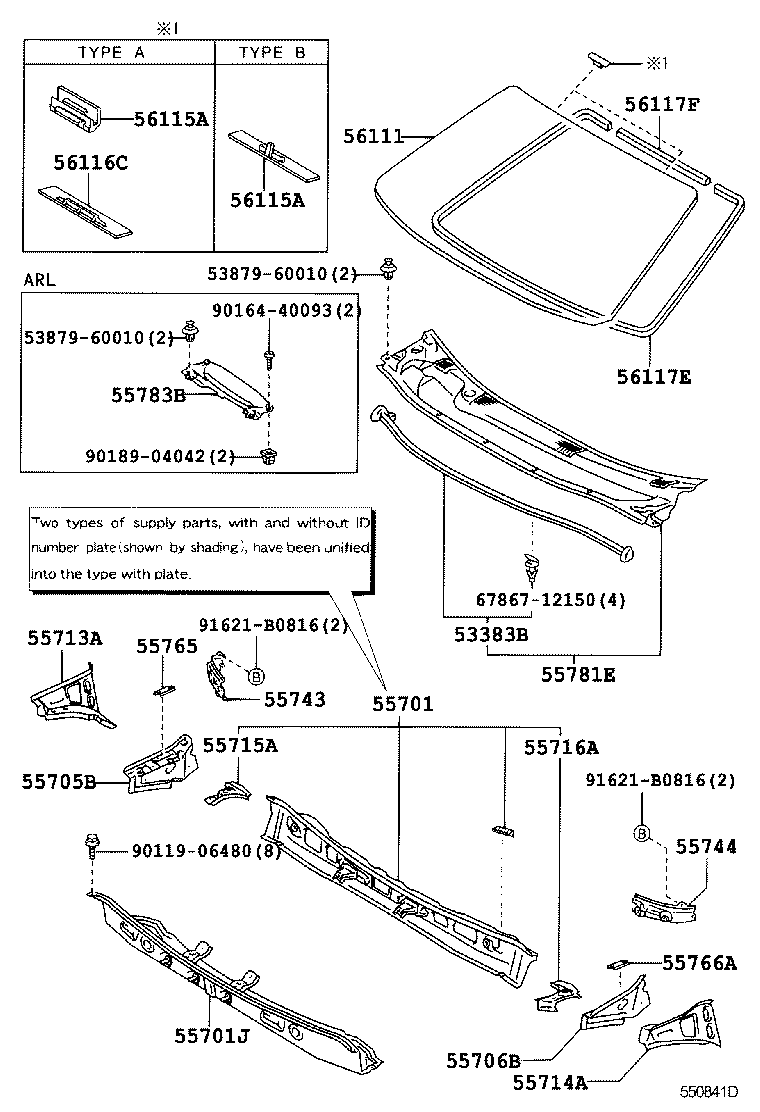

Cowl Panel & Windshield Glass
20 part groups · 1 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 53383B | Seal, Hood TO Cowl Top |
| 55701 | Panel Sub-assy, Cowl |
| 55701J | Panel Sub-assy, Cowl Top, Outer |
| 55705B | Panel Sub-assy, Cowl Top Side, RH |
| 55706B | Panel Sub-assy, Cowl Top Side, LH |
| 55713A | Panel, Cowl Top Side, RH |
| 55714A | Panel, Cowl Top Side, LH |
| 55715A | Brace, Cowl Top TO Apron, RH |
| 55716A | Brace, Cowl Top TO Apron, LH |
| 55743 | Panel, Cowl Top Outside Corner, RH |
| 55744 | Panel, Cowl Top Outside Corner, LH |
| 55765 | Bracket, Hood Damper Mounting |
| 55766A | Bracket, Hood Damper Mounting |
| 55781E | Louver Sub-assy, Cowl Top Ventilator |
| 55783B | Louver, Cowl Top Ventilator, Center NO.1 |
| 56111 | Glass, Windshield |
| 56115A | Stopper, Windshield Glass, NO.1 |
| 56116C | Stopper, Windshield Glass, NO.2 |
| 56117E | Dam, Window Glass Adhesive |
| 56117F | Dam, Window Glass Adhesive |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
