Toyota Picnic/Avensis Verso
2001-05 → 2009-12 · chassis ACM20,CLM20 · catalogue 511220 · General
Discontinued model
Data version 2010-04

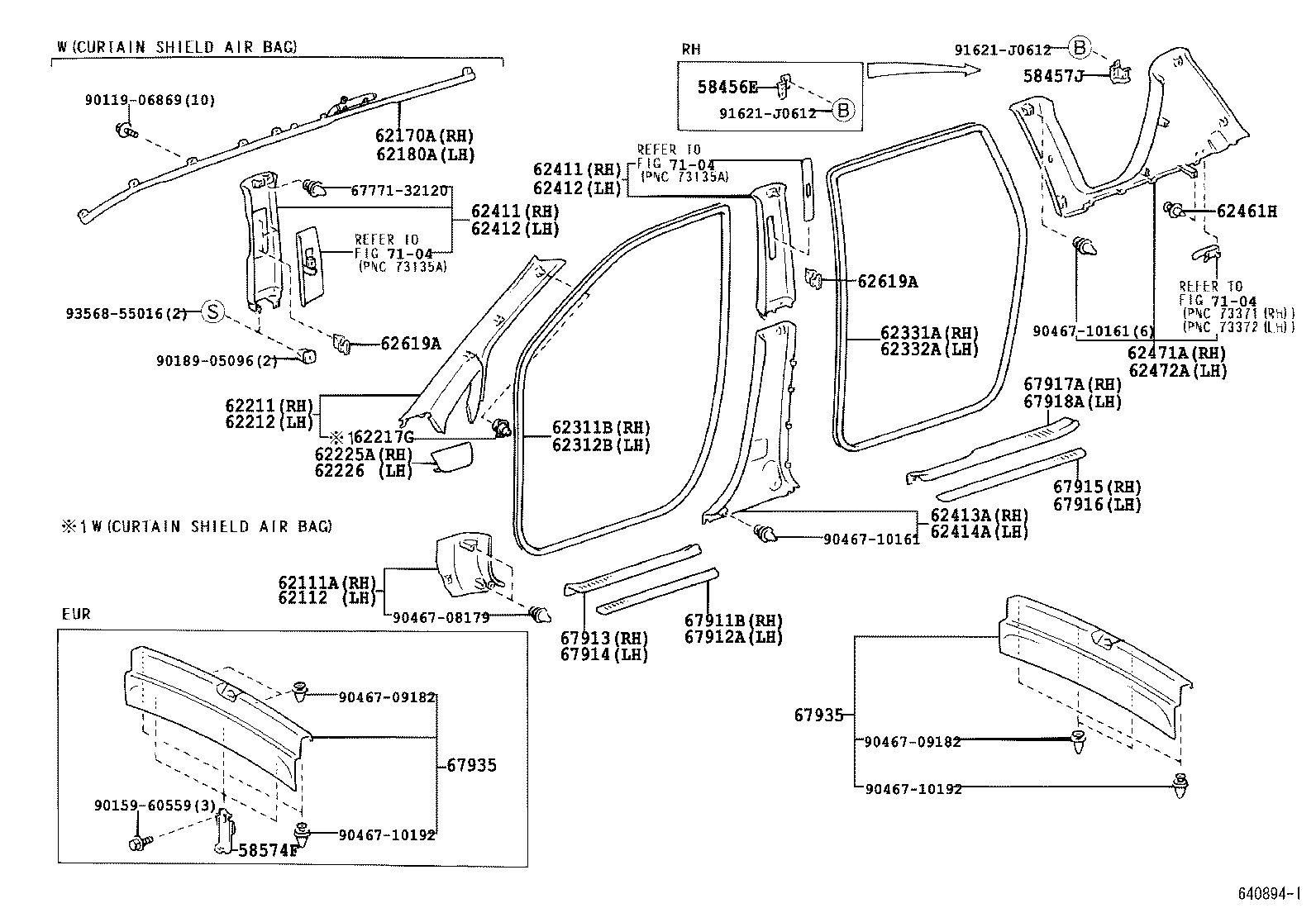

Inside Trim Board & Door Opening Trim Moulding
33 part groups · 1 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 58456E | Bracket, Rear Garnish, NO.1 RH |
| 58457J | Bracket, Rear Garnish, NO.1 LH |
| 58574F | Plate, Rear Floor Mat Support, Rear |
| 62111A | Trim Sub-assy, Cowl Side, RH |
| 62112 | Board, Cowl Side Trim, LH |
| 62170A | Airbag Assy, Curtain Shield, RH |
| 62180A | Airbag Assy, Curtain Shield, LH |
| 62211 | Garnish, Front Pillar, RH |
| 62212 | Garnish, Front Pillar, LH |
| 62217G | Clip, Front Pillar Garnish |
| 62225A | Garnish, Front Pillar, Lower RH |
| 62226 | Garnish, Front Pillar, Lower LH |
| 62311B | Weatherstrip, Front Door Opening Trim, RH |
| 62312B | Weatherstrip, Front Door Opening Trim, LH |
| 62331A | Weatherstrip, Rear Door Opening Trim, RH |
| 62332A | Weatherstrip, Rear Door Opening Trim, LH |
| 62411 | Garnish, Center Pillar, RH |
| 62412 | Garnish, Center Pillar, LH |
| 62413A | Garnish, Center Pillar, Lower RH |
| 62414A | Garnish, Center Pillar, Lower LH |
| 62461H | Clip (FOR ROOF SIDE INNER GARNISH) |
| 62471A | Garnish, Roof Side, Inner RH |
| 62472A | Garnish, Roof Side, Inner LH |
| 62619A | Plate, Side Trim Set |
| 67911B | Plate, Front Door Scuff, Outside, RH |
| 67912A | Plate, Front Door Scuff, Outside LH |
| 67913 | Plate, Front Door Scuff, RH |
| 67914 | Plate, Front Door Scuff, LH |
| 67915 | Plate, Rear Door Scuff, Outside RH |
| 67916 | Plate, Rear Door Scuff, Outside LH |
| 67917A | Plate, Rear Door Scuff, RH |
| 67918A | Plate, Rear Door Scuff, LH |
| 67935 | Plate, Back Door Scuff |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
