Toyota Picnic/Avensis Verso

2001-05 → 2009-12 · chassis ACM20,CLM20 · catalogue 511220 · General

Discontinued model Data version 2010-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Deck Board & Deck Trim Cover

32 part groups · 2 illustrations

Illustrations

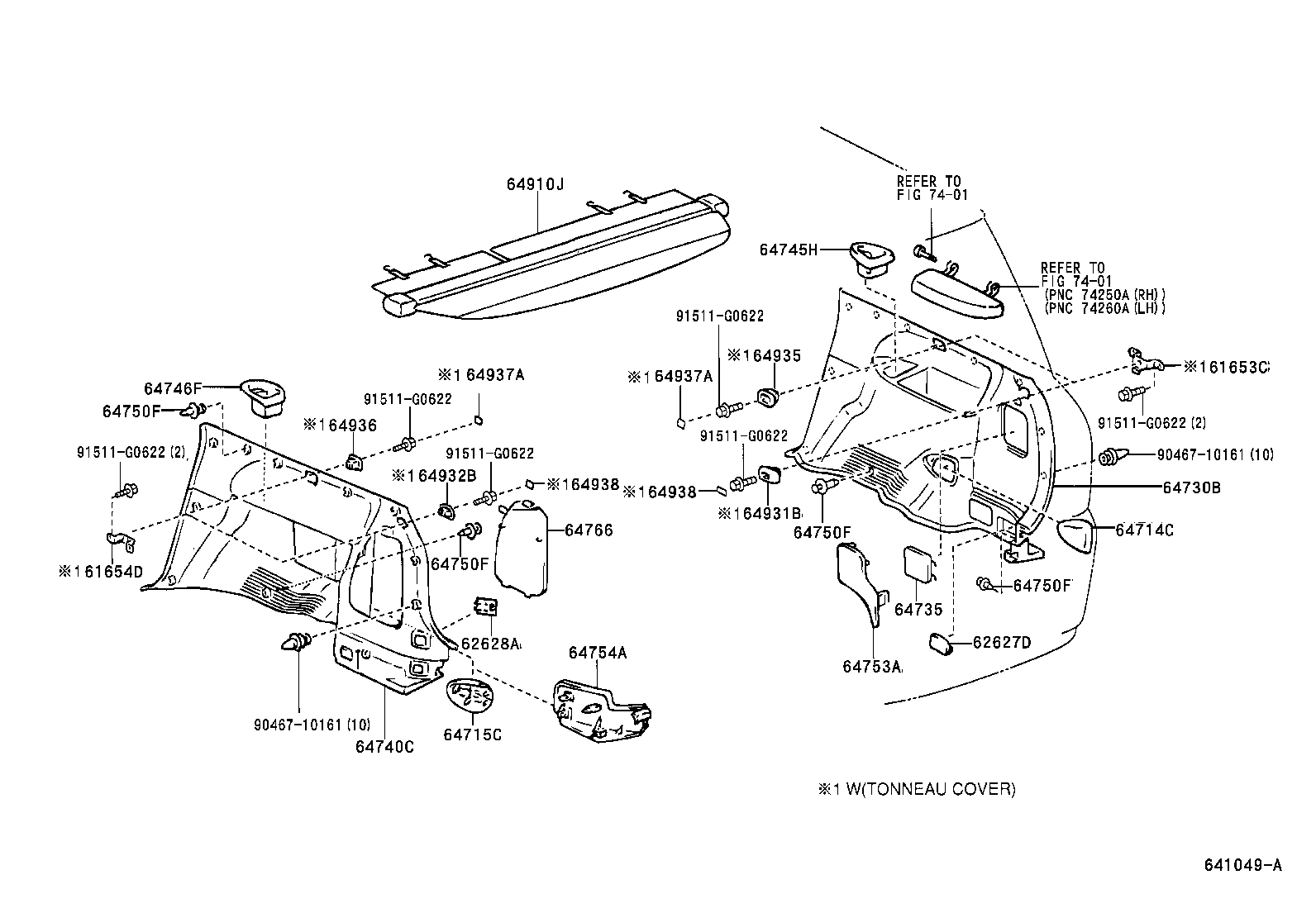

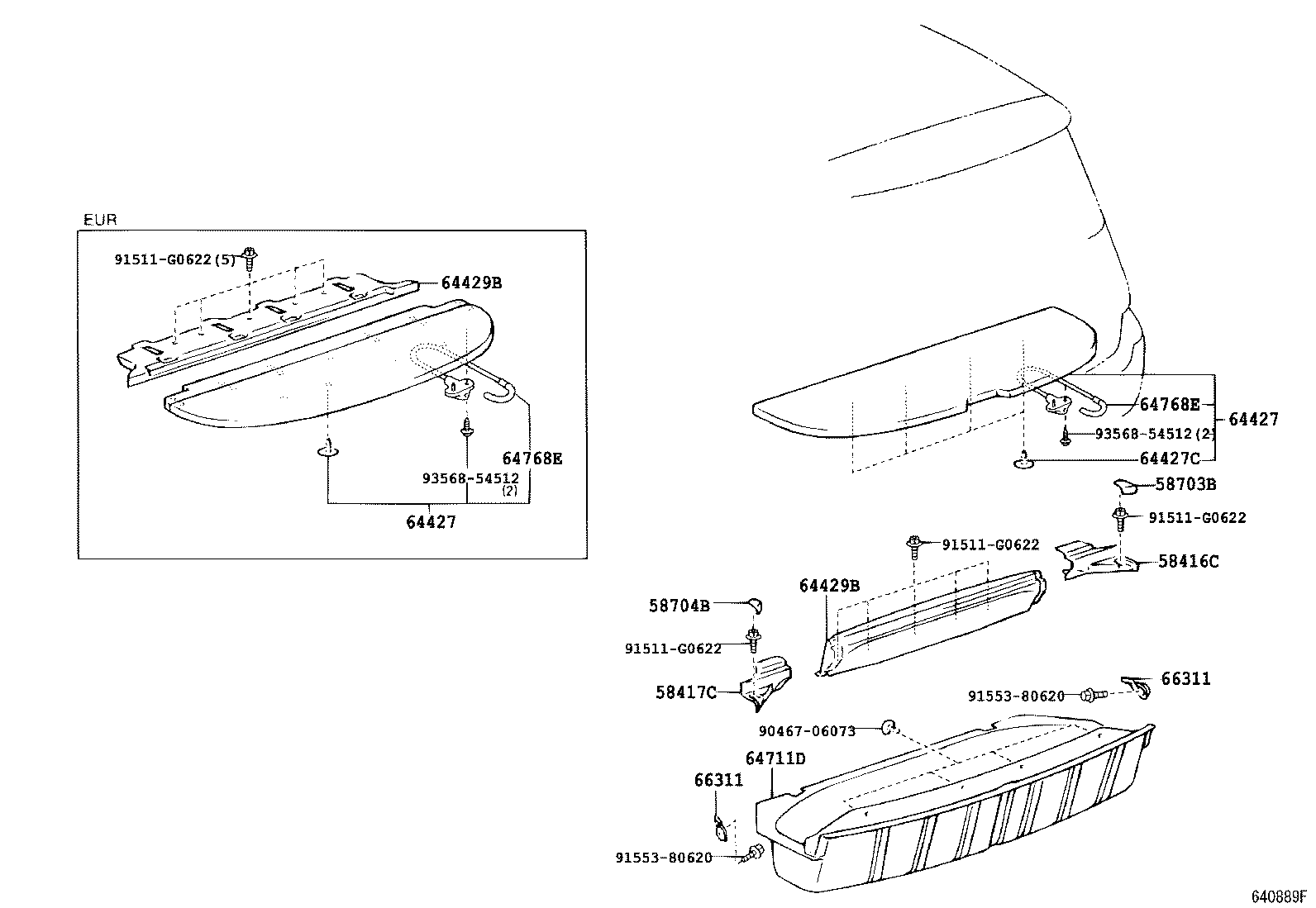

Figure 640889F 640889F 2001-05 → — Figure 641049A 641049A 2001-05 → —

Part groups

PNCDescription
58416C Bracket, Deck Board, NO.1 RH
58417C Bracket, Deck Board, NO.1 LH
58703B Cover Sub-assy, Luggage Compartment Side, RH
58704B Cover Sub-assy, Luggage Compartment Side, LH
61653C Bracket, Deck Side Trim, RH
61654D Bracket, Deck Side Trim, NO.2
62627D Cover, Side Trim, RH
62628A Cover, Side Trim, LH
64427 Lid, Luggage Room Box
64427C Clip(FOR LUGGAGE ROOM BOX LID)
64429B Box, Luggage Room
64711D Carpet, Luggage Compartment Floor
64714C Cover, Deck Side Trim, RH
64715C Cover, Deck Side Trim, LH
64730B Panel Assy, Deck Trim Side, RH
64735 Cover, Deck Trim Side Service Hole
64740C Panel Assy, Deck Trim Side, LH
64745H Holder, Deck Side Trim Cup, RH
64746F Holder, Deck Side Trim Cup, LH
64750F Clip(FOR DECK SIDE TRIM PANEL)
64753A Garnish, Deck Side, Rear, RH
64754A Garnish, Deck Side, Rear, LH
64766 Cover Sub-assy, Quarter Trim Jack
64768E Stopper, Quarter Trim Lid
64910J Cover Assy, Tonneau
64931B Hanger, Tonneau Cover, RH
64932B Hanger, Tonneau Cover, LH
64935 Holder, Tonneau Cover, RH
64936 Holder, Tonneau Cover, LH
64937A Cap, Tonneau Cover Holder, NO.1
64938 Hook, Tonneau Cover, A
66311 Hook, Rope
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
