Toyota Picnic/Avensis Verso

2001-05 → 2009-12 · chassis ACM20,CLM20 · catalogue 511220 · General

Discontinued model Data version 2010-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

10 part groups · 4 illustrations

Illustrations

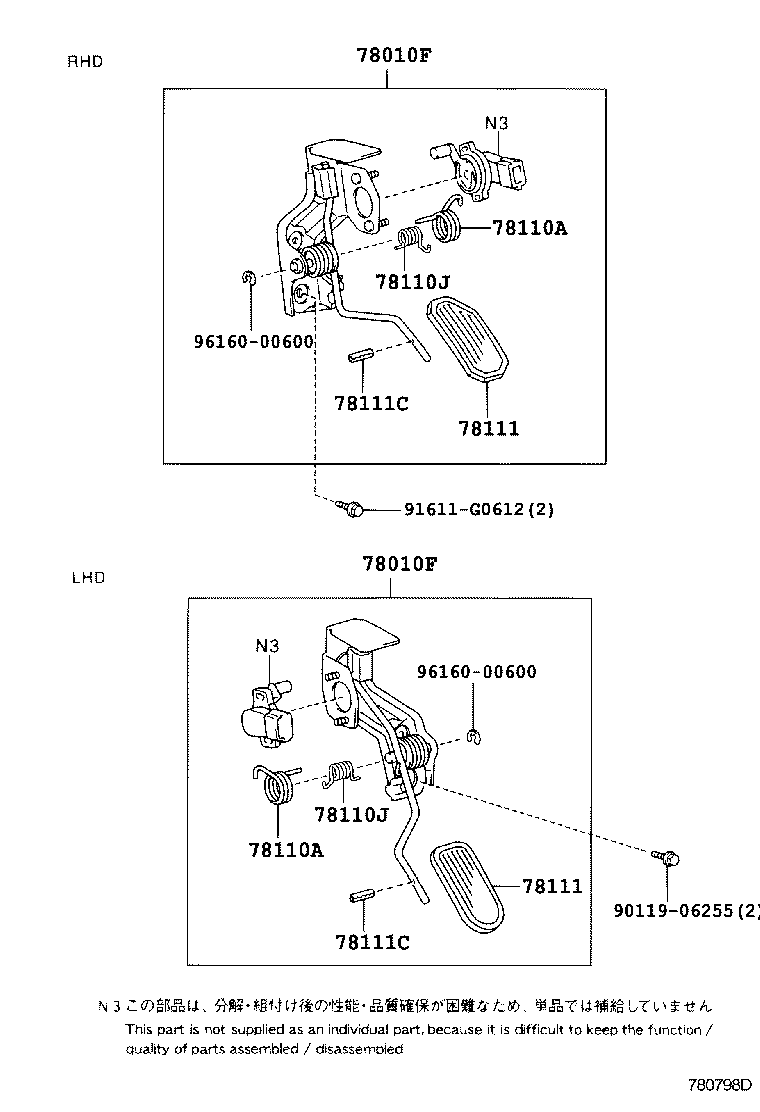

Figure 780572B 780572B 2001-05 → 2003-10 Figure 780573A 780573A 2001-05 → 2003-10 Figure 780574A 780574A 2001-05 → 2003-10 Figure 780798D 780798D 2003-10 → —

Part groups

PNCDescription
78010F Pedal Assy, Accelerator
78110A Spring (FOR ACCELERATOR PEDAL ROD)
78110J Spring (FOR ACCELERATOR PEDAL ROD)
78111 Pedal, Accelerator
78111C Pin (FOR ACCELERATOR PEDAL)
78120G Rod Assy, Accelerator Pedal
78180P Cable Assy, Accelerator Control
78183B Clamp, Accelerator Control Cable
78183C Clamp, Accelerator Control Cable
78193A Support, Accelerator Control Cable, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
