Toyota Picnic/Avensis Verso
2001-05 → 2009-12 · chassis ACM20,CLM20 · catalogue 511220 · General
Discontinued model
Data version 2010-04

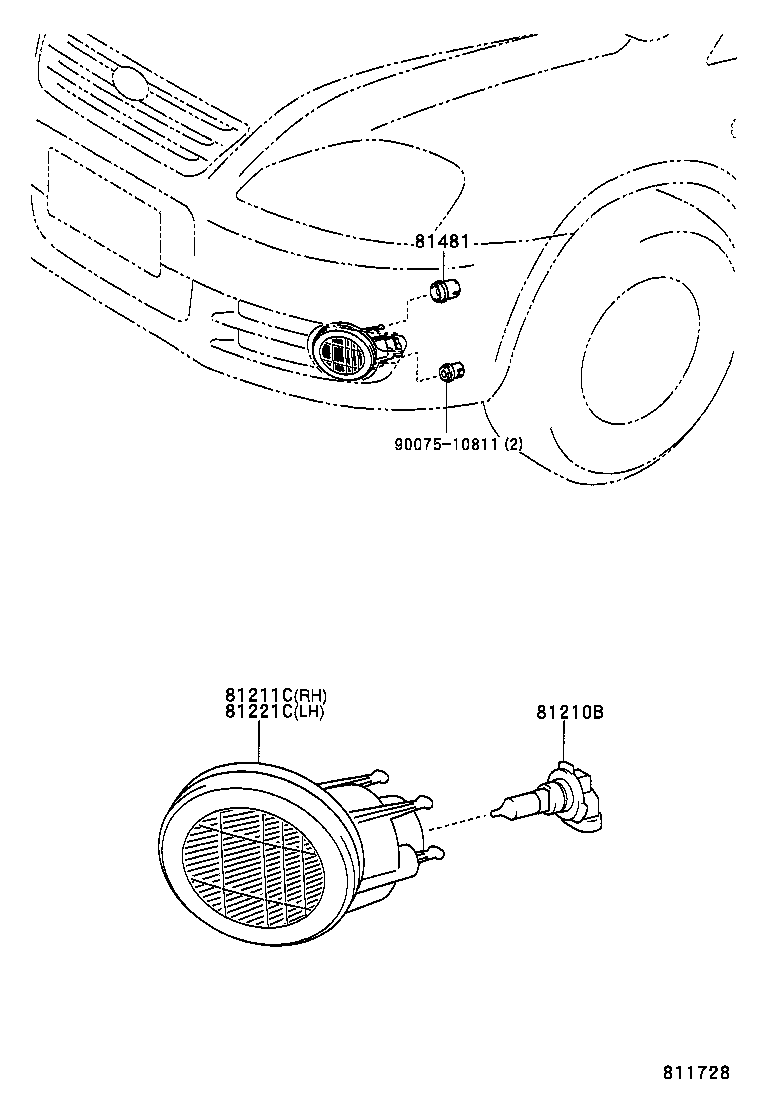

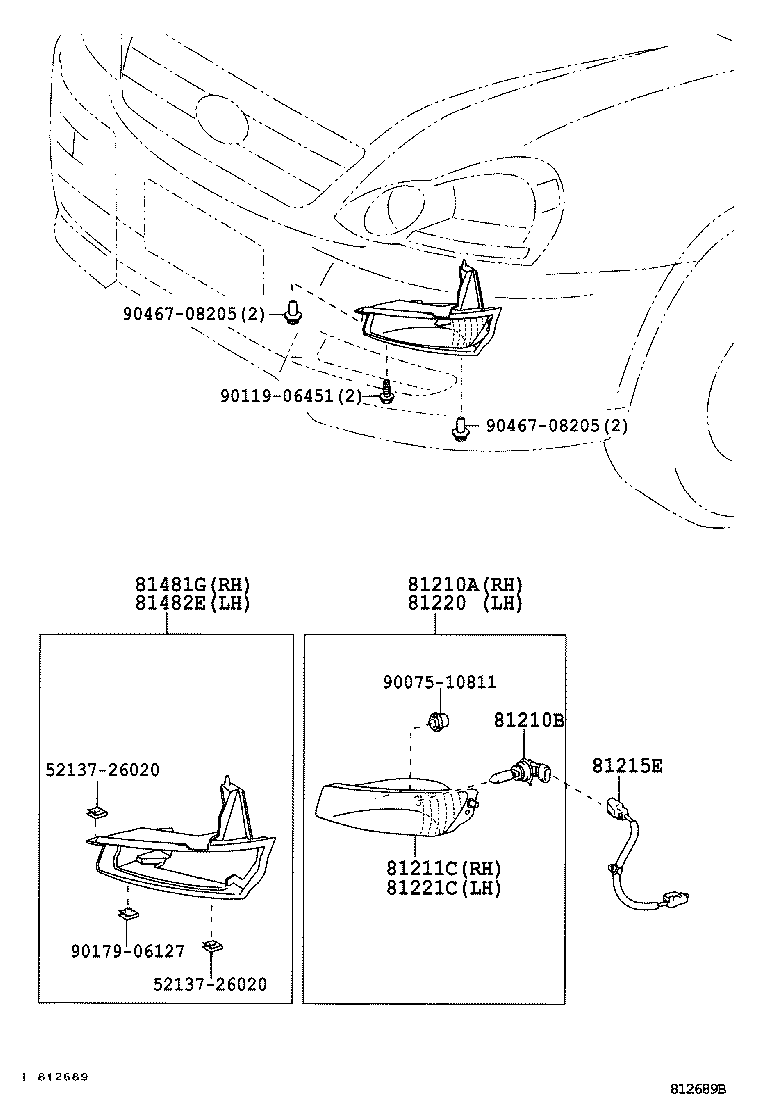

Fog Lamp
9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81210A | Lamp Assy, Fog, RH |
| 81210B | Bulb, Fog Lamp |
| 81211C | Lamp Unit, Fog Lamp, RH |
| 81215E | Cord, Fog Lamp |
| 81220 | Lamp Assy, Fog, LH |
| 81221C | Lamp Unit, Fog Lamp, LH |
| 81481 | Bracket, Fog Lamp |
| 81481G | Bracket, Fog Lamp, RH |
| 81482E | Bracket, Fog Lamp, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
