Toyota Picnic/Avensis Verso
2001-05 → 2009-12 · chassis ACM20,CLM20 · catalogue 511220 · General
Discontinued model
Data version 2010-04

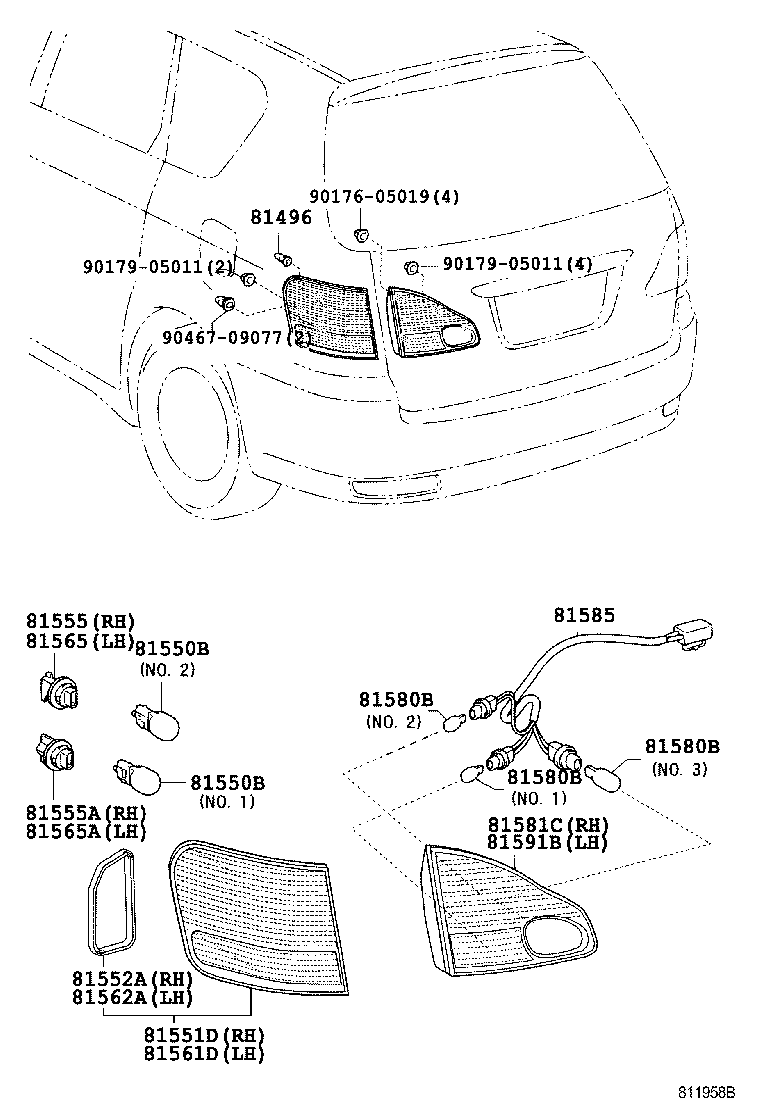

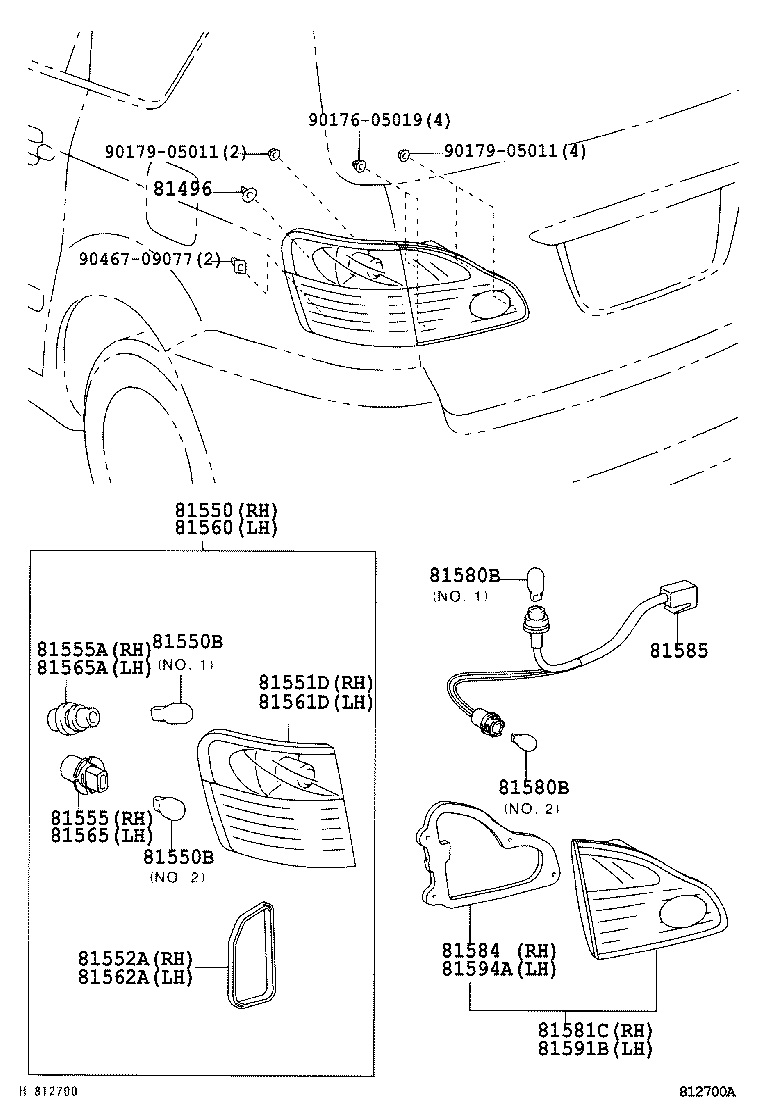

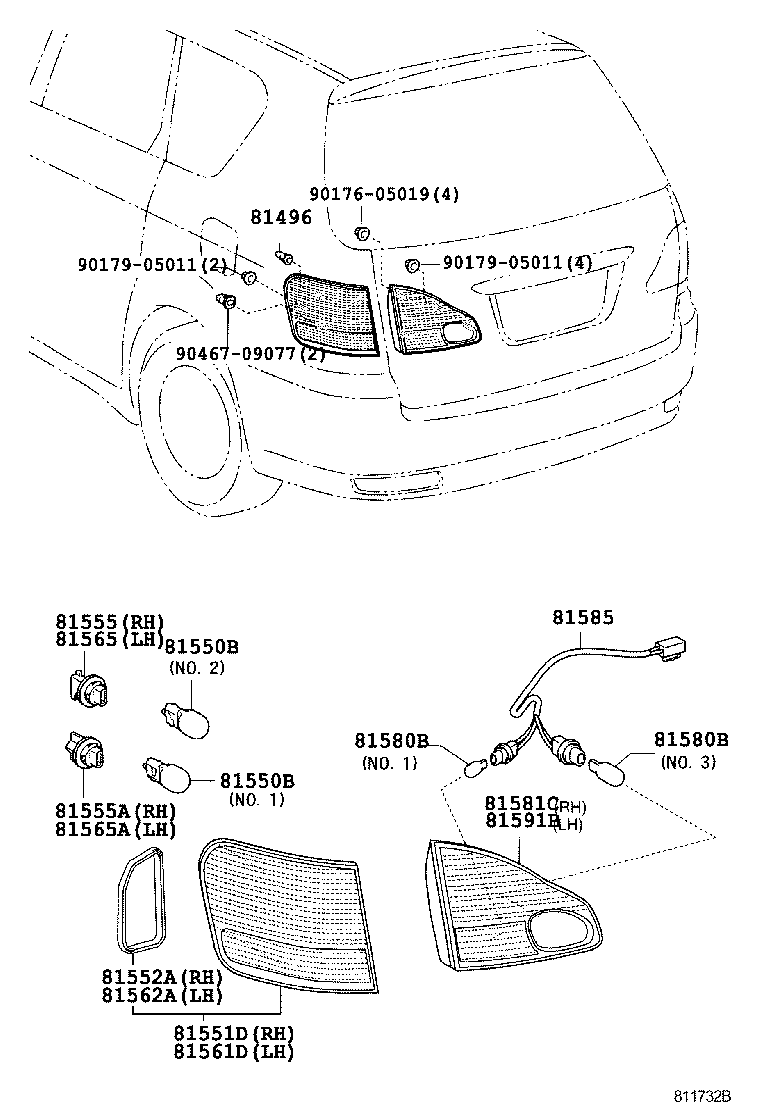

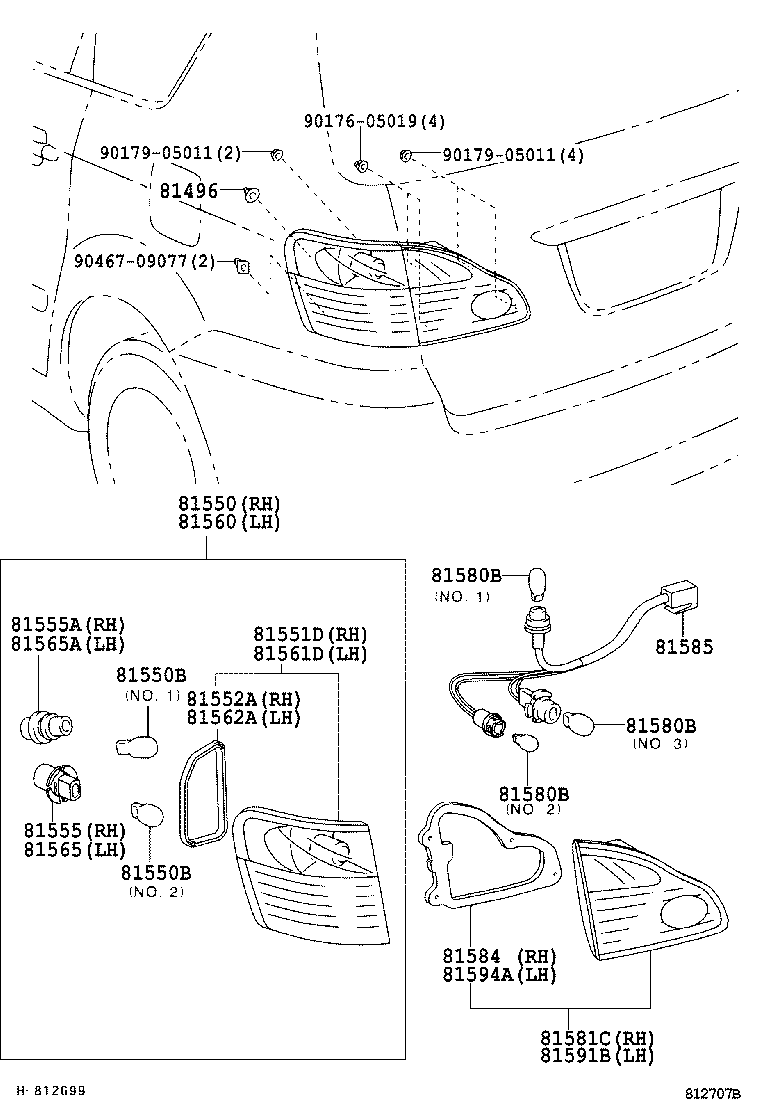

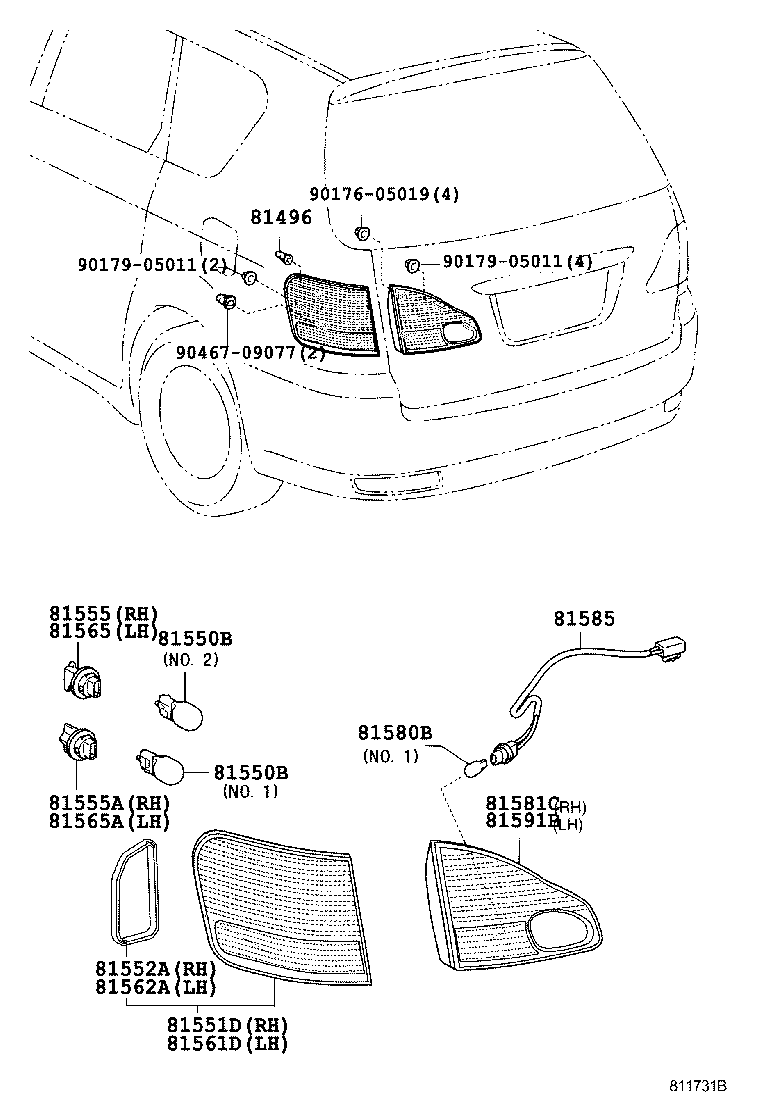

Rear Combination Lamp
18 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 81496 | Guide, Rear Combination Lamp |
| 81550 | Lamp Assy, Rear Combination, RH |
| 81550B | Bulb(FOR REAR COMBINATION LAMP) |
| 81551D | Lens & Body, Rear Combination Lamp, RH |
| 81552A | Gasket, Rear Combination Lamp, RH |
| 81555 | Socket & Wire Sub-assy, Rear Combination Lamp, RH |
| 81555A | Socket & Wire Sub-assy, Rear Combination Lamp, RH |
| 81560 | Lamp Assy, Rear Combination, LH |
| 81561D | Lens & Body, Rear Combination Lamp, LH |
| 81562A | Gasket, Rear Combination Lamp, LH |
| 81565 | Socket & Wire Sub-assy, Rear Combination Lamp, LH |
| 81565A | Socket & Wire Sub-assy, Rear Combination Lamp, LH |
| 81580B | Bulb (FOR REAR LAMP) |
| 81581C | Lens And Body, Rear Lamp, RH |
| 81584 | Packing, Rear Lamp RH |
| 81585 | Socket & Wire, Rear Lamp |
| 81591B | Lens And Body, Rear Lamp, LH |
| 81594A | Gasket, Rear Lamp LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
