Toyota Picnic/Avensis Verso

2001-05 → 2009-12 · chassis ACM20,CLM20 · catalogue 511220 · General

Discontinued model Data version 2010-04

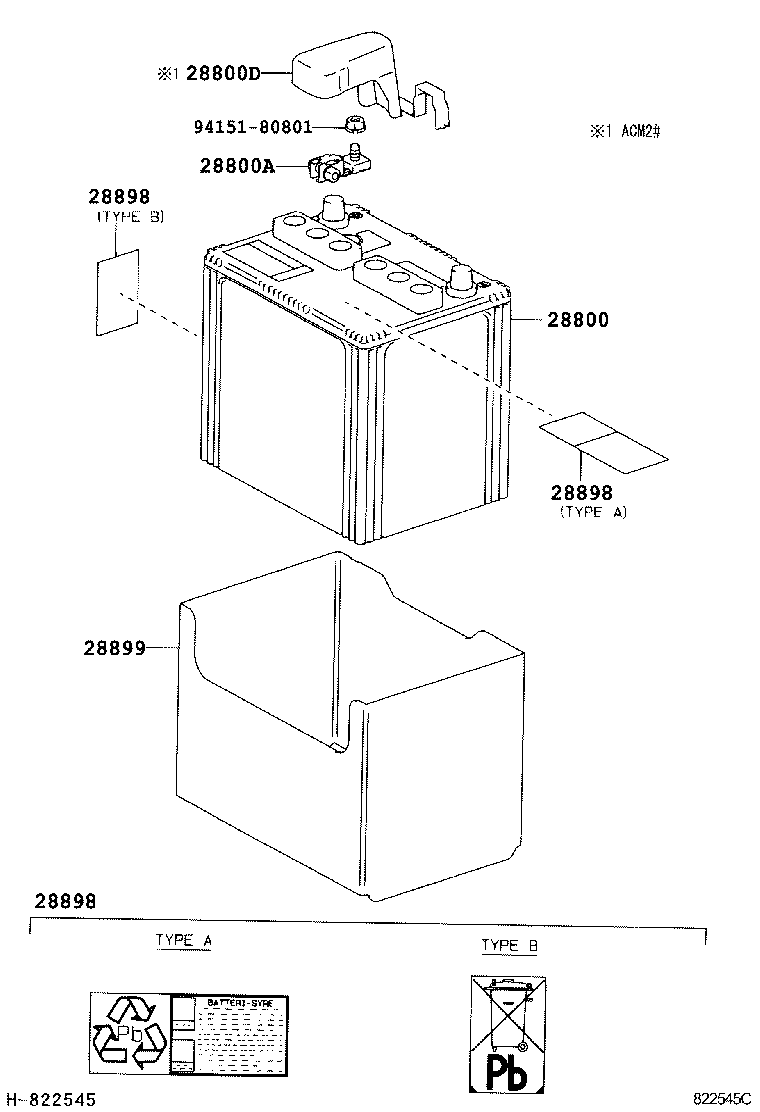

Battery & Battery Cable

5 part groups · 1 illustrations

PNC	Description
28800	Battery
28800A	Terminal, Battery Positive
28800D	Cover, Connector(FOR BATTERY TERMINAL)
28898	Plate, Battery
28899	Insulator, Battery

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
