Toyota Picnic/Avensis Verso

2001-05 → 2009-12 · chassis ACM20,CLM20 · catalogue 511220 · General

Discontinued model Data version 2010-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

32 part groups · 11 illustrations

Illustrations

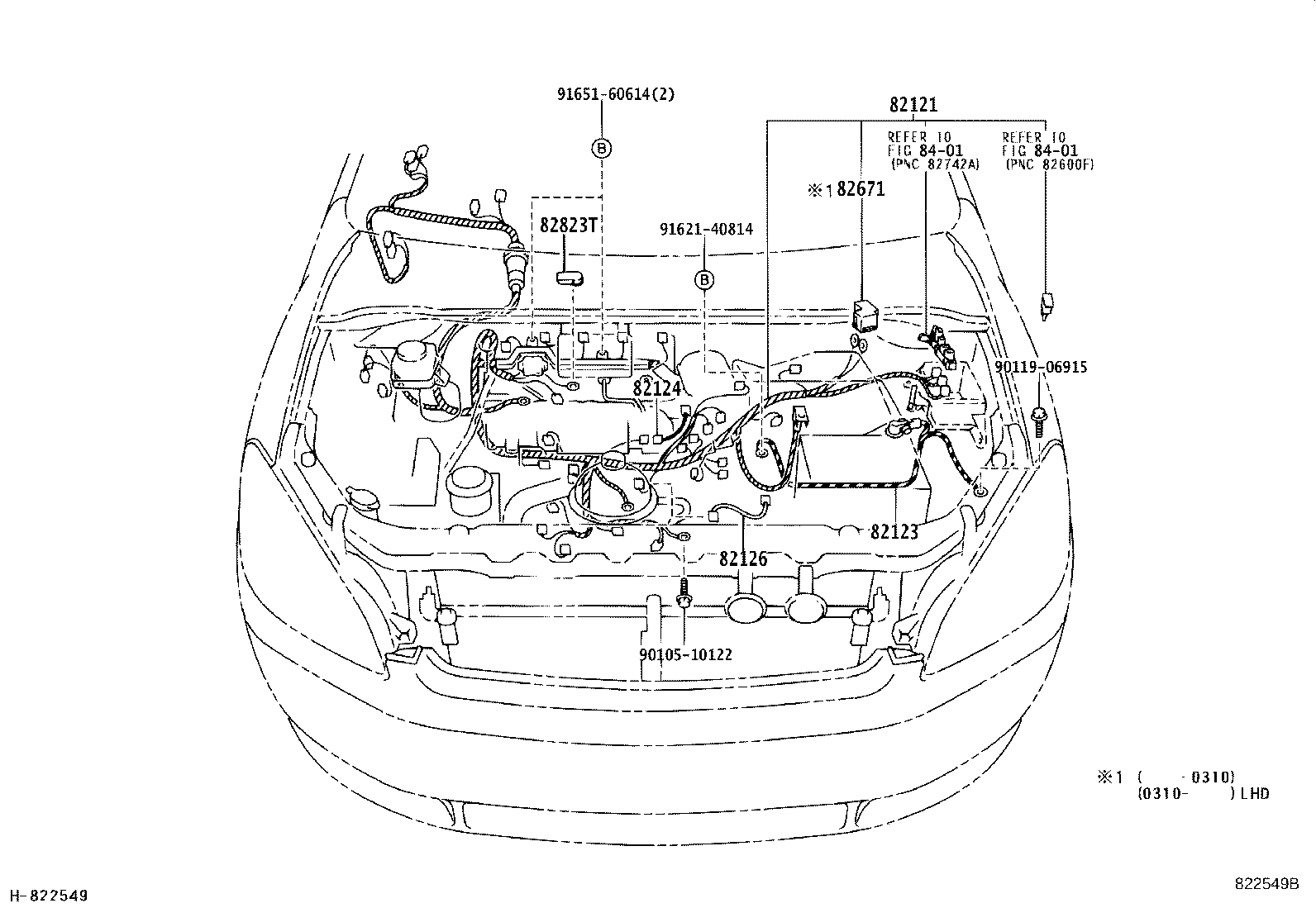

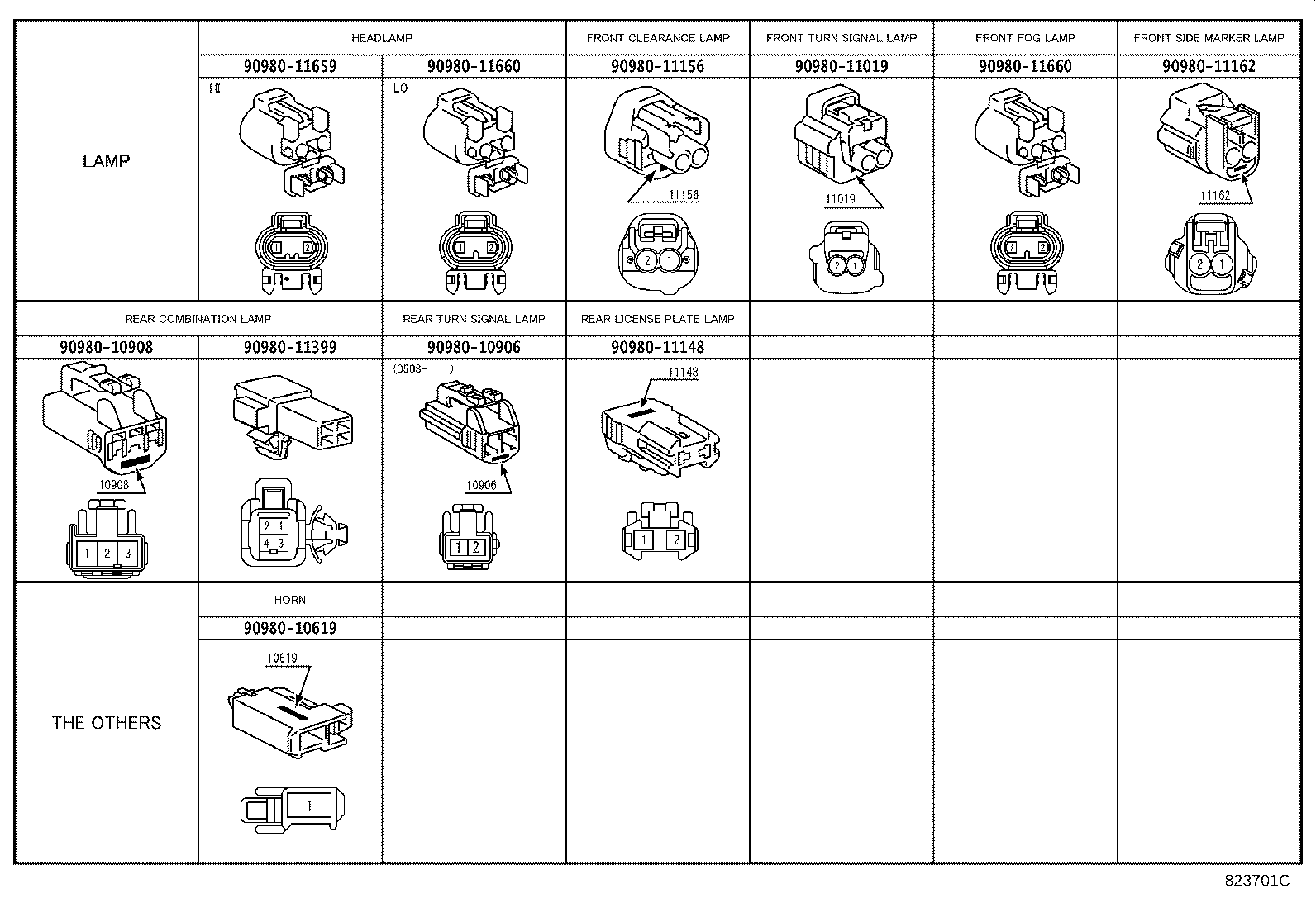

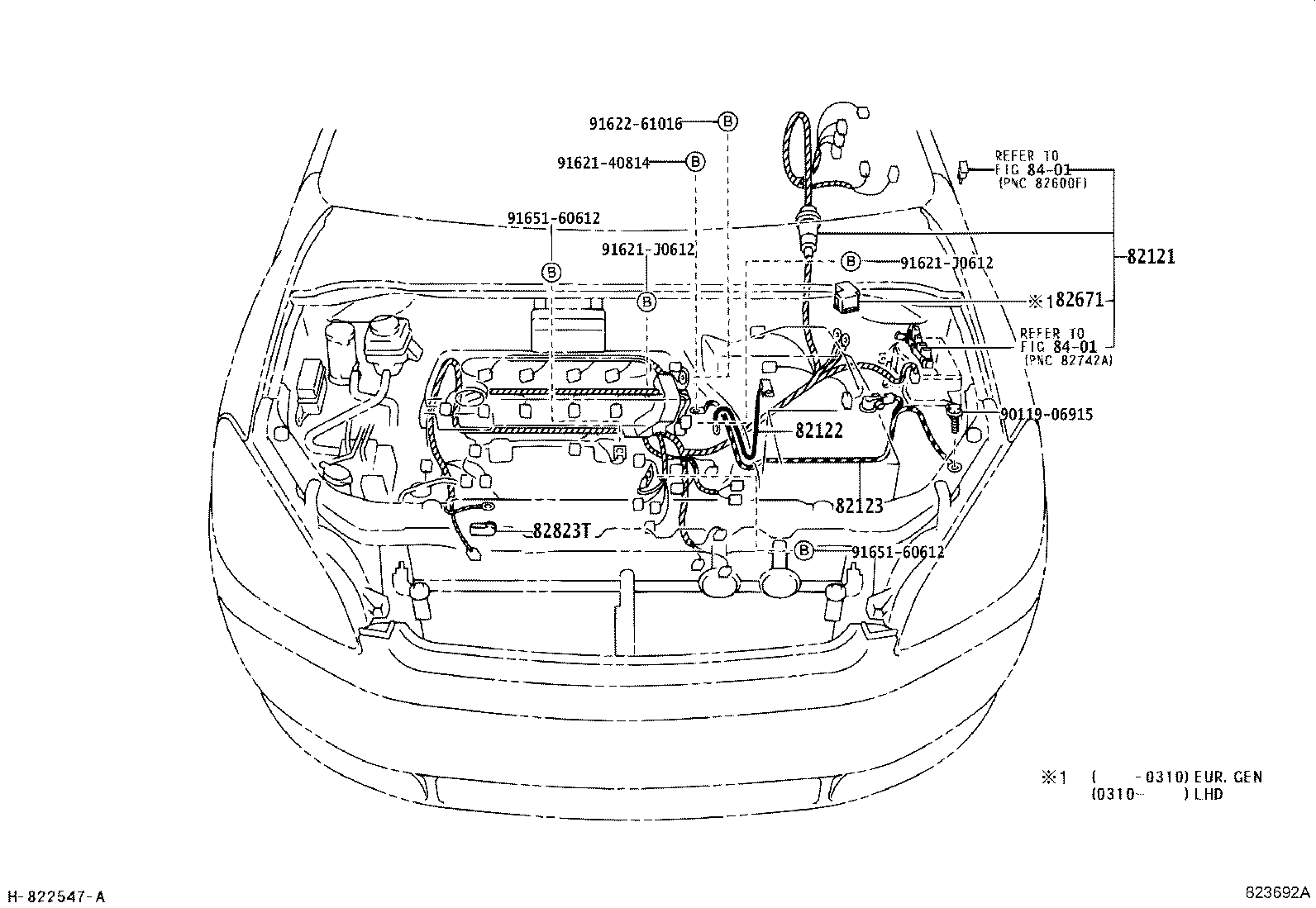

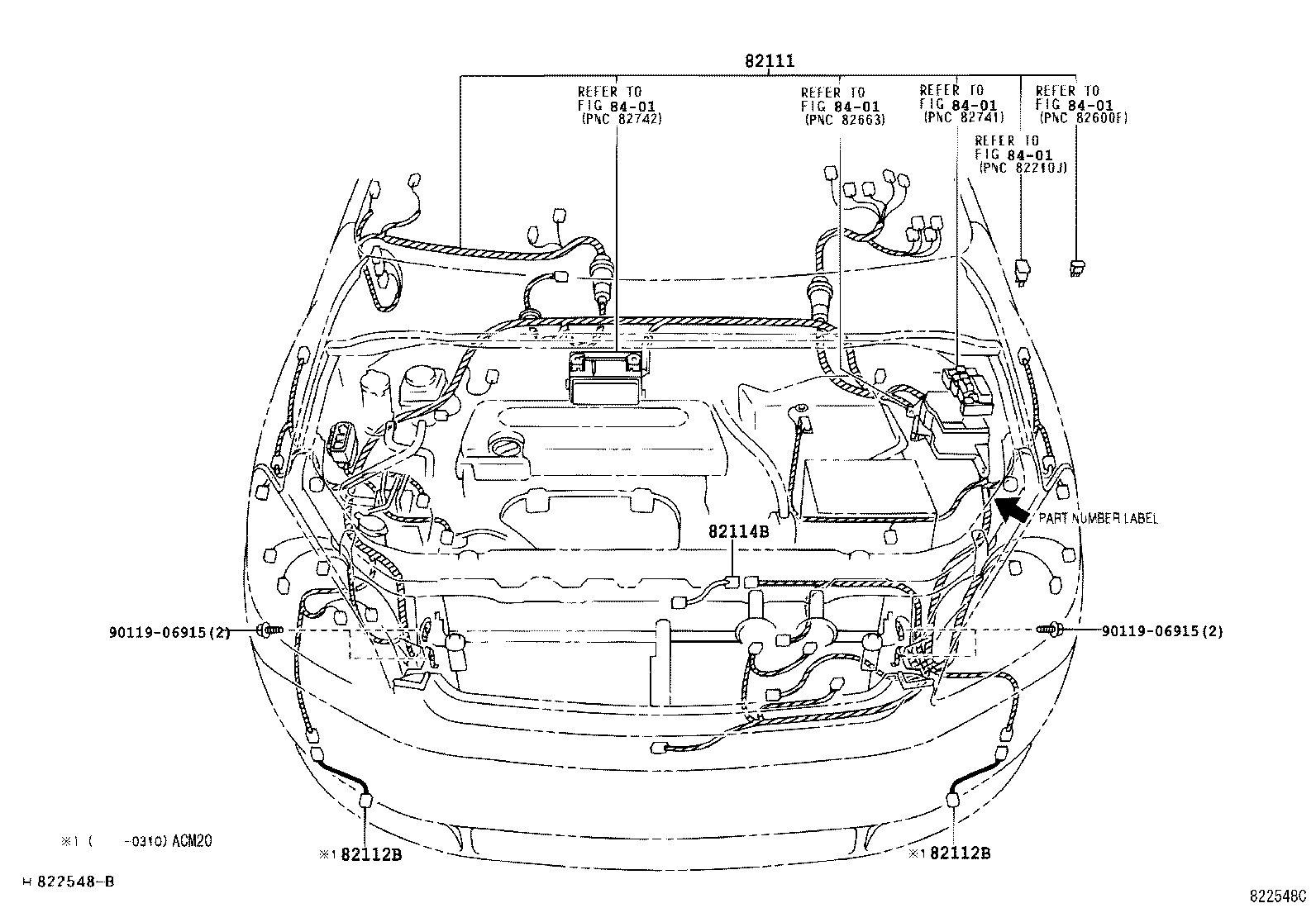

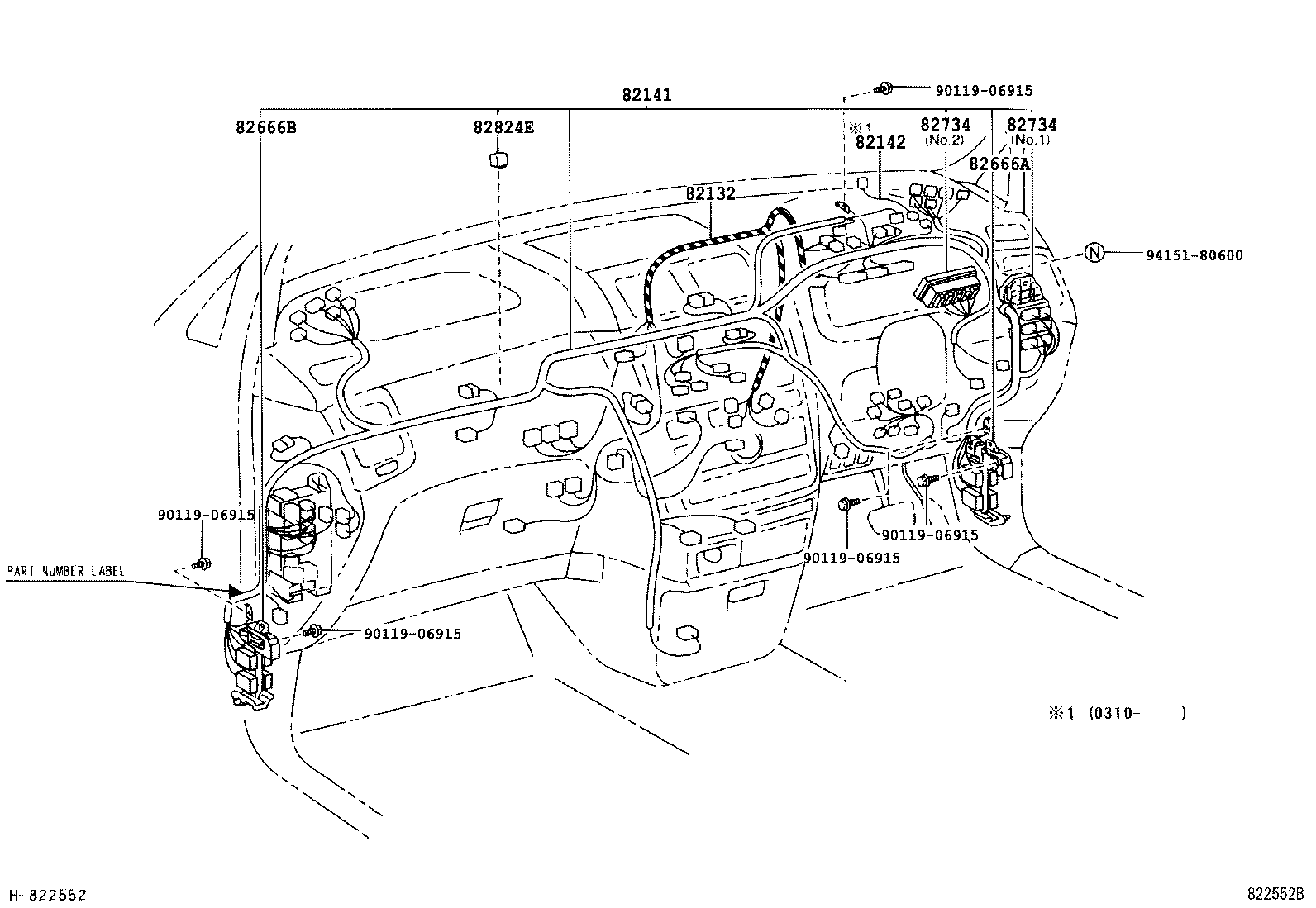

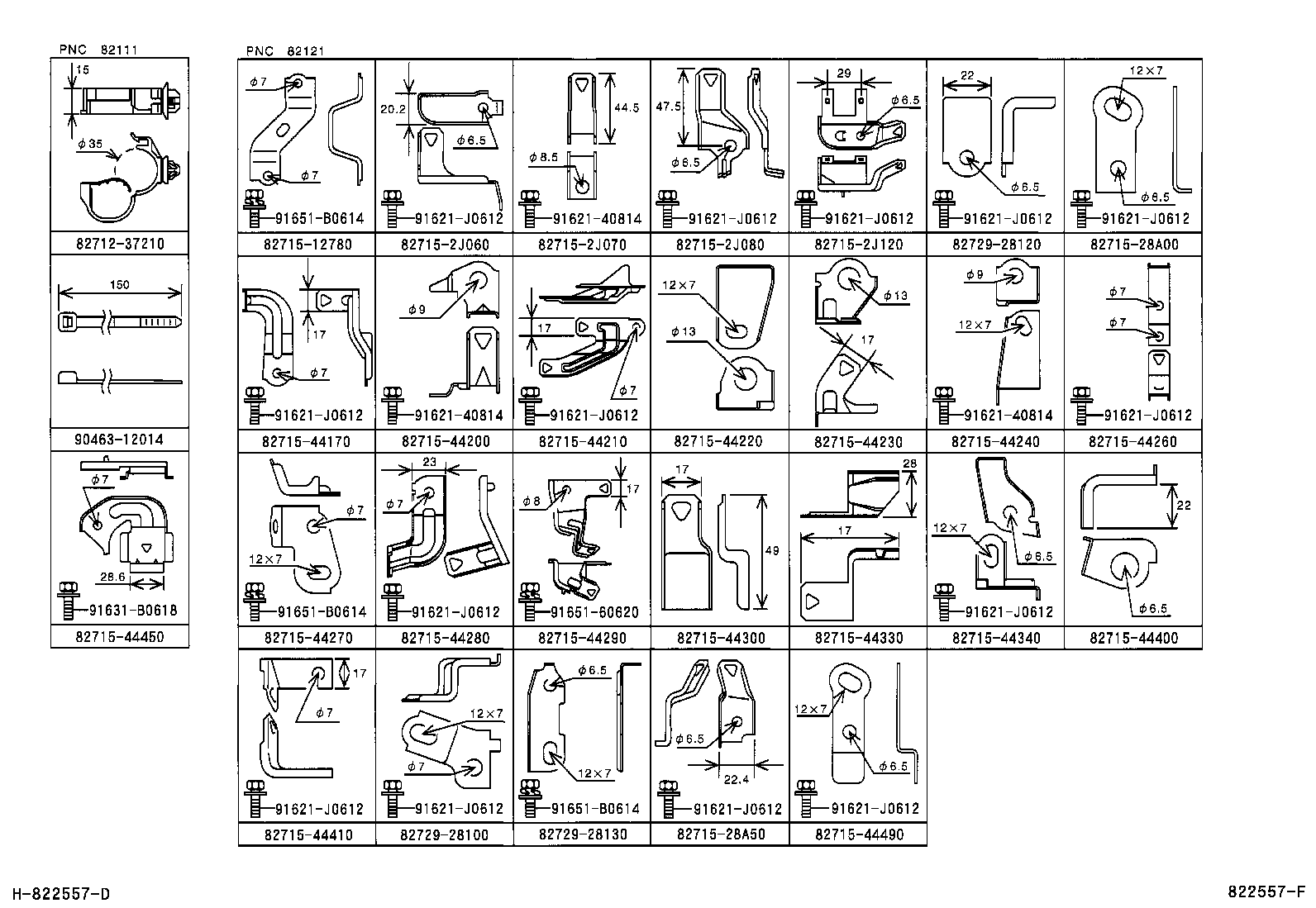

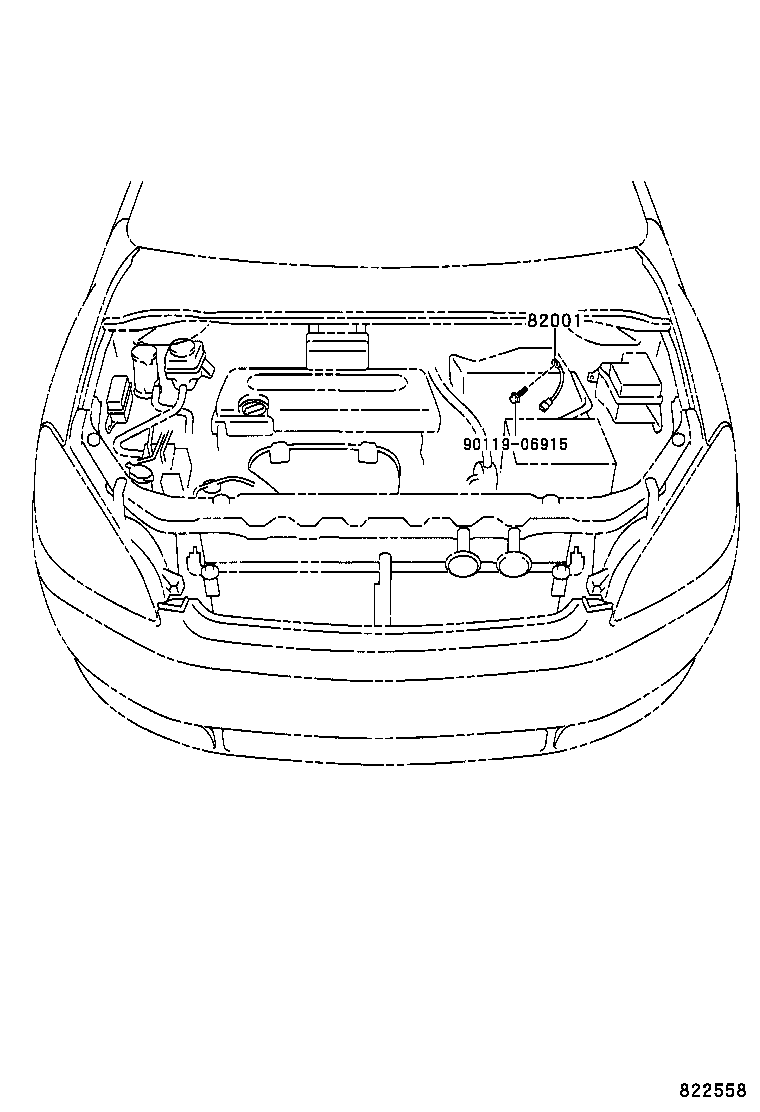

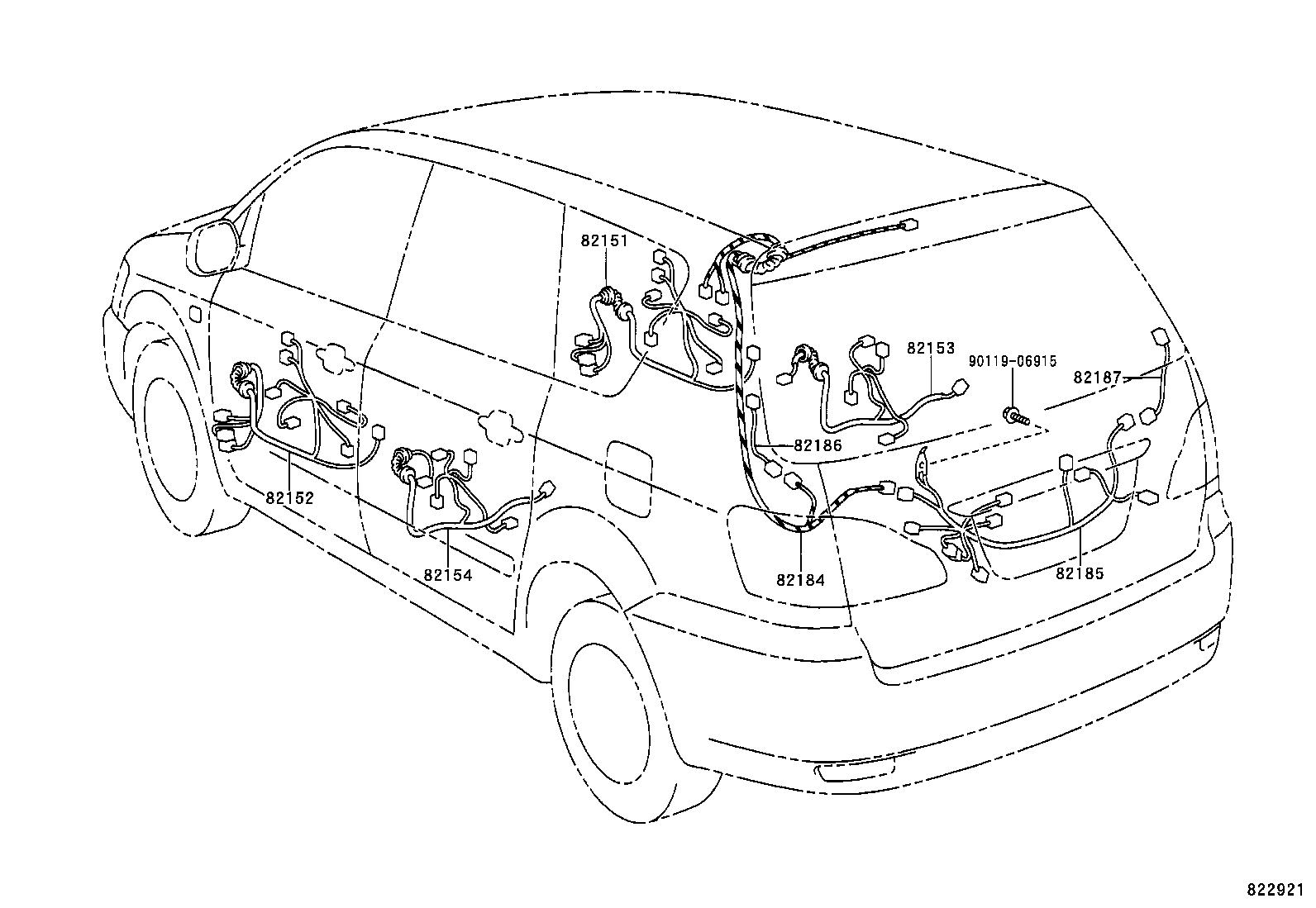

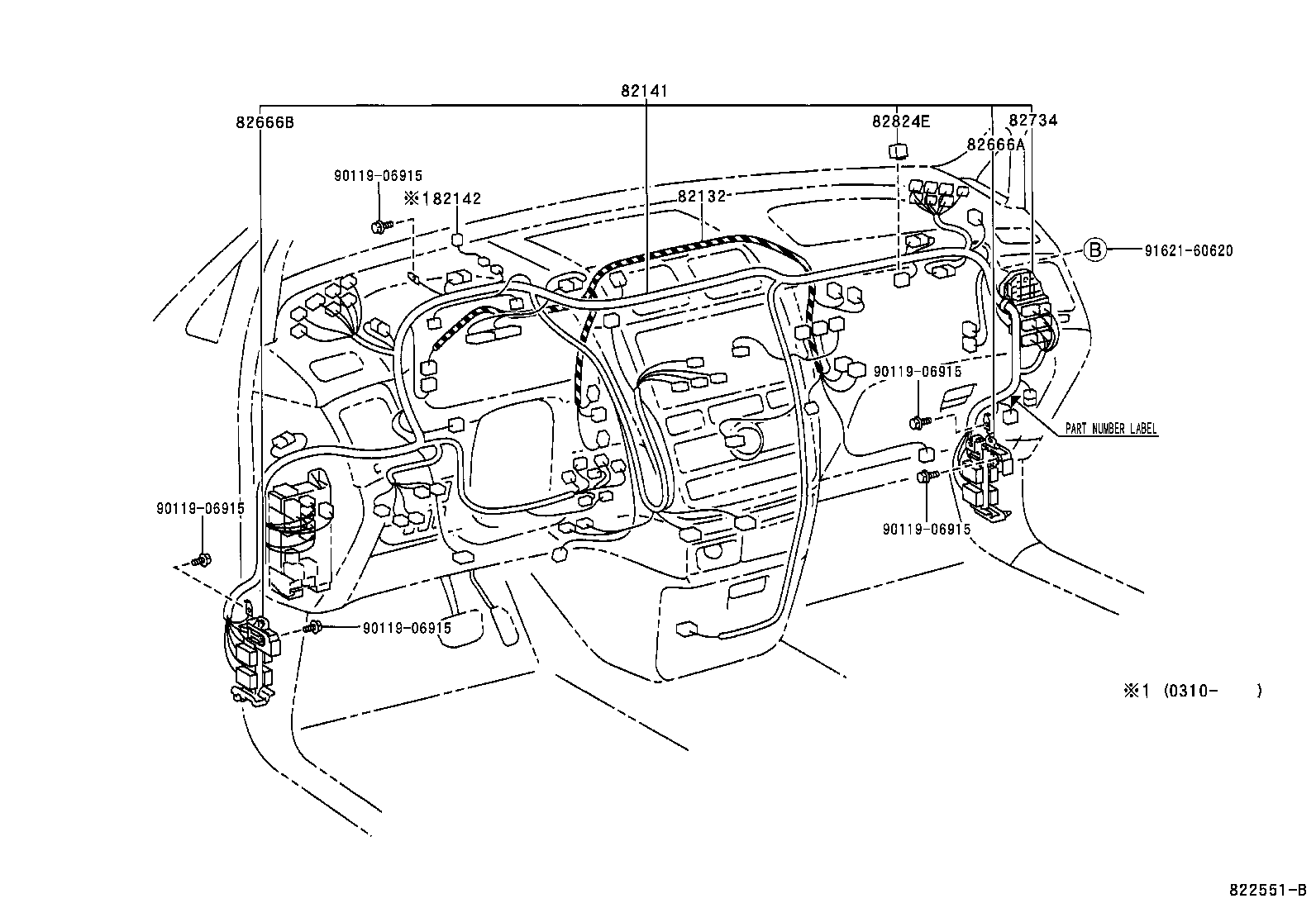

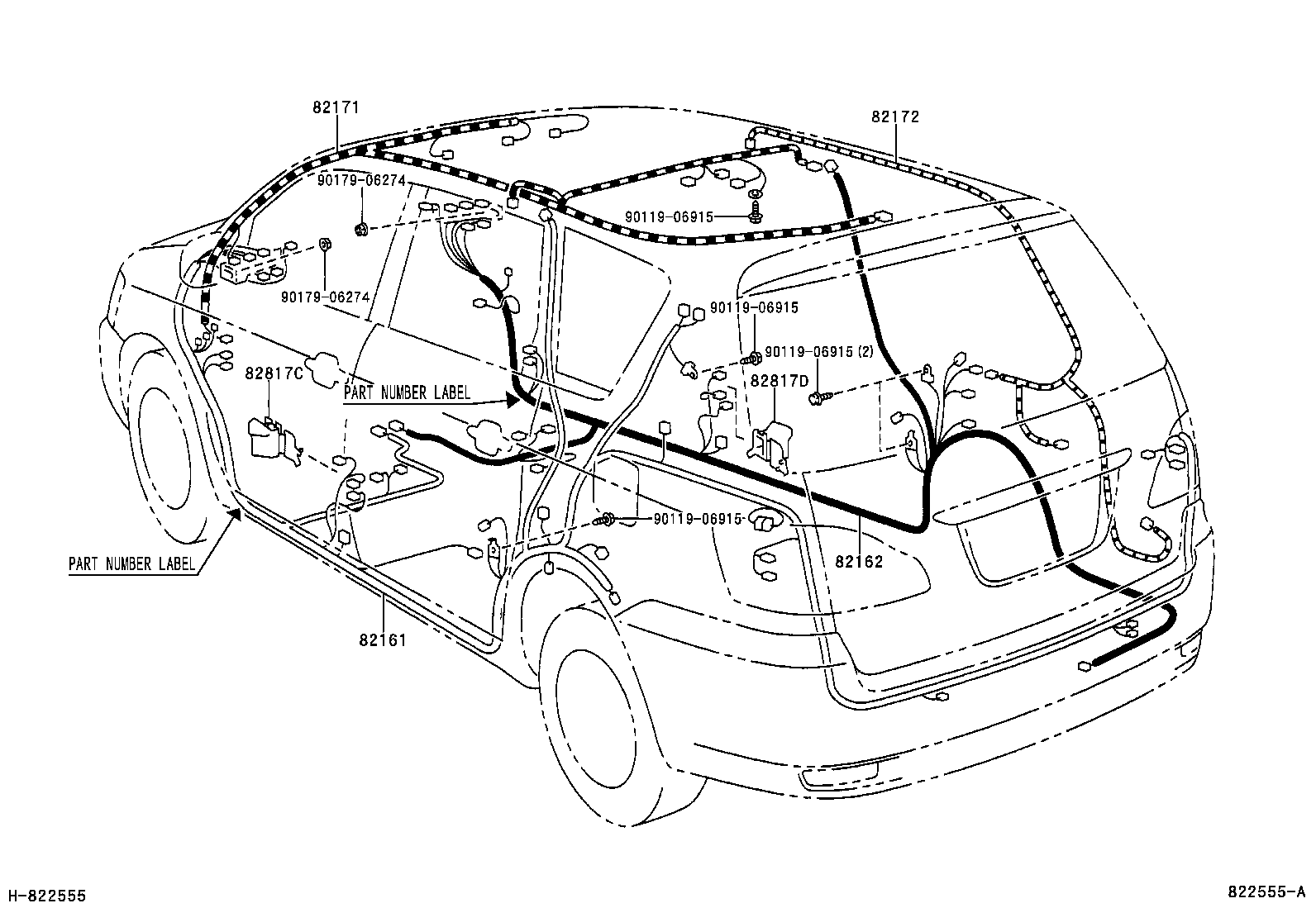

Figure 822548C 822548C 2001-05 → — Figure 823692A 823692A 2001-05 → — Figure 822549B 822549B 2001-05 → — Figure 822552B 822552B 2001-05 → — Figure 822551B 822551B 2001-05 → — Figure 822921 822921 2001-05 → — Figure 822555A 822555A 2001-05 → — Figure 822557F 822557F 2001-05 → — Figure 822759A 822759A 2001-05 → — Figure 822558 822558 2001-05 → — Figure 823701C 823701C 2003-10 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82111 Wire, Engine Room Main
82112B Wire, Engine Room, NO.2
82114B Wire, Engine Room, NO.4
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82126 Wire, Engine
82132 Wire, Cowl, NO.2
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82171 Wire, Roof, NO.1
82172 Wire, Roof, NO.2
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82186 Wire, Rear Window, NO.1
82187 Wire, Rear Window, NO.2
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82671 Block, Junction
82734 Block, Center Junction
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82823T Cap, Alternator Terminal
82824E Connector, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
