Factory parts data · Europe

Toyota Picnic/Avensis Verso

2001-05 → 2009-12 · chassis ACM20,CLM20 · catalogue 511220 · General

Discontinued model Data version 2010-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

3 part groups · 2 illustrations

Illustrations

Figure 830714B

830714B 2001-05 → 2003-10

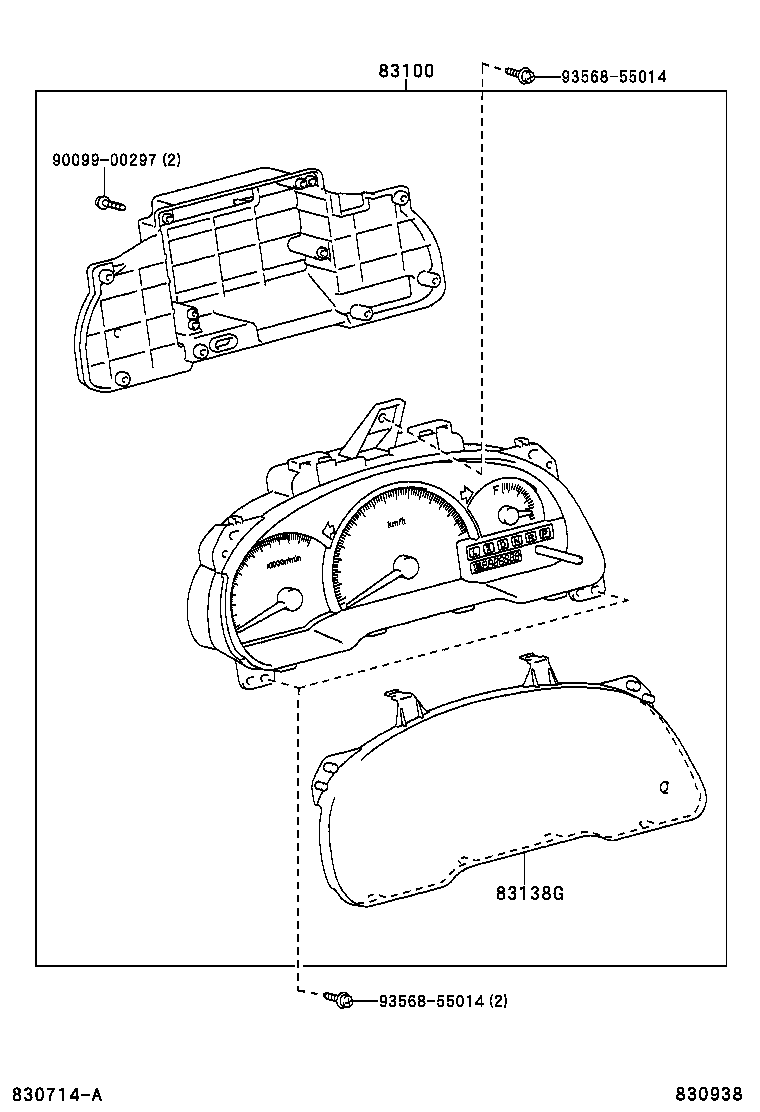

830938 2003-10 → —

Part groups

PNC	Description
83100	Meter Assy, Combination
83136A	Cover, Combination Meter
83138G	Glass, Combination Meter

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
