Toyota Picnic/Avensis Verso

2001-05 → 2009-12 · chassis ACM20,CLM20 · catalogue 511220 · General

Discontinued model Data version 2010-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Anti-theft Device

4 part groups · 1 illustrations

Illustrations

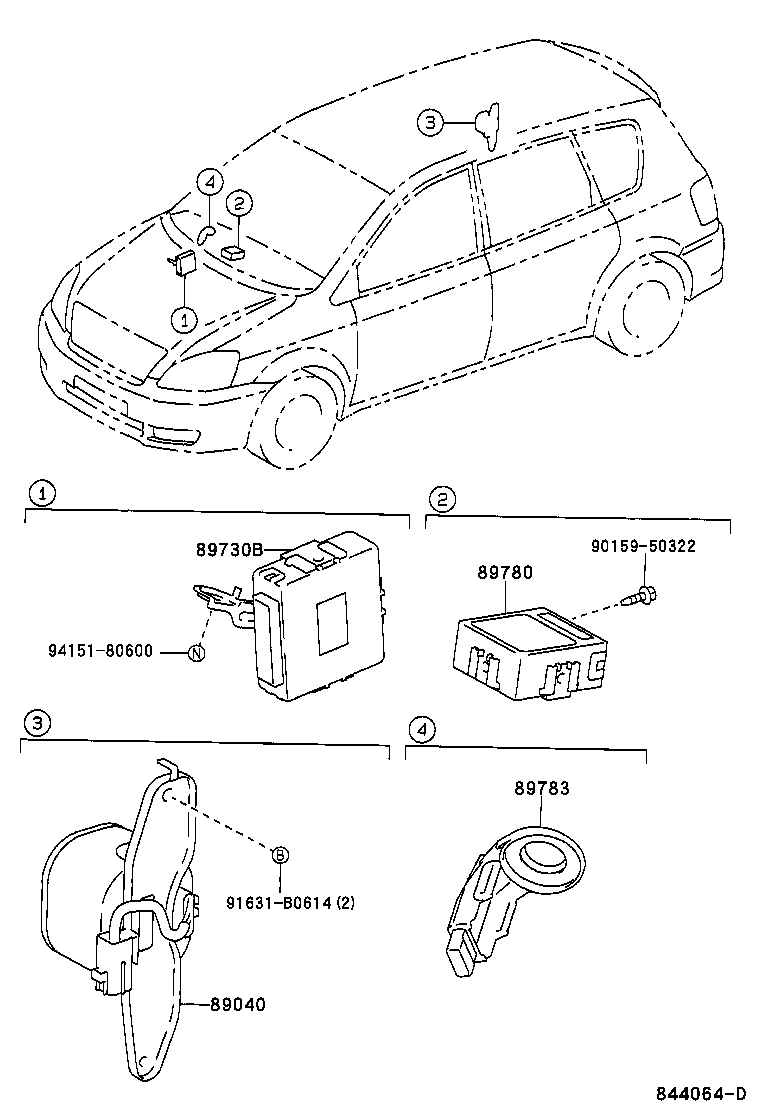

Figure 844064D 844064D 2001-05 → —

Part groups

PNCDescription
89040 Siren Assy, Theft Warning
89730B Computer Assy, Theft Warning
89780 Computer Assy, Transponder Key
89783 Amplifier, Transponder Key
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
