Rear Wiper

6 part groups · 1 illustrations

Illustrations

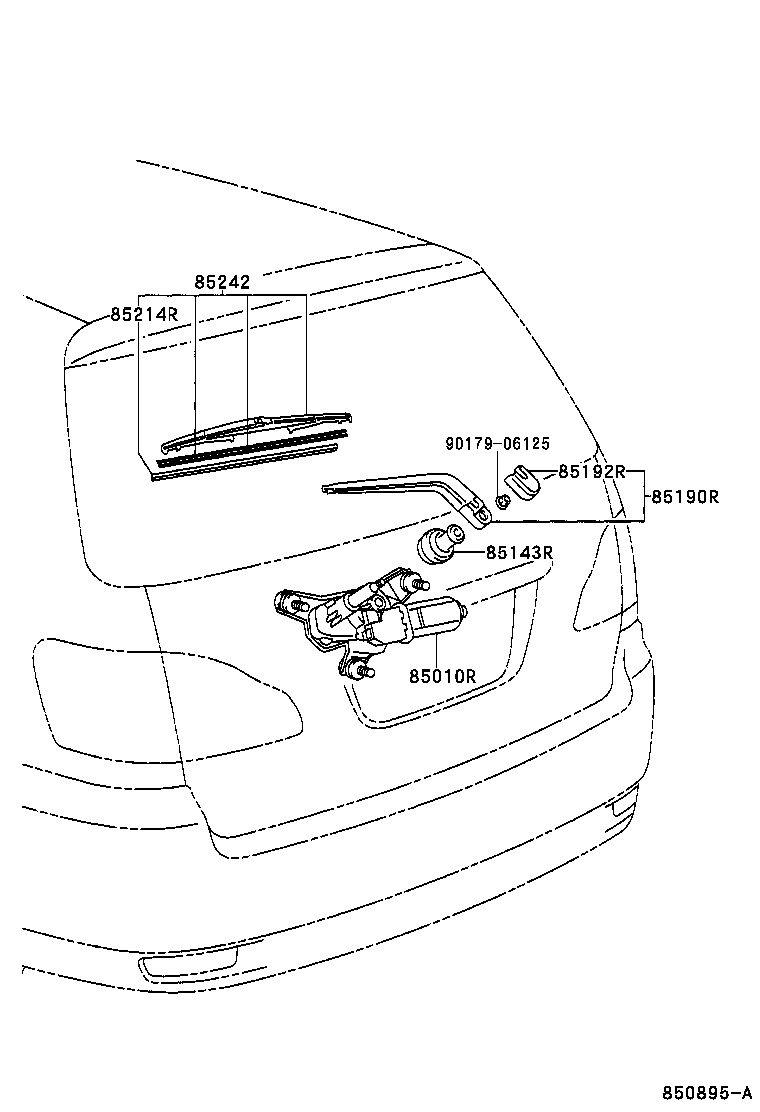

Figure 850895A

850895A 2001-05 → —

Part groups

PNC	Description
85010R	Motor & Link Assy, RR Wiper
85143R	Grommet, Rear Wiper Motor
85190R	Arm Assy, Rear Wiper
85192R	Cover, Rear Wiper Arm
85214R	Rubber, Rear Wiper
85242	Blade, RR Wiper

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
