Toyota Picnic/Avensis Verso

2001-05 → 2009-12 · chassis ACM20,CLM20 · catalogue 511220 · General

Discontinued model Data version 2010-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp Cleaner

23 part groups · 2 illustrations

Illustrations

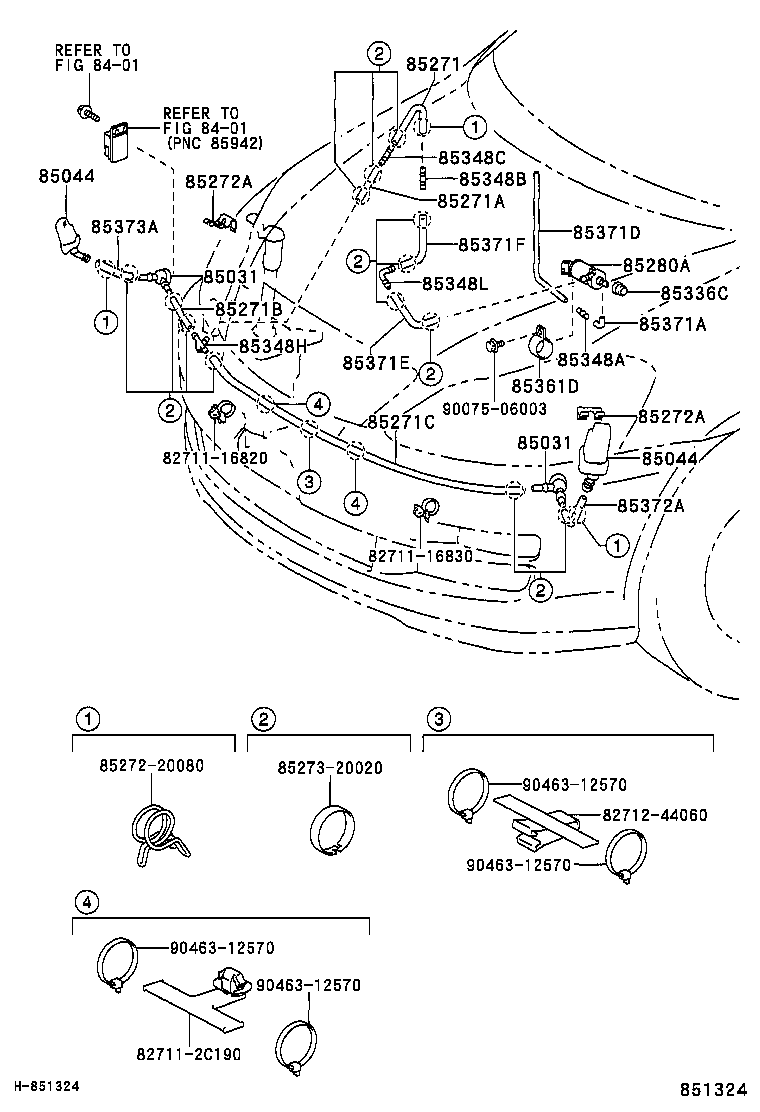

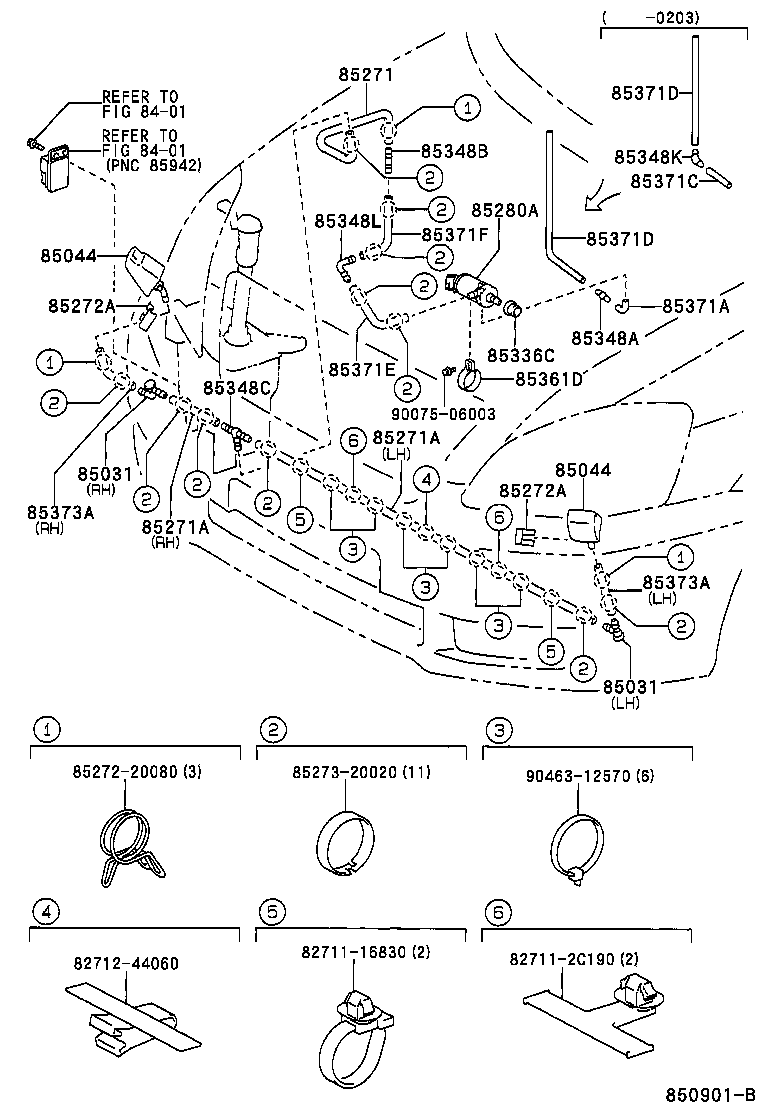

Figure 850901B 850901B 2001-05 → 2003-10 Figure 851324 851324 2003-10 → 2005-07

Part groups

PNCDescription
85031 Valve, Headlamp Cleaner Washer Hose
85044 Nozzle Sub-assy, TYPE1 H/Lamp Washer, RH
85271 Hose, Headlamp Cleaner, NO.1
85271A Hose, Headlamp Cleaner, NO.2
85271B Hose, Headlamp Cleaner, NO.3
85271C Hose, Headlamp Cleaner, NO.4
85272A Clamp, Headlamp Cleaner, NO.1
85280A Motor And Pump Assy, Headlamp Cleaner
85336C Packing, Headlamp Cleaner Motor
85348A Joint, Headlamp Cleaner Hose, NO.1
85348B Joint, Headlamp Cleaner Hose, NO.2
85348C Joint, Headlamp Cleaner Hose, NO.3
85348H Joint, Headlamp Cleaner Hose, NO.4
85348K Joint, Headlamp Cleaner Elbow, NO.1
85348L Joint, Headlamp Cleaner Elbow, NO.2
85361D Bracket, Headlamp Cleaner, NO.2
85371A Hose, Headlamp Cleaner(FROM MOTOR TO JOINT)
85371C Hose, Headlamp Cleaner, NO.1
85371D Hose, Headlamp Cleaner, NO.2
85371E Hose, Headlamp Cleaner, NO.3
85371F Hose, Headlamp Cleaner, NO.4
85372A Hose, Headlamp Cleaner (FROM JOINT TO JOINT OR NOZZLE)
85373A Hose, Headlamp Cleaner Washer (FROM JOINT TO NOZZLE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
