Factory parts data · Europe

Toyota Picnic/Avensis Verso

2001-05 → 2009-12 · chassis ACM20,CLM20 · catalogue 511220 · General

Discontinued model Data version 2010-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

5 part groups · 2 illustrations

Illustrations

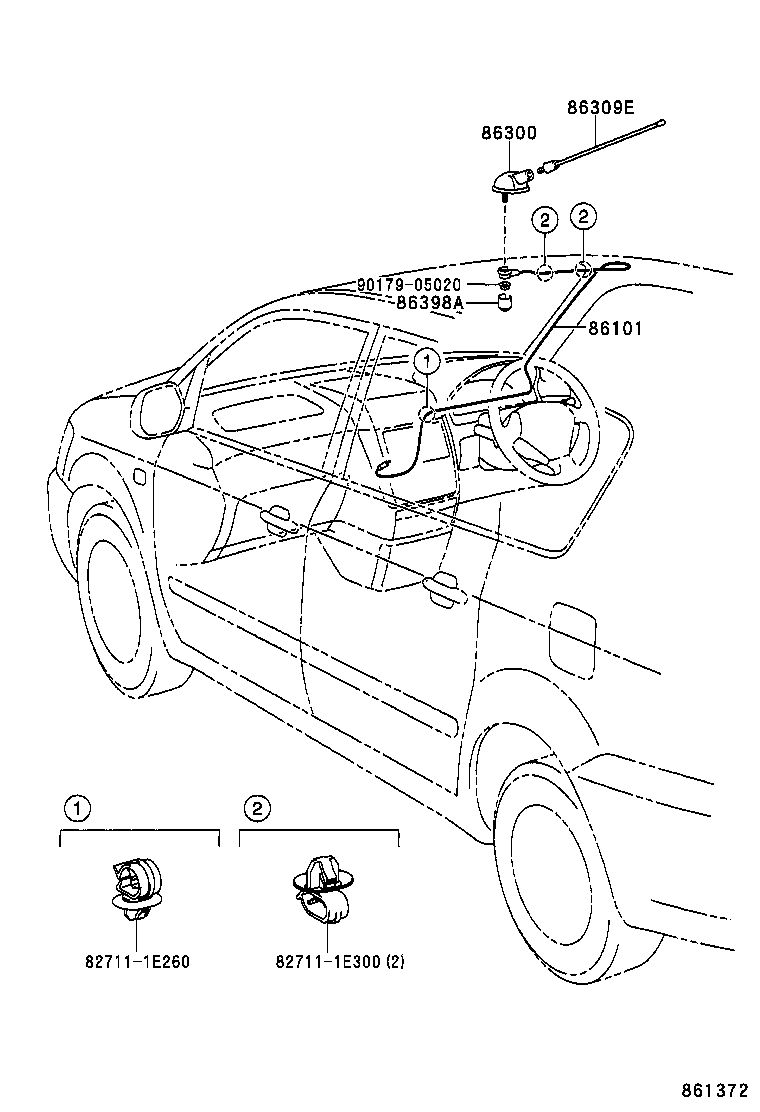

861372 2001-05 → 2003-10

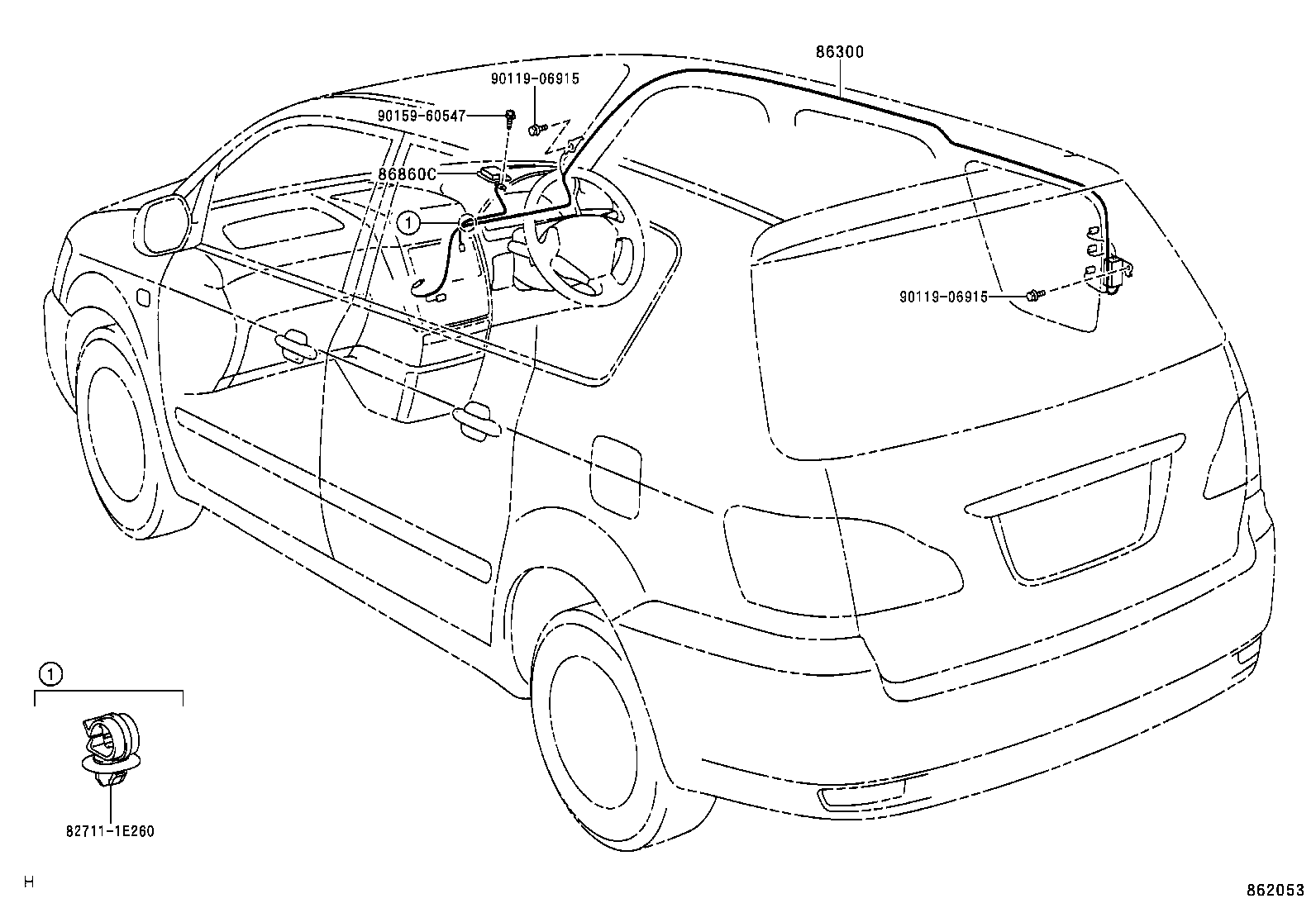

862053 2003-10 → —

Part groups

PNC	Description
86101	Cord Sub-assy, Antenna
86300	Antenna Assy, W/Holder
86309E	Pole Sub-assy, Roof Antenna
86398A	Cap, Antenna Shield
86860C	Antenna Assy, Navigation

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
