Heating & Air Conditioning - Control & Air Duct

33 part groups · 8 illustrations

Illustrations

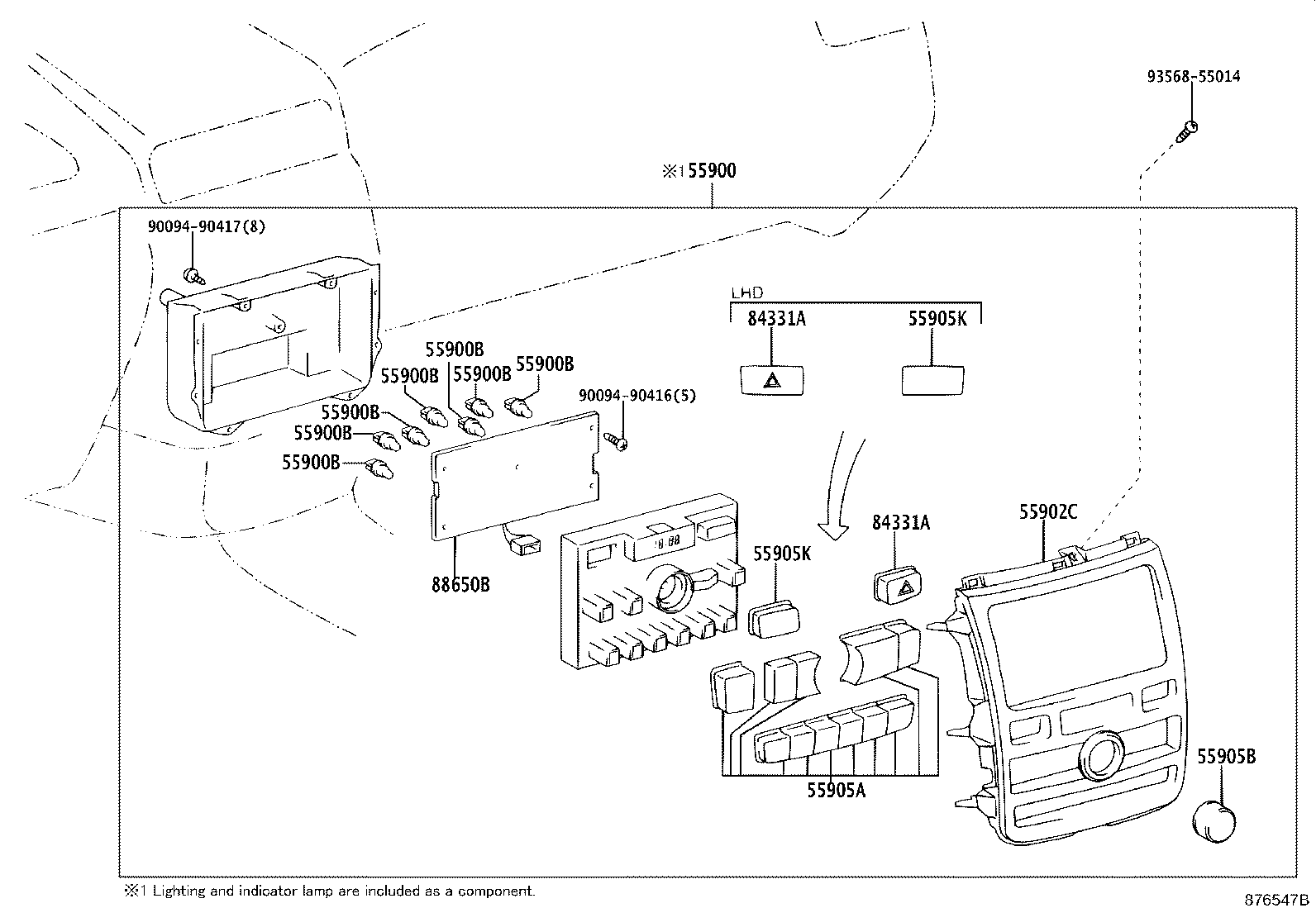

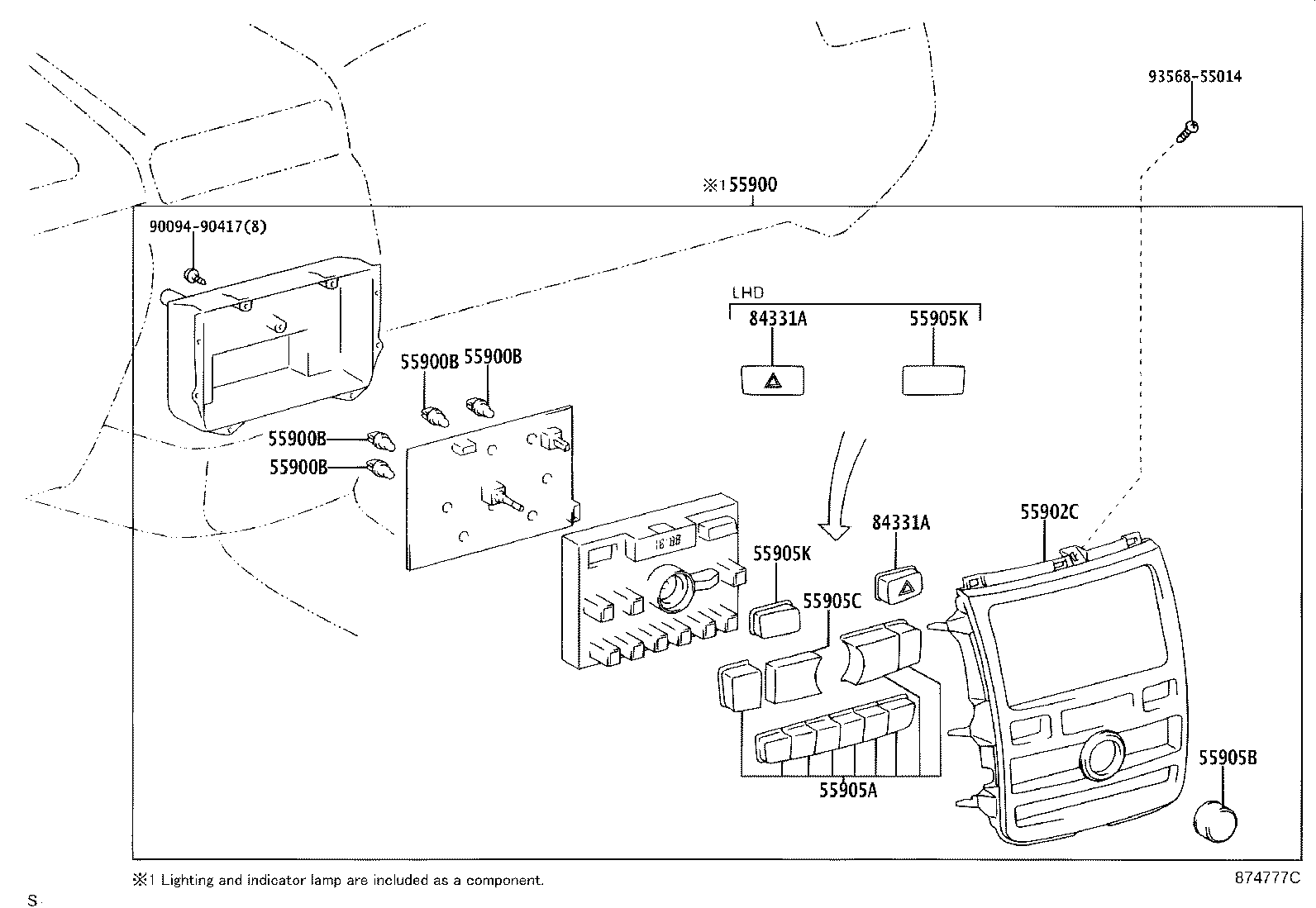

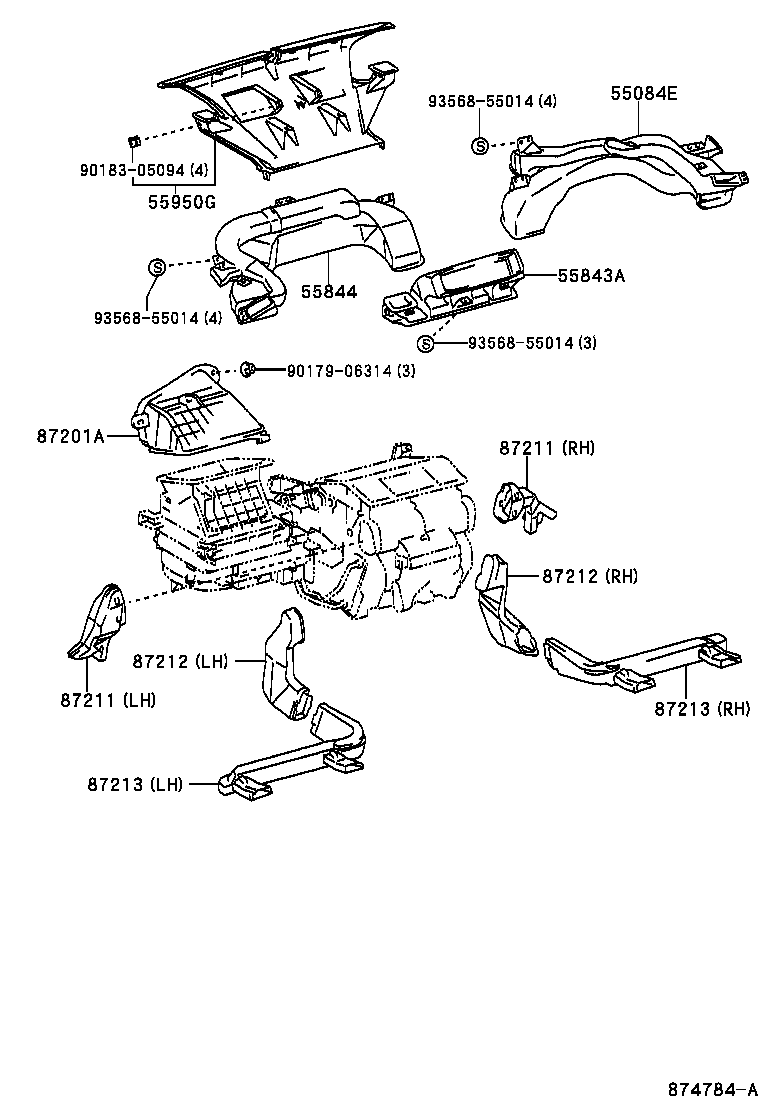

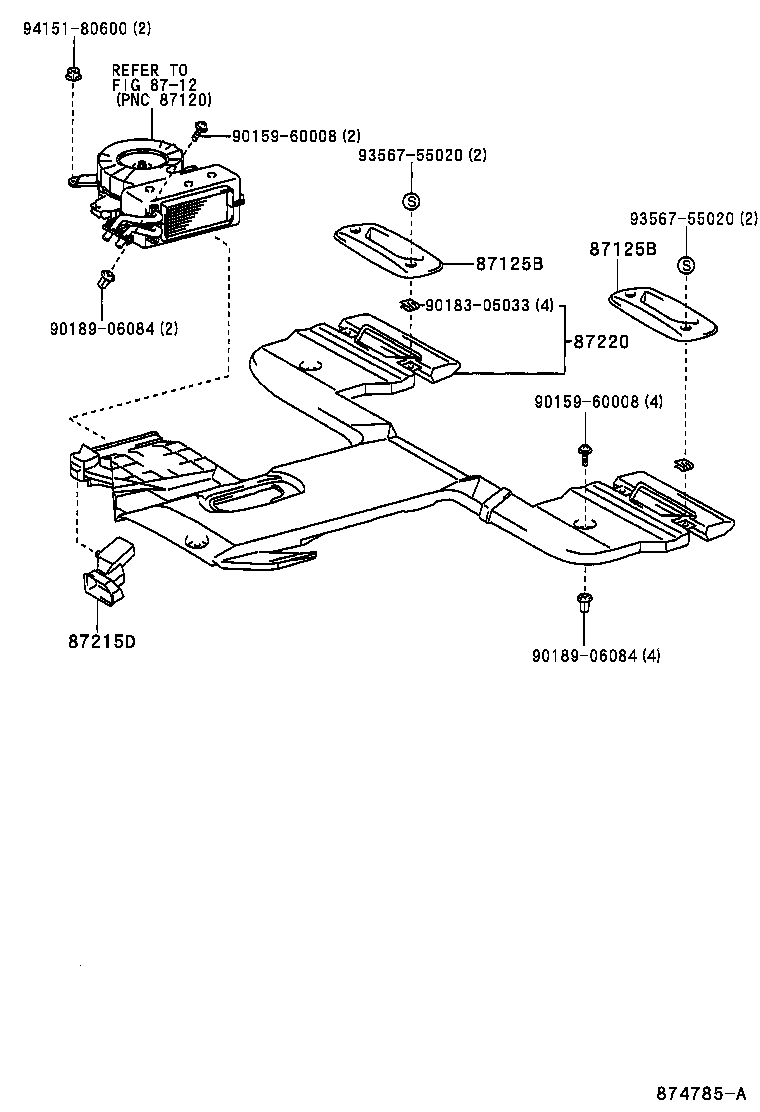

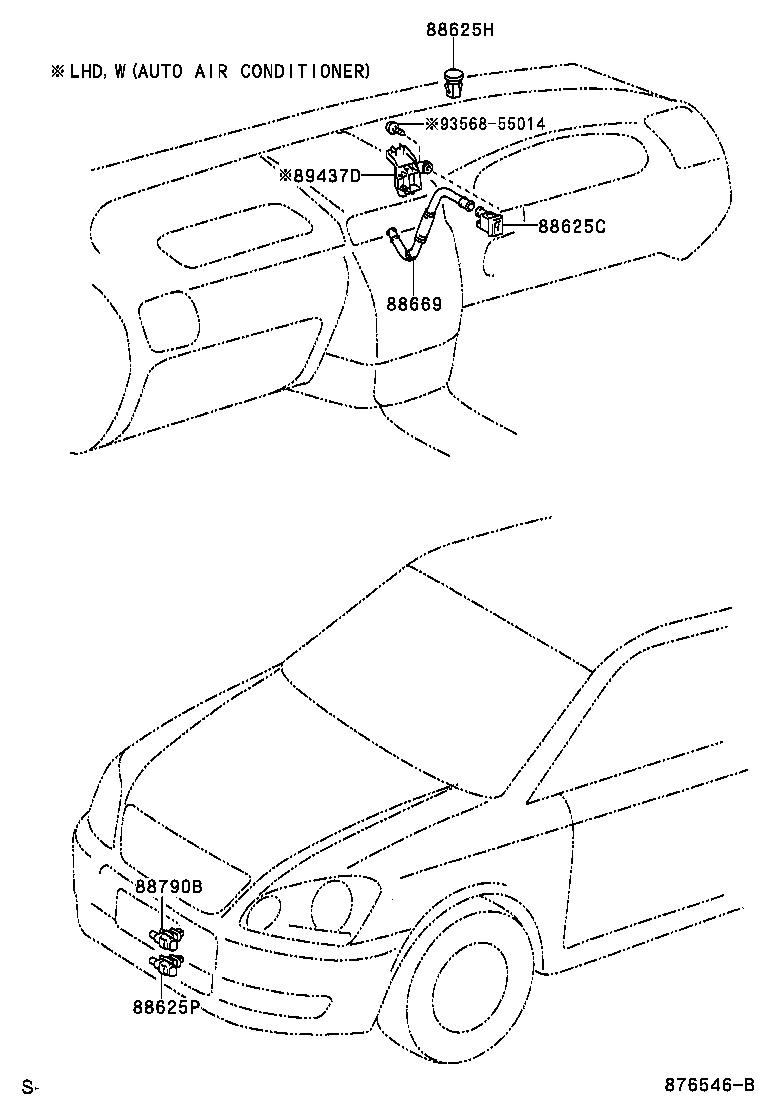

Figure 874777C 874777C 2001-05 → — Figure 876547B 876547B 2003-10 → — Figure 875290 875290 2001-05 → — Figure 874784A 874784A 2001-05 → — Figure 874785A 874785A 2001-05 → — Figure 874782E 874782E 2001-05 → — Figure 874787 874787 2001-05 → 2003-10 Figure 876546B 876546B 2003-10 → —

Part groups

PNCDescription
55084E Duct Sub-assy, Heater TO Register, NO.1
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55900 Control Assy, Air Conditioner
55900B Bulb, Air Conditioner Control
55902C Panel Sub-assy, Air Conditioner
55905A Knob, Heater Control
55905B Knob, Heater Control, NO.2
55905C Knob, Heater Control, NO.3
55905K Knob, Heater Control, NO.4
55905M Knob Sub-assy, Control
55950G Nozzle Assy, Defroster
84331A Knob, Hazard Warning Signal Switch
87125B Grille, Heater Air Outlet
87201A Duct Sub-assy, Air
87211 Duct, Air, NO.1
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
87215D Duct, Air, Rear NO.4
87220 Duct Assy, Air
88566A Duct, Cooler Air, NO.1
88566B Duct, Cooler Air, NO.2
88566C Duct, Cooler Air, NO.3
88566D Duct, Cooler Air, NO.4
88566Q Duct, Cooler Air, NO.5
88601A Switch Sub-assy, Cooler Control
88625C Thermistor, Cooler
88625H Thermistor, Cooler (SOLAR SENSOR)
88625P Thermistor, Cooler (AMBIENT TEMP. SENSOR)
88650B Amplifier Assy, Airconditioner
88669 Hose, Cooler Air
88790B Thermistor Assy
89437D Cover, Sensor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
