Toyota Picnic/Avensis Verso

2001-05 → 2009-12 · chassis ACM20,CLM20 · catalogue 511220 · General

Discontinued model Data version 2010-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

11 part groups · 17 illustrations

Illustrations

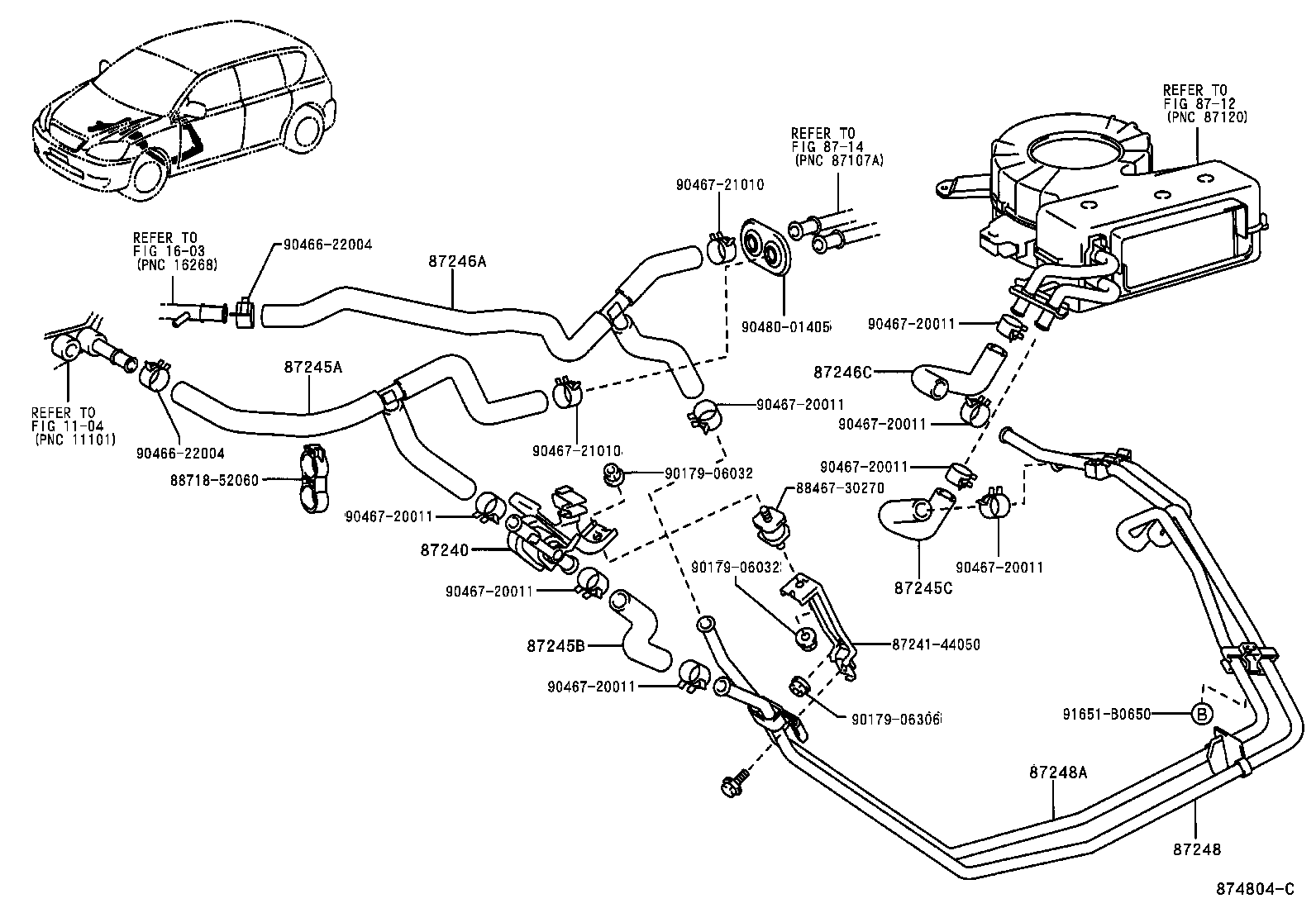

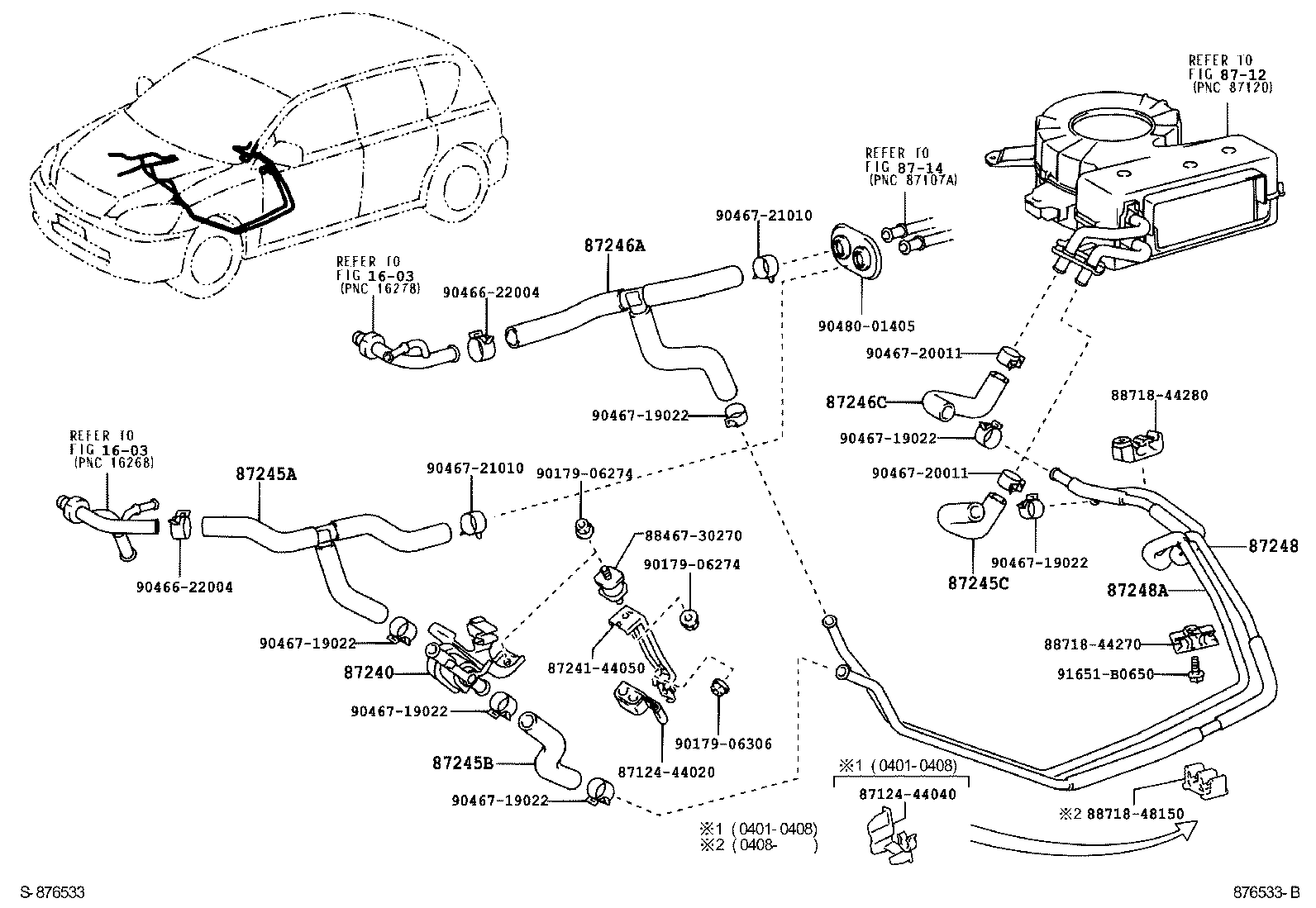

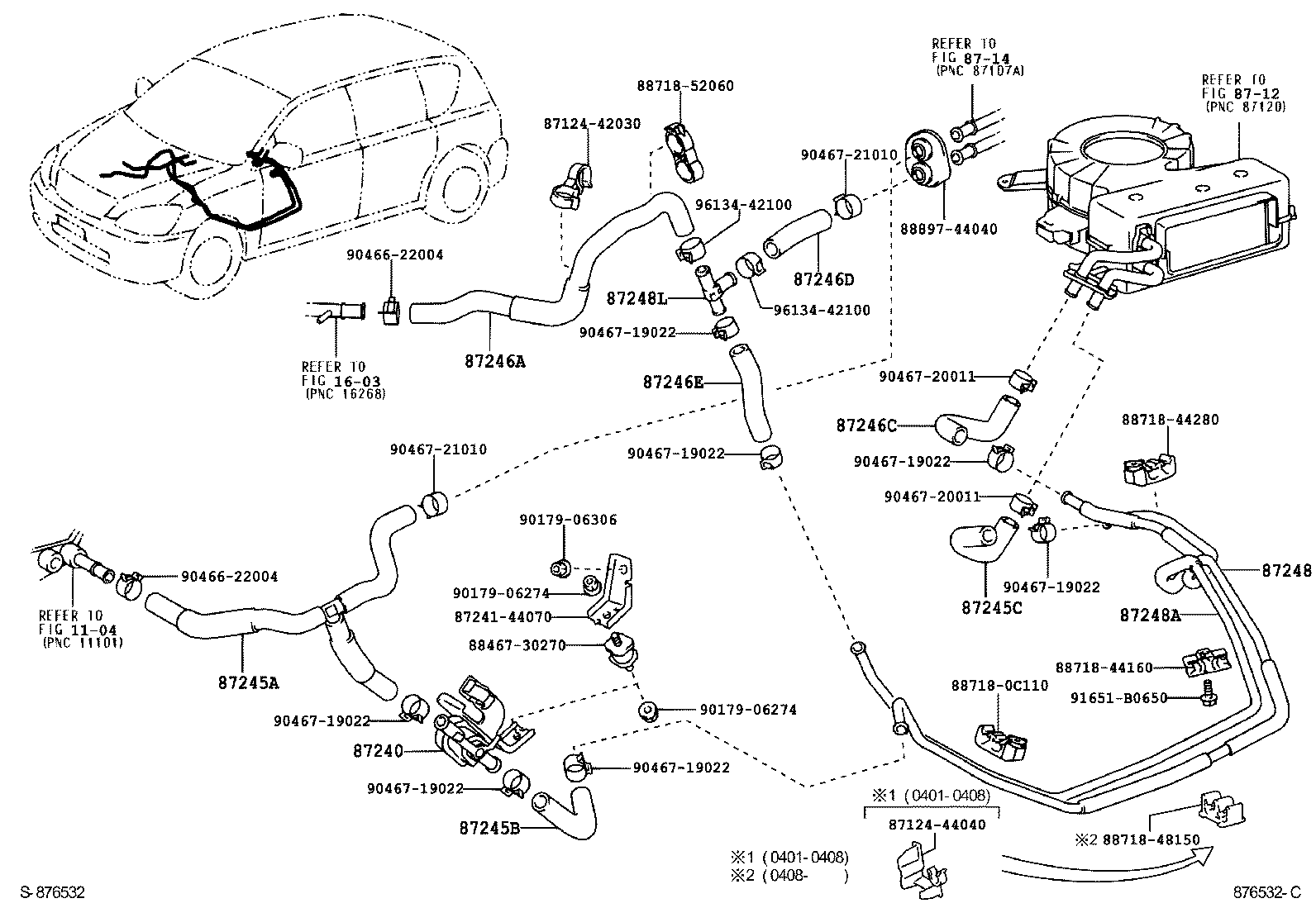

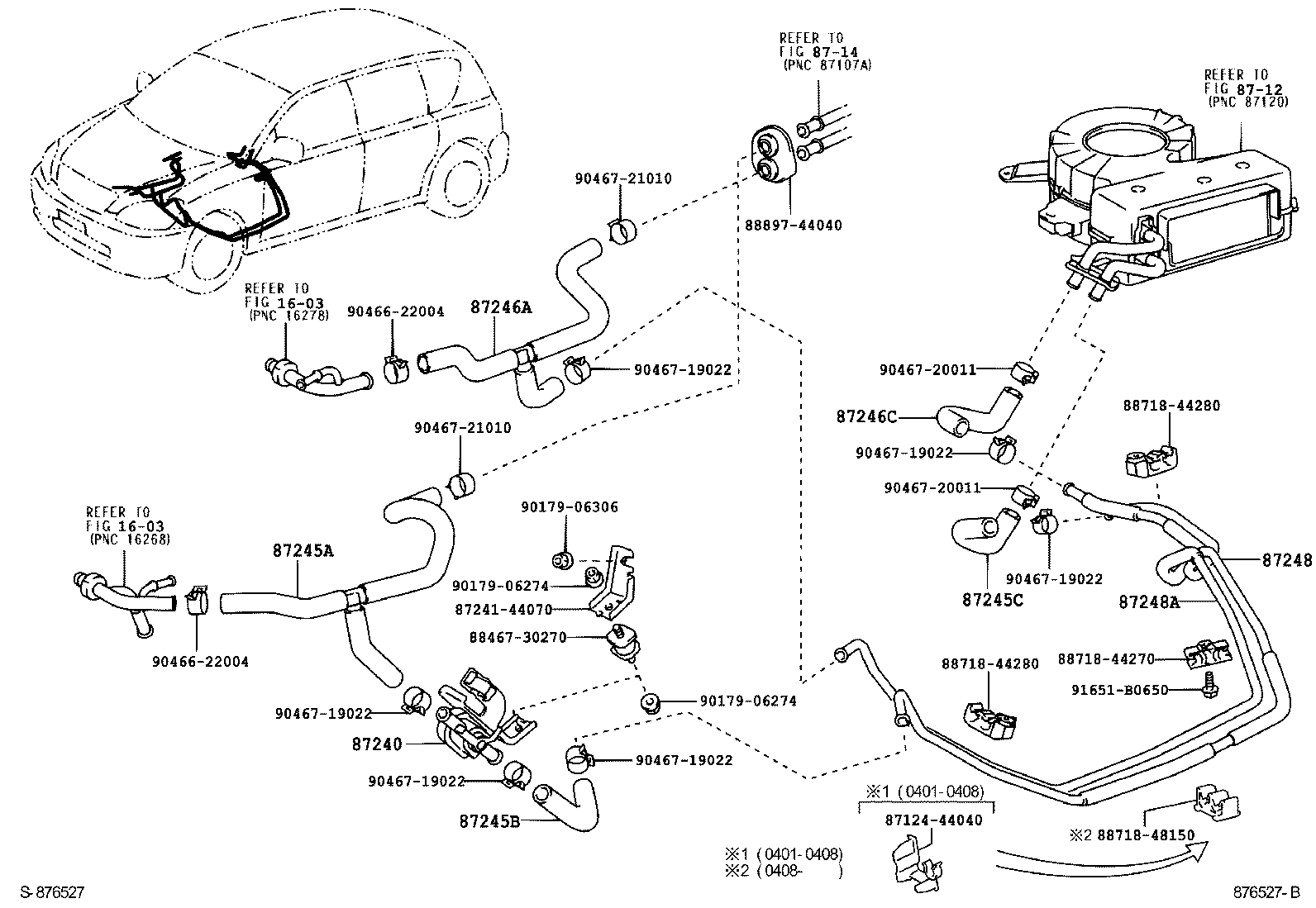

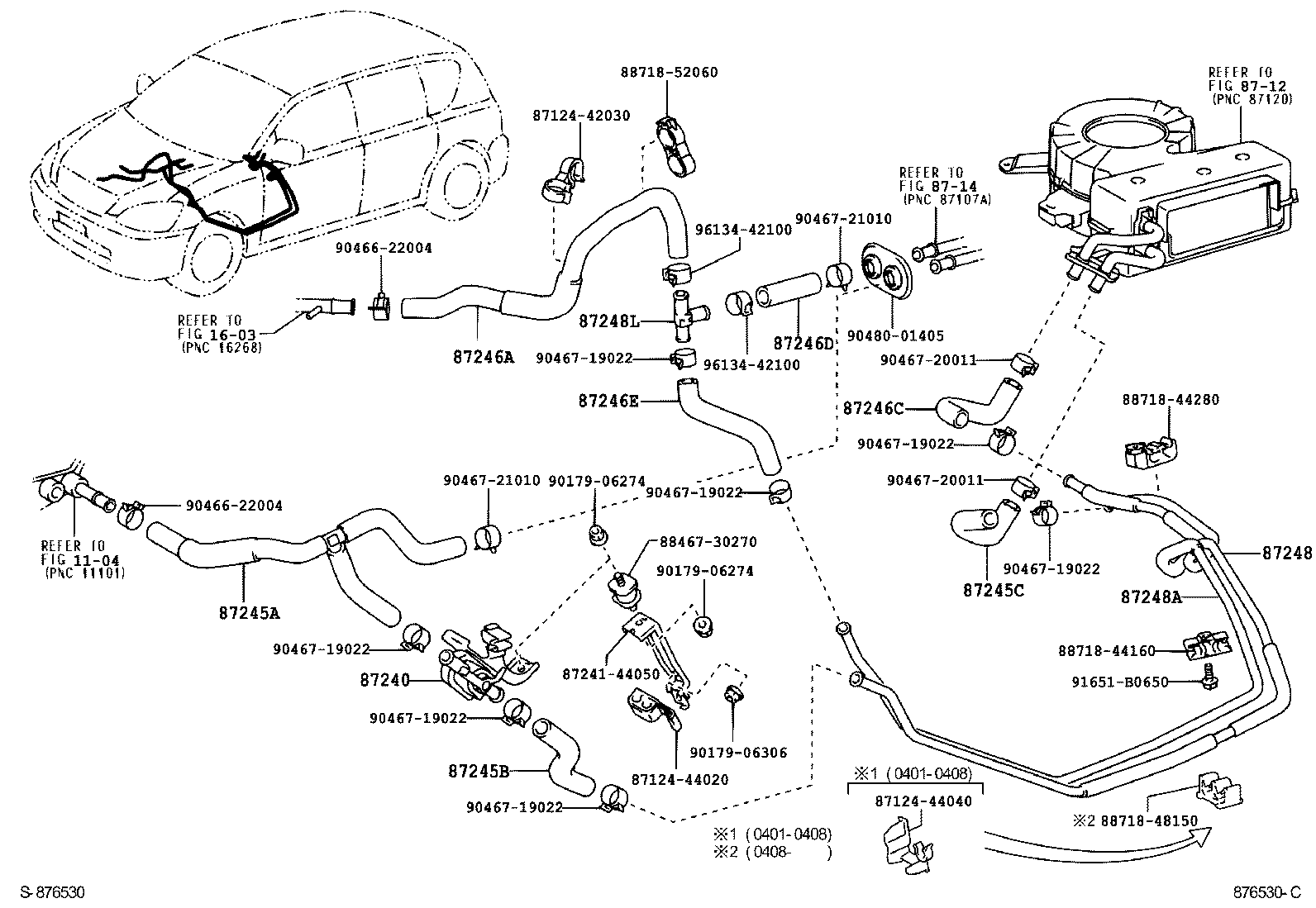

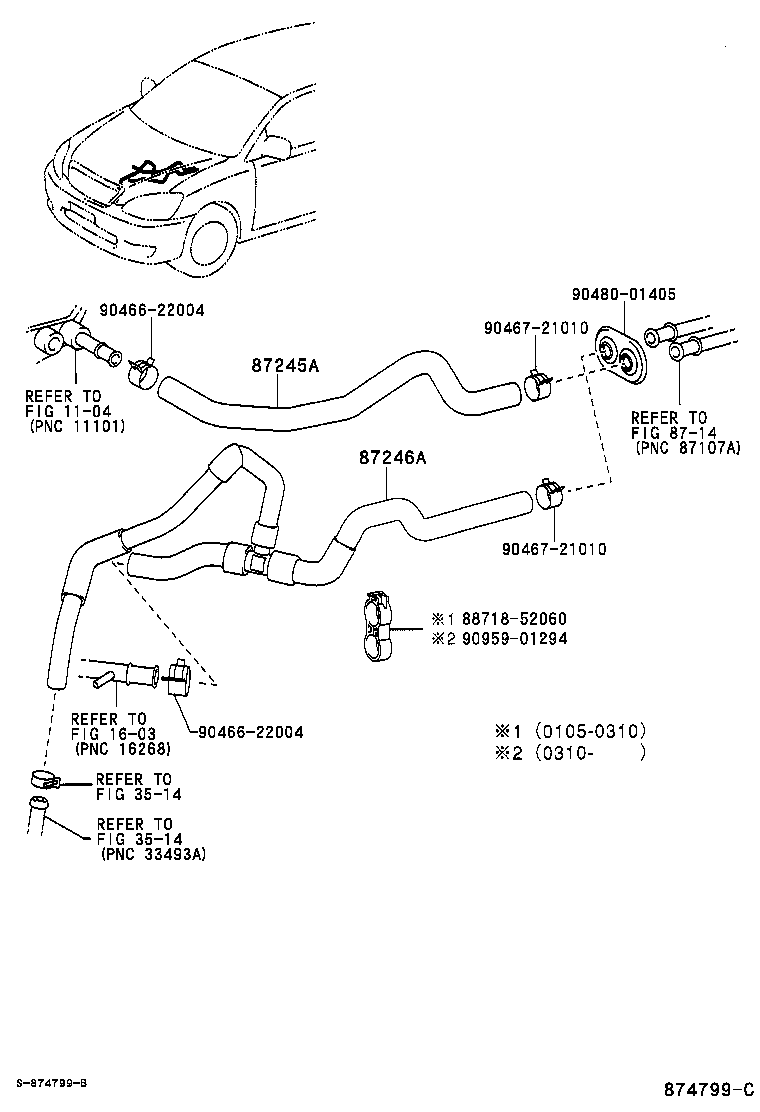

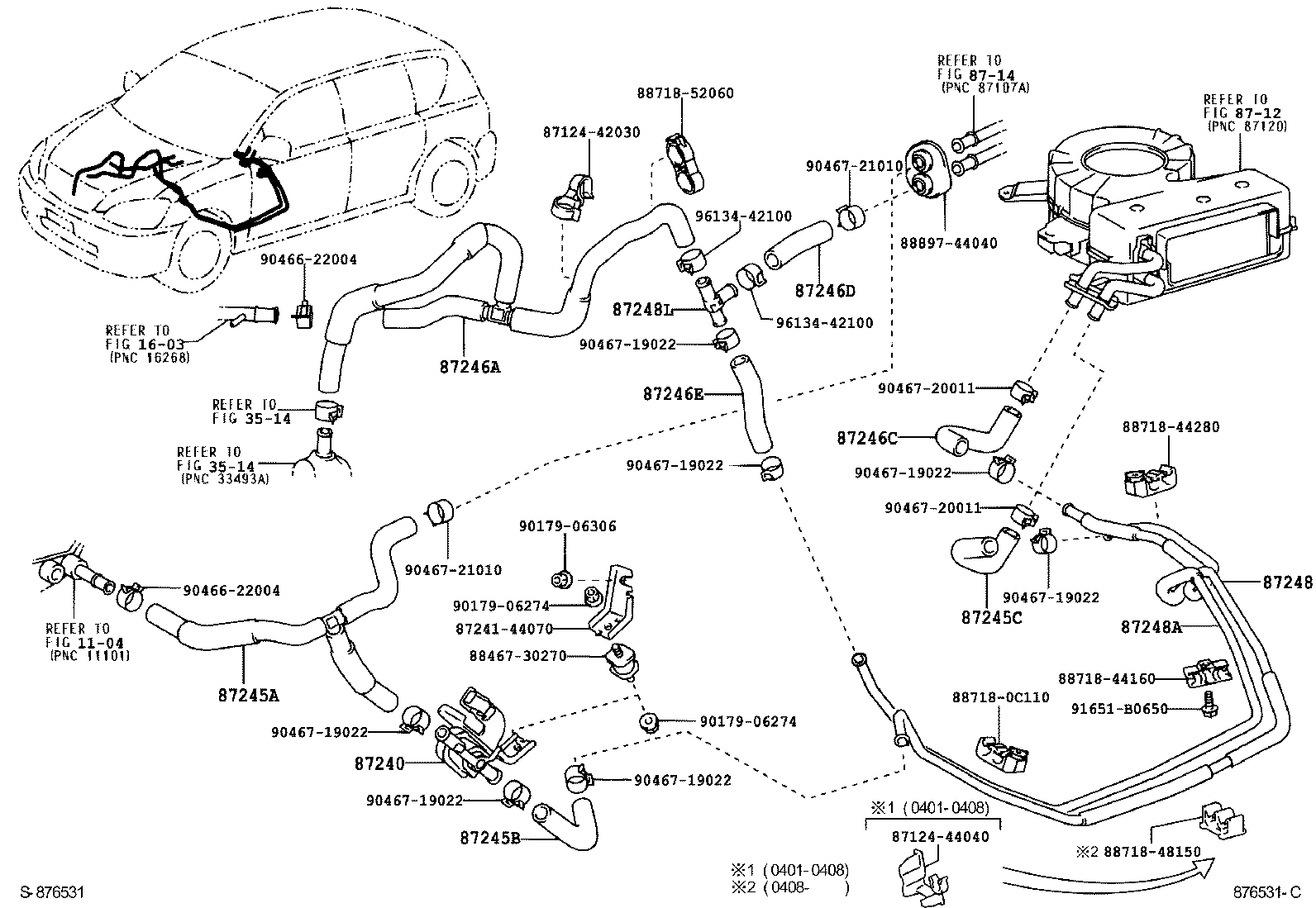

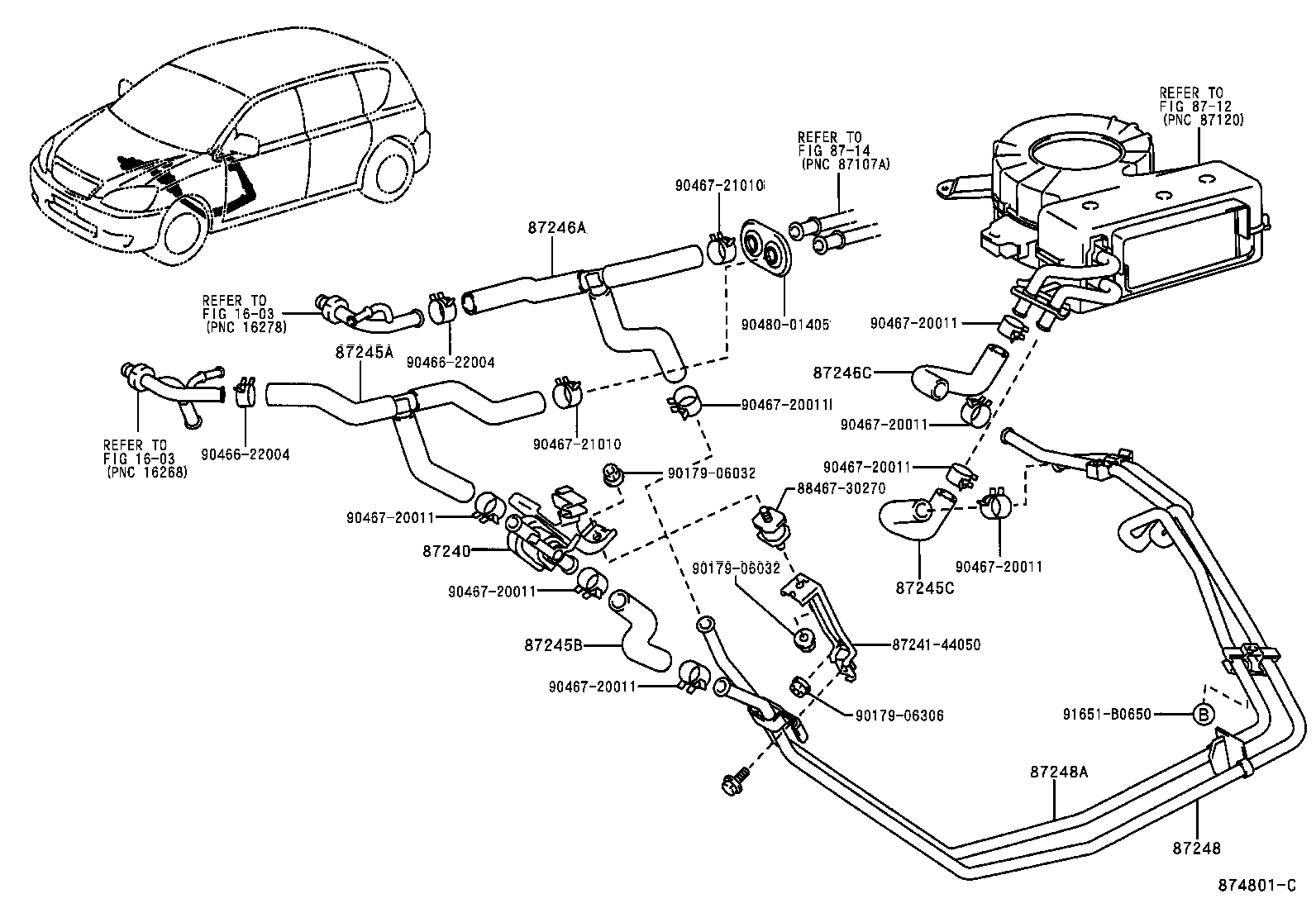

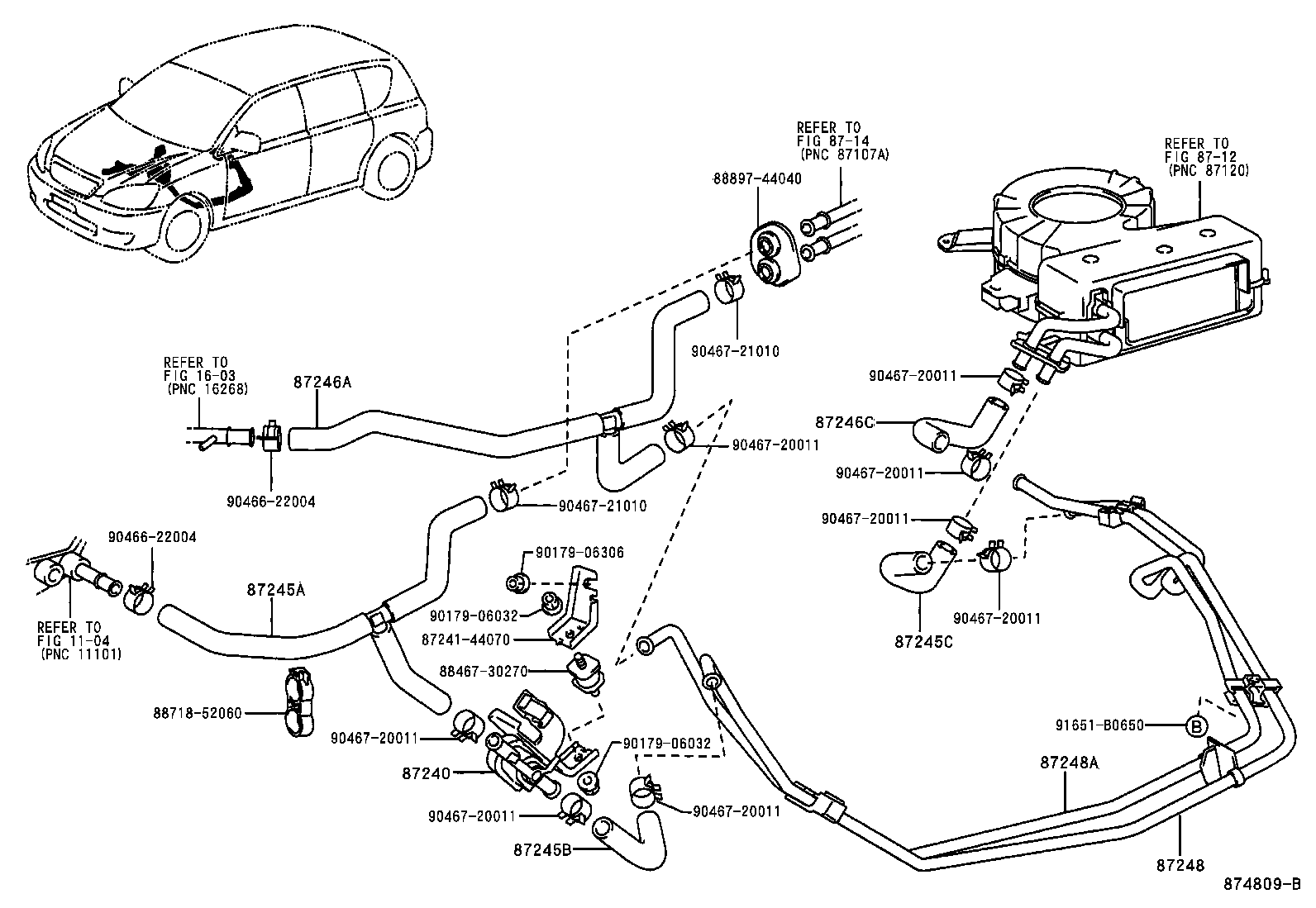

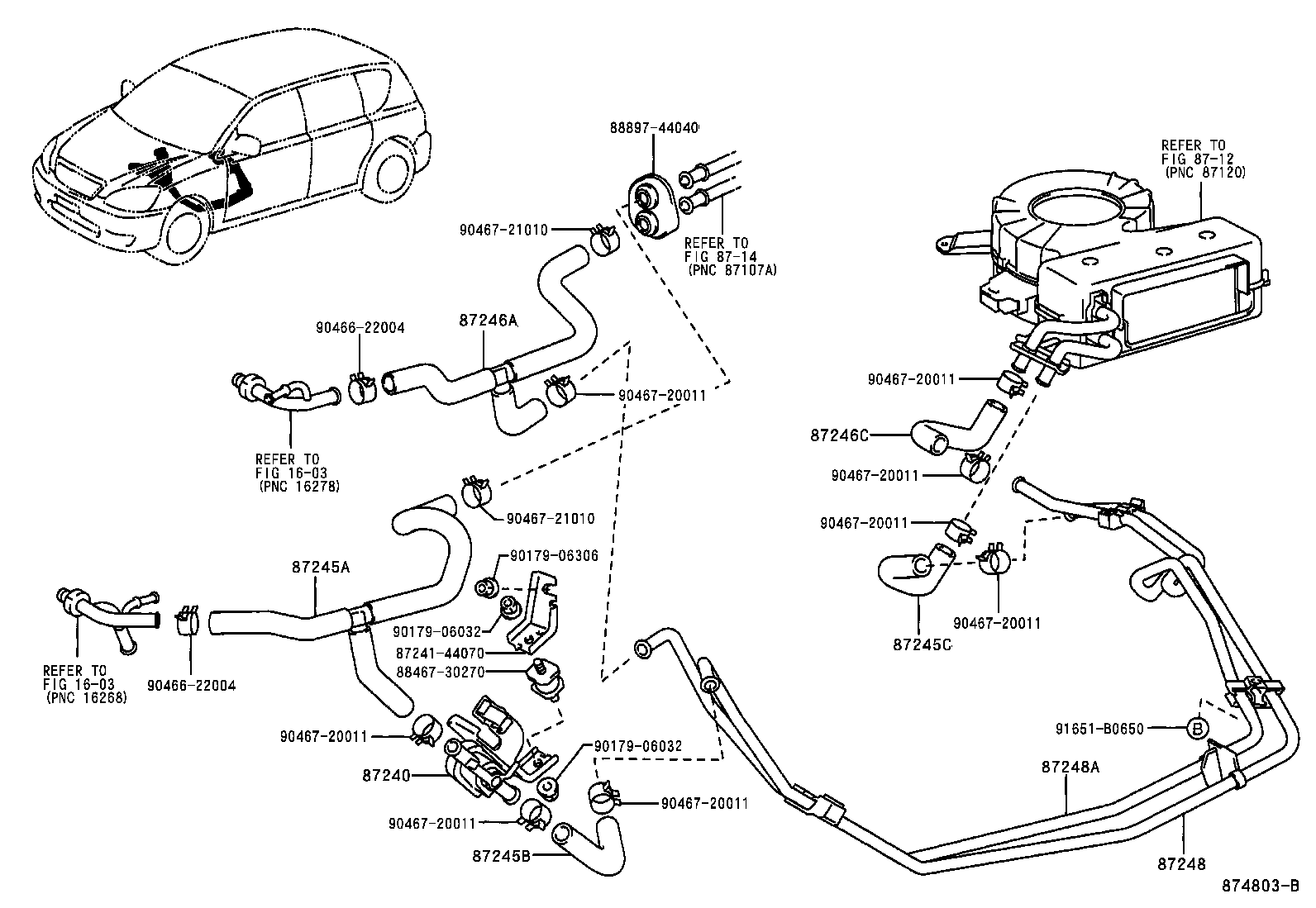

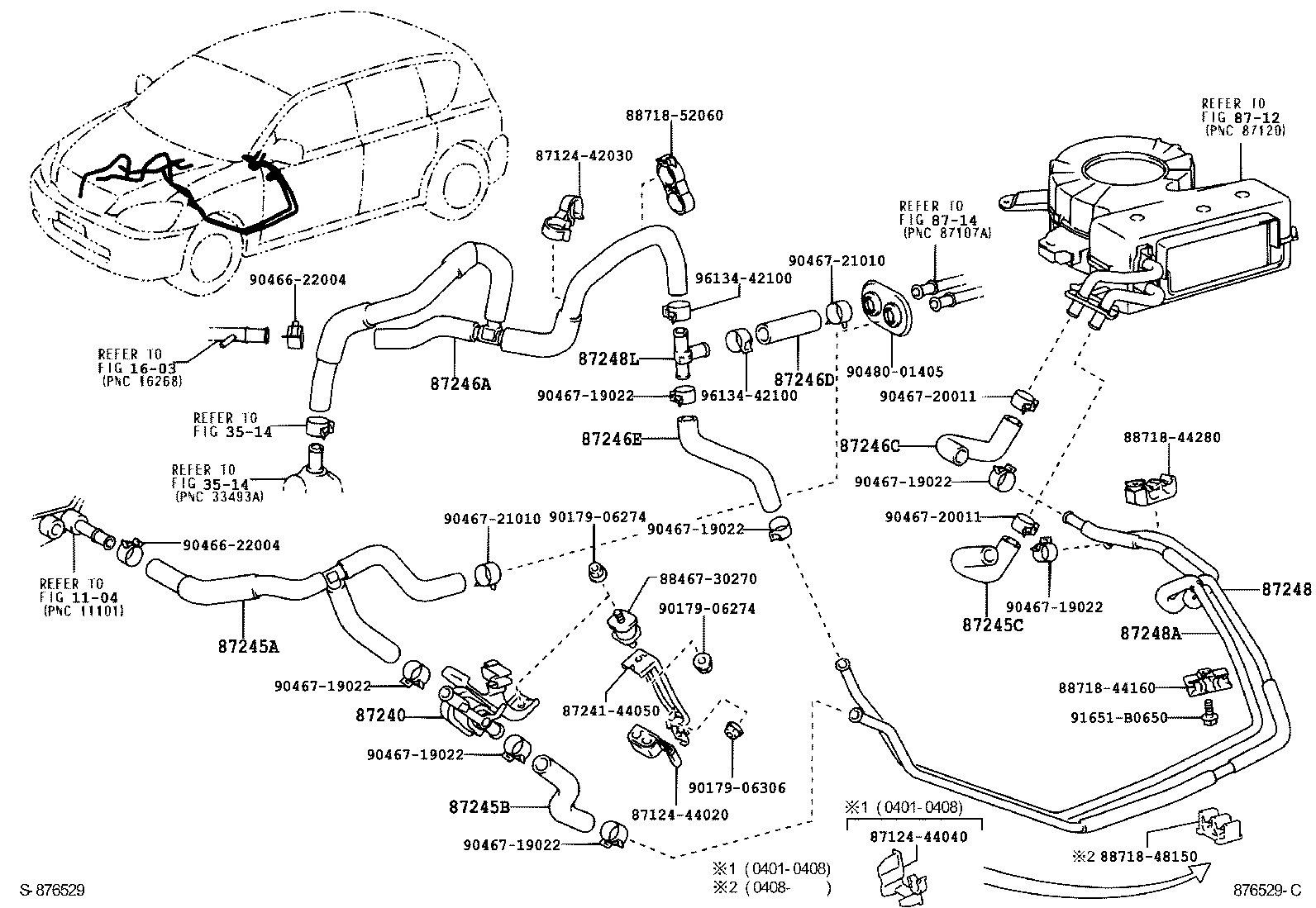

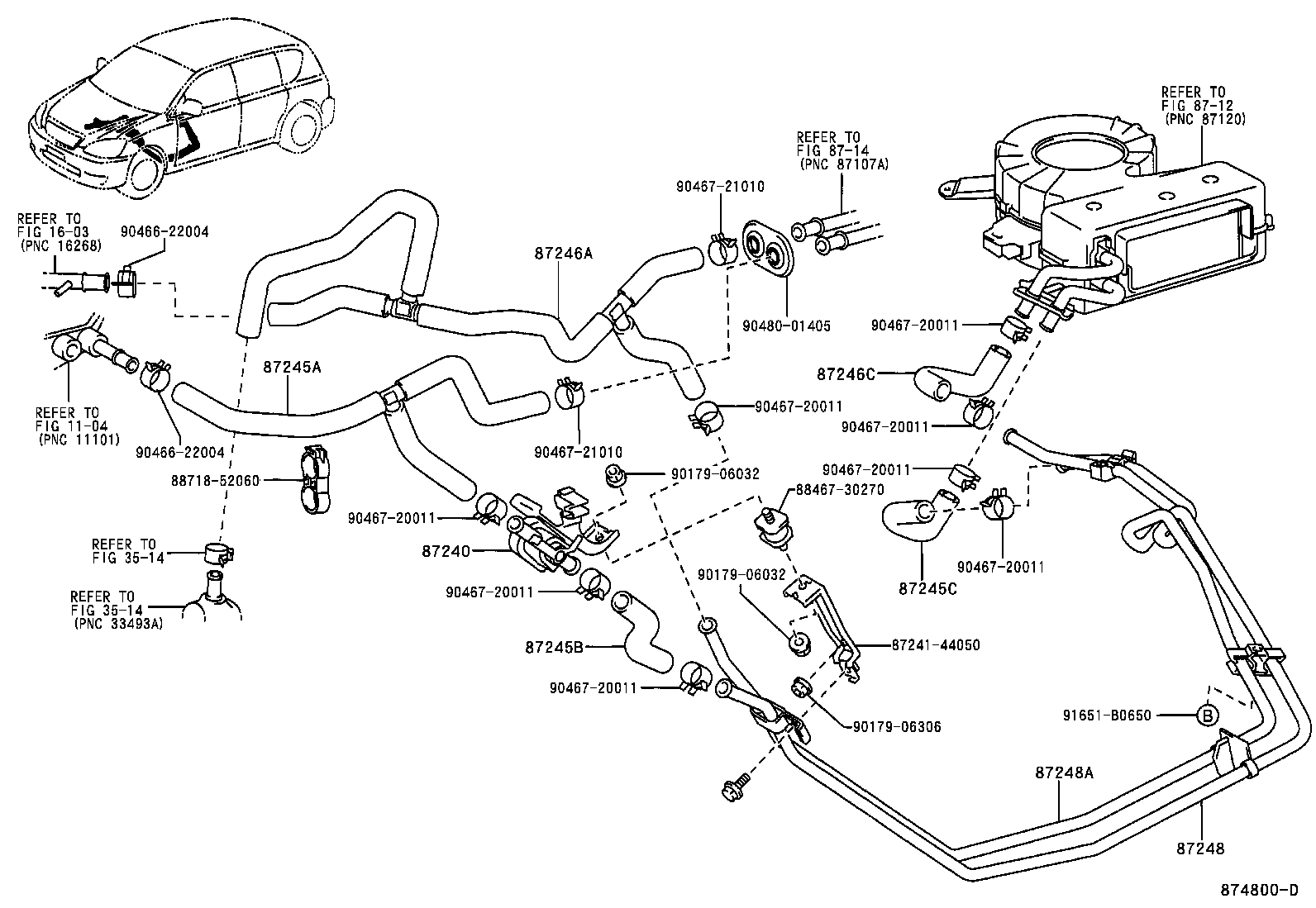

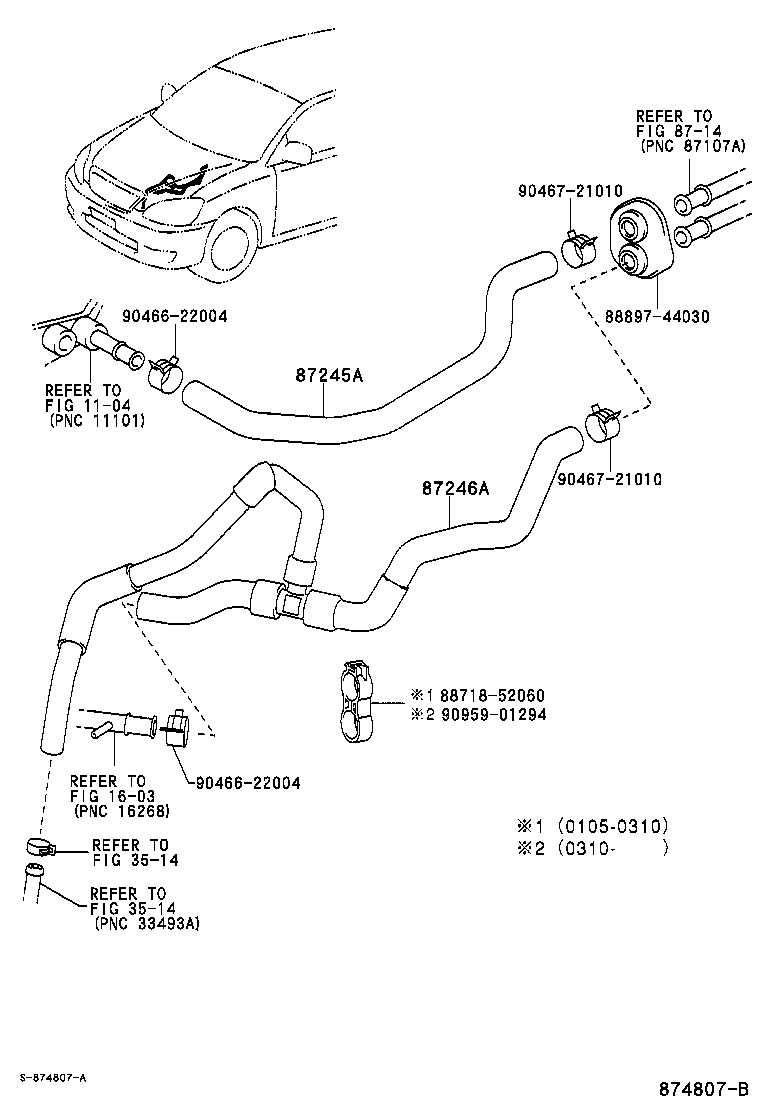

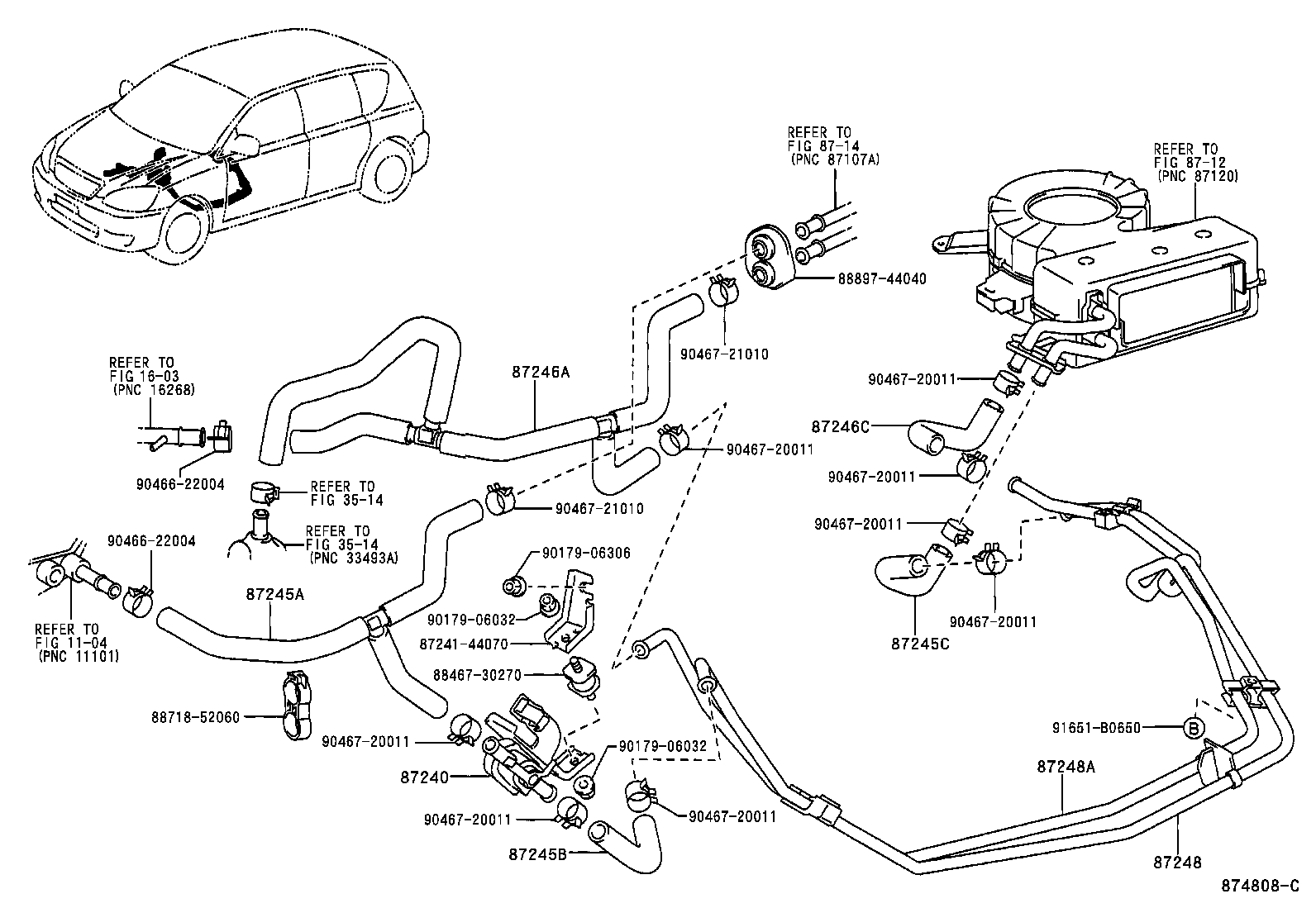

Figure 874800D 874800D 2001-05 → 2003-10 Figure 875212B 875212B 2001-05 → 2003-10 Figure 874804C 874804C 2001-05 → 2003-10 Figure 874808C 874808C 2001-05 → 2003-10 Figure 874809B 874809B 2001-05 → 2003-10 Figure 874801C 874801C 2001-05 → 2003-10 Figure 874803B 874803B 2001-05 → 2003-10 Figure 874799C 874799C 2001-05 → — Figure 876529C 876529C 2003-10 → — Figure 876530C 876530C 2003-10 → — Figure 874807B 874807B 2001-05 → — Figure 876531C 876531C 2003-10 → — Figure 874805B 874805B 2001-05 → — Figure 876532C 876532C 2003-10 → — Figure 876533B 876533B 2003-10 → — Figure 874802B 874802B 2001-05 → — Figure 876527B 876527B 2003-10 → —

Part groups

PNCDescription
87240 Valve Assy, Heater Water
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87245C Hose, Heater Water ,Inlet C
87246A Hose, Heater Water, Outlet A
87246C Hose, Heater Water, Outlet C
87246D Hose, Heater Water, Outlet D
87246E Hose, Heater Water, Outlet E
87248 Pipe Sub-assy, Water
87248A Pipe, Heater Water Inlet, A
87248L Pipe, Heater Water, L
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
