Toyota Picnic/Avensis Verso

2001-05 → 2009-12 · chassis ACM20,CLM20 · catalogue 511220 · General

Discontinued model Data version 2010-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

18 part groups · 15 illustrations

Illustrations

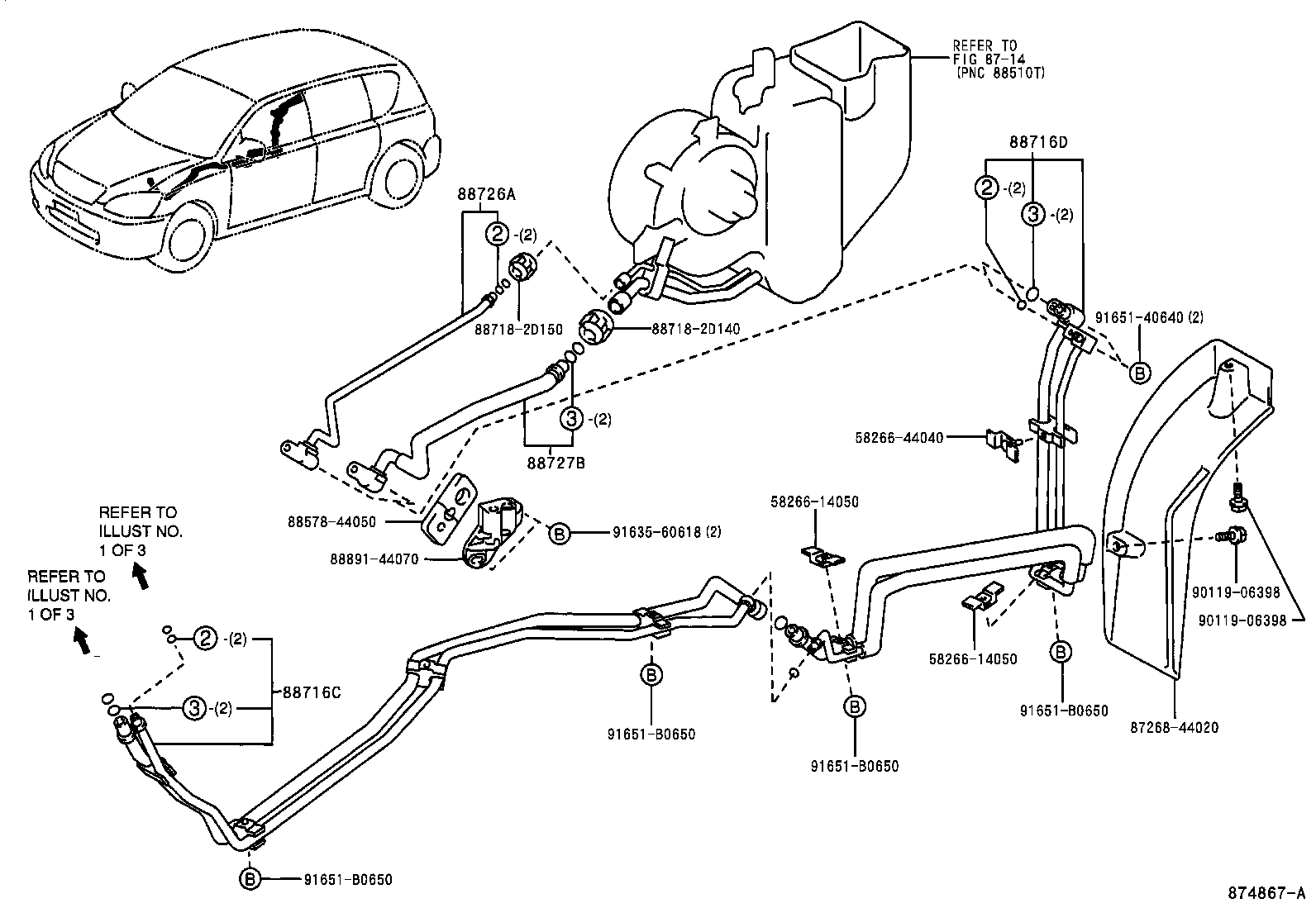

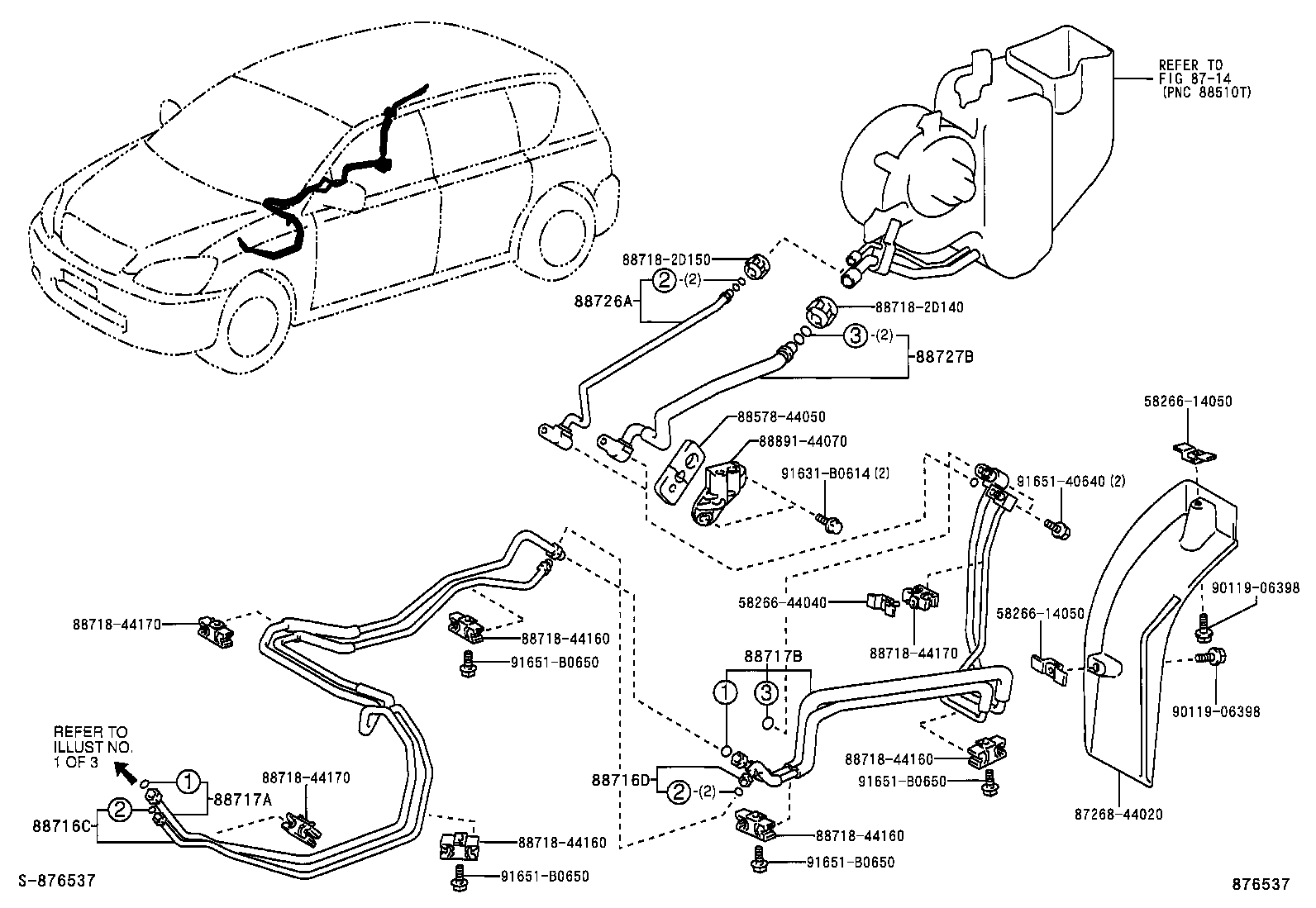

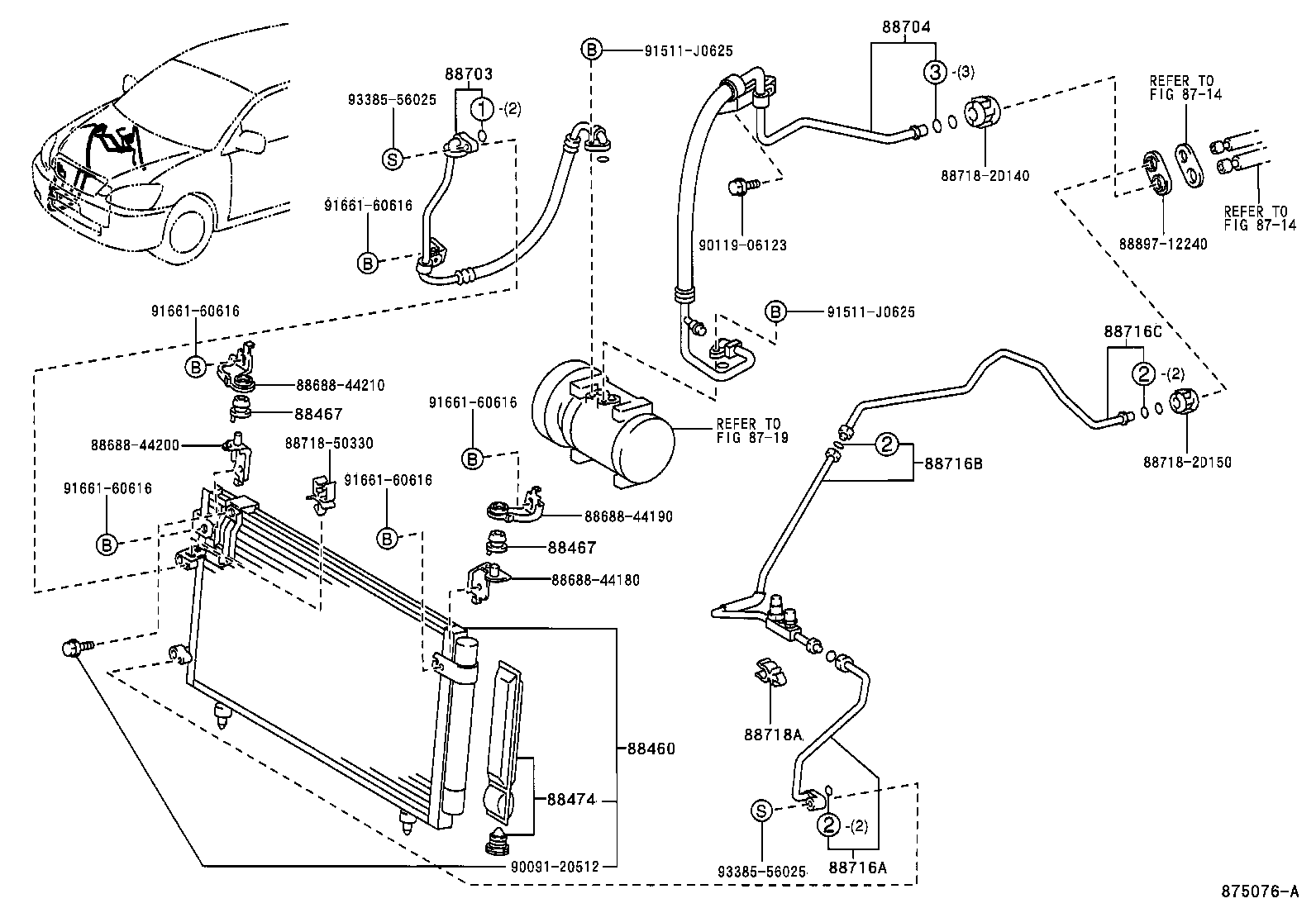

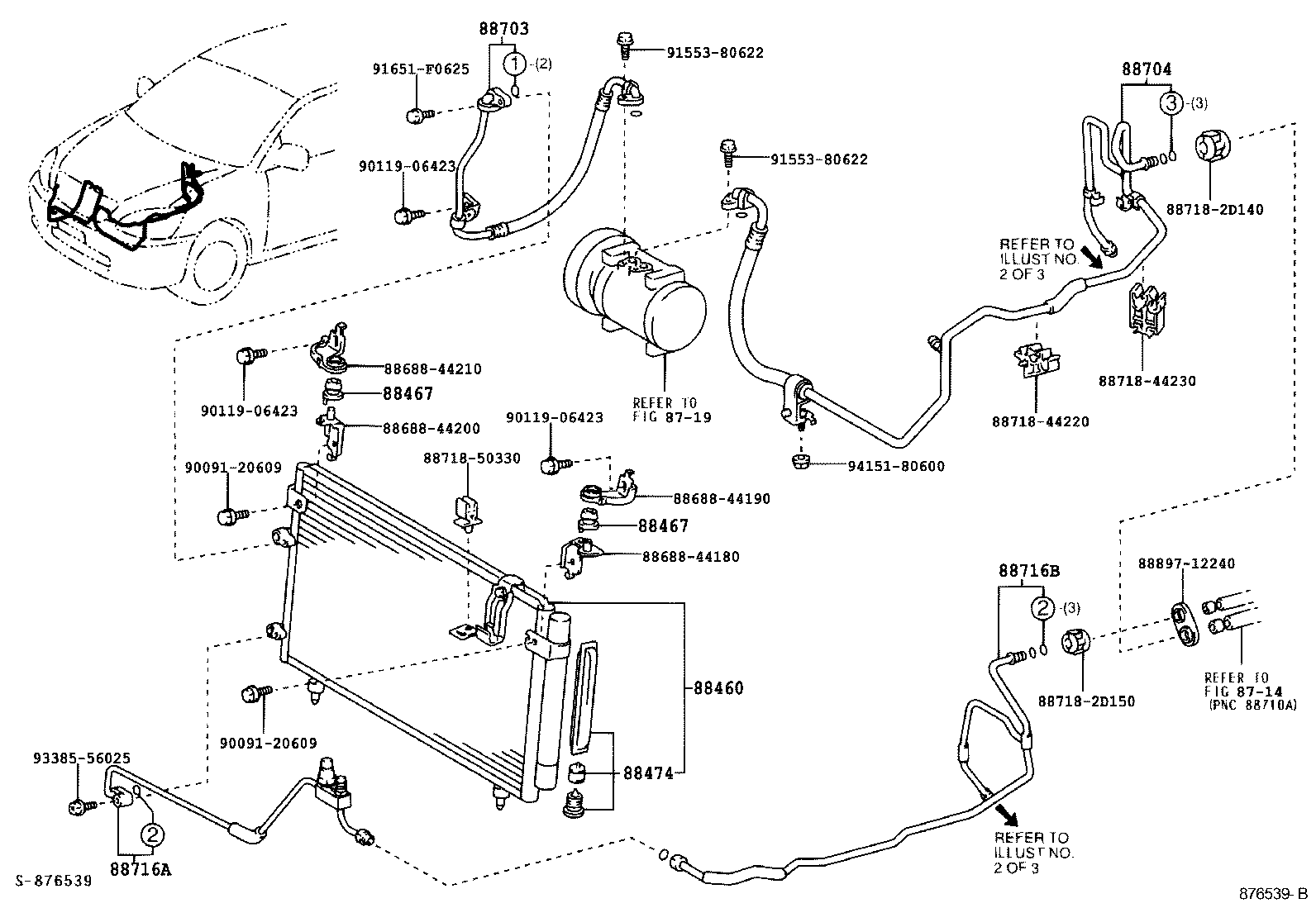

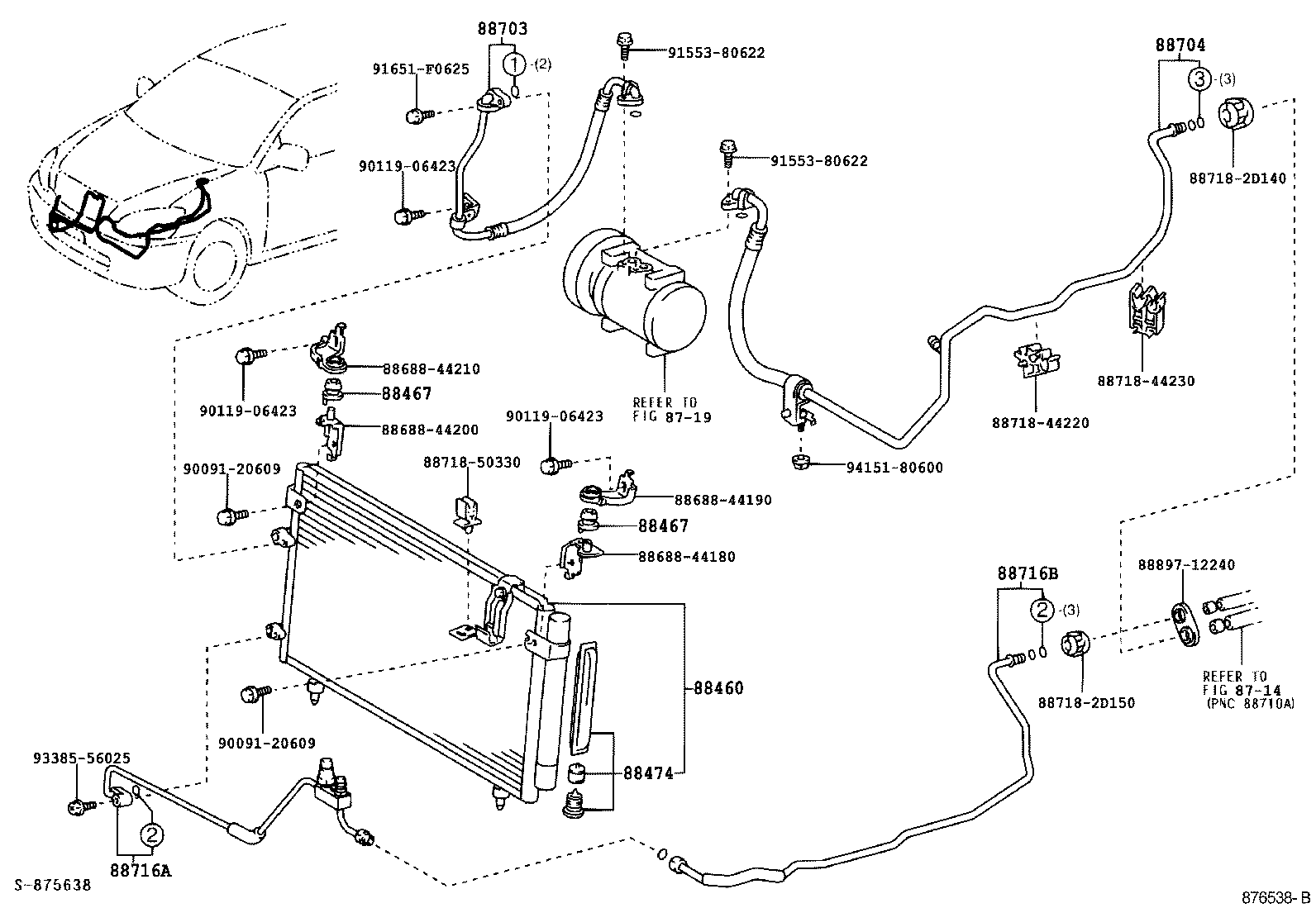

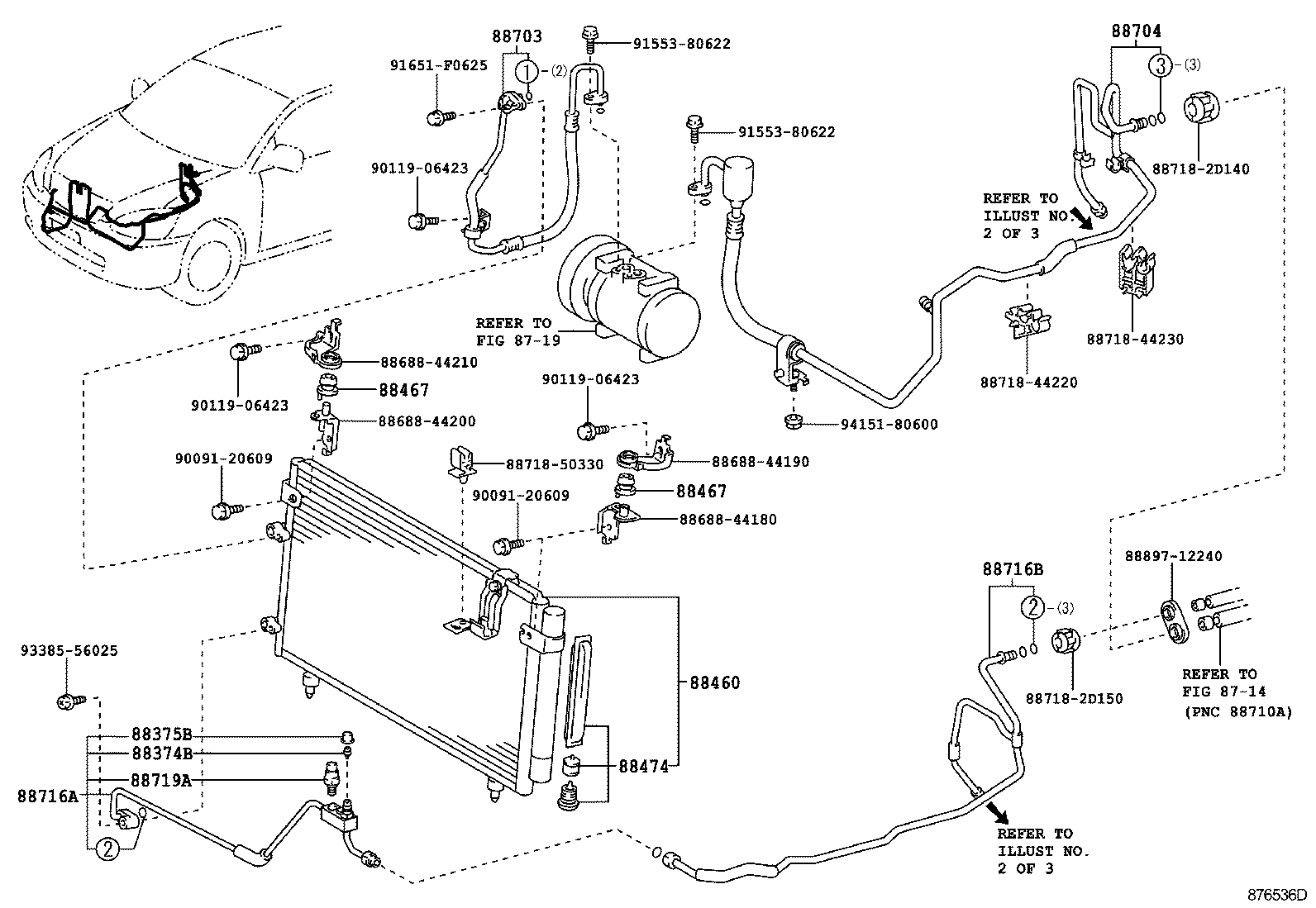

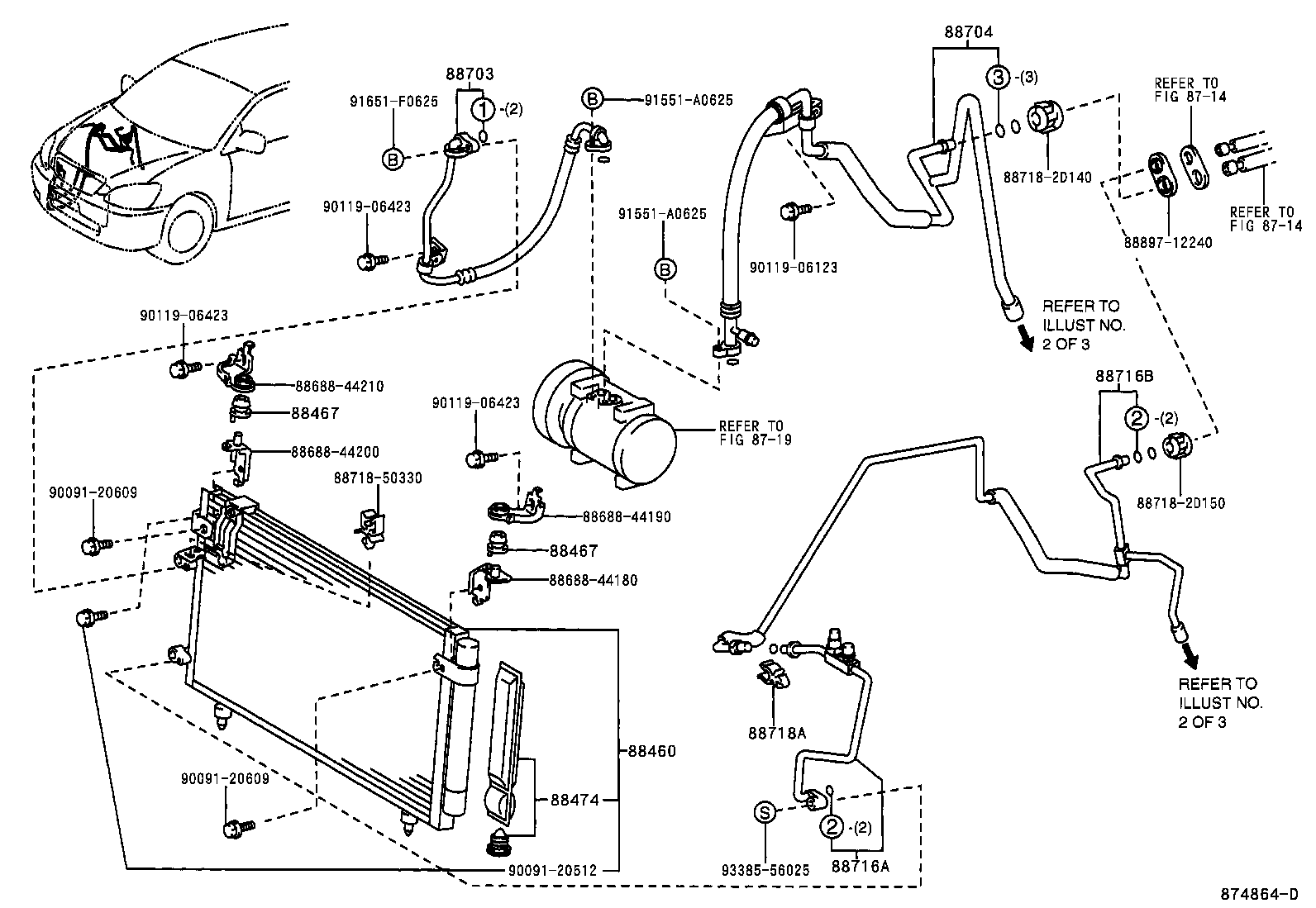

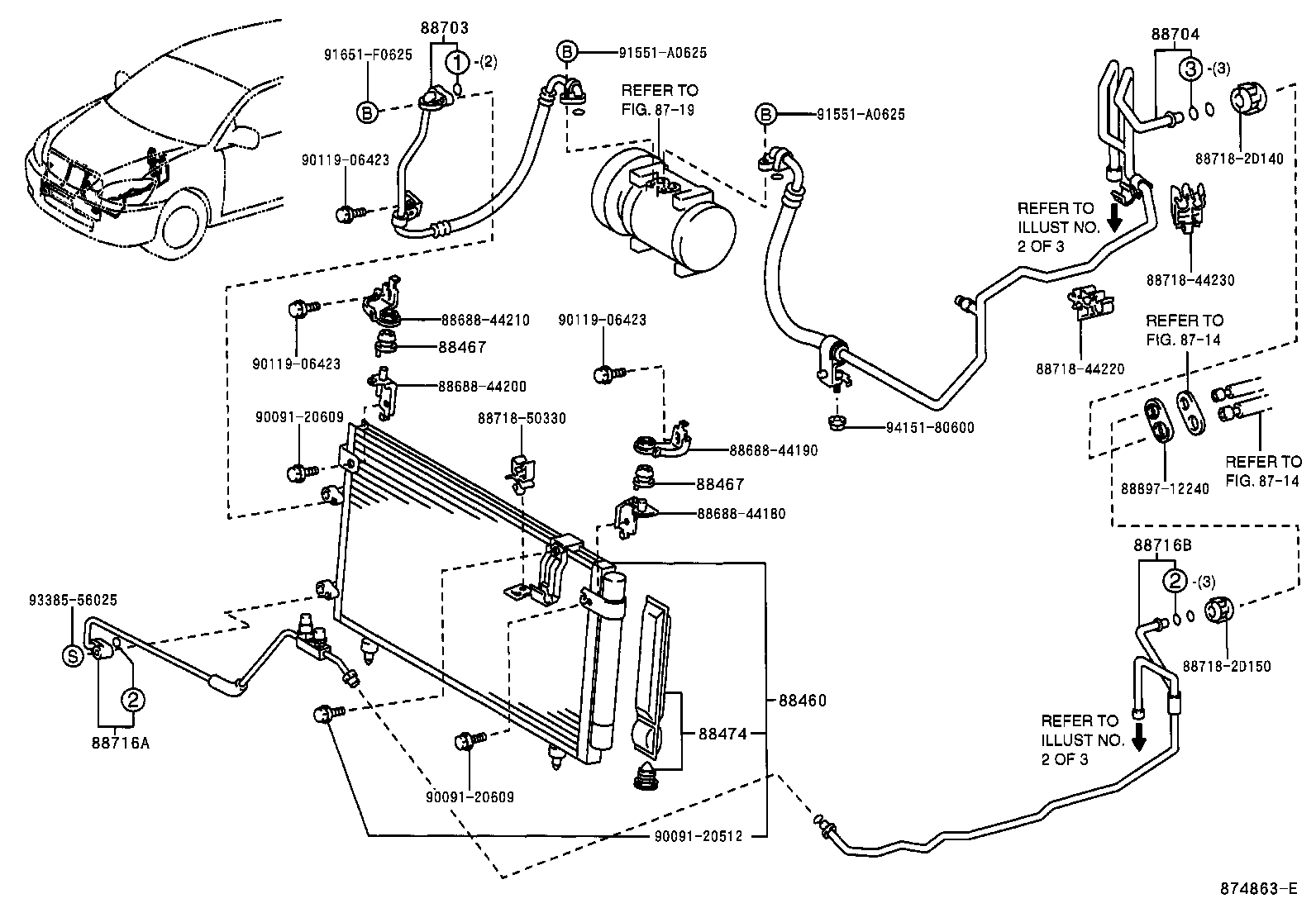

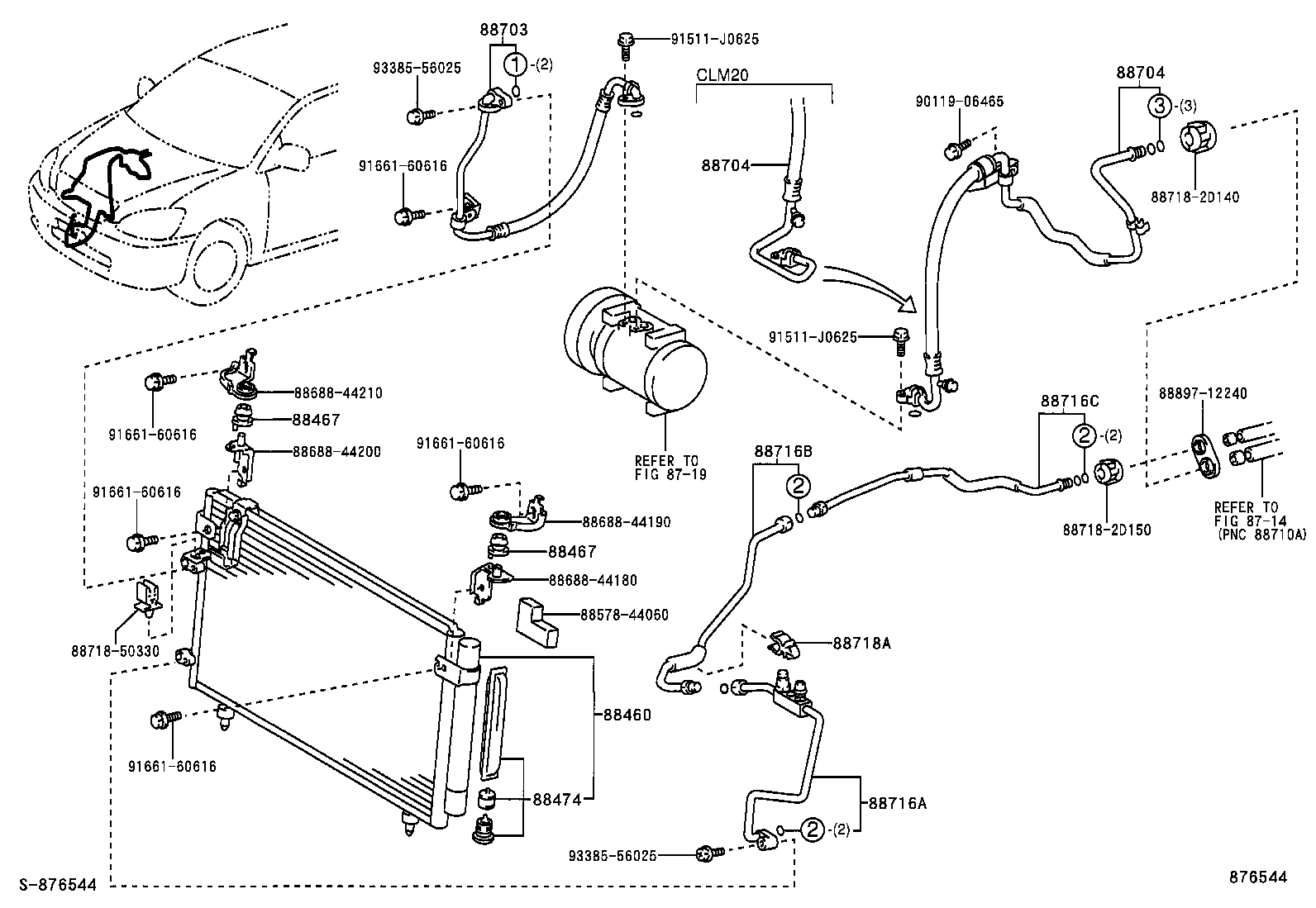

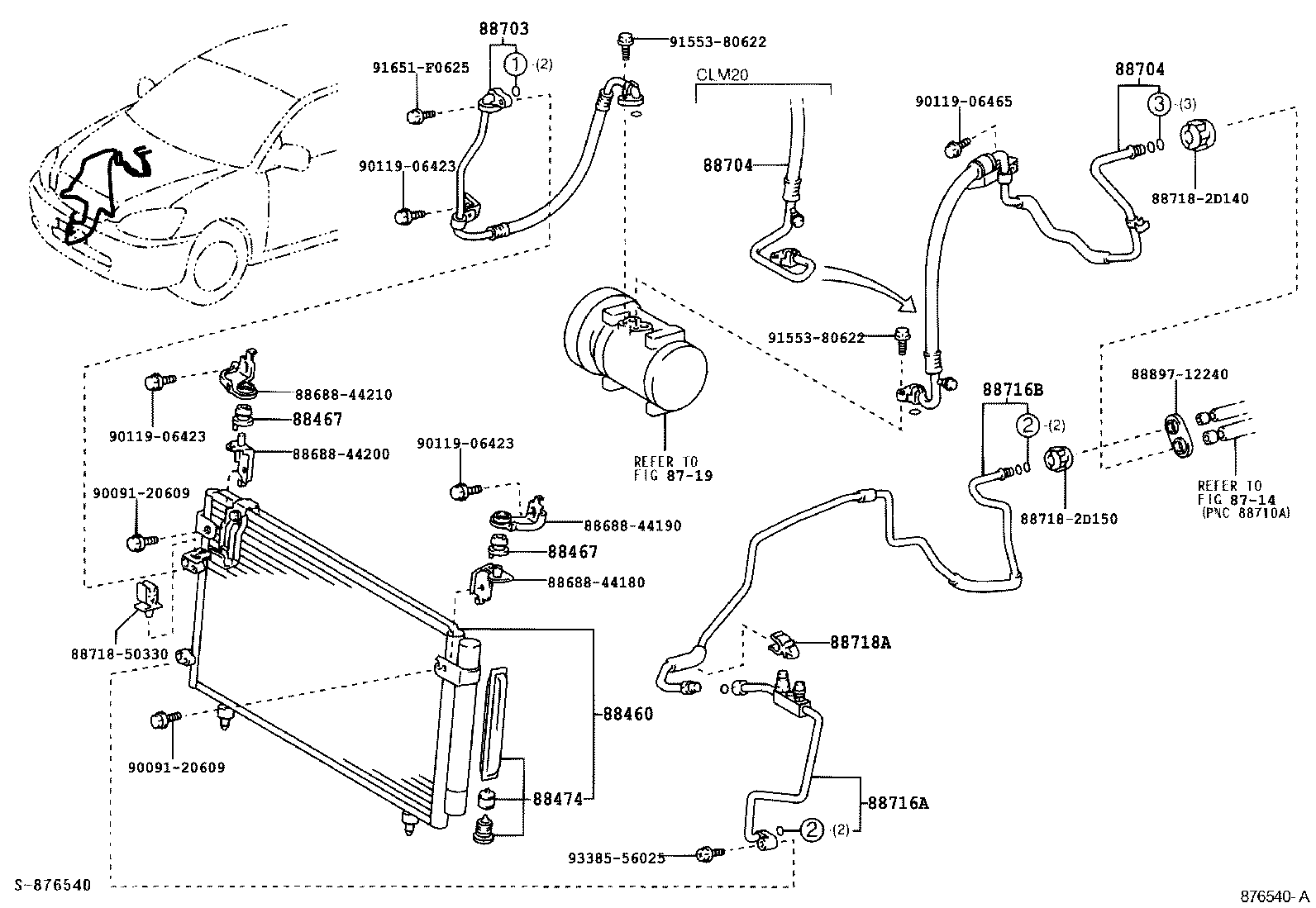

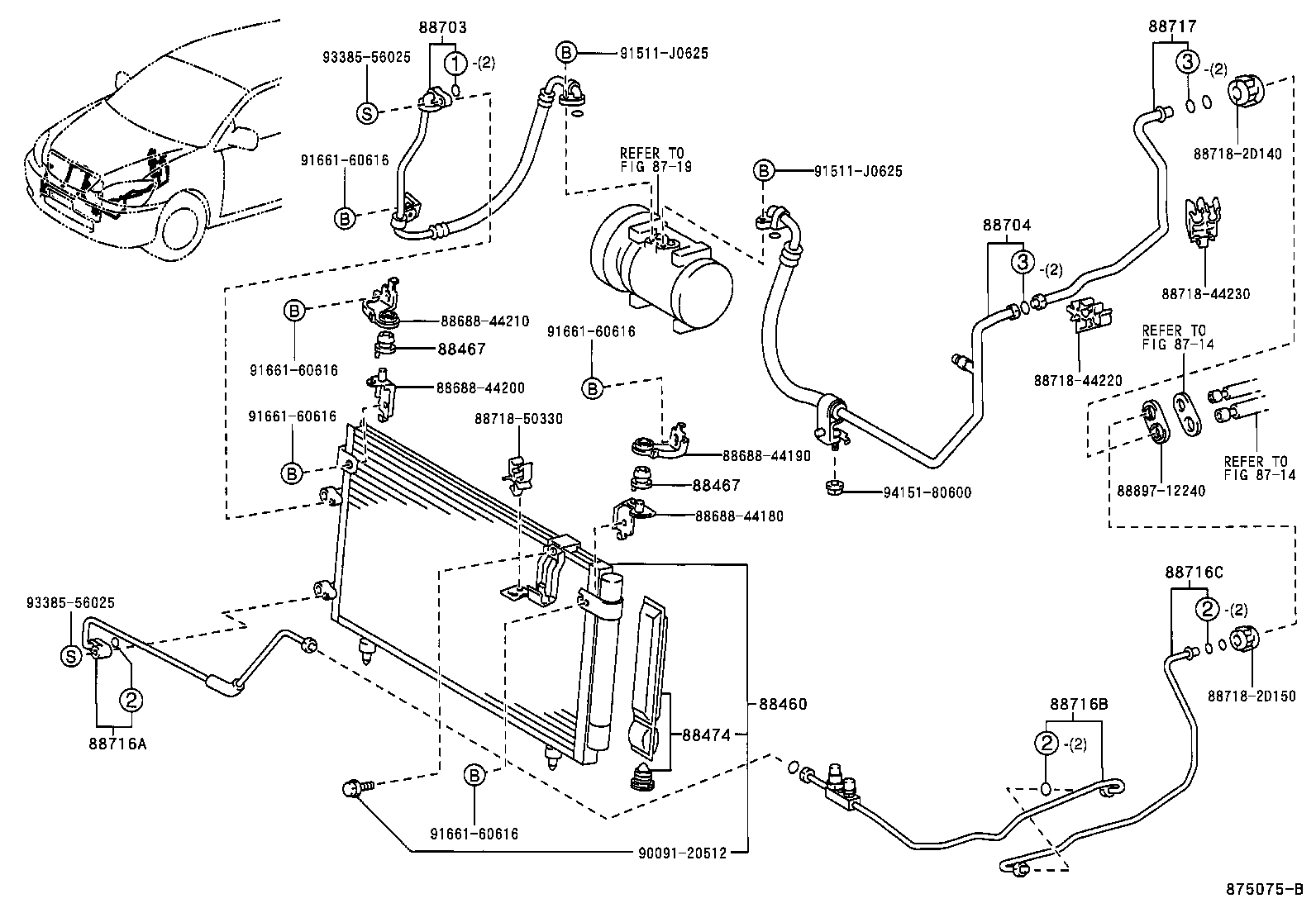

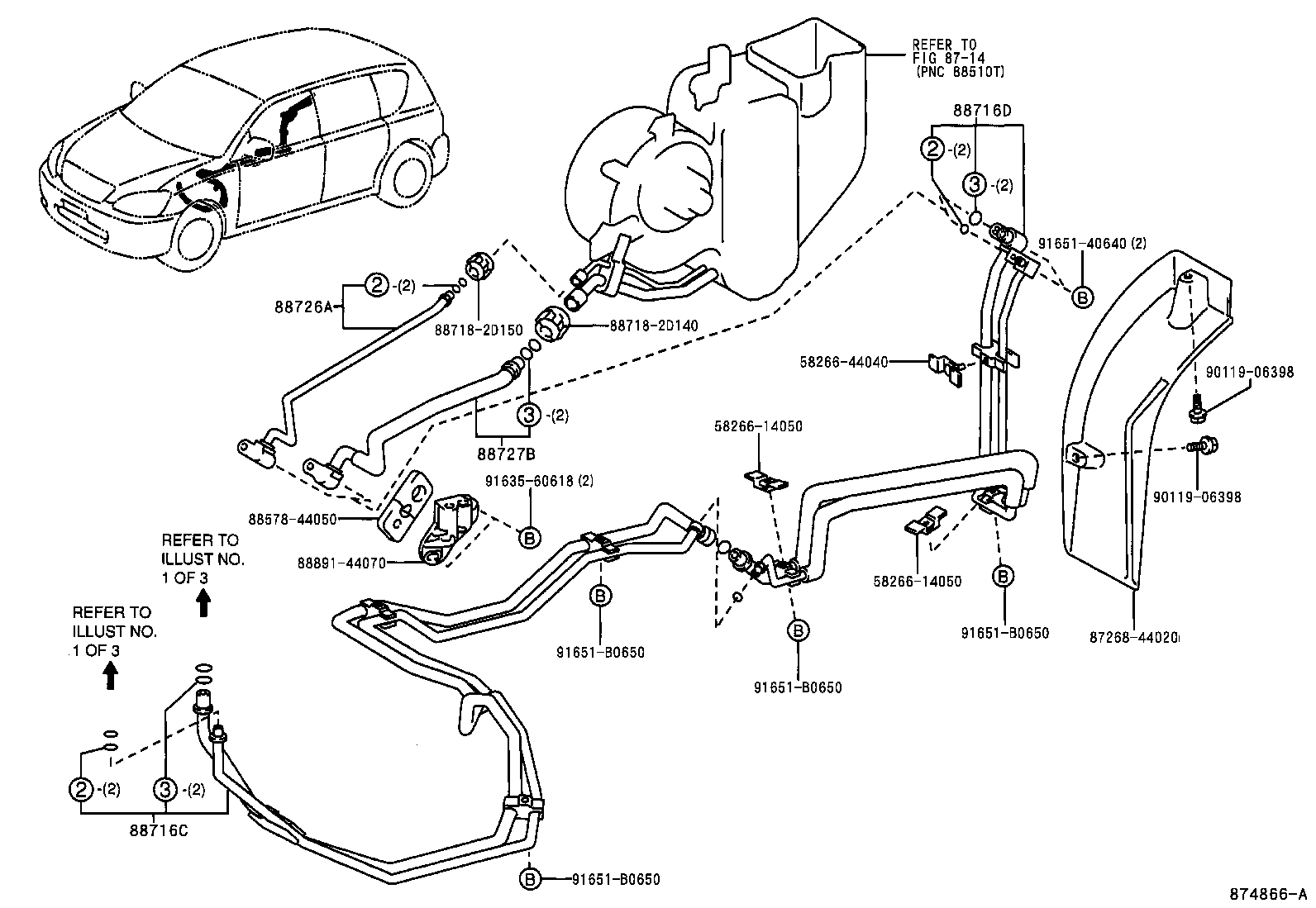

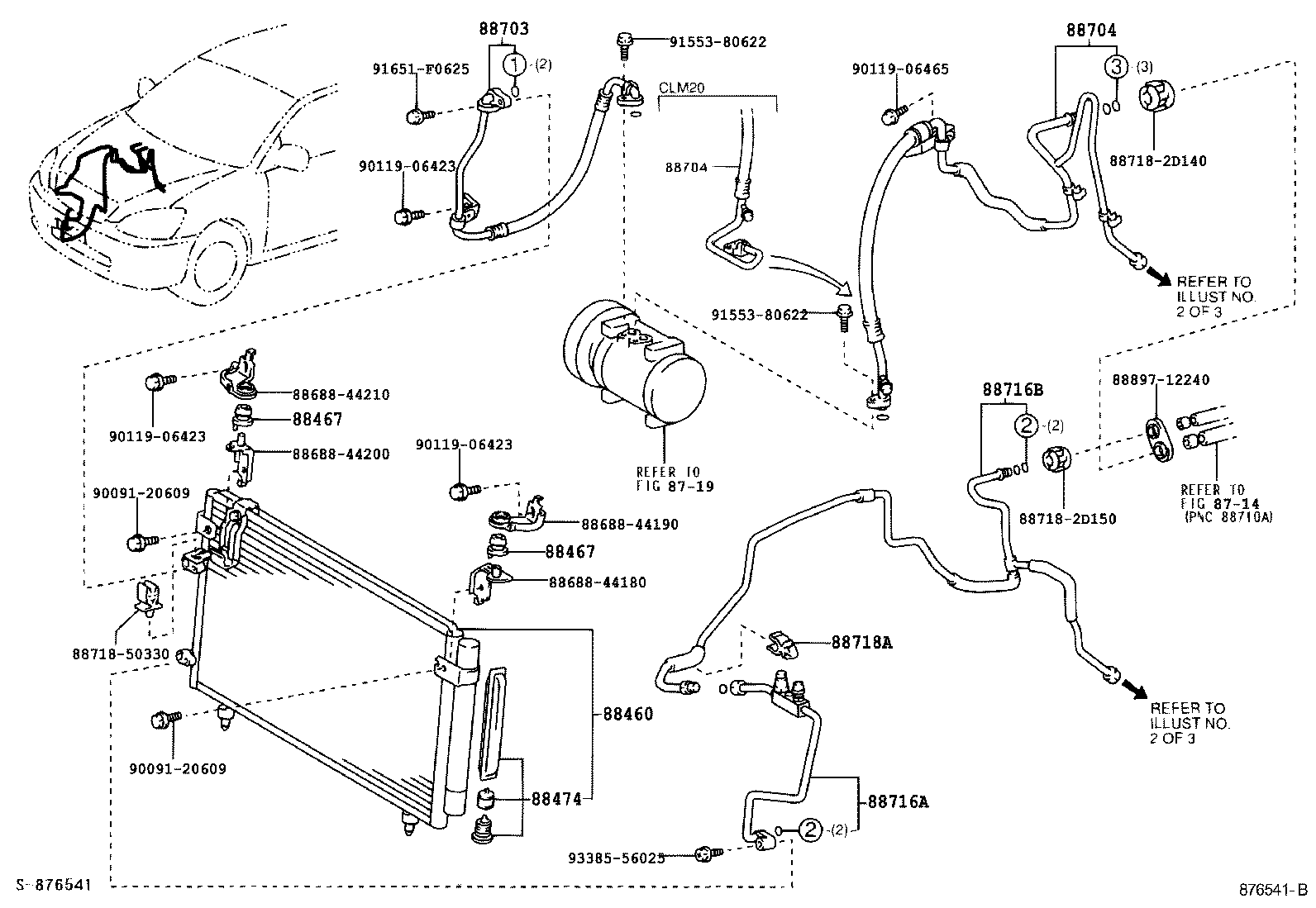

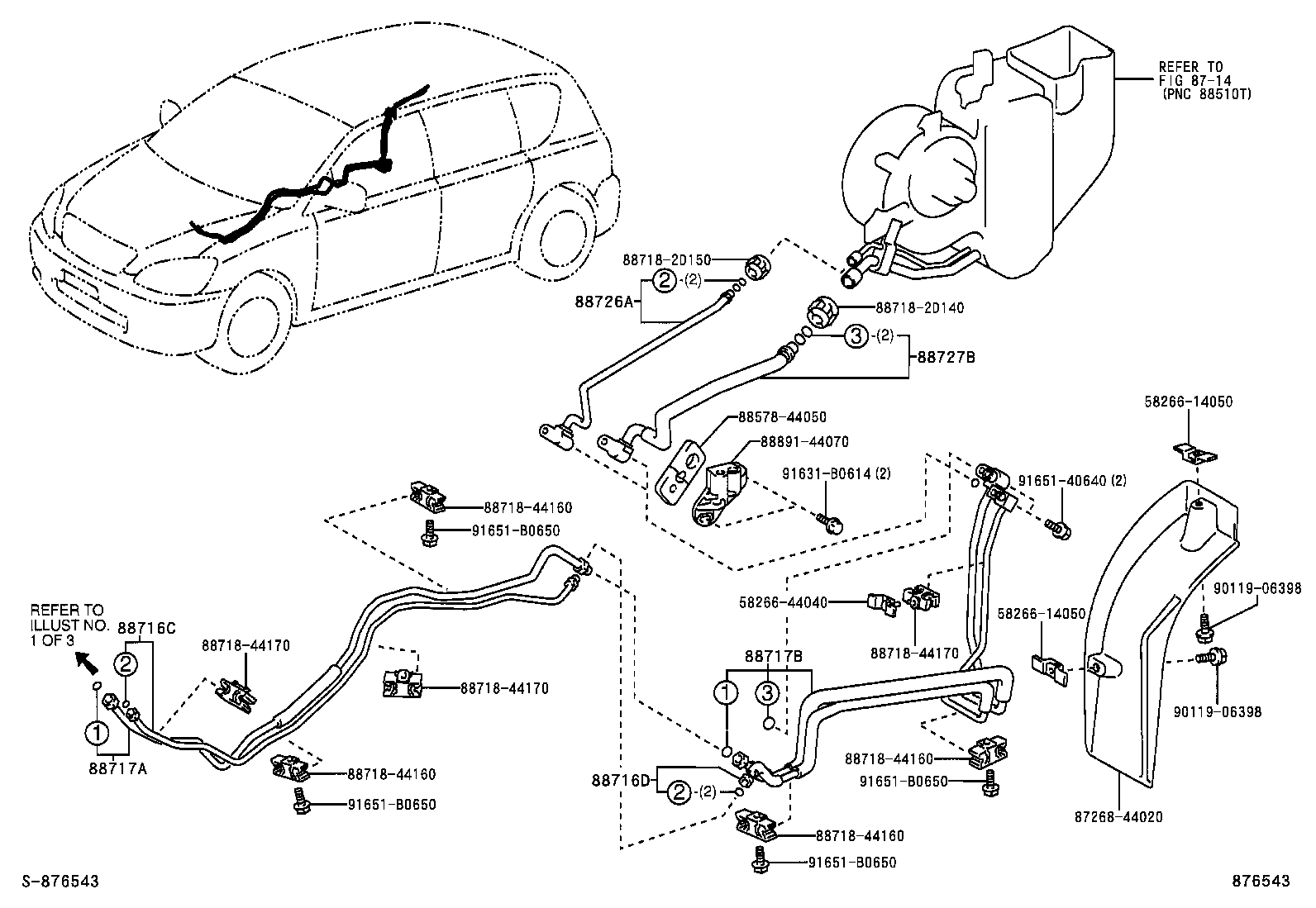

Figure 874863E 874863E 2001-05 → 2003-10 Figure 874864D 874864D 2001-05 → 2003-10 Figure 875075B 875075B 2001-05 → 2003-10 Figure 875076A 875076A 2001-05 → 2003-10 Figure 876538B 876538B 2003-10 → — Figure 876539B 876539B 2003-10 → — Figure 876536D 876536D 2003-10 → — Figure 876540A 876540A 2003-10 → — Figure 876541B 876541B 2003-10 → — Figure 876544 876544 2003-10 → — Figure 874866A 874866A 2001-05 → 2003-10 Figure 874867A 874867A 2001-05 → 2003-10 Figure 876537 876537 2003-10 → — Figure 876543 876543 2003-10 → — Figure 879432 879432 2001-05 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88375B Cap, Service Valve, NO.1
88460 Condenser Assy, Cooler
88467 Cushion, Cooler Condenser, NO.1
88474 Dryer, Cooler
88703 Hose Sub-assy, Discharge
88704 Hose Sub-assy, Suction
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88716D Pipe, Cooler Refrigerant Liquid, D
88717 Pipe, Cooler Refrigerant Suction, NO.1
88717A Pipe, Cooler Refrigerant Suction, A
88717B Pipe, Cooler Refrigerant Suction, B
88718A Clamp, NO.1(FOR COOLER REFRIGERANT PIPE)
88719A Sensor, Air Conditioner Pressure
88726A Pipe, Cooler Refrigerant Liquid, A
88727B Pipe, Cooler Refrigerant Suction, B
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
