Toyota Picnic
1999-08 → 2001-05 · chassis SXM10 · catalogue 511310 · General
Discontinued model
Data version 2002-01

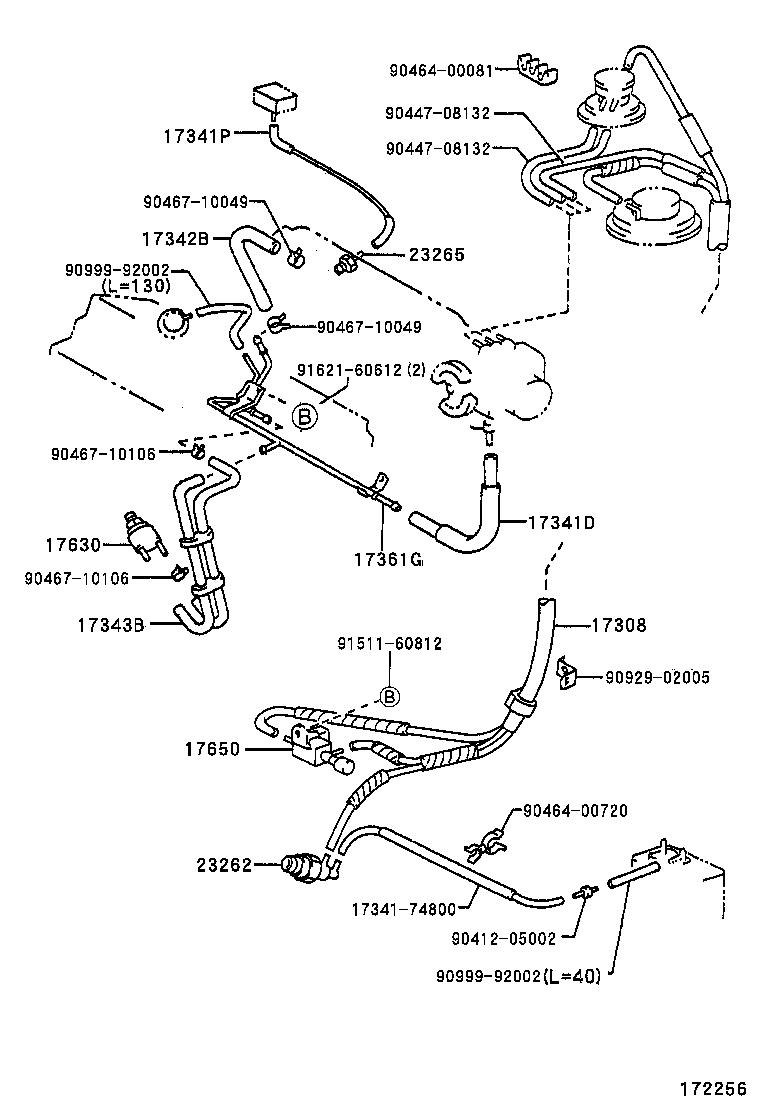

Vacuum Piping
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 17308 | Hose Sub-assy, Vacuum(FOR IDLE-UP) |
| 17341D | Hose, NO.1(FOR IDLE-UP) |
| 17341P | Hose, Air |
| 17342B | Hose, NO.2(FOR IDLE-UP) |
| 17343B | Hose, NO.3(FOR IDLE-UP) |
| 17361G | Tube, Air(FOR IDLE-UP) |
| 17630 | Valve Assy, Air Control |
| 17650 | Valve Assy, Vacuum Switching |
| 23262 | Valve, Bimetal Vacuum Switching, NO.1 |
| 23265 | Filter, Gas, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
