Toyota Picnic
1999-08 → 2001-05 · chassis SXM10 · catalogue 511310 · General
Discontinued model
Data version 2002-01

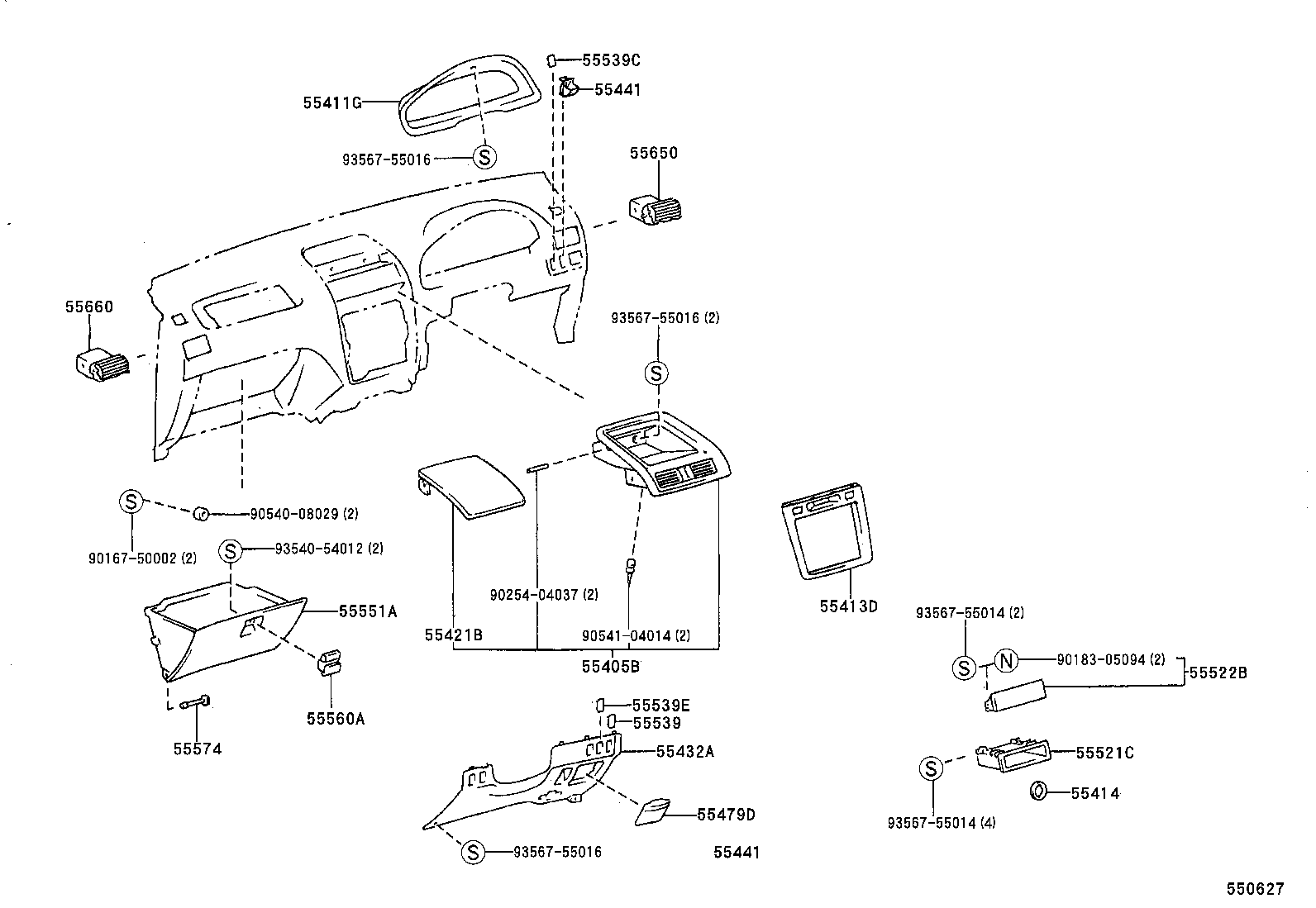

Instrument Panel & Glove Compartment
34 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 50540 | DO0R Assy, Airbag Passenger |
| 55301 | Panel Sub-assy, Instrument |
| 55308C | Bracket Sub-assy, Instrument Panel, Center |
| 55326A | Stay, Instrument Panel, NO.1 |
| 55328 | Pin, Instrument Panel, NO.1 |
| 55330B | Reinforcement Assy, Instrument Panel |
| 55345A | Clip, Instrument Panel, NO.1 |
| 55346A | Clip, Instrument Panel, NO.2 |
| 55351A | Brace, Instrument Panel TO Floor |
| 55405B | Panel Sub-assy, Instrument Cluster Finish, Center |
| 55411G | Panel, Instrument Cluster Finish, NO.1 |
| 55413D | Panel, Instrument Cluster Finish, Center Lower |
| 55414 | Bezel, Cigar Lighter Hole |
| 55421B | Panel, Instrument Cluster Finish, Upper |
| 55432A | Panel, Instrument Panel Finish, Lower RH |
| 55441 | Box, Instrument Panel |
| 55479D | Garnish, Instrument Cluster Finish Panel, Lower |
| 55521C | Cover, Stereo Opening |
| 55522B | Cover, Radio Tuner Opening |
| 55539 | Cover, Spare Switch Hole |
| 55539C | Cover, Spare Switch Hole |
| 55539E | Cover, Spare Switch Hole |
| 55551A | Door, Glove Compartment, Outer |
| 55560A | Lock Assy, Glove Compartment Door |
| 55574 | Shaft, Glove Compartment Door Hinge |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55950A | Nozzle Assy, Defroster |
| 55961 | Nozzle, Side Defroster, NO.1 |
| 55962 | Nozzle, Side Defroster, NO.2 |
| 55971B | Duct, Side Defroster Nozzle, NO.1 |
| 55972A | Duct, Side Defroster Nozzle, NO.2 |
| 73960A | Airbag Assy, Instrument Panel Passenger W/O Door |
| 74598B | Label, Passenger Airbag Caution |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
