Toyota Picnic
1999-08 → 2001-05 · chassis SXM10 · catalogue 511310 · General
Discontinued model
Data version 2002-01
Heating & Air Conditioning - Cooler Unit
27 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 87050 | Radiator Assy, Air Conditioner |
| 87103B | Motor Sub-assy, Blower W/Fan |
| 87106G | Servo Sub-assy, Damper(FOR BLOWER) |
| 87106H | Servo Sub-assy, Damper(FOR AIRMIX) |
| 87106J | Servo Sub-assy, Damper(FOR MODE) |
| 87107A | Unit Sub-assy, Heater Radiator |
| 87130D | Blower Assy |
| 87138C | Resistor, Blower |
| 87138D | Resistor, Blower (REAR) |
| 87165C | Control, Blower Motor |
| 87237B | Cover, Heater Piping |
| 88306 | Motor Sub-assy, Cooler Blower, NO.1 |
| 88501 | Evaporator Sub-assy, Cooler, NO.1 |
| 88501R | Evaporator Sub-assy (REAR) |

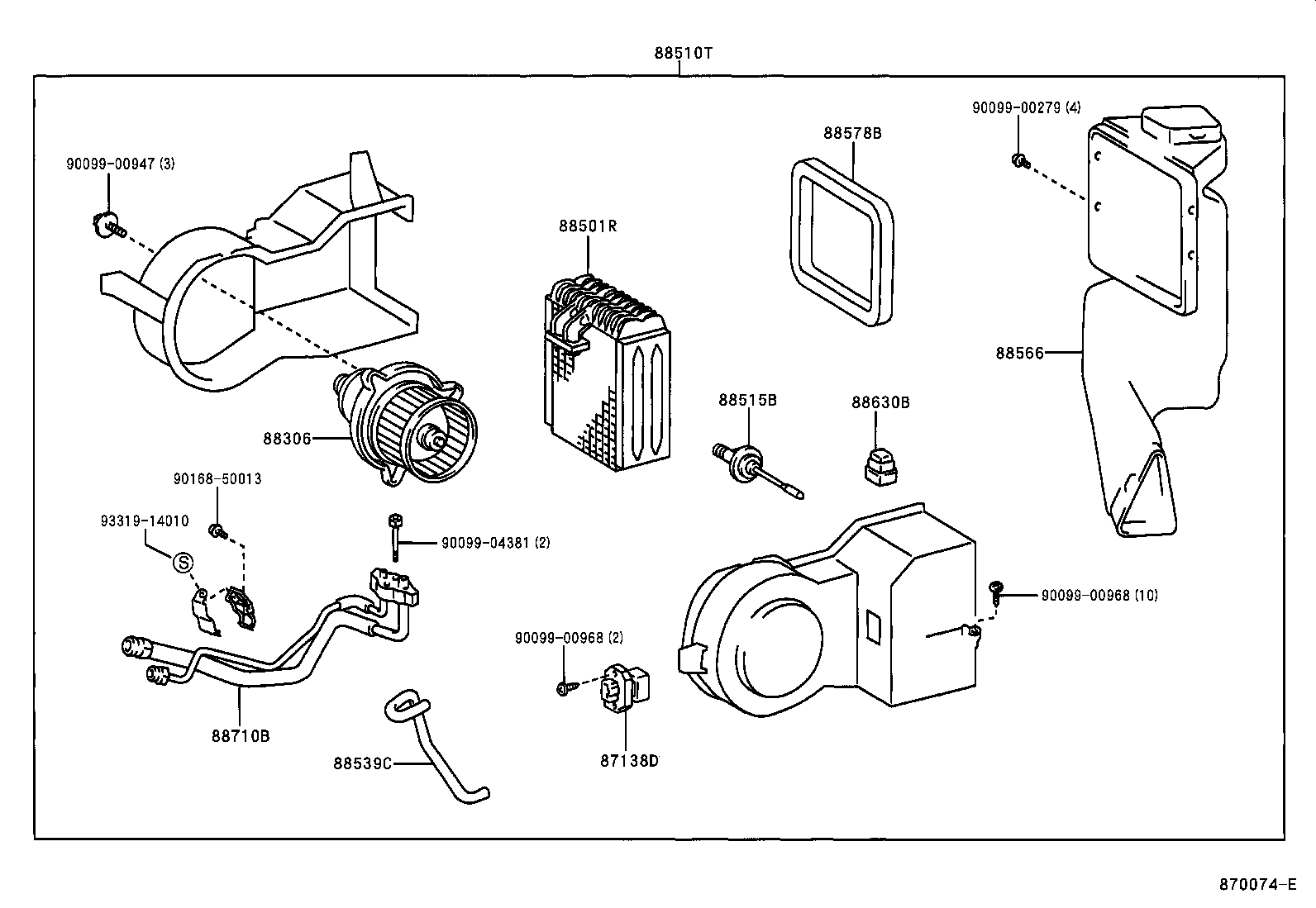

| 88510T | Unit Assy, Cooling (REAR) |
| 88515 | Valve, Cooler Expansion |
| 88515B | Valve, Rear Cooling Unit Expansion |
| 88539 | Hose, Cooler Unit Drain, NO.1 |
| 88539C | Hose, Cooler Unit Drain, NO.2 |
| 88566 | Duct, Cooler Air, NO.1 |
| 88578B | Packing, Cooling Unit, NO.1 |
| 88625 | Thermistor, Cooler, NO.1 |
| 88630B | Relay Assy, Cooler |
| 88669B | Hose, Cooler Air |
| 88710A | Tube Assy, Air Conditioner |
| 88710B | Tube Assy, Air Conditioner |
| 88891S | Cover, Cooler, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
