Toyota Yaris Cross
2023-06 → present · chassis NGC200,NYC200 · catalogue 514210 · General
Supported model
Data version 2023-09

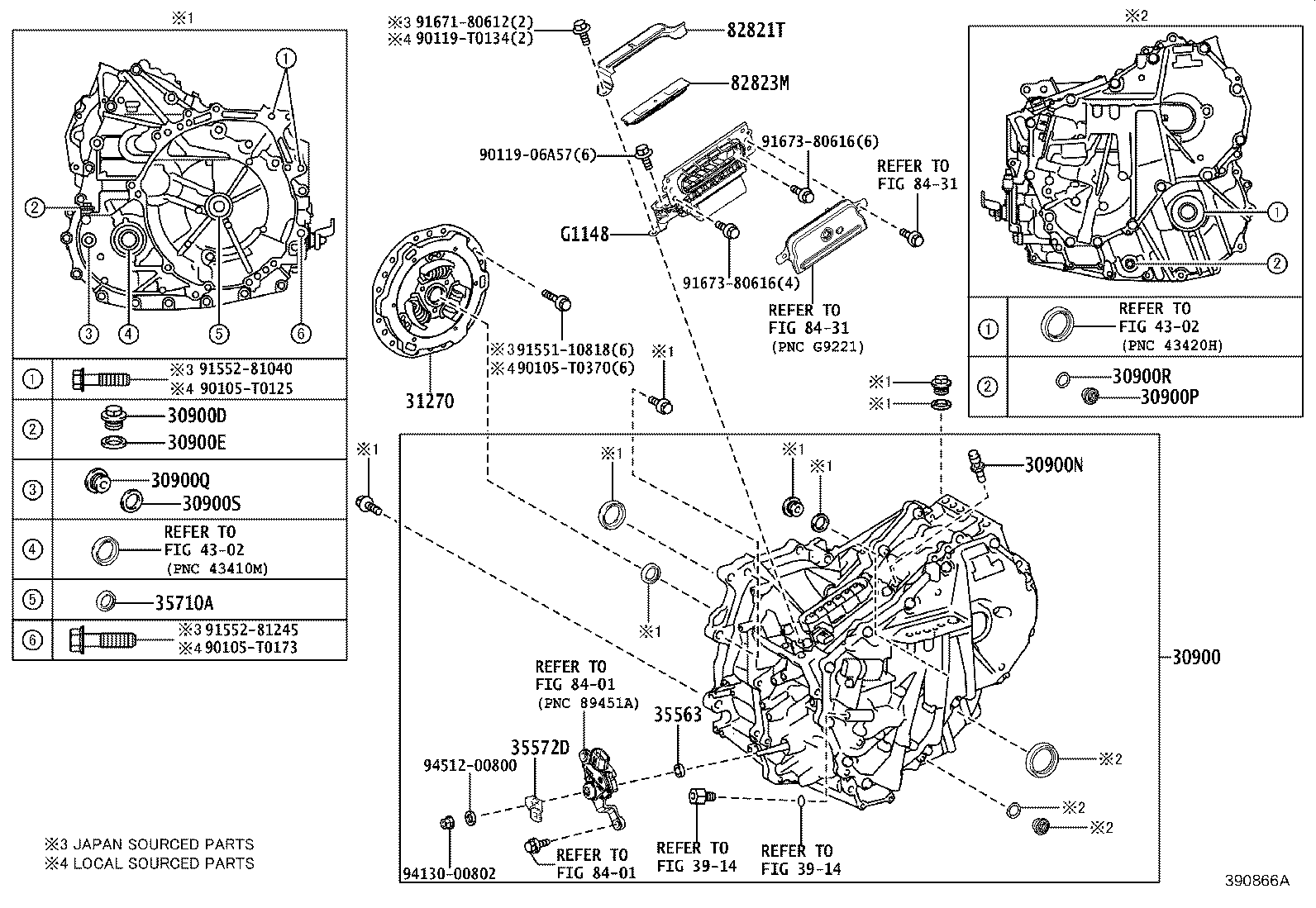

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 30900 — Transaxle Assy, Hybrid Vehicle | ||||
| 30900-0J030 |
Transaxle Assy, Hybrid Vehicle
2023-10 → —
|
NYC200 MA,TH | — | |
| 30900-0J030 |
Transaxle Assy, Hybrid Vehicle
2023-06 → —
|
NYC200 IDNP | — | |
| 30900D — Plug, W/Head Straight Screw(FOR TRANSAXLE HOUSING & CASE) | ||||
| 90341-18060 |
Plug, W/Head Straight Screw(FOR TRANSAXLE HOUSING & CASE)
2023-06 → —
|
NYC200 IDNP | — | |
| 90341-18060 |
Plug, W/Head Straight Screw(FOR TRANSAXLE HOUSING & CASE)
2023-10 → —
|
NYC200 MA,TH | — | |
| 30900E — Gasket(FOR TRANSAXLE HOUSING & CASE) | ||||
| 90430-18008 |
Gasket(FOR TRANSAXLE HOUSING & CASE)
2023-06 → —
|
NYC200 IDNP | — | |
| 90430-18008 |
Gasket(FOR TRANSAXLE HOUSING & CASE)
2023-10 → —
|
NYC200 MA,TH | — | |
| 30900N — Plug, Breather(FOR TRANSAXLE) | ||||
| 90930-03201 |
Plug, Breather(FOR TRANSAXLE)
2023-06 → —
|
NYC200 IDNP | — | |
| 90930-03201 |
Plug, Breather(FOR TRANSAXLE)
2023-10 → —
|
NYC200 MA,TH | — | |
| 30900P — Plug, Drain(HEV) | ||||
| 90341-18016 |
Plug, Drain(HEV)
2023-06 → —
|
NYC200 IDNP | — | |
| 90341-18016 |
Plug, Drain(HEV)
2023-10 → —
|
NYC200 MA,TH | — | |
| 30900Q — Plug, Filler(HEV) | ||||
| 90341-18016 |
Plug, Filler(HEV)
2023-06 → —
|
NYC200 IDNP | — | |
| 90341-18016 |
Plug, Filler(HEV)
2023-10 → —
|
NYC200 MA,TH | — | |
| 30900R — Gasket, Drain Plug(HEV) | ||||
| 90430-18008 |
Gasket, Drain Plug(HEV)
2023-06 → —
|
NYC200 IDNP | — | |
| 90430-18008 |
Gasket, Drain Plug(HEV)
2023-10 → —
|
NYC200 MA,TH | — | |
| 30900S — Gasket, Filler Plug(HEV) | ||||
| 90430-18008 |
Gasket, Filler Plug(HEV)
2023-06 → —
|
NYC200 IDNP | — | |
| 90430-18008 |
Gasket, Filler Plug(HEV)
2023-10 → —
|
NYC200 MA,TH | — | |
| 31270 — Damper Assy, Transmission Input | ||||
| 31270-0J010 |
Damper Assy, Transmission Input
2023-06 → —
|
NYC200 IDNP | — | |
| 31270-0J010 |
Damper Assy, Transmission Input
2023-10 → —
|
NYC200 MA,TH | — | |
| 35563 — Seal, Shift Control Actuator | ||||
| 90311-12016 |
Seal, Shift Control Actuator
2023-06 → —
|
NYC200 IDNP | — | |
| 90311-12016 |
Seal, Shift Control Actuator
2023-10 → —
|
NYC200 MA,TH | — | |
| 35572D — Lever, Transmission Control Shaft | ||||
| 35572-K0010 |
Lever, Transmission Control Shaft
2023-06 → —
|
NYC200 IDNP | — | |
| 35572-K0010 |
Lever, Transmission Control Shaft
2023-10 → —
|
NYC200 MA,TH | — | |
| 35710A — Seal, Type T Oil(FOR INPUT SHAFT) | ||||
| 90311-25025 |
Seal, Type T Oil(FOR INPUT SHAFT)
2023-06 → —
|
NYC200 IDNP | — | |
| 90311-25025 |
Seal, Type T Oil(FOR INPUT SHAFT)
2023-10 → —
|
NYC200 MA,TH | — | |
| 82821T — Cover, Connector | ||||
| 82821-52350 |
Cover, Connector
2023-06 → —
|
NYC200 IDNP | — | |
| 82821-52350 |
Cover, Connector
2023-10 → —
|
NYC200 MA,TH | — | |
| 82823M — Cap, Terminal | ||||
| 82823-47040 |
Cap, Terminal
2023-06 → —
|
NYC200 IDNP | — | |
| 82823-47040 |
Cap, Terminal
2023-10 → —
|
NYC200 MA,TH | — | |
| G1148 — Cable, Motor | ||||
| G1148-0J010 note |
Cable, Motor
2023-06 → —
|
NYC200 IDNP | — | |
| G1148-0J010 note |
Cable, Motor
2023-10 → —
|
NYC200 MA,TH | — | |
| G1148-K0010 note |
Cable, Motor
2023-06 → —
|
NYC200 IDNP | — | |
| G1148-K0010 note |
Cable, Motor
2023-10 → —
|
NYC200 MA,TH | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
