Toyota Yaris Cross
2023-06 → present · chassis NGC200,NYC200 · catalogue 514210 · General
Supported model
Data version 2023-09
Standard Tool
9 part groups · 4 illustrations

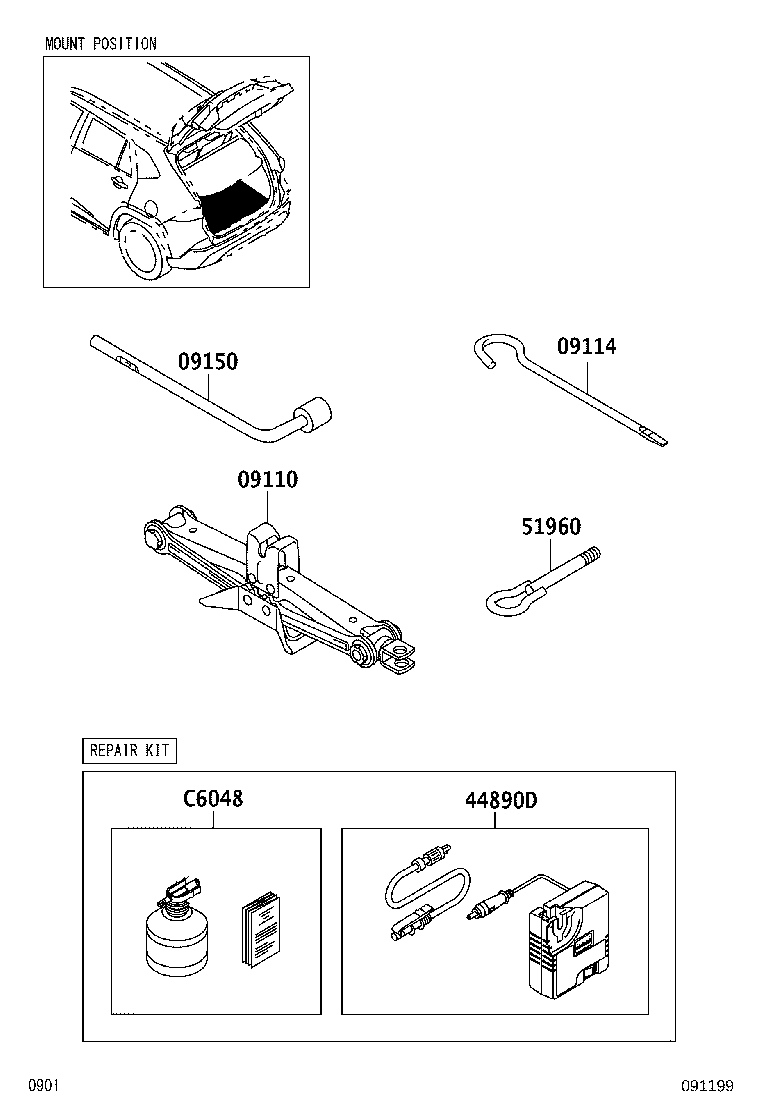

Part groups
| PNC | Description |
|---|---|
| 09101 | Tool Set, Standard W/O Jack |
| 09110 | Jack Assy |
| 09114 | Extension Sub-assy, Jack Handle |
| 09120 | Bag, Tool |
| 09125 | Band, Tool Bag |
| 09150 | Wrench, Hub Nut Box |
| 44890D | Compressor Assy, Air |
| 51960 | Hook Assy, Front |
| C6048 | Repair Set, Tire |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
