Toyota Yaris Cross
2023-06 → present · chassis NGC200,NYC200 · catalogue 514210 · General
Supported model
Data version 2023-09

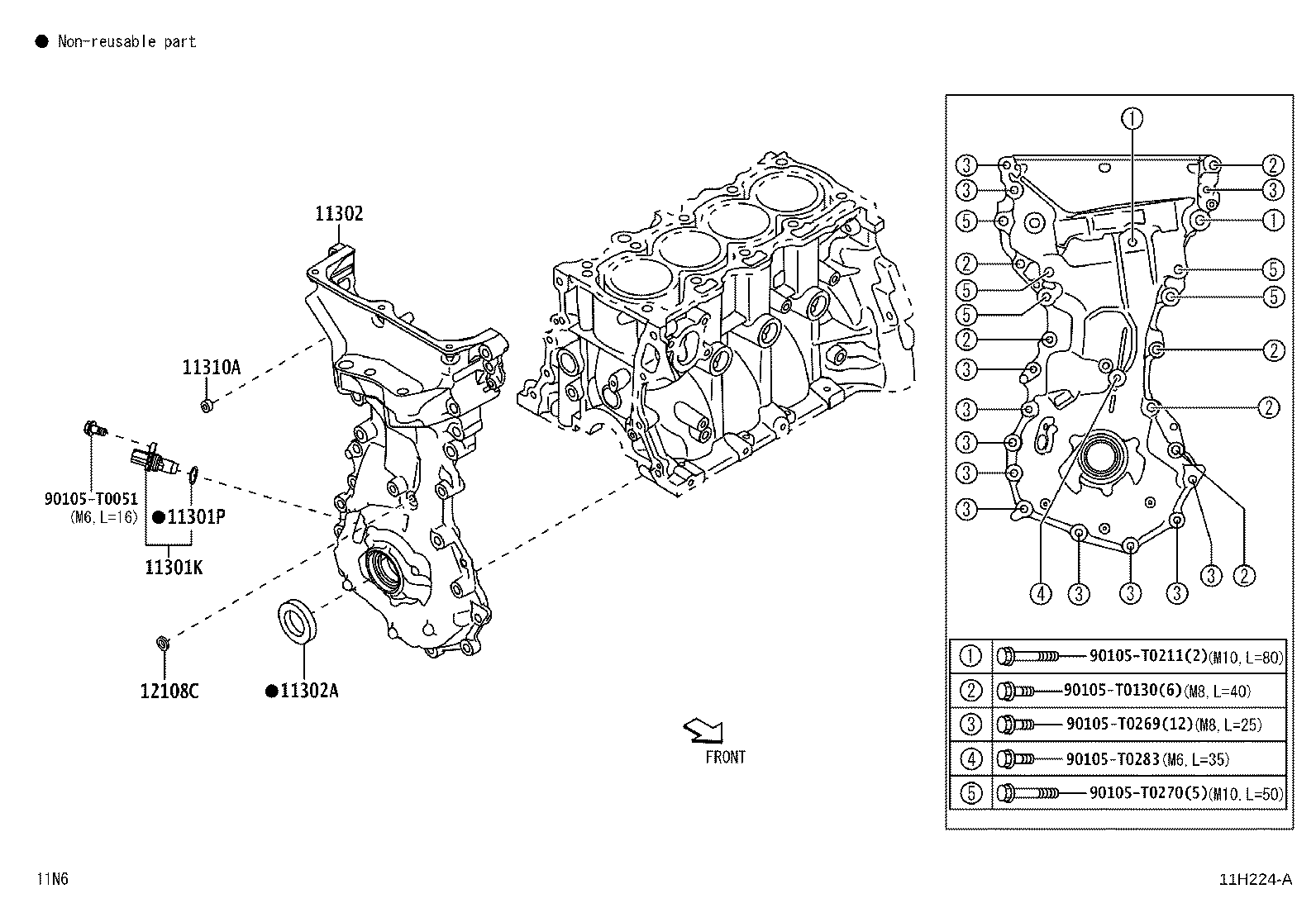

Timing Gear Cover & Rear End Plate
6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 11301K | Sensor, Crank Position |
| 11301P | O Ring, Crank Position Sensor |
| 11302 | Cover Sub-assy, Timing Chain OR Belt |
| 11302A | Seal, Oil(FOR TIMING CHAIN OR BELT COVER) |
| 11310A | Plug, Taper Screw(FOR TIMING CHAIN COVER) |
| 12108C | Gasket |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
