Toyota Yaris Cross

2023-06 → present · chassis NGC200,NYC200 · catalogue 514210 · General

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

4 part groups · 3 illustrations

Illustrations

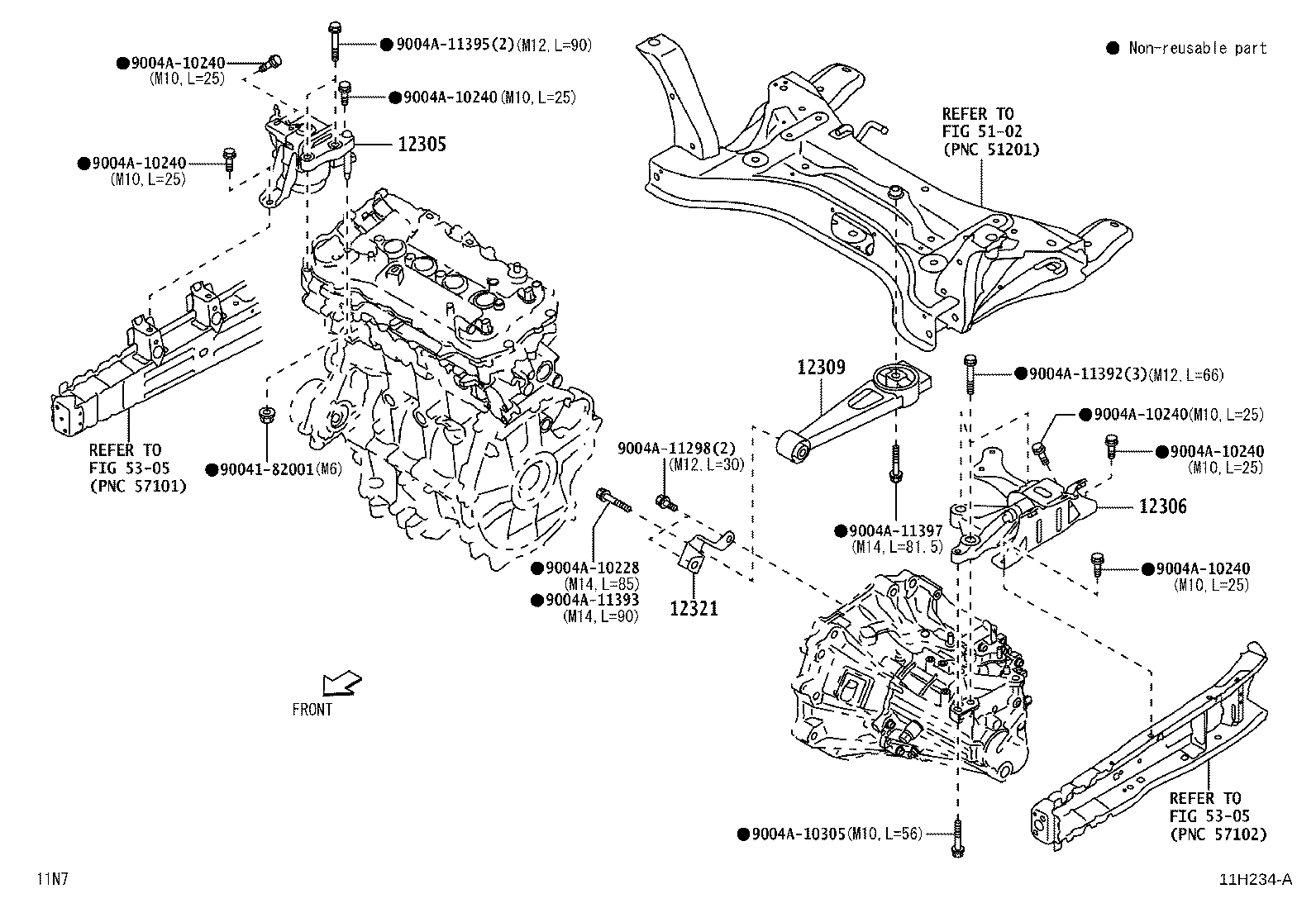

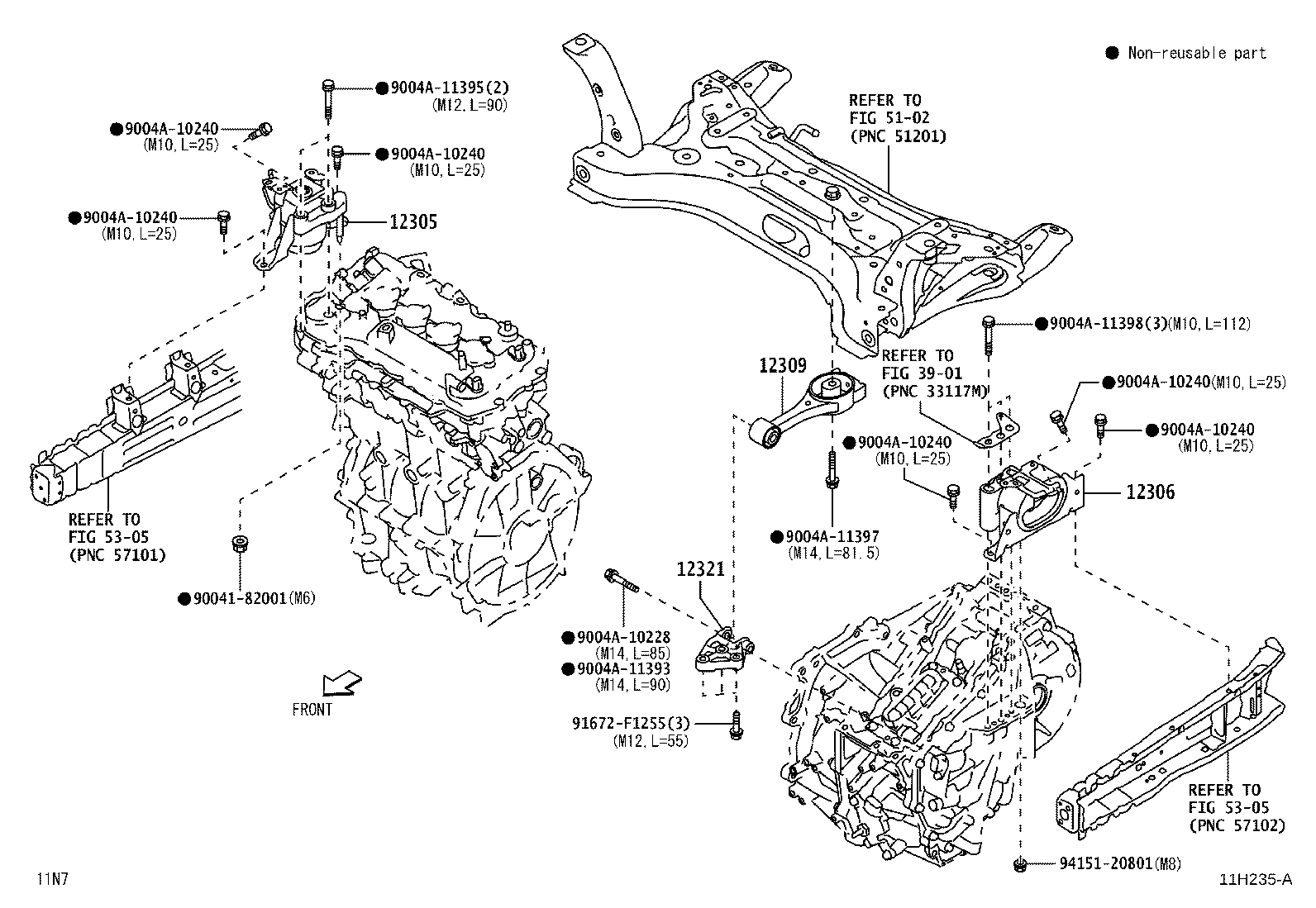

Figure 11H233B 11H233B 2023-06 → — Figure 11H234A 11H234A 2023-06 → — Figure 11H235A 11H235A 2023-06 → —

Part groups

PNCDescription
12305 Insulator Sub-assy, Engine Mounting, RH
12306 Insulator Sub-assy, Engine Mounting, LH
12309 Rod Sub-assy, Engine Moving Control
12321 Bracket, Engine Mounting, Rear, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
