Toyota Yaris Cross
2023-06 → present · chassis NGC200,NYC200 · catalogue 514210 · General
Supported model
Data version 2023-09

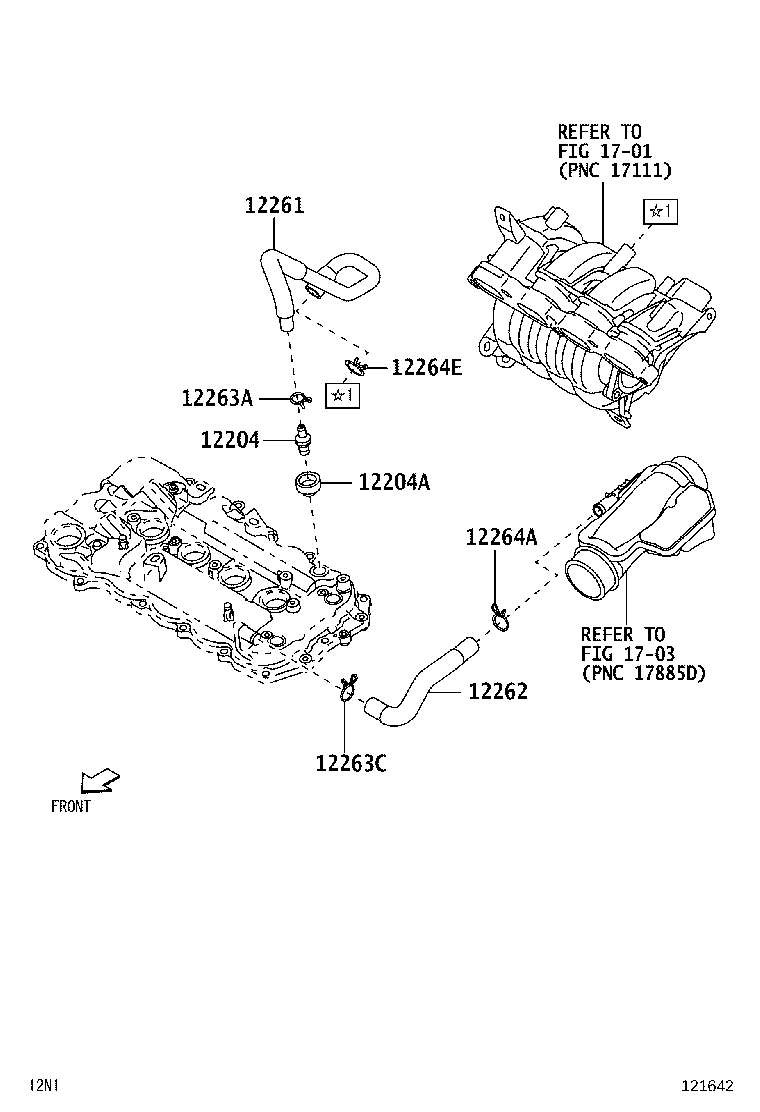

Ventilation Hose
8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 12204 | Valve Sub-assy, Ventilation |
| 12204A | Grommet(FOR VENTILATION SYSTEM) |
| 12261 | Hose, Ventilation |
| 12262 | Hose, Ventilation, NO.2 |
| 12263A | Clip(FOR VENTILATION HOSE) |
| 12263C | Clip(FOR VENTILATION HOSE) |
| 12264A | Clip(FOR VENTILATION HOSE) |
| 12264E | Clip(FOR VENTILATION HOSE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
