Toyota Yaris Cross
2023-06 → present · chassis NGC200,NYC200 · catalogue 514210 · General
Supported model
Data version 2023-09

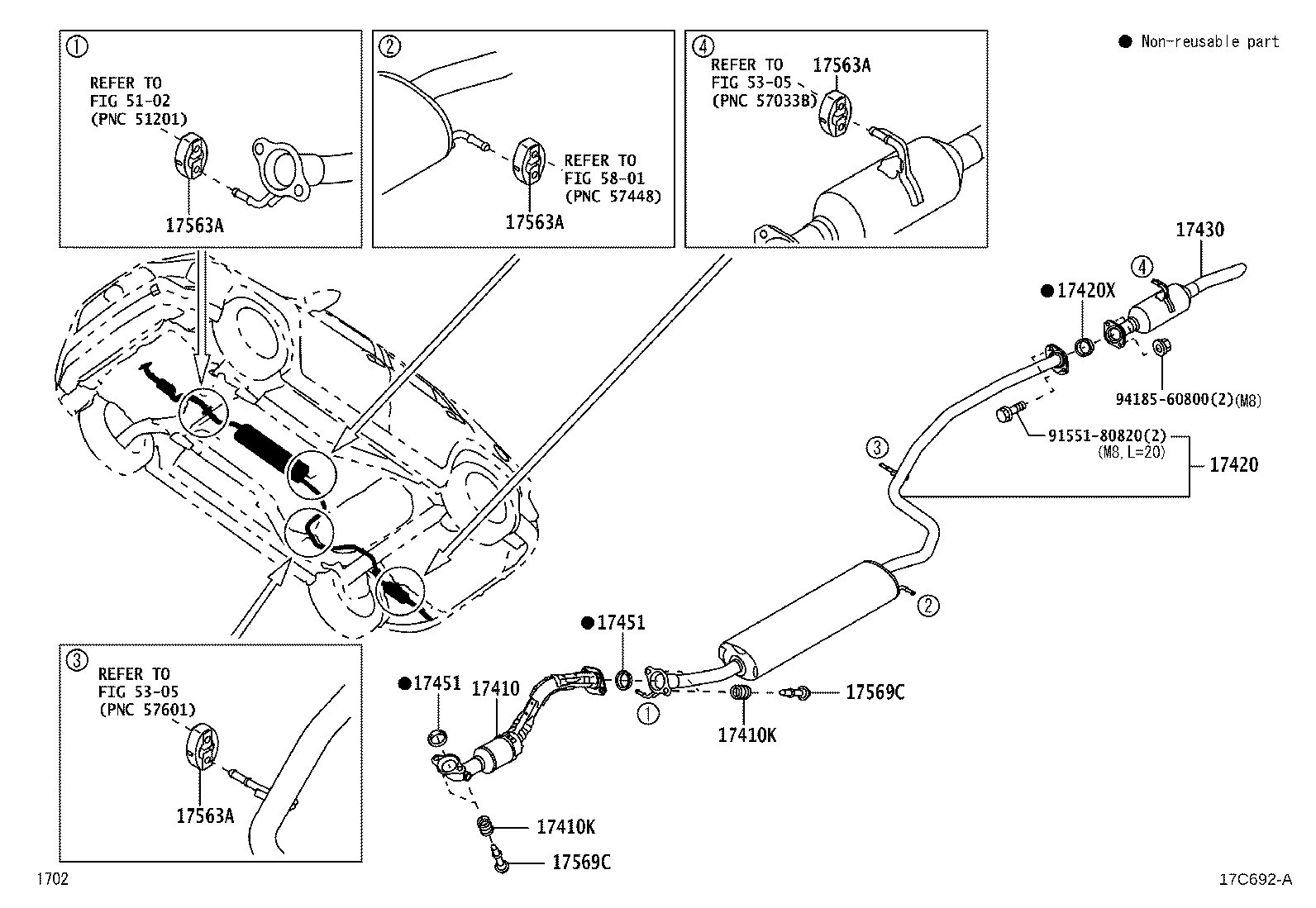

Exhaust Pipe
8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 17410 | Pipe Assy, Exhaust, Front |
| 17410K | Spring, Exhaust Pipe |
| 17420 | Pipe Assy, Exhaust, Center |
| 17420X | Gasket, Exhaust Pipe, Center |
| 17430 | Pipe Assy, Exhaust, Tail |
| 17451 | Gasket, Exhaust Pipe |
| 17563A | Support, Exhaust Pipe, NO.3 |
| 17569C | Bolt, Exhaust Pipe Support |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
