Toyota Yaris Cross

2023-06 → present · chassis NGC200,NYC200 · catalogue 514210 · General

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

6 part groups · 5 illustrations

Illustrations

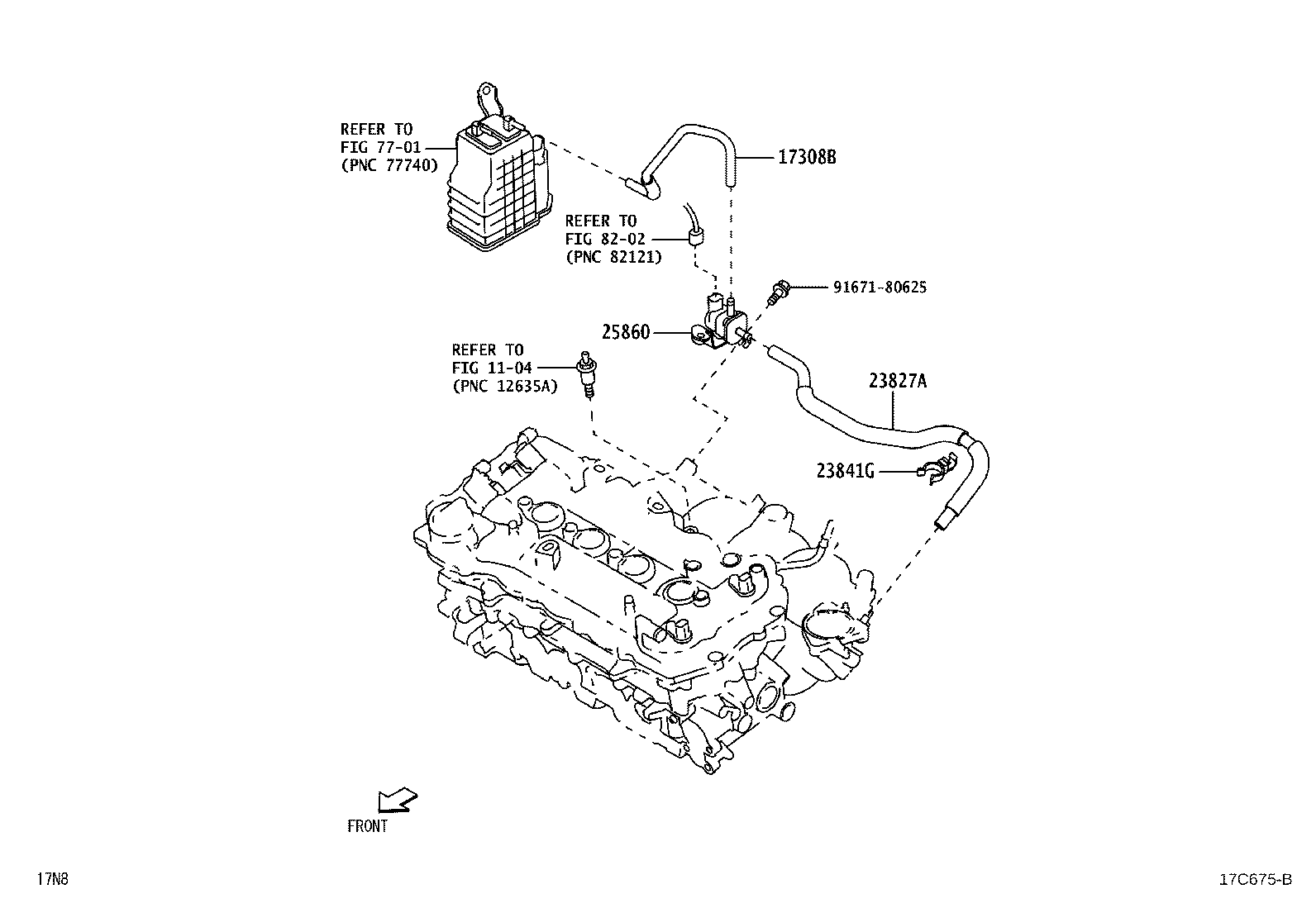

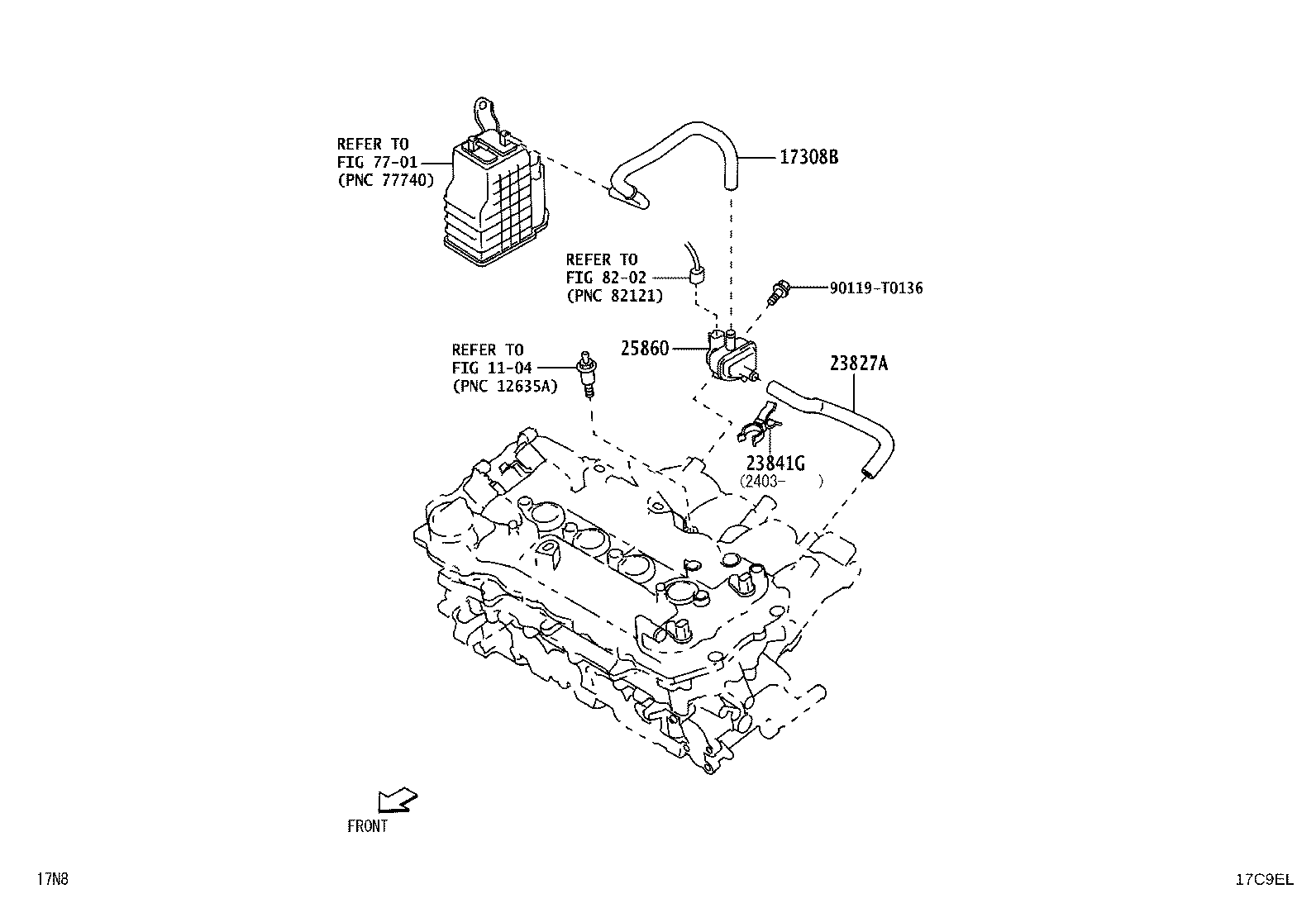

Figure 17C676A 17C676A 2023-06 → — Figure 17C676A 17C676A 2023-10 → — Figure 17C675B 17C675B 2023-06 → — Figure 17C675B 17C675B 2024-06 → — Figure 17C9EL 17C9EL 2023-06 → —

Part groups

PNCDescription
17308B Hose Sub-assy, Vacuum
17341T Hose, Air, NO.1
23827A Hose, Fuel Vapor Feed, NO.2
23841G Clamp, Fuel Hose
25860 Valve Assy, Vacuum Switching, NO.1
25860D Valve Assy, Vacuum Switching, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
