Toyota Yaris Cross
2023-06 → present · chassis NGC200,NYC200 · catalogue 514210 · General
Supported model
Data version 2023-09

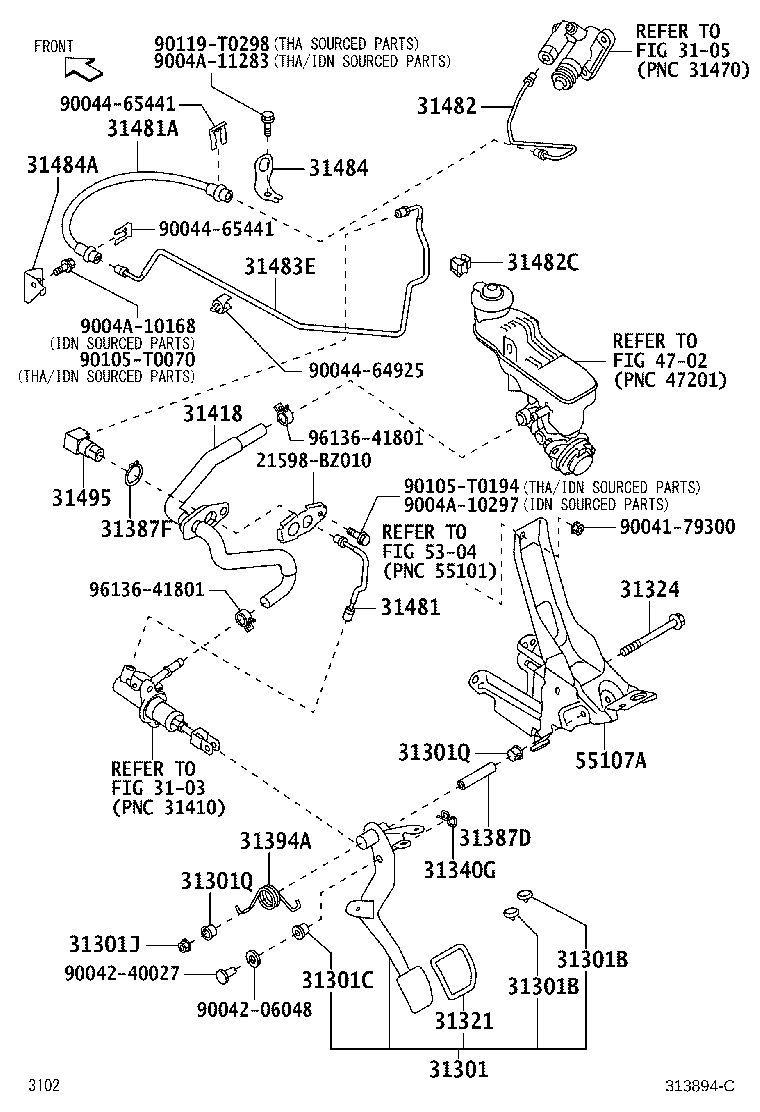

Clutch Pedal & Flexible Hose
22 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 31301 | Pedal Sub-assy, Clutch |
| 31301B | Cushion, NO.1(FOR CLUTCH PEDAL) |
| 31301C | Bush(FOR CLUTCH PEDAL) |
| 31301J | Nut(FOR CLUTCH PEDAL STOPPER) |
| 31301Q | Bush(FOR CLUTCH PEDAL SPRING) |
| 31321 | Pad, Clutch Pedal |
| 31324 | Shaft, Clutch Pedal |
| 31340G | Clip(FOR CLUTCH RELEASE CABLE) |
| 31387D | Spacer(FOR CLUTCH RELEASE SECTOR) |
| 31387F | Ring, Snap |
| 31394A | Spring, Pedal W/Hook |
| 31418 | Hose, Clutch |
| 31481 | Tube, Clutch Master Cylinder TO Flexible Hose |
| 31481A | Hose, Clutch, NO.1 |
| 31482 | Tube, Clutch Release Cylinder TO Flexible Hose |
| 31482C | Clamp(FOR CLUTCH TUBE) |
| 31483E | Tube, Bleeder Clutch Release |
| 31484 | Bracket, Flexible Hose(FOR CLUTCH) |
| 31484A | Bracket, Flexible Hose, NO.1(FOR CLUTCH) |
| 31495 | Way, Clutch Tube |
| 31496B | Clamp, Clutch Tube |
| 55107A | Support Sub-assy, Clutch Pedal |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
