Toyota Yaris Cross
2023-06 → present · chassis NGC200,NYC200 · catalogue 514210 · General
Supported model
Data version 2023-09

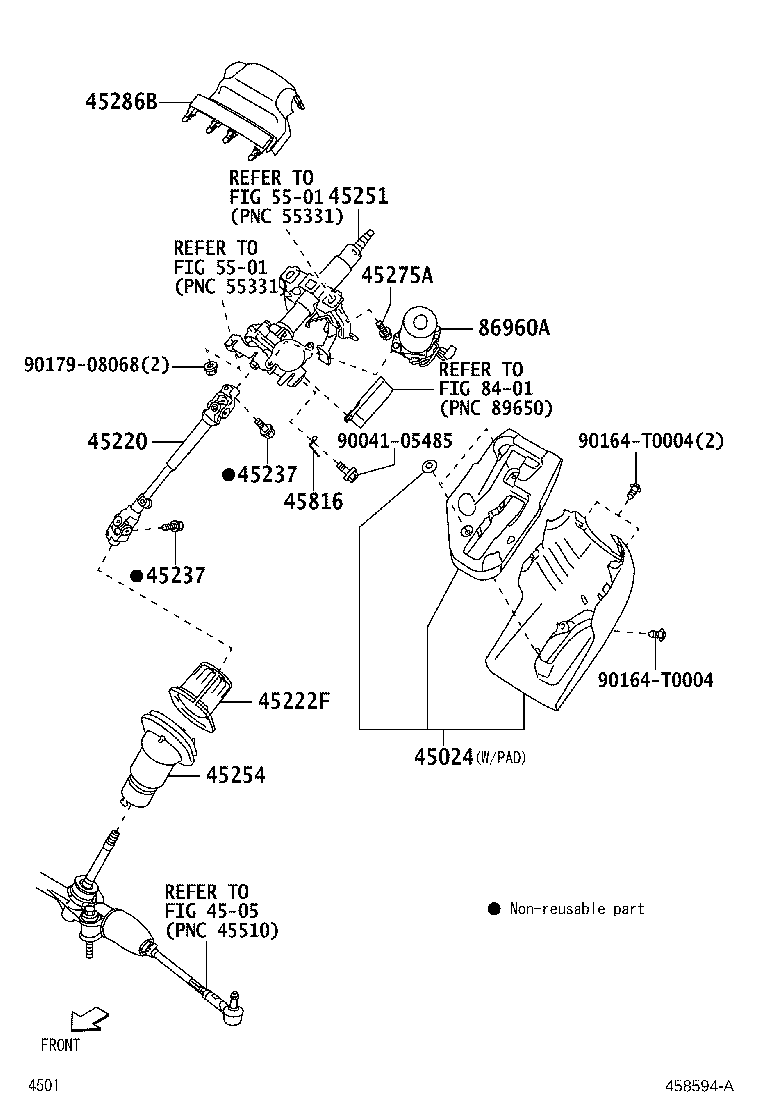

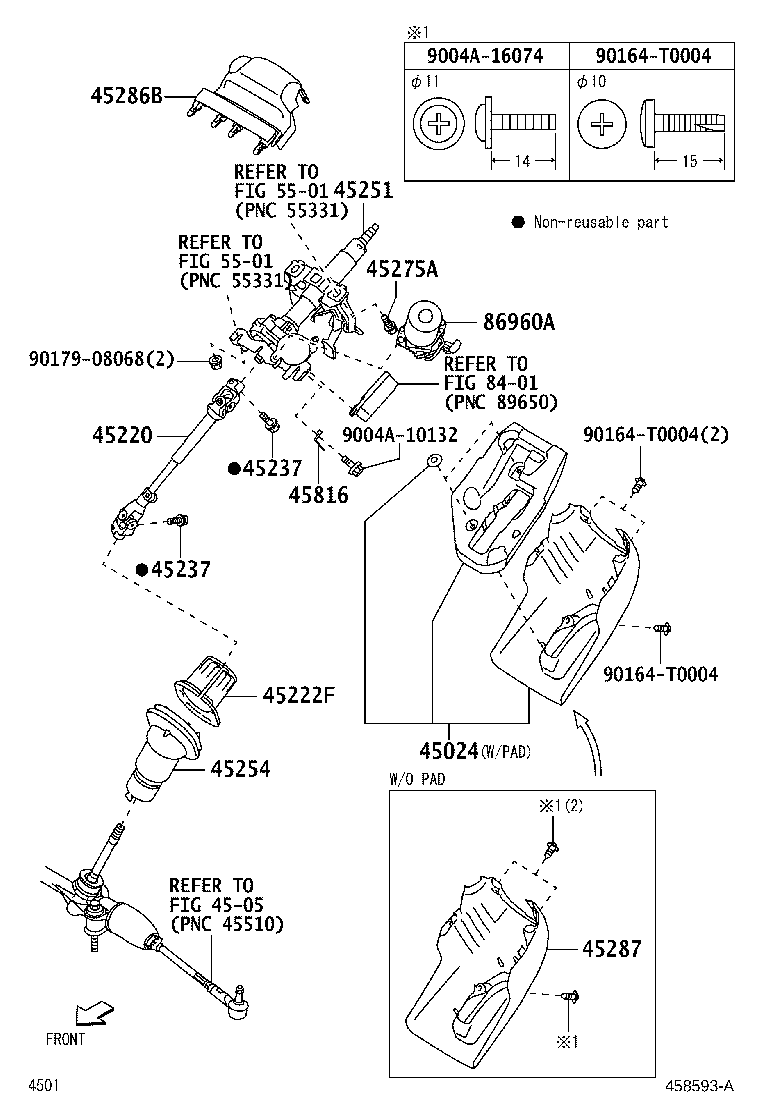

Steering Column & Shaft
11 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 45024 | Cover Sub-assy, Steering Column, Lower |
| 45220 | Shaft Assy, Steering Intermediate |
| 45222F | Cover, Dust |
| 45237 | Bolt, Flexible Attaching(FOR STEERING MAIN SHAFT) |
| 45251 | Tube Set, Steering Column |
| 45254 | Shield, Steering Column Hole |
| 45275A | Bolt, Hexagon(FOR STEERING COLUMN BRACKET) |
| 45286B | Cover, Steering Column, Upr |
| 45287 | Cover, Steering Column, Lwr |
| 45816 | Bracket, Wire Harness |
| 86960A | Motor Set, Power Steering |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
