Toyota Yaris Cross

2023-06 → present · chassis NGC200,NYC200 · catalogue 514210 · General

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Steering Gear & Link

11 part groups · 2 illustrations

Illustrations

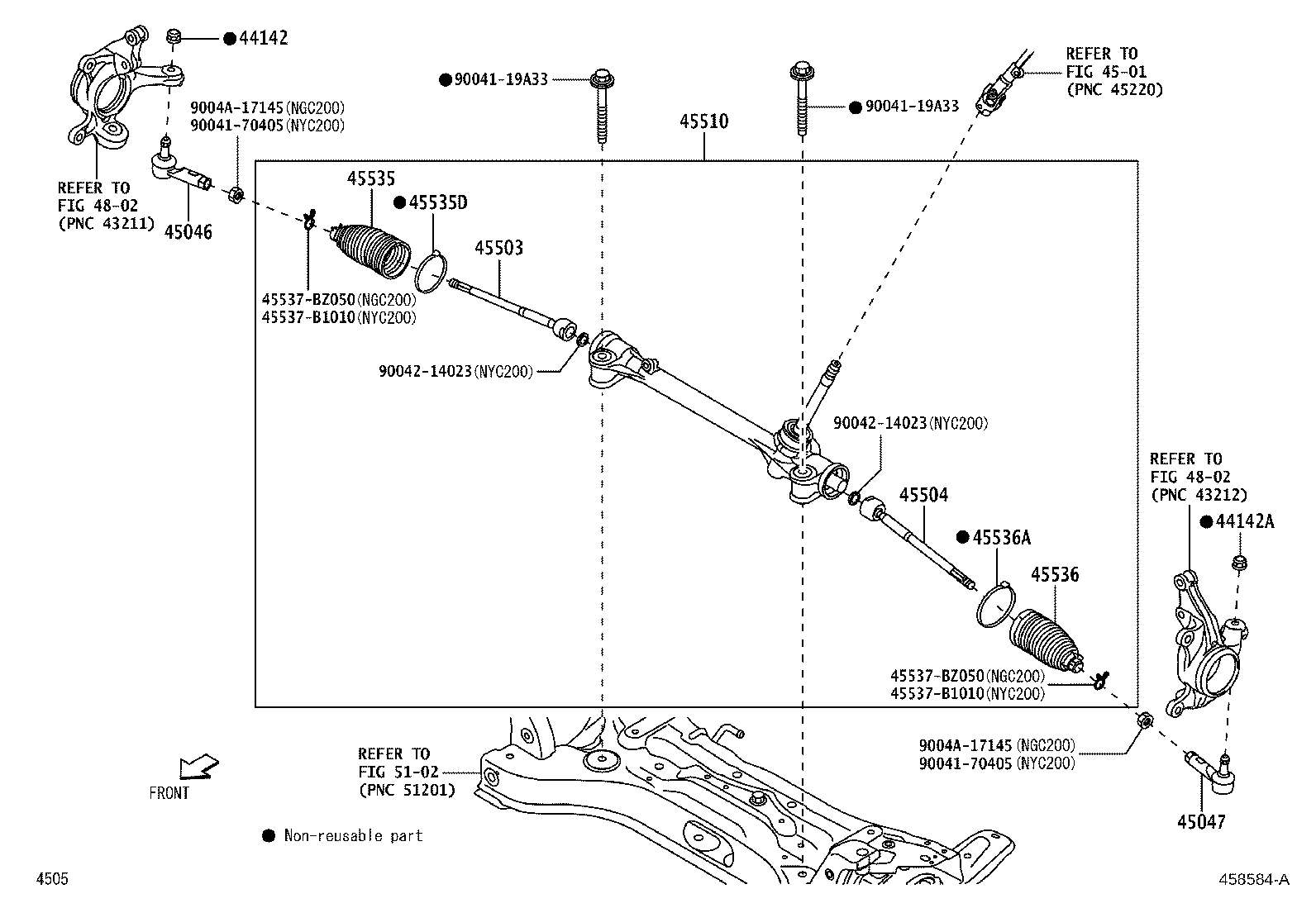

Figure 458583A 458583A 2023-06 → — Figure 458584A 458584A 2023-06 → —

Part groups

PNCDescription
44142 Nut, Lock
44142A Nut, Lock, NO.1
45046 End Sub-assy, Tie Rod, RH
45047 End Sub-assy, Tie Rod, LH
45503 End Sub-assy, Steering Rack
45504 End Sub-assy, Steering Rack, NO.2
45510 Gear Assy, Steering
45535 Boot, Steering Rack, NO.1
45535D Clamp(FOR STEERING RACK BOOT NO.1)
45536 Boot, Steering Rack, NO.2
45536A Clamp(FOR STEERING RACK BOOT NO.2)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
