Parking Brake & Cable

4 part groups · 2 illustrations

Illustrations

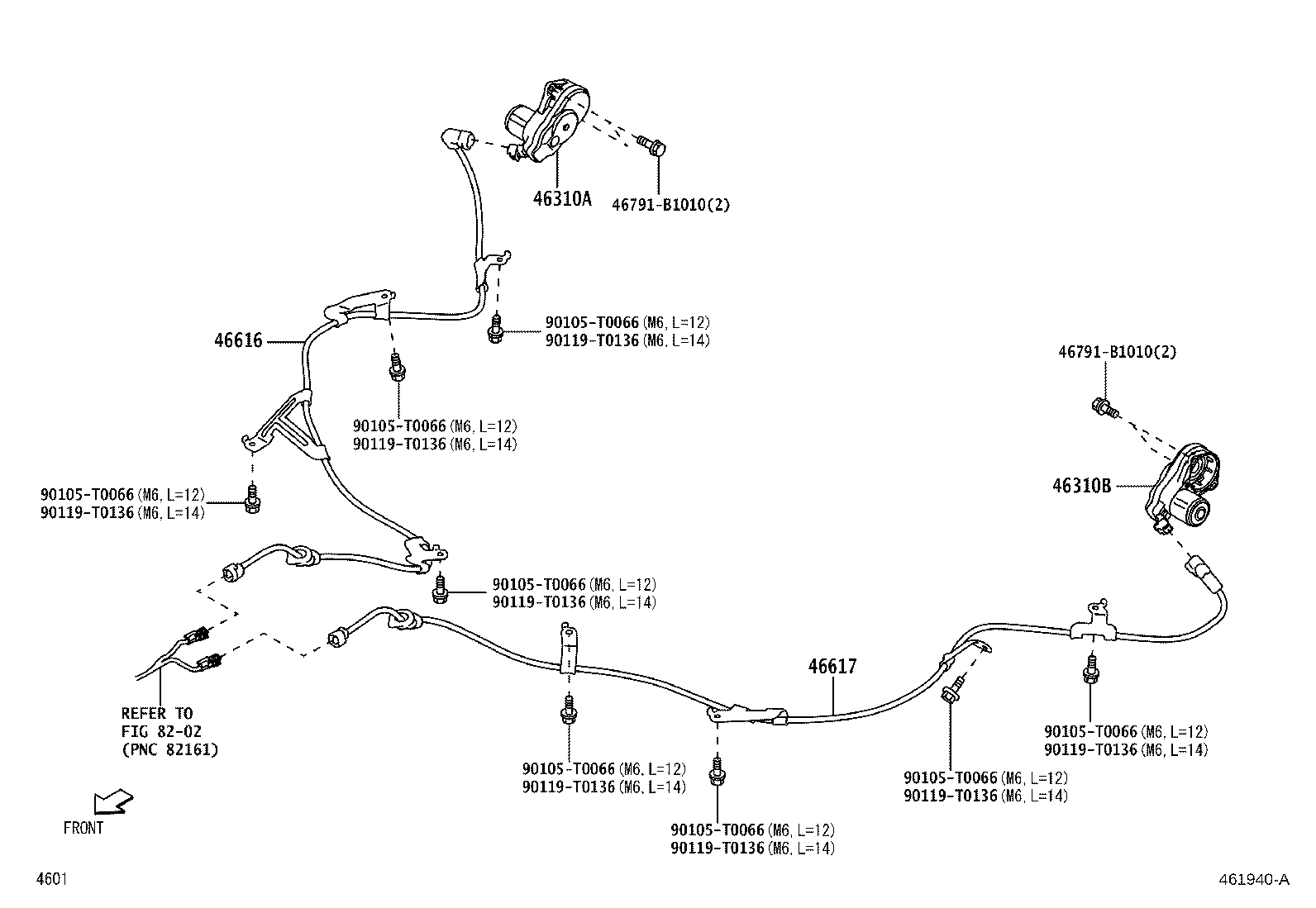

Figure 461939 461939 2023-06 → — Figure 461940A 461940A 2023-06 → —

Part groups

PNCDescription
46310A Actuator Assy, Parking Brake, RH
46310B Actuator Assy, Parking Brake, LH
46616 Wire, Parking Brake, RH
46617 Wire, Parking Brake, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
