Toyota Yaris Cross

2023-06 → present · chassis NGC200,NYC200 · catalogue 514210 · General

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Pedal & Bracket

9 part groups · 7 illustrations

Illustrations

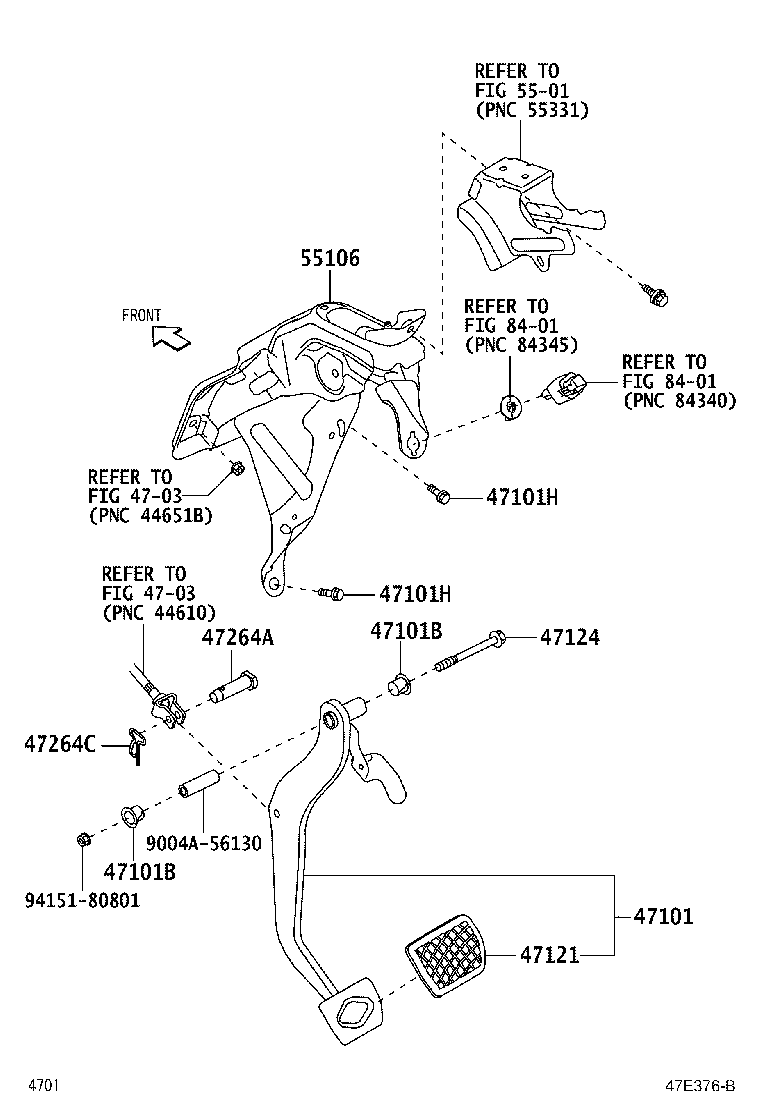

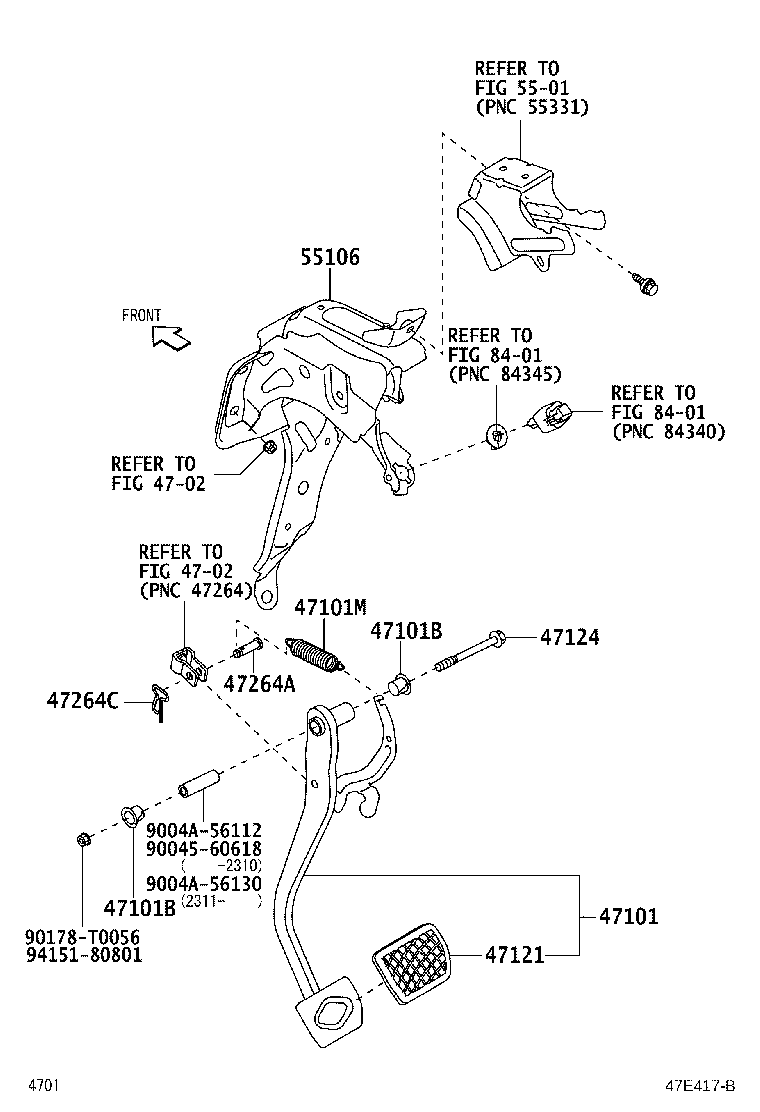

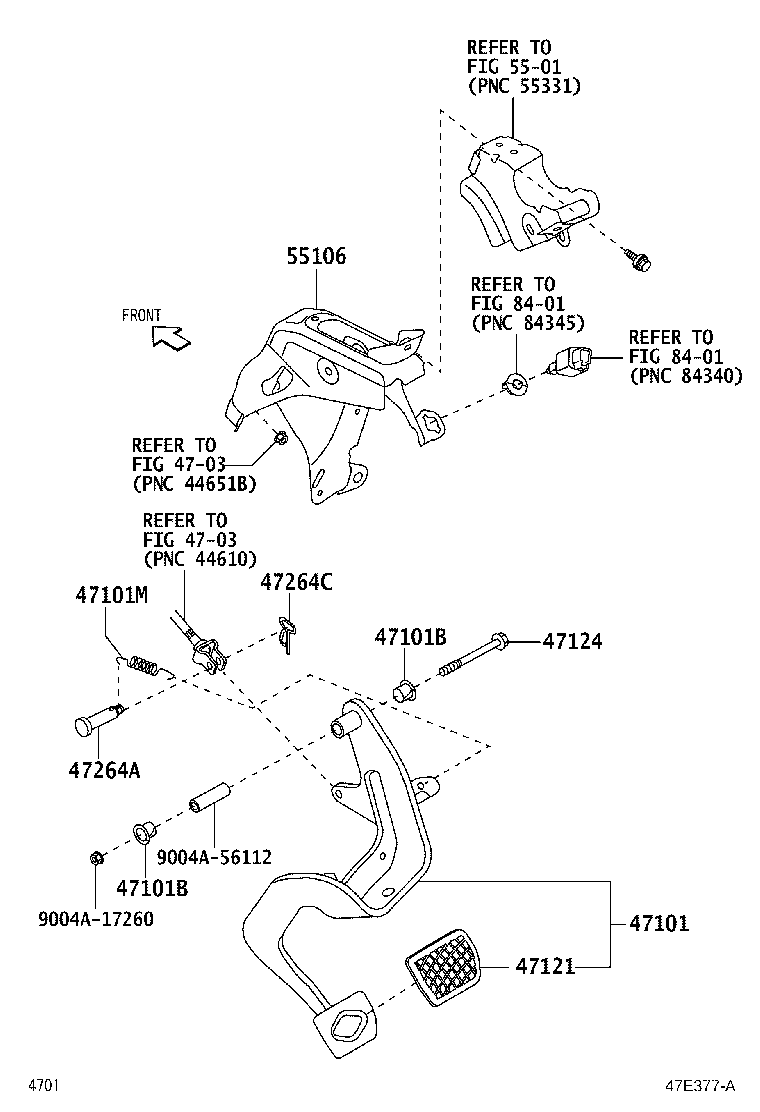

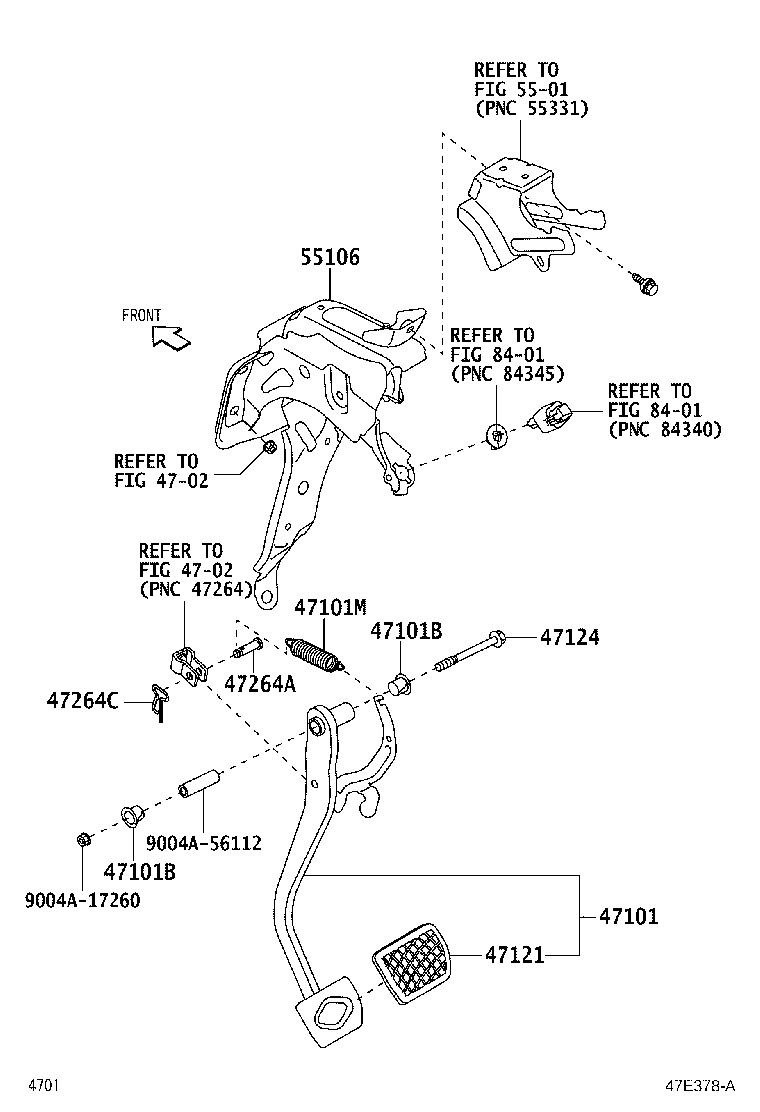

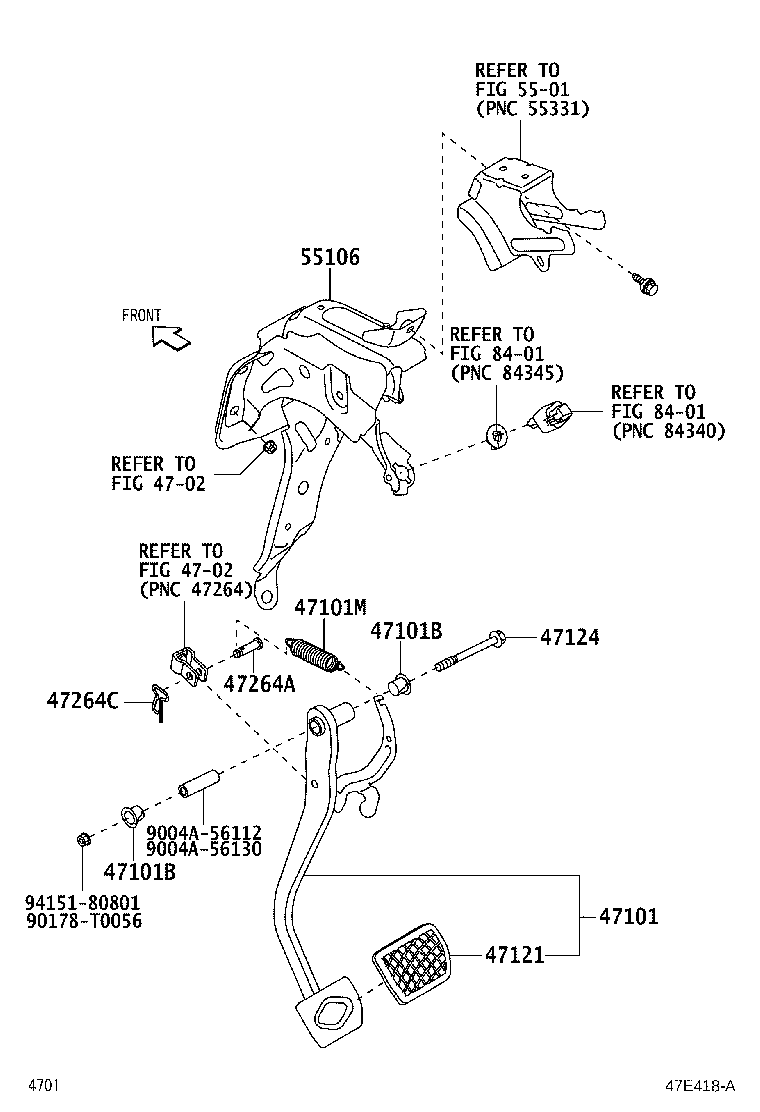

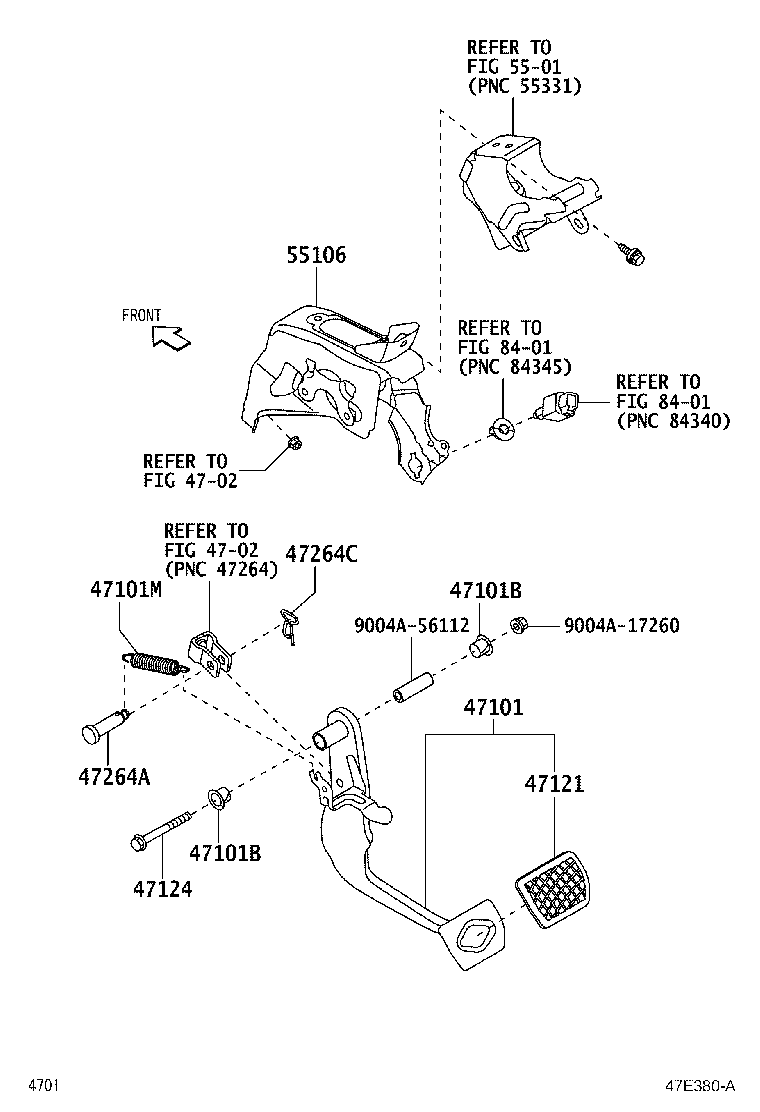

Figure 47E375A 47E375A 2023-06 → — Figure 47E376B 47E376B 2024-06 → — Figure 47E377A 47E377A 2023-06 → — Figure 47E378A 47E378A 2023-06 → — Figure 47E380A 47E380A 2023-06 → — Figure 47E417B 47E417B 2023-10 → — Figure 47E418A 47E418A 2024-06 → —

Part groups

PNCDescription
47101 Pedal Sub-assy, Brake
47101B Bush(FOR BRAKE PEDAL)
47101H Bolt, Brake Pedal Stop, NO.2
47101M Spring, Tension
47121 Pad, Brake Pedal
47124 Shaft, Brake Pedal
47264A Pin(FOR PUSH ROD)
47264C Clip(FOR PUSH ROD CLEVIS PIN)
55106 Support Sub-assy, Brake Pedal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
