Toyota Yaris Cross

2023-06 → present · chassis NGC200,NYC200 · catalogue 514210 · General

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Disc Brake Caliper & Dust Cover

20 part groups · 3 illustrations

Illustrations

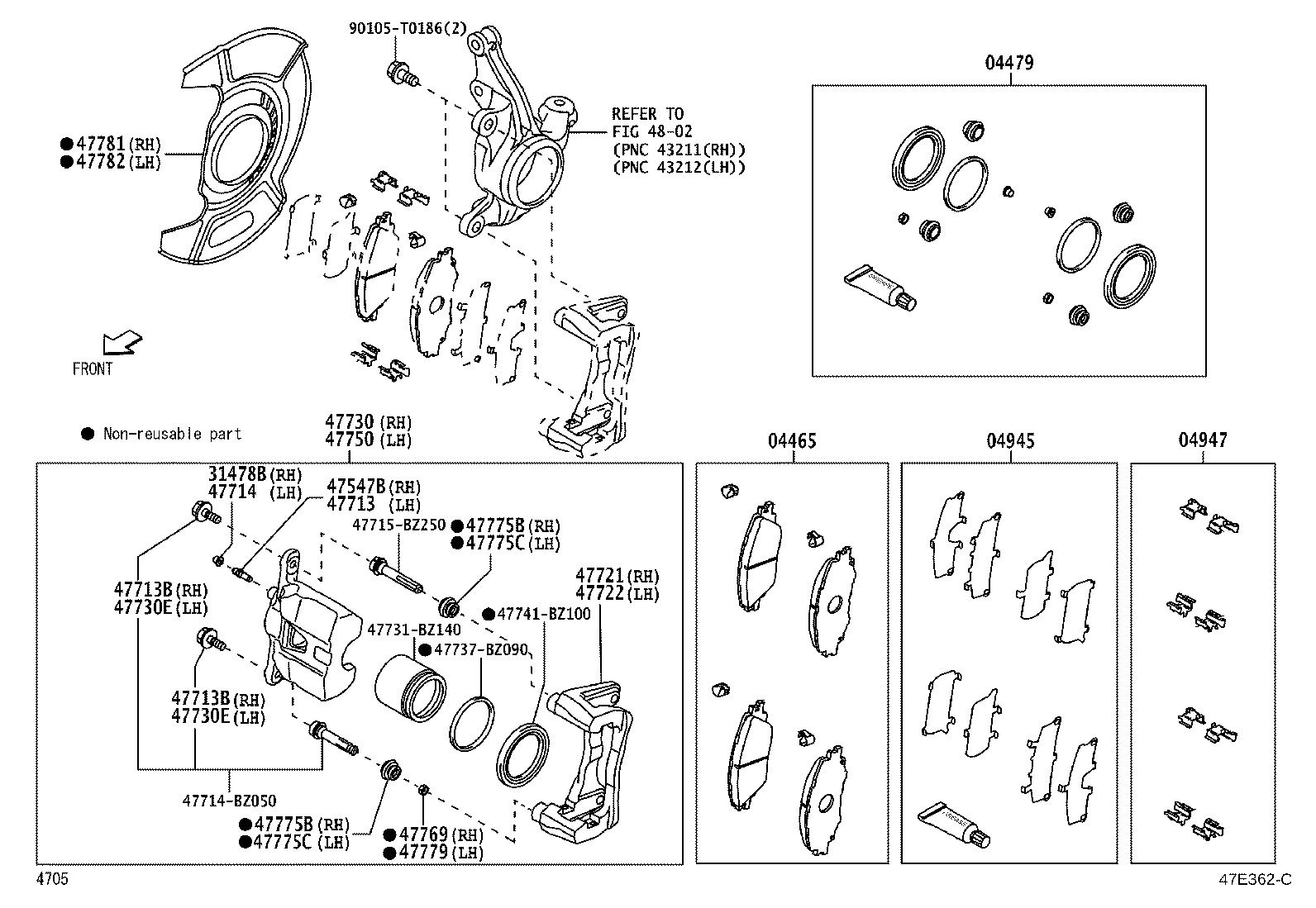

Figure 47E360C 47E360C 2023-06 → — Figure 47E360C 47E360C 2024-06 → — Figure 47E362C 47E362C 2023-10 → —

Part groups

PNCDescription
04465 Pad Kit, Disc Brake, Front
04479 Cylinder Kit, Disc Brake, Front
04945 Shim Kit, Anti Squeal, Front
04947 Fitting Kit, Disc Brake, Front
31478B Cap, Bleeder Plug(FOR FRONT DISC BRAKE)
47547B Plug, Bleeder(FOR FRONT DISC BRAKE)
47713 Plug, Bleeder(FOR FRONT DISC BRAKE)
47713B Bolt(FOR FRONT DISC BRAKE CYLINDER)
47714 Cap, Bleeder Plug(FOR FRONT DISC BRAKE)
47721 Mounting, Front Disc Brake Cylinder, RH
47722 Mounting, Front Disc Brake Cylinder, LH
47730 Cylinder Assy, Front Disc Brake, RH
47730E Bolt(FOR FRONT DISC BRAKE CYLINDER)
47750 Cylinder Assy, Disc Brake, LH
47769 Bush, Cylinder Slide, NO.1(FOR FRONT DISC BRAKE)
47775B Boot, Bush Dust, NO.1
47775C Boot, Bush Dust, NO.2
47779 Bush, Cylinder Slide, NO.2(FOR FRONT DISC BRAKE)
47781 Cover, Disc Brake Dust, Front RH
47782 Cover, Disc Brake Dust, Front LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
