Toyota Yaris Cross
2023-06 → present · chassis NGC200,NYC200 · catalogue 514210 · General
Supported model
Data version 2023-09

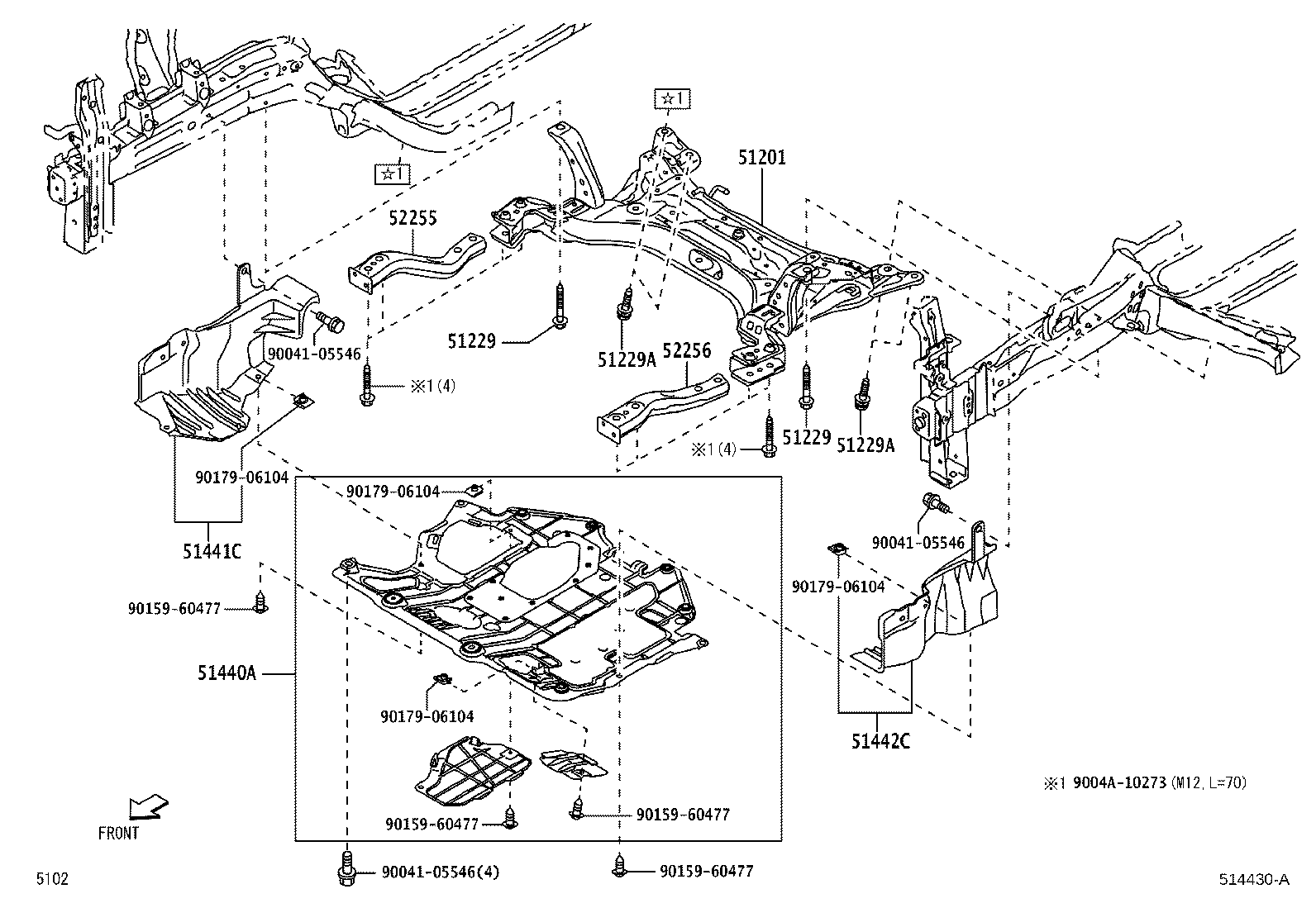

Suspension Crossmember & Under Cover
8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 51201 | Crossmember Sub-assy, Front Suspension |
| 51229 | Bolt, Suspension Member Set |
| 51229A | Bolt, Front Suspension Member Mounting |
| 51440A | Cover Assy, Engine Under |
| 51441C | Cover, Engine Under, RH |
| 51442C | Cover, Engine Under, LH |
| 52255 | Brace, Front Suspension Member, Front RH |
| 52256 | Brace, Front Suspension Member, Front LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
