Toyota Yaris Cross
2023-06 → present · chassis NGC200,NYC200 · catalogue 514210 · General
Supported model
Data version 2023-09

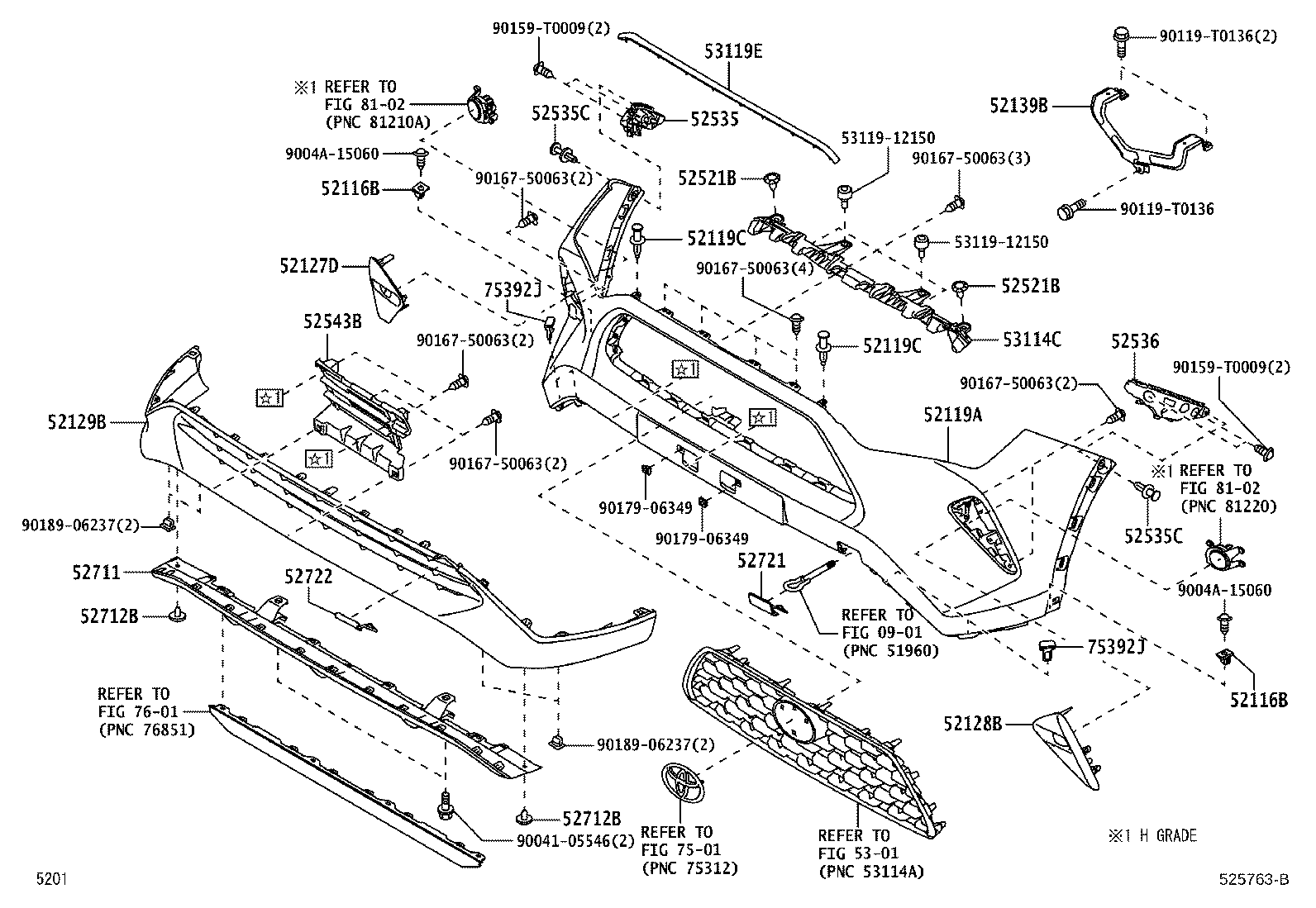

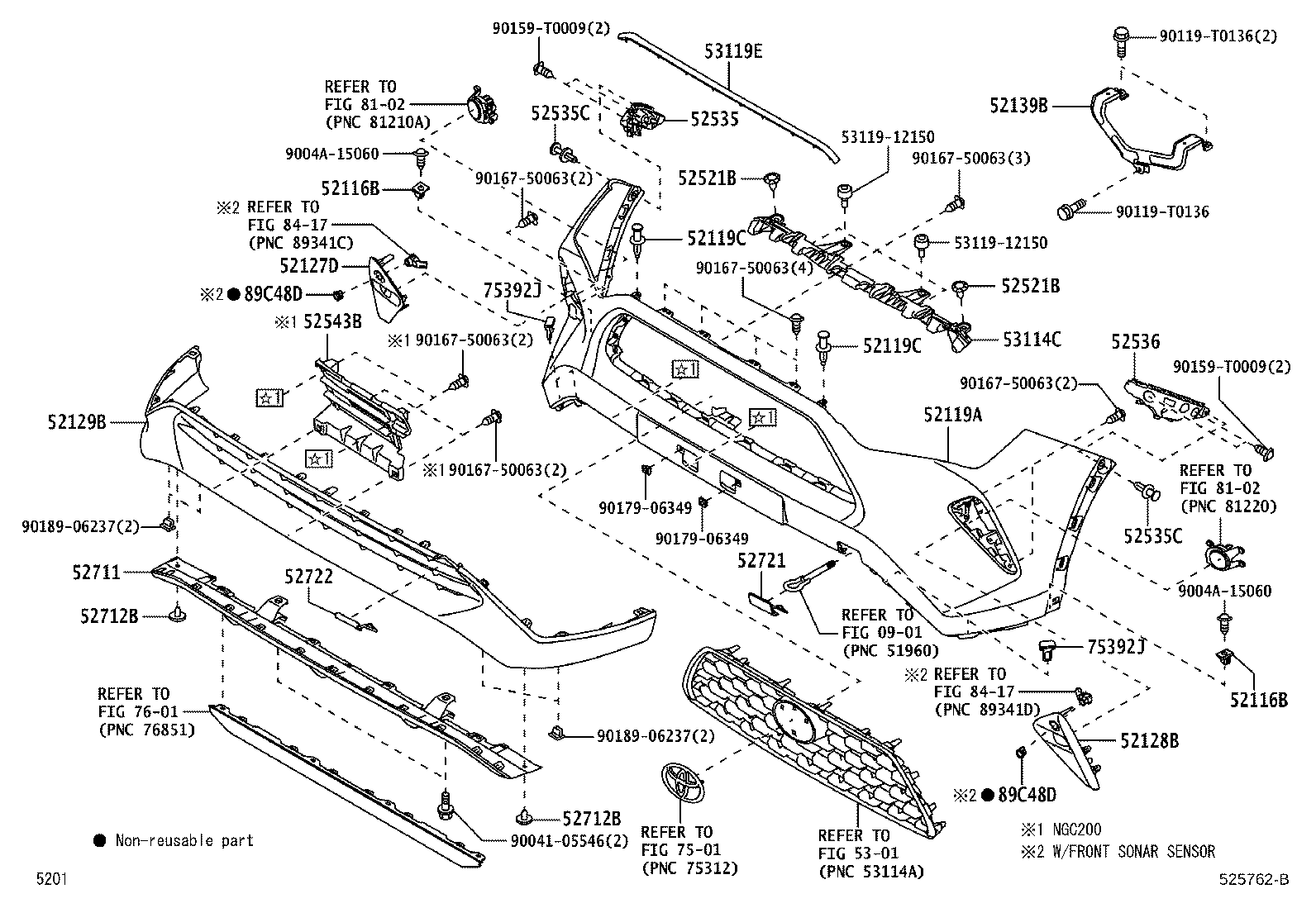

Front Bumper & Bumper Stay
20 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 52116B | Retainer, Front Bumper |
| 52119A | Cover, Front Bumper |
| 52119C | Clip, Front Bumper Cover |
| 52127D | Cover, Front Bumper Hole, RH |
| 52128B | Cover, Front Bumper Hole, LH |
| 52129B | Cover, Front Bumper, Lower |
| 52139B | Brace, Front Bumper, Center |
| 52521B | Retainer, Front Bumper, Upper |
| 52535 | Retainer, Front Bumper Side, RH |
| 52535C | Retainer, Front Bumper Side |
| 52536 | Retainer, Front Bumper Side, LH |
| 52543B | Seal, Front Bumper |
| 52711 | Moulding, Front Bumper |
| 52712B | Clip, Front Bumper Moulding |
| 52721 | Moulding, Front Bumper Extension, RH |
| 52722 | Moulding, Front Bumper Extension, LH |
| 53114C | Grille, Radiator, Inner |
| 53119E | Protector, Radiator Grille |
| 75392J | Retainer, Outside Moulding |
| 89C48D | Retainer, Ultrasonic Sensor, Front Corner |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
