Toyota Yaris Cross
2023-06 → present · chassis NGC200,NYC200 · catalogue 514210 · General
Supported model
Data version 2023-09
Hood & Front Fender
20 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 53301 | Hood Sub-assy |
| 53301B | Cushion, Hood Bumper |
| 53326A | Clip, Hood Moulding |
| 53341B | Insulator, Hood |
| 53341C | Clip(FOR HOOD INSULATOR) |
| 53393B | Protector, Hood, Front |

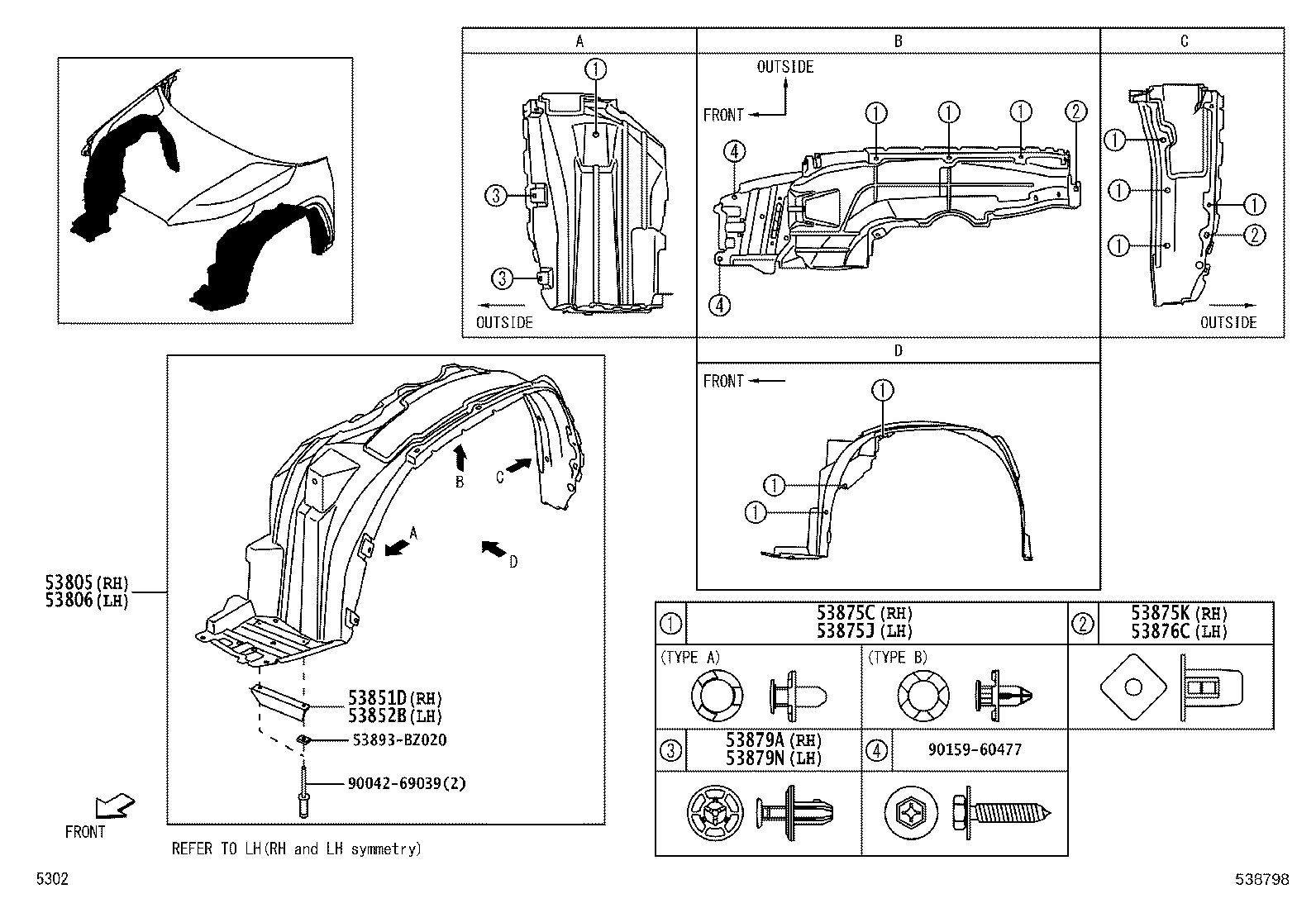

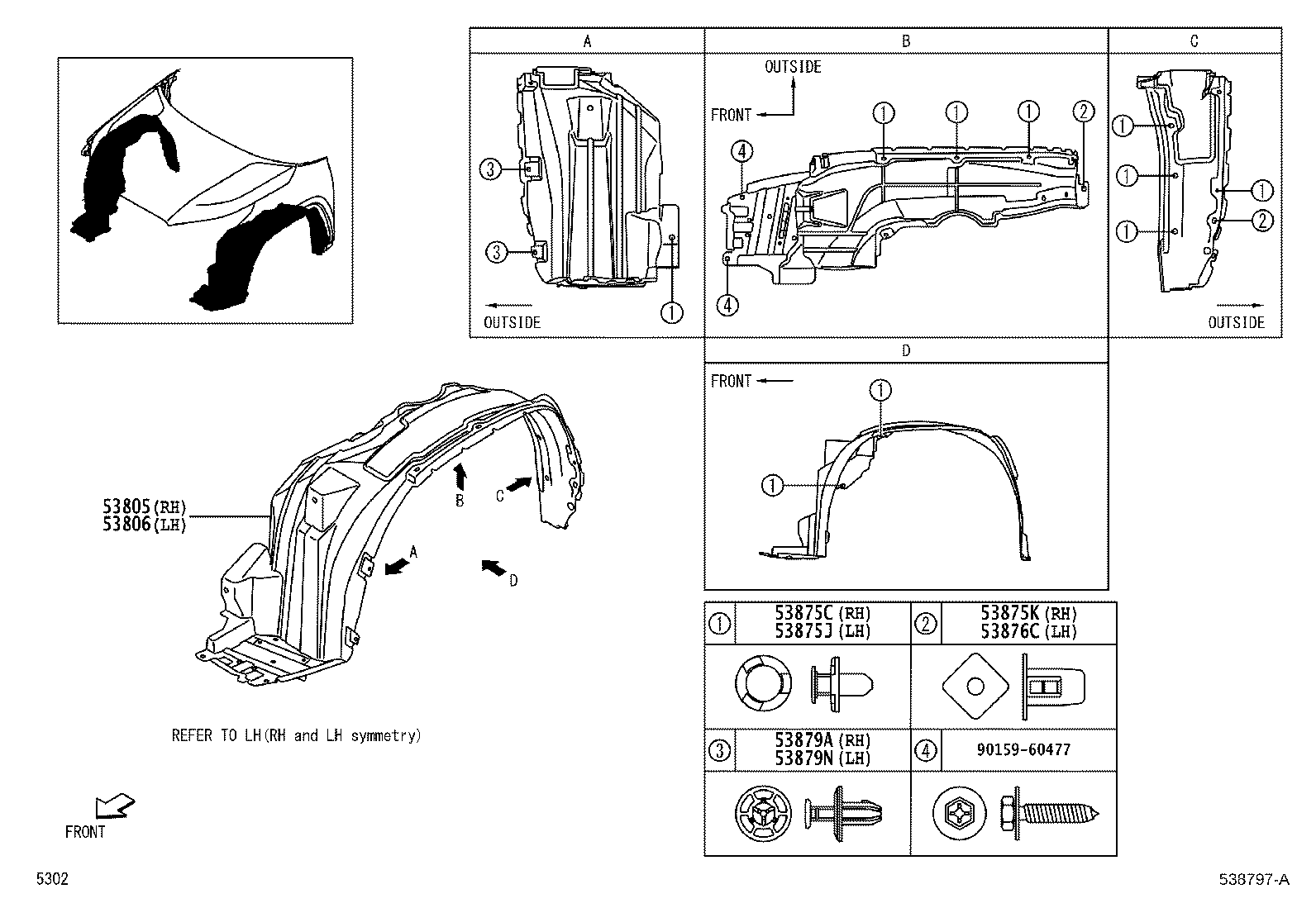

| 53805 | Shield Sub-assy, Front Fender Splash, RH |
| 53806 | Shield Sub-assy, Front Fender Splash, LH |

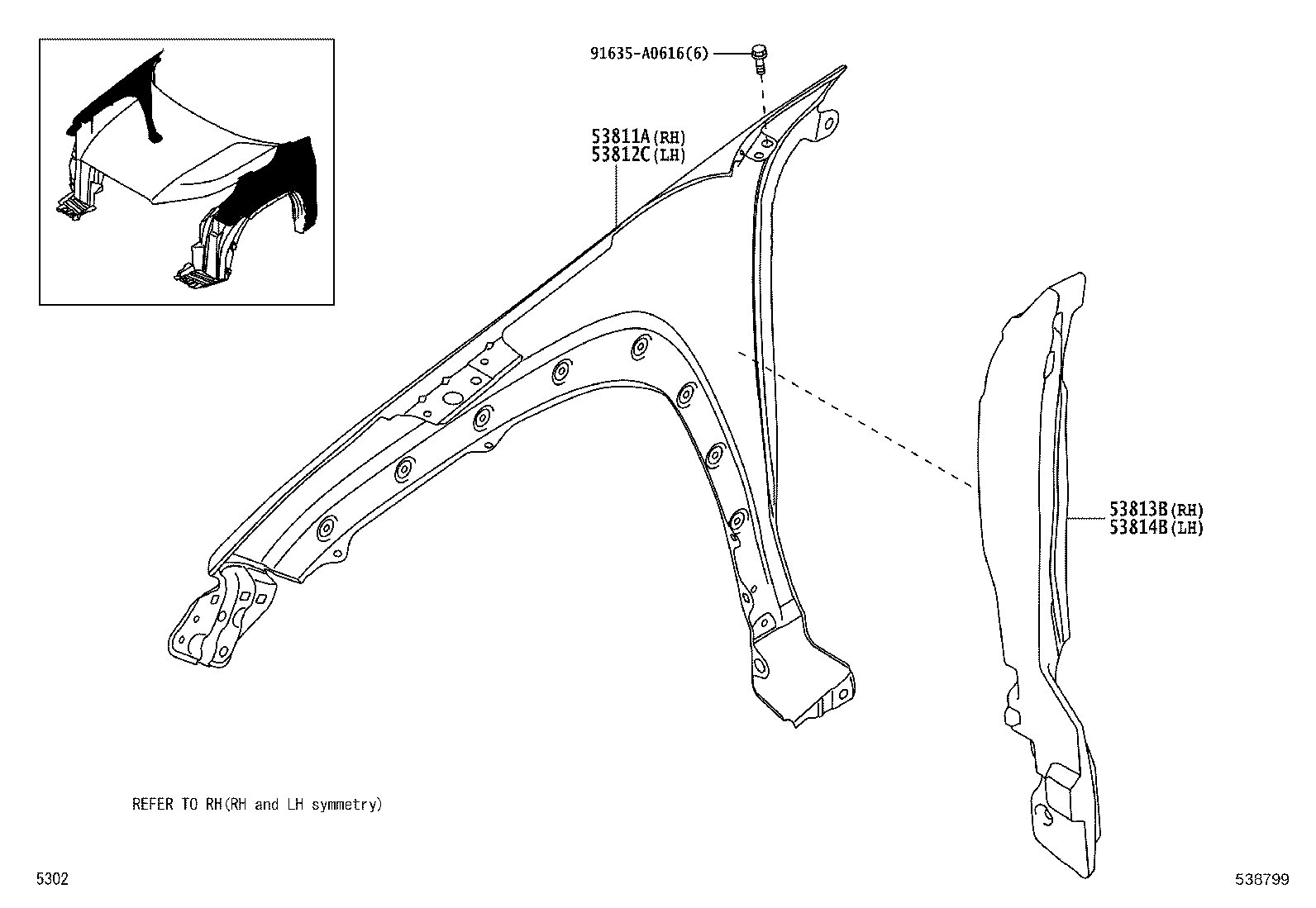

| 53811A | Panel, Front Fender, RH |
| 53812C | Panel, Front Fender, LH |
| 53813B | Extension, Front Fender, RH |
| 53814B | Extension, Front Fender, LH |
| 53851D | Pad, Front Wheel Opening Extension, RH |
| 53852B | Pad, Front Wheel Opening Extension, LH |
| 53875C | Clip, Front Fender Liner |
| 53875J | Clip, Front Fender Liner |
| 53875K | Grommet, Screw |
| 53876C | Grommet, Screw |
| 53879A | Retainer, Front Fender Liner |
| 53879N | Retainer, Front Fender Liner, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
