Toyota Yaris Cross

2023-06 → present · chassis NGC200,NYC200 · catalogue 514210 · General

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood Lock & Hinge

12 part groups · 4 illustrations

Illustrations

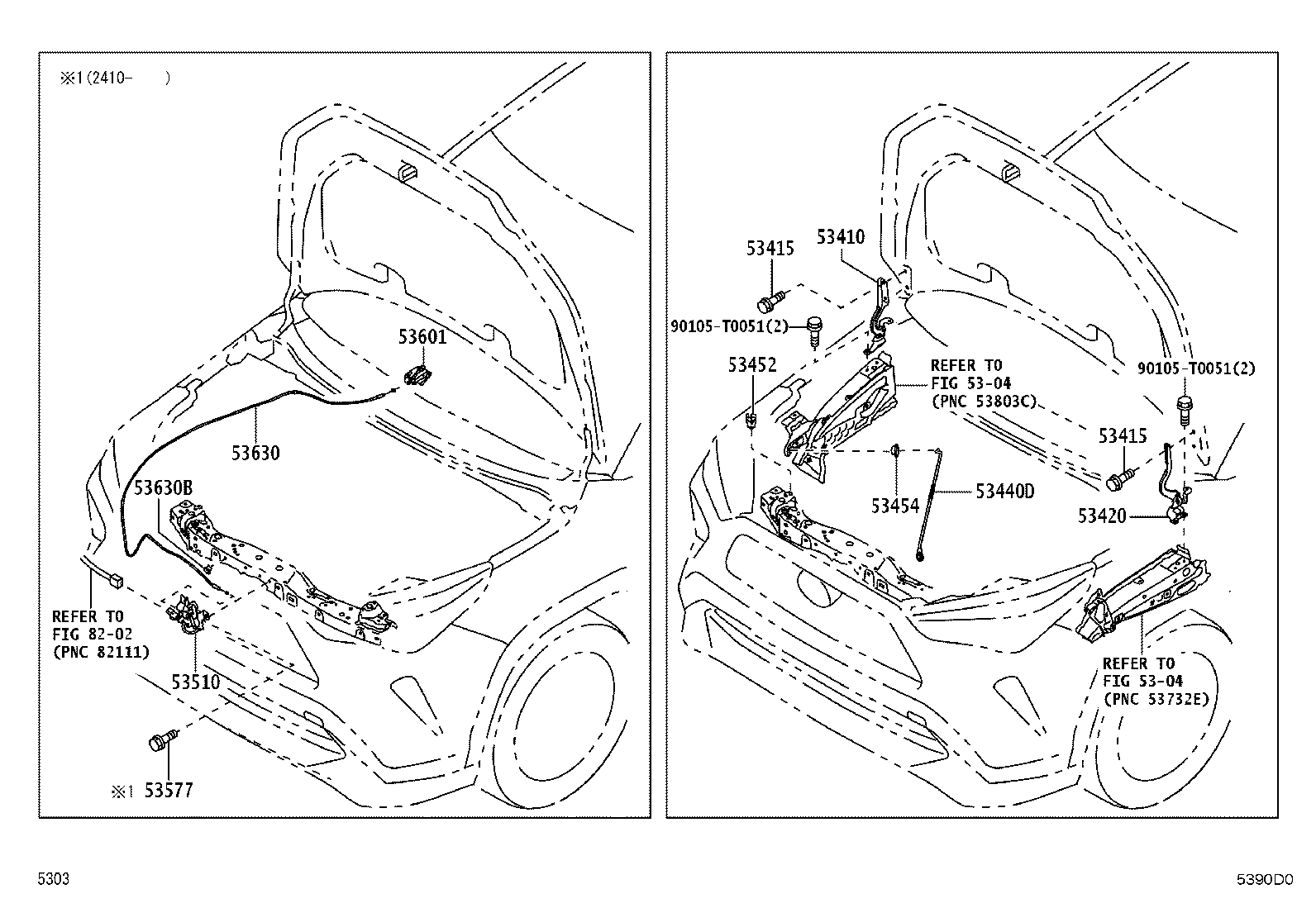

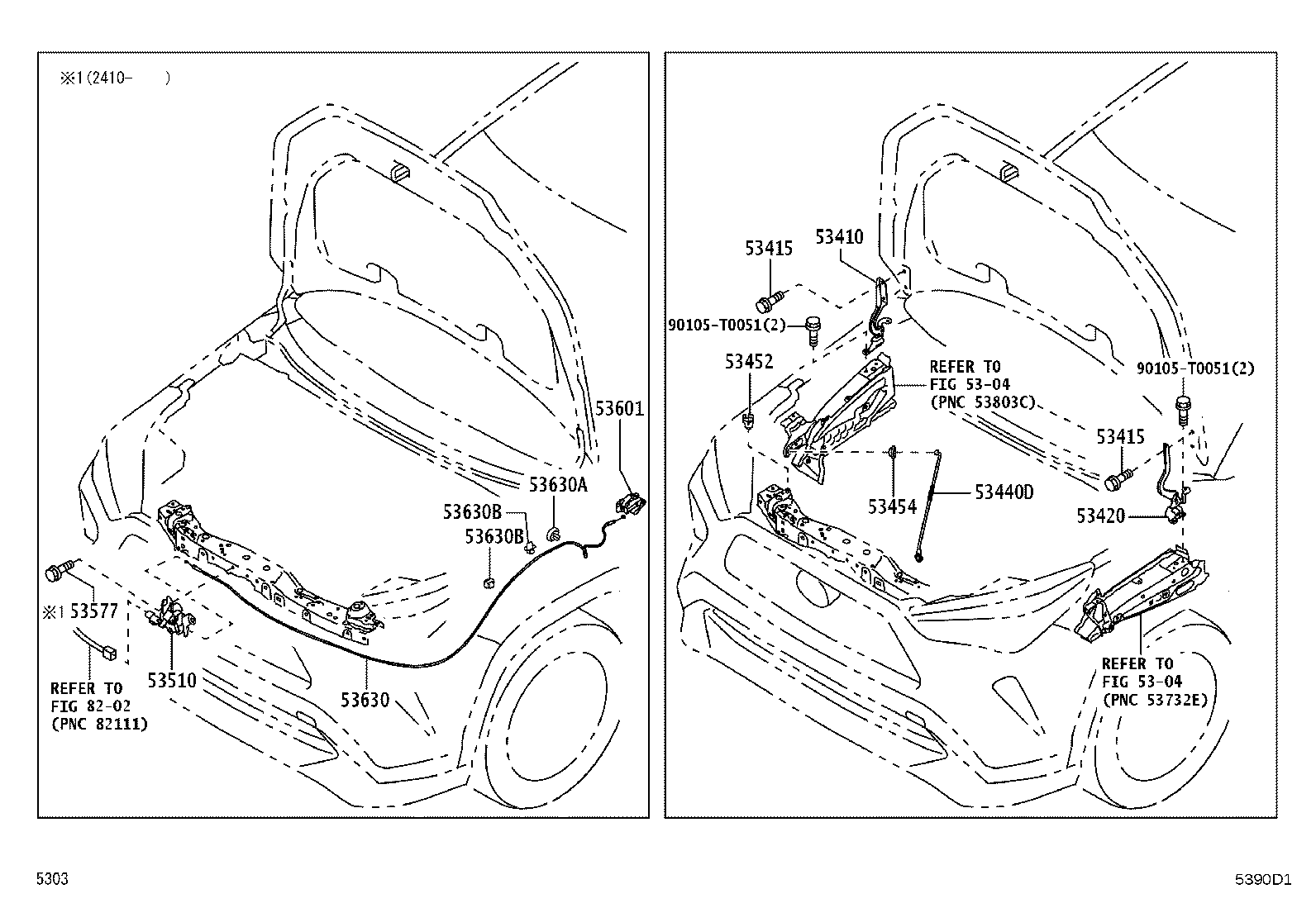

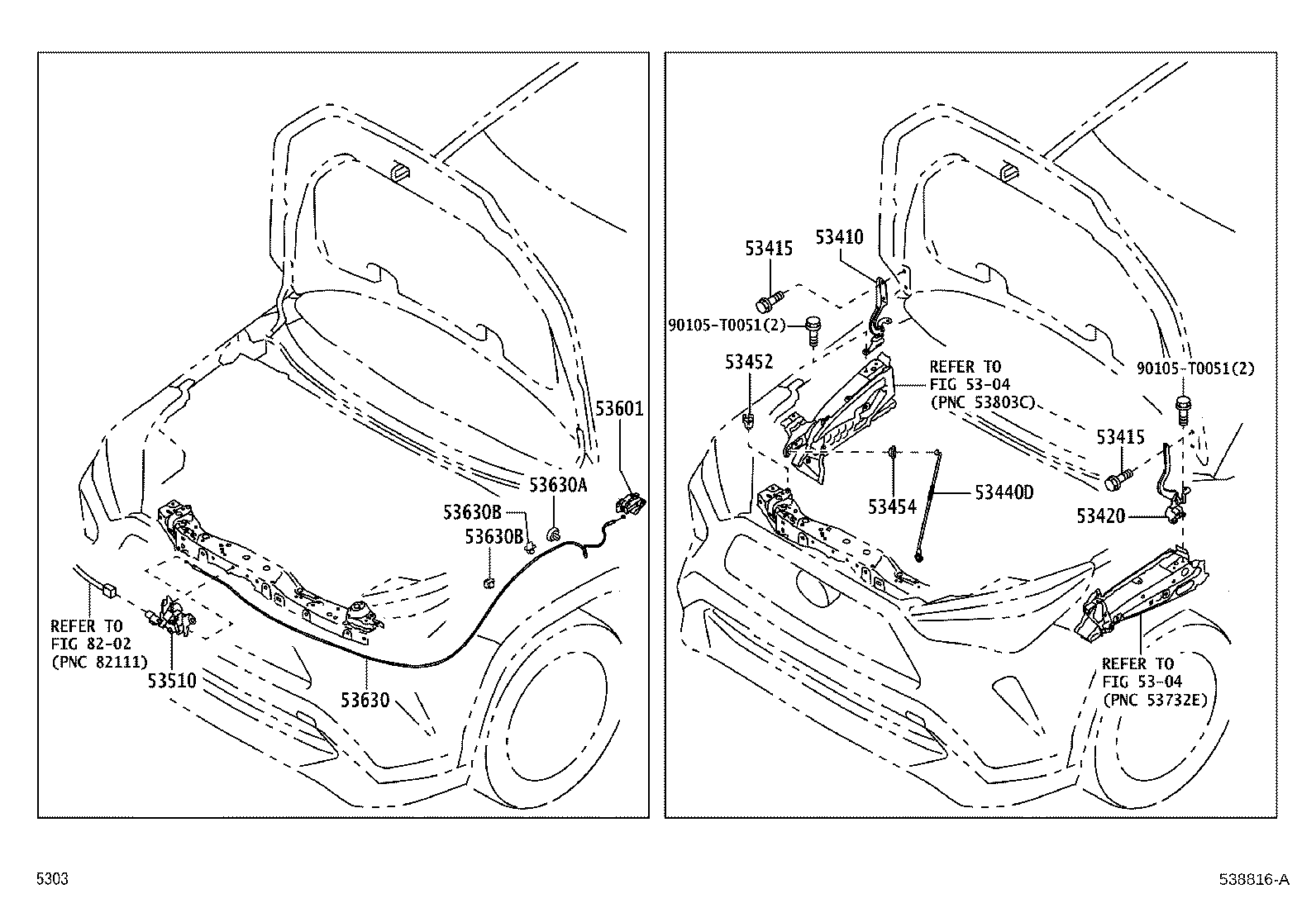

Figure 538815A 538815A 2023-06 → 2024-10 Figure 5390D0 5390D0 2024-10 → — Figure 538816A 538816A 2023-06 → 2024-10 Figure 5390D1 5390D1 2024-10 → —

Part groups

PNCDescription
53410 Hinge Assy, Hood, RH
53415 Bolt, Hood Hinge
53420 Hinge Assy, Hood, LH
53440D Support Assy, Hood
53452 Holder, Hood Stay
53454 Clip, Hood Support Rod
53510 Lock Assy, Hood
53577 Bolt, Hood Lock
53601 Lever Sub-assy, Hood Lock Control
53630 Cable Assy, Hood Lock Control
53630A Grommet(FOR HOOD LOCK CONTROL CABLE)
53630B Clamp(FOR HOOD LOCK CONTROL CABLE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
