Toyota Yaris Cross
2023-06 → present · chassis NGC200,NYC200 · catalogue 514210 · General
Supported model
Data version 2023-09

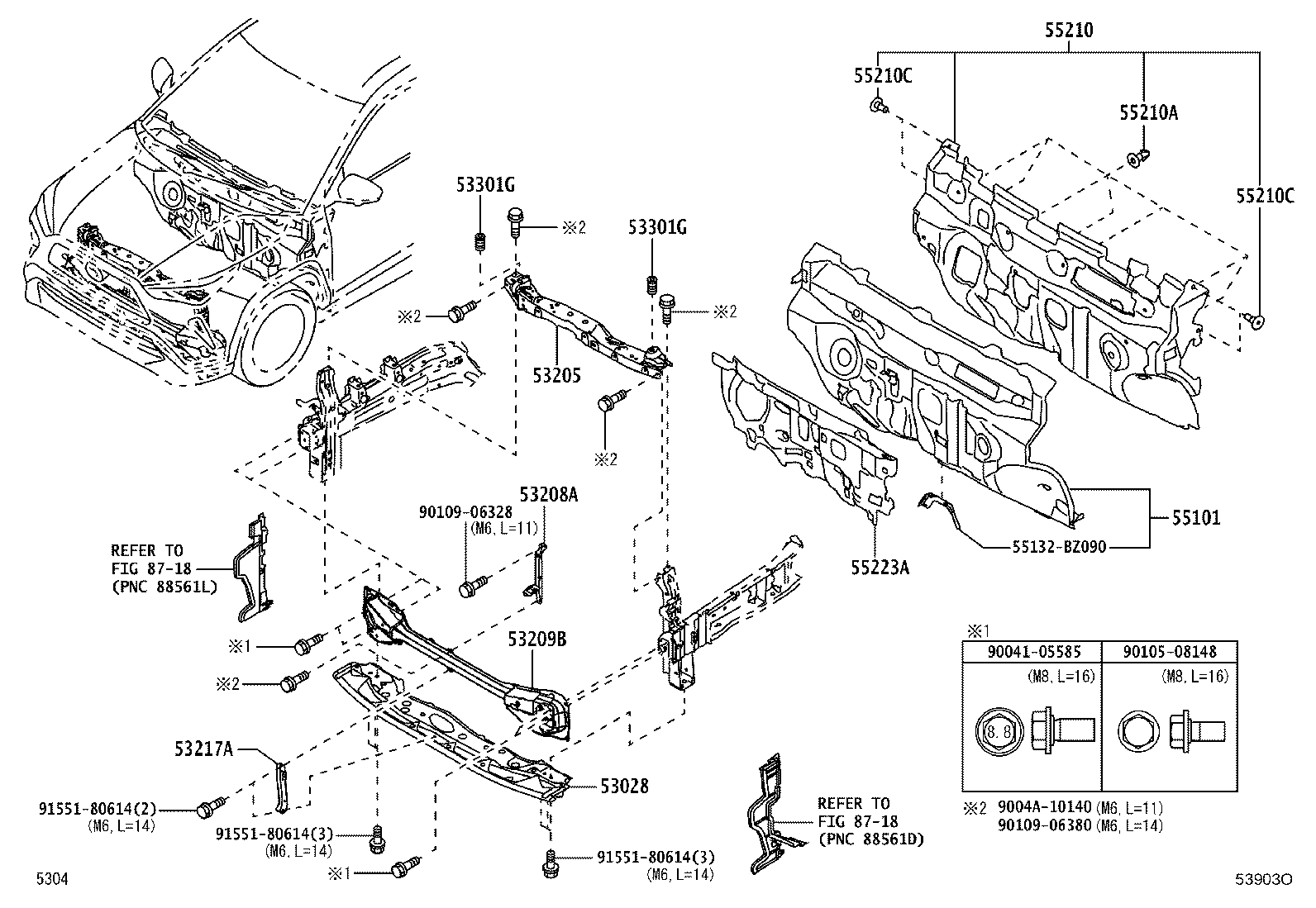

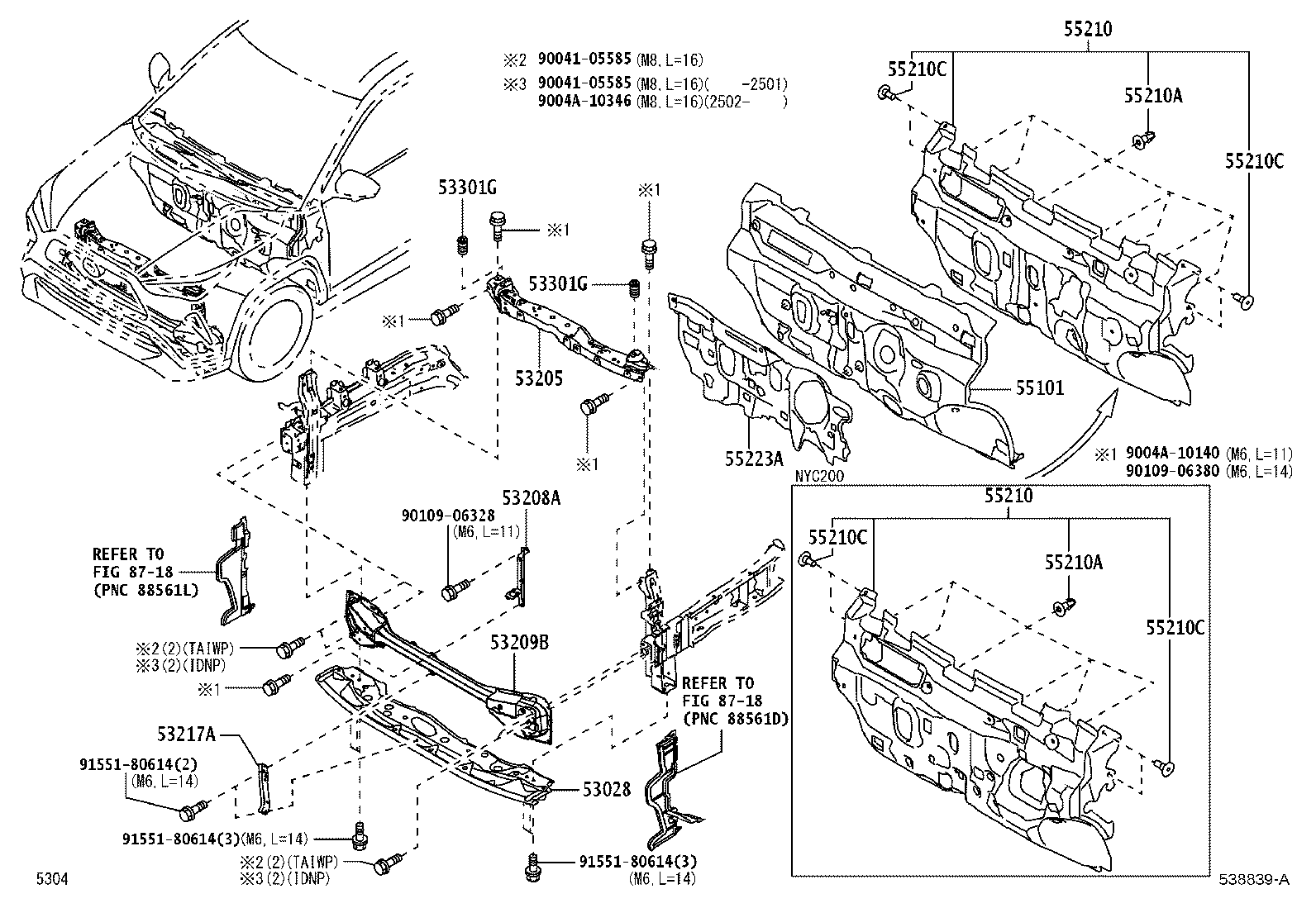

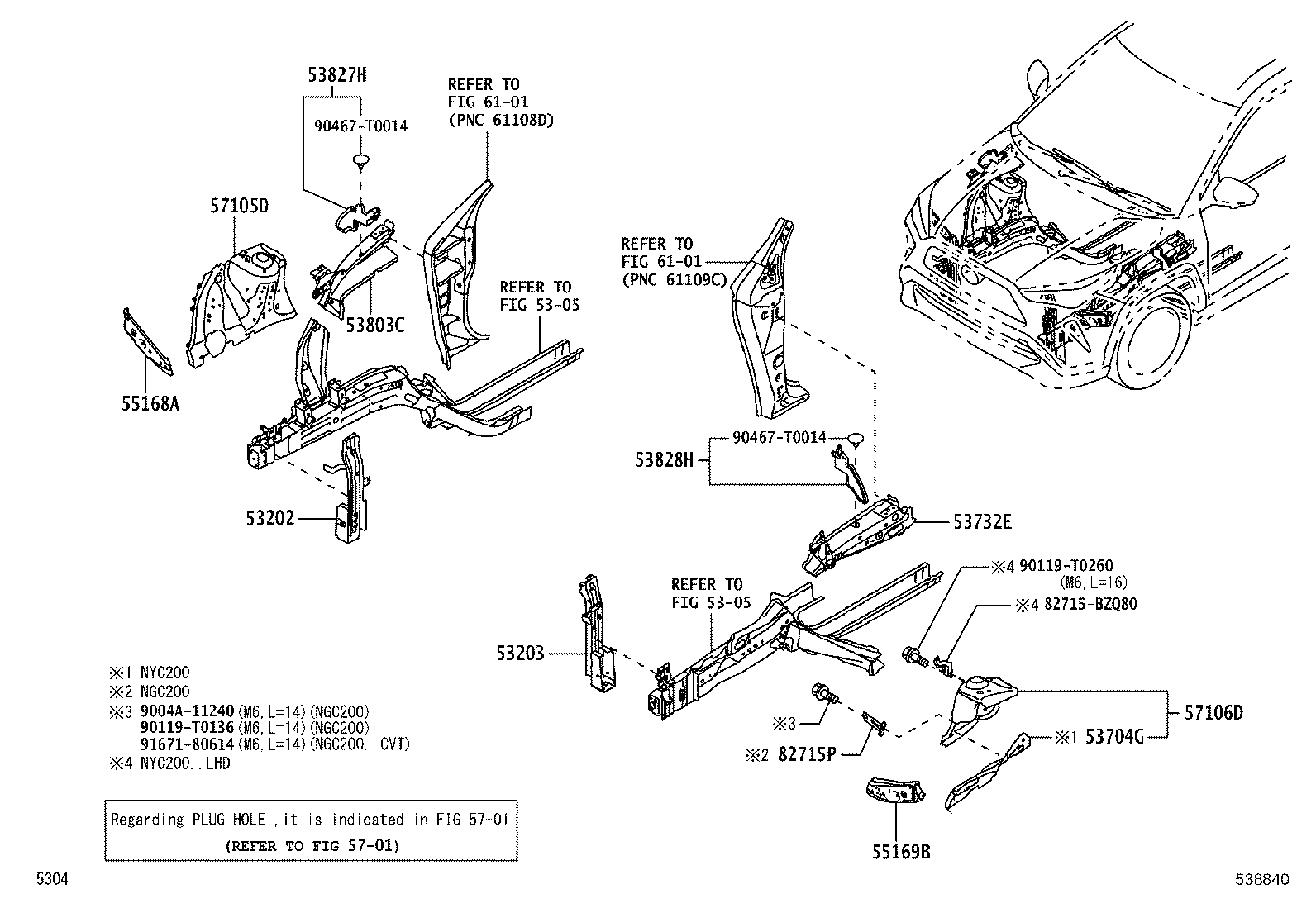

Front Fender Apron & Dash Panel
23 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 53028 | Support Sub-assy, Radiator, Lower |
| 53202 | Support Sub-assy, Radiator, RH |
| 53203 | Support Sub-assy, Radiator, LH |
| 53205 | Support Sub-assy, Radiator, Upper |
| 53208A | Support Sub-assy, Hood Lock |
| 53209B | Brace Sub-assy, Hood Lock Support |
| 53217A | Brace, Hood Lock Support |
| 53301G | Cushion, Hood Bumper |
| 53704G | Apron Sub-assy, Front Fender, NO.2 LH |
| 53732E | Reinforcement, Front Fender Apron, LH |
| 53803C | Reinforce Sub-assy, Front Fender Side, Rear RH |
| 53827H | Protector, Front Fender Side Panel, RH |
| 53828H | Protector, Front Fender Side Panel, LH |
| 55101 | Panel Sub-assy, Dash |
| 55168A | Bracket, Front Fender Mounting, RH |
| 55169B | Bracket, Front Fender Mounting, LH |
| 55210 | Insulator Assy, Dash Panel |
| 55210A | Clip |
| 55210C | Clip |
| 55223A | Insulator, Dash Panel, Outer |
| 57105D | Plate Sub-assy, Front Side Member, RH |
| 57106D | Plate Sub-assy, Front Side Member, LH |
| 82715P | Bracket, Wiring Harness Clamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
